BR1050, a new generation of DMR repeater, has been completely upgraded in exterior design, structural optimization, and performance, etc. It integrates the advantages of ultraslim, wide coverage, long transmission distance, high reliability, and strong expandability, providing users in different industries with powerful communication coverage, outstanding stability, and rock-solid reliability.

Ultra-Slim Design

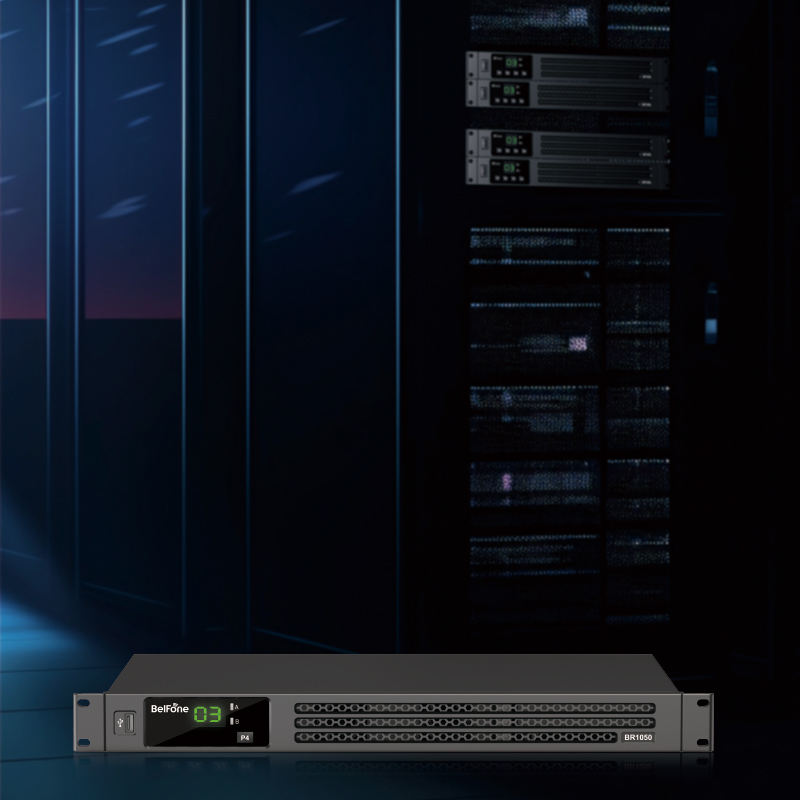

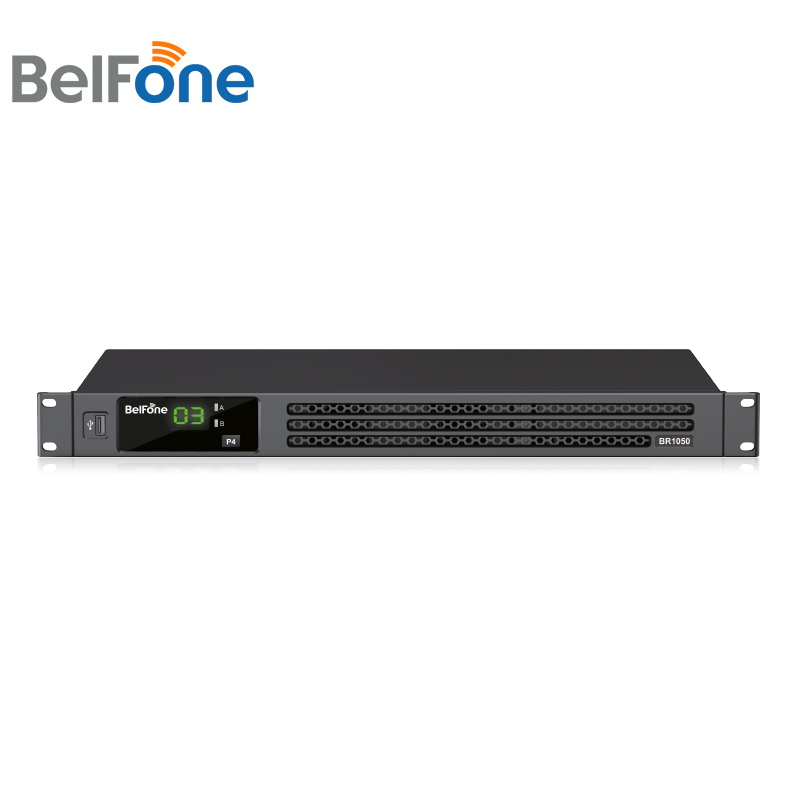

BR1050 optimizes the device space by adopting a slim 19 inches 1U frame structure, which can save cabinet space more efficiently and is also to be integrated into various communication systems.

Excellent Heat Dissipation
BR1050 adopts dual centrifugal cooling fans, high thermal conductivity materials, and active heat dissipation technique through the intelligent temperature control system so that the heat generated within the device can be in a smaller space occupation under the output of a larger air volume to enhance the cooling effect and ensuring the stable operation of the Repeater for a long time at 100% full power conditions.

High Power and Full-Frequency Band
BR1050 is equipped with excellent RF transmission and a high-efficiency power amplifier, combined with 25W/50W transmit power and full-frequency band design, which can flexibly meet the different needs of various industries even under harsh conditions, which greatly improves coverage range and high quality communication services for users.

Malfunction Warning System
BR1050 has a perfect malfunction warning system. When a fault occurs during the operation of the equipment, a fault code will appear in the digital display area and be accompanied by an alarm alert, which reminds the maintenance personnel to find the fault at the first time and facilitates efficient feedback on the management and maintenance of the repeater.

Floating Charge/ Stand-by Power Supply
BR1050 supports both AC and storage battery power supply at the same time, when the AC power supply is accidentally interrupted, the backup power protection function can automatically enable the UPS power supply to ensure normal operation of the Repeater. When the external battery loses power or is out of power, its floating charge function can provide a charging service for the equipment battery to ensure that the equipment operation is double guaranteed.

GPS Satellite Positioning
BR1050 DMR Repeater supports GPS satellite positioning, allowing the dispatcher to initiate real-time tracking and location information to the terminal through the client.

Analog/Digital Back-to-Back Application
The back-to-back application solution can support interoperability between analog and digital radios in different operating modes, thus ensuring a smooth transition from analog to digital.

General Frequency Range VHF:136~174MHz UHF:350~400MHz/400~480MHz/450~520MHz Channel Capacity 99 Channel Spacing 12.5KHz /25KHz Antenna Impedance 50Ω Main Power Supply 85-132VAC/170-264VAC(By switching)，3A/115VAC,1.7A/230VAC Backup Power Supply 11-13.8VDC，9A Dimensions (W×H×D) 434mm(L)*309mm(W)*44mm(H) Transmitter RF Output Power ≤50W Frequency Stability ≤±0.5ppm (without GPS) ≤±0.02ppm (with GPS) 4FSK Modulation 12.5KHz (data only): 7K60FXD 12.5KHz (data and voice): 7K60FXW Adjacent Channel Power ≤60dB Spurious Radiation -36dBm<1GHz -30dBm>1GHz Receiver Sensitivity 3%BER≤0.35µV Frequency Stability ≤±0.5ppm (without GPS) ≤±0.2ppm (with GPS) Adjacent Channel Selectivity ≥60dB Intermodulation Immunity ≥70dB Spurious Response ≥70dB Blocking ≥95dB Environmental Specifications Operating Temperature -30℃～+70℃ Storage Temperature -40℃～+85℃
