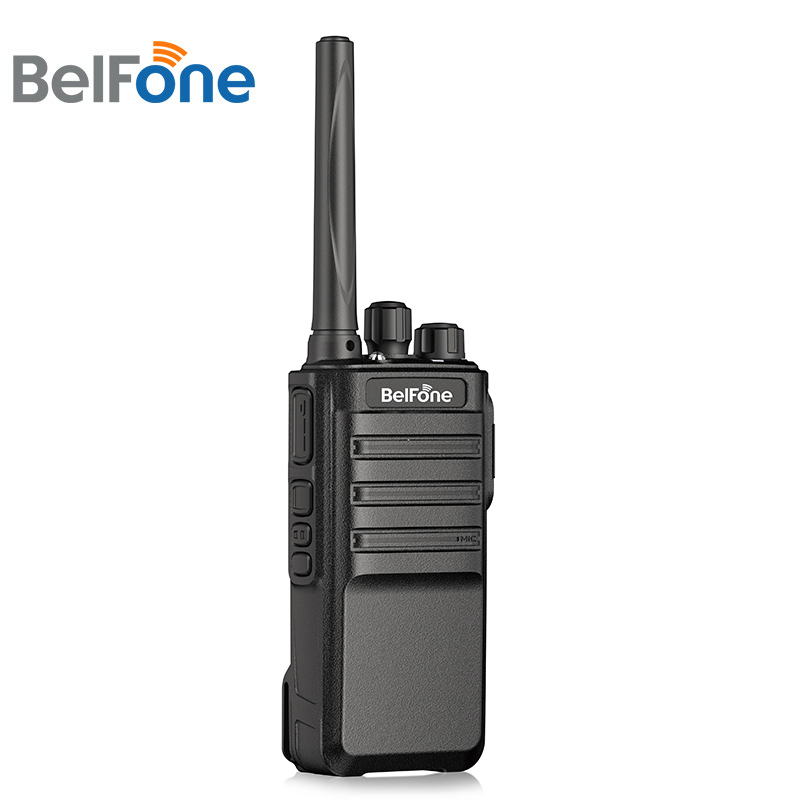

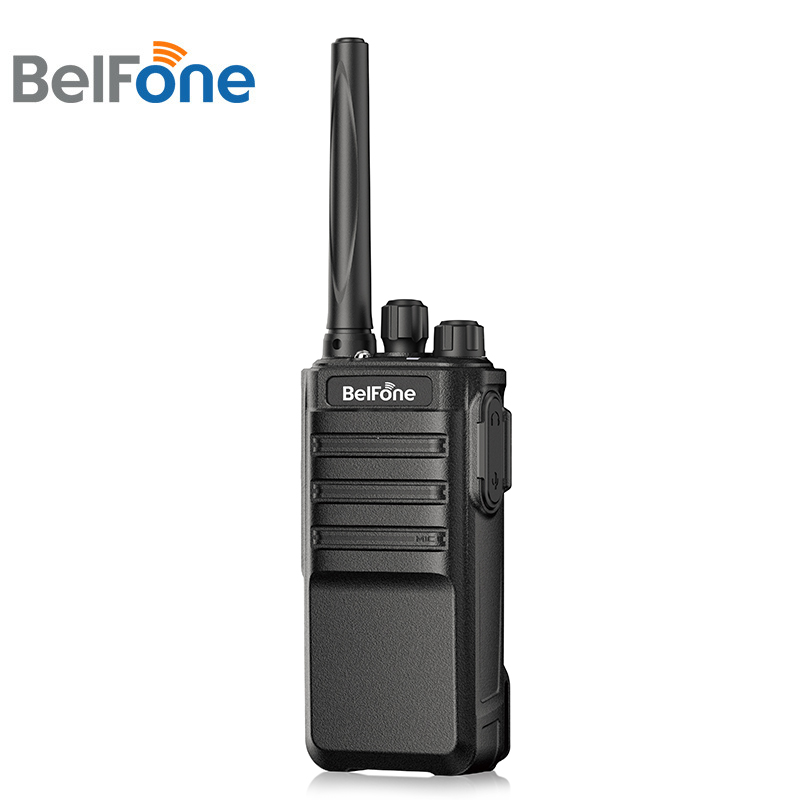

BF-500 is a compact and durable walkie talkie with two PTT buttons. While one PTT button comes with a preset channel, with the other the user can switch channels through the channel switch knob. BF-500, when not transmitting, is on standby for signals from both channels. With a 4000mAh battery capacity the standby time is greatly prolonged. Moreover, the multi-functional built-in flashlight and battery indicator contribute to the convenience of BF-500. This is an ideal analog solution for users with heavy communication demands.

Two PTT Buttons

BF-500 comes with two PTT buttons. Push PTT button No.1 to initiate a talk on one channel and PTT button No.2 to initiate another talk on a preset channel. And of course the radio, when not transmitting, is on standby for signals from both channels.

Noise Cancellation

This feature helps to cancel out the noise in the voices and enhance the overall audio experience.

Long Battery Life

BF-500 has a long battery life that can easily last the user through the day.

Built-in Flashlight

BF-500 integrates a multi-functional flashlight. In case the user wants to send out a SOS signal, the flashlight supports flickering feature.

Battery Indicator

The user will always have a good knowledge of the radio’s battery status.

CTCSS/CDCSS

Squelch Levels (0-9)

Specifications

General Frequency Range UHF: 400-480MHz Channel Capacity 16 Channel Spacing 25KHz/12.5KHz Voltage DC 3.7V (±20%) Frequency Stability ≤±2.5ppm Antenna Impedance 50Ω Battery Capacity 4000mAh Working Temperature -20℃—+60℃ Dimensions 55(L)*36(W)*115(H)mm Weight 252g(battery included) Transmitter Output Power <５W Modulation 11KΦF3E/16KΦF3E Rated Audio Distortion ≤5% Adjacent Power 60 dB Modulation Limitation ≤5KHz(width)/2.5KHz(narrow) Receiver Sensitivity ≤-123dBm (12Db SINAD) Adjacent Selectivity ≥60dB(width)/ 55dB (narrow) Intermodulation Rejection ≥60dB(width)/ 55dB (narrow) Spurious Suppression ≥60dB(width)/ 55dB (narrow) SNR ≥40B(width)/ 35dB (narrow) Rated audio output power 0.5W Rated audio distortion ≤5%

About Us

Communications for Efficiency and Safety

BelFone (named BFDX in China market founded in 1989) is a Chinese leader in the design, manufacture and supply of digital radio products, systems and applications, based in China and owned 5 R&D centers with more than 200 R&D engineers. BelFone expanded rapidly acroSs the world with a consistent growing network of regional partners selling and providing local support for its products and achieved 50% annual growth every year. BelFone focuses on developing the best seamless tailored communications strategy, technology and operations for clients and partners.

Why Choose Us

Well-known brand name in China for good quality products since 1989.

ISO 9001, ISO 14000 certified company. Product certified with CE, FCC, RCM, ROHS for type approval.

Strong R&D based in China, 3 R&D centers with more than 200 R&D engineers for product development.
