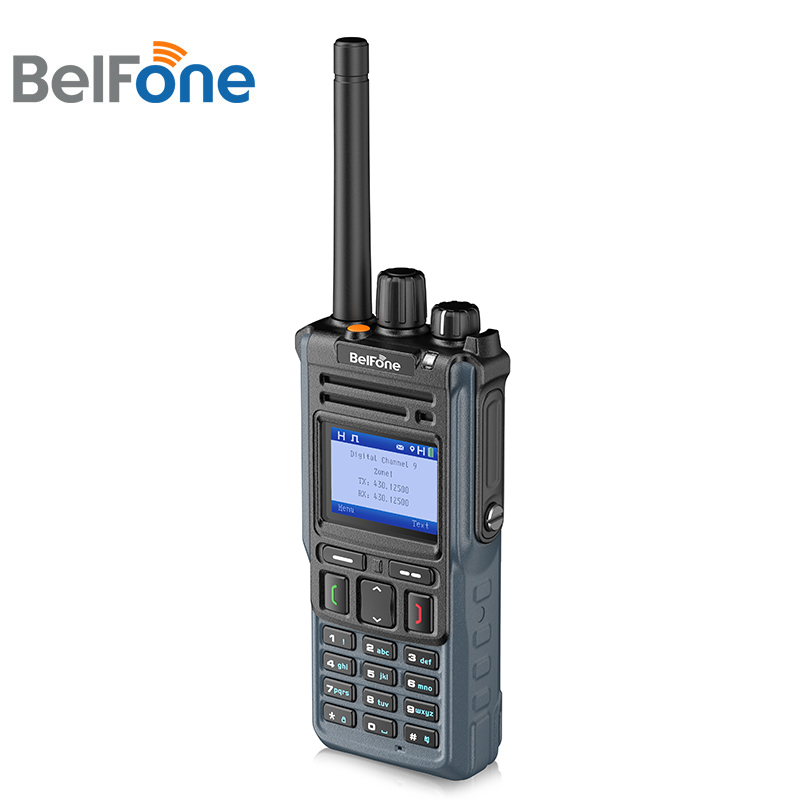

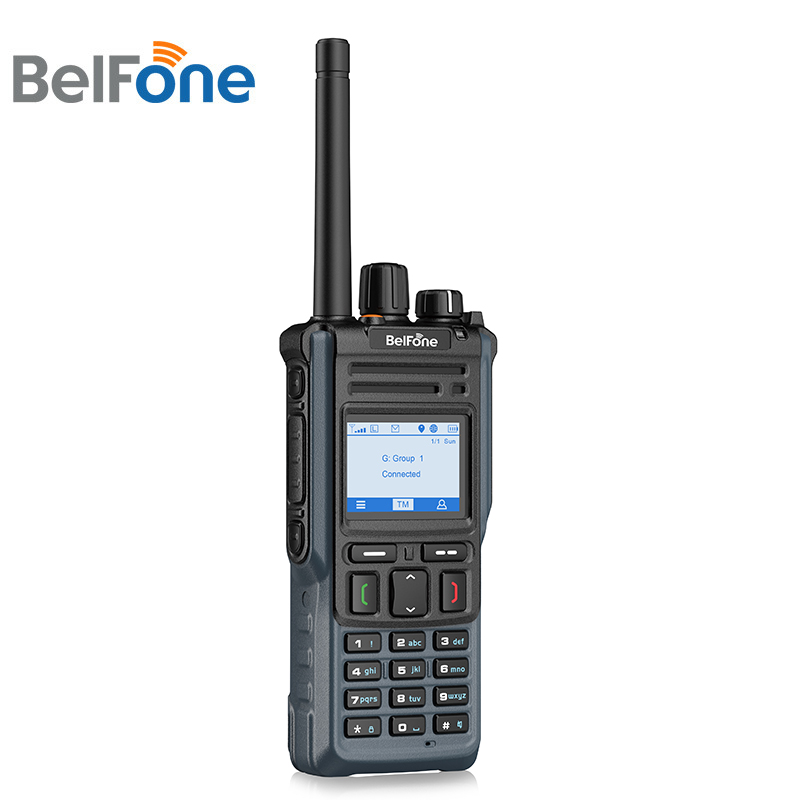

Full Duplex Calls

BF-TD950 incorporates the ground-breaking full duplex calling technology to allow both parties to talk at the same time, which greatly facilitates the exchange of crucial information and increases communication efficiency.

GPS Positioning

With better accuracy and precision, the built-in GPS enables the commander to locate and track his team member. This contributes a lot to personnel management and dispatching.

IP68 Protection

Our tough IP68 radio BF-TD950 is designed to brave the challenges of harsh environments. So, environmental factors are one less thing to worry about.

Superior Audio Quality

BF-TD950 incorporates advanced audio processing technology to effectively suppress background noise and enhance audio quality, delivering a most loud and clear audio.

A Long Battery Life

With a battery capacity of 3400mAh, BF-TD950 can easily power you through your longest working day. BF-TD950 can work straight for 17 hours in trunking mode.

Automatic Roaming

BF-TD950 automatically roams among all sites in the network and always stays connected. This delivers more efficiency and flexibility to your radio communications.

DMR Tier III Trunking Mode

BF-TD950 is compatible with BelFone BTX/ETXTrunking System. When working in DMR Tier 3 Trunking mode, BF-TD950 can access a pool of radio channels which are dynamically allocated to users when required. This is more frequency efficient.

Radio Priority-Based Interruption

A radio with higher priority can interrupt communications between radios with lower priorities, either to transmit or just to clear a channel. This greatly facilitates commanding and dispatching.

Specifications

General Frequency Range VHF: 136-174MHZ; UHF: 350-390MHz/ 400-480MHz/ 450-520MHz Channels 1024 Zones 64 Channel Spacing 12.5KHz/ 25KHz Working Voltage DC7.4V (±20％) Frequency Stability ±0.5ppm Antenna Impedance 50Ω Battery Capacity 3350 mAh Battery Average Working Time Digital 24 hours; Analog 20 hours Dimension 56(L)* 33(W)* 129(H) mm Weight 330g (including battery pack) Transmitter Power Output High power: 4W/U band; 5W/V band; Middle power: 2W; Low power: 1W 4FSK Modulation 12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE FM Modulation 12.5KHz: 8K50F3E; 25KHz: 16KφF3E Modulation Limitation ±2.5KHz FM Noise -40dB Spurious Emission -36 dBm≤1GHz; -30 dBm≥1GHz Adjacent Channel Power ≤-60dB Frequency Response +1/-3dB Vocoder AMBE++/NVCO Audio Distortion 3% Receiver Digital Sensitivity 5% BER: 0.22 μV Analog Sensitivity 0.22uV (12 dB SINAD) Intermodulation 70dB Adjacent Channel Selectivity 60dB Spurious Suppression 70dB FM Noise -40dB Frequency Response +1/-3 dB Audio Power 1.0W (8Ω load) Audio Distortion 3% (typical) Conduction Radiation -57dBm GPS Precision Horizontal Accuracy ≤110m (with good signal) TTFF (first location) Cold Boot ＜30 seconds(with good signal) TTFF (first location) Hot Boot ＜10 seconds (with good signal) Environmental Specifications Operating Temperature -30℃~+60℃ Storage Temperature -40℃~+85℃ Water Proof IP68 Shock & Vibration MIL-STD-810C/D/E/F
