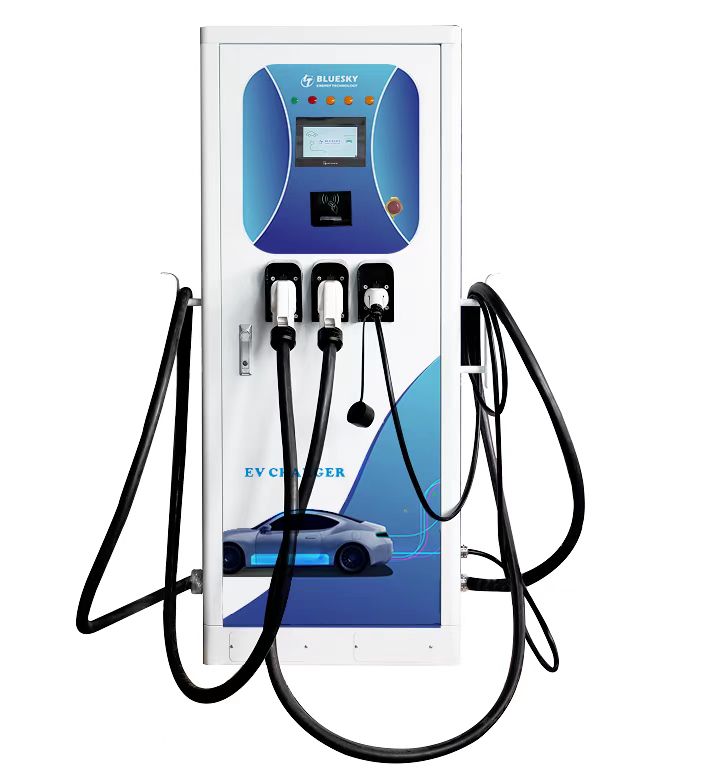

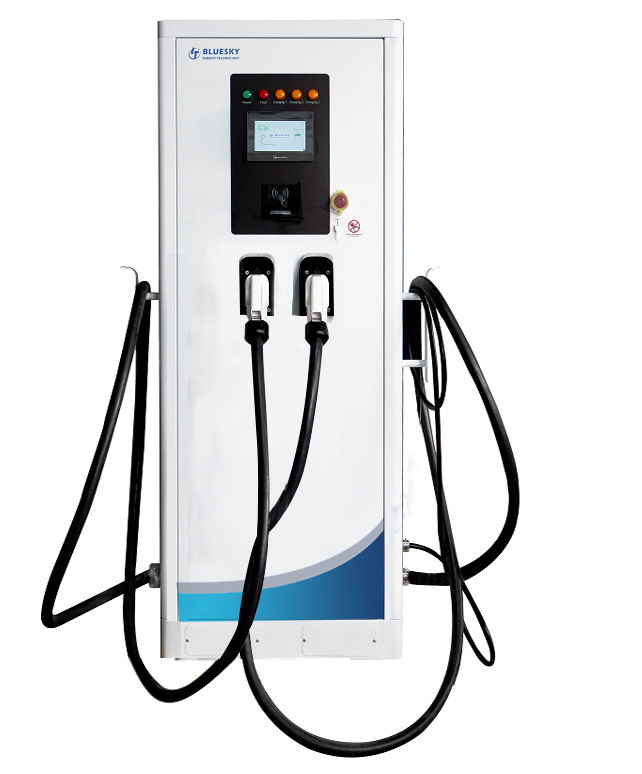

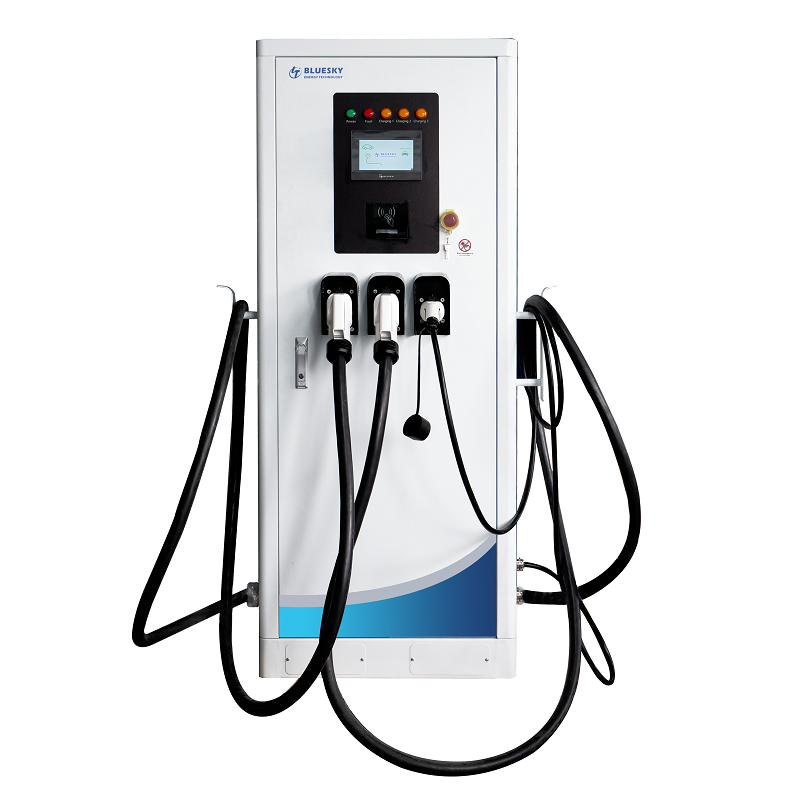

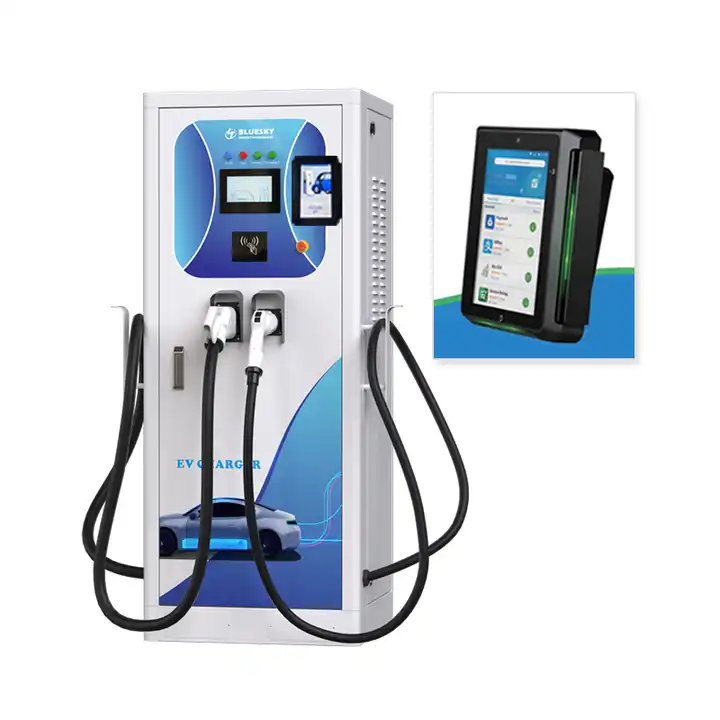

Bluesky 142kw DC CCS CHAdeMO new energy EV charging pile EV charger DC with three connectors
WENZHOU BLUESKY ENERGY TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Bluesky 142kw DC CCS CHAdeMO new energy EV charging pile EV charger DC with three connectors
WENZHOU BLUESKY ENERGY TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: metal
- Size: 1020*720*1600mm
- Color: Customized Color
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea
- Made in: Zhejiang, China
About this product
- Materials: metal
- Size: 1020*720*1600mm
- Color: Customized Color
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea
- Made in: Zhejiang, China
Product details
| Materials | metal |
|---|---|
| Size | 1020*720*1600mm |
| Color | Customized Color |
Product details
| Materials | metal |
|---|---|
| Size | 1020*720*1600mm |
| Color | Customized Color |
From the supplier
General specifications
Environment
Indoor / outdoor
Operating temperature
,-20 ºC to +50 ºC(de-rating characteristic applies) Option: -35 ºC to +50 ºc
Storage temperature
,-40 ºC to +70 ºC
RFID system
ISO/IEC14443A/B, ISO/IEC15693, FeliCa™ 1, NFC reader mode, LEGIC Prime & Advant
Payments
Smart Card, Server based Online Payments or equivalent
Network connection
GSM / CDMA / 3G modem, 10/100 Base-T Ethernet
Interaction Display
Full-color (7 in 800x480 TFT ) LCD display for driver interaction
Visual Indicators
Error indication, Presence of input supply indication, Charge process indication and other relevant information
safety protection
Over current, under voltage, over voltage, Residual current, Surge protection, Short circuit, Earth fault at input and output, Input phase reversal, Emergency shut-down with alarm, Over temperature, Protection against electric shock
Push Button
Mushroom type emergency stop switch (Red)
Supported Communication Protocols
OCPP1.6
Protection
IP54
Input Chracteristics
AC Supply System
Three-Phase, 5 Wire AC system (3Ph.+N+PE)
Nominal Input voltage
3Ø, 260~530VAC
Input Frequency
50Hz, ±10Hz
FAQ1.Q: How long is your lead time?
A: If for AC Charger, about 5-7 days; if for DC Charger within 5 units, about 20-25 days.
2.Q: What's difference between commercial type and home-using type?
A: Commercial type is configurated with OCPP1.6J, it allows you to connected to the network to check the charging management system and online card information through a protocol.
3. Q: What is OCPP?
A: OCPP is abbreviated for open charging point protocol, it is a kind of network protocol.You can connected to our management system in PC via it, and then manage the EV charger and online cards. Also, you could position the EV charger via OCPP. or do you have your own management system?
4.Q: Are your products can be connected to APP?
A: Yes, we could provide you with a port to connect your own APP.
5.Q: With RFID function, how's your payment procedure works?
A: There are two kind of cards,one is offline card without payment function, just swipe as a key to make Charger to operate. Another card is member card/white card/online card),we can save money inside in your back office, people hold the card to charge his car,and the amount will be reduced.
6.Q: Can I create extra cards?
A: Yes, just assure the card is conform to the following parameters:
ISO standard: 85.5*54mm
Working frequency: 13.56MHz/125KHz
Executive standard: ISO14443A
7.Q: Can I be your distributor?
A: Of course. First, there need be USD 5000 GMV during a year.Second, you need to provide us plan and summary monthly.
From the supplier
General specifications
Environment
Indoor / outdoor
Operating temperature
,-20 ºC to +50 ºC(de-rating characteristic applies) Option: -35 ºC to +50 ºc
Storage temperature
,-40 ºC to +70 ºC
RFID system
ISO/IEC14443A/B, ISO/IEC15693, FeliCa™ 1, NFC reader mode, LEGIC Prime & Advant
Payments
Smart Card, Server based Online Payments or equivalent
Network connection
GSM / CDMA / 3G modem, 10/100 Base-T Ethernet
Interaction Display
Full-color (7 in 800x480 TFT ) LCD display for driver interaction
Visual Indicators
Error indication, Presence of input supply indication, Charge process indication and other relevant information
safety protection
Over current, under voltage, over voltage, Residual current, Surge protection, Short circuit, Earth fault at input and output, Input phase reversal, Emergency shut-down with alarm, Over temperature, Protection against electric shock
Push Button
Mushroom type emergency stop switch (Red)
Supported Communication Protocols
OCPP1.6
Protection
IP54
Input Chracteristics
AC Supply System
Three-Phase, 5 Wire AC system (3Ph.+N+PE)
Nominal Input voltage
3Ø, 260~530VAC
Input Frequency
50Hz, ±10Hz
FAQ1.Q: How long is your lead time?
A: If for AC Charger, about 5-7 days; if for DC Charger within 5 units, about 20-25 days.
2.Q: What's difference between commercial type and home-using type?
A: Commercial type is configurated with OCPP1.6J, it allows you to connected to the network to check the charging management system and online card information through a protocol.
3. Q: What is OCPP?
A: OCPP is abbreviated for open charging point protocol, it is a kind of network protocol.You can connected to our management system in PC via it, and then manage the EV charger and online cards. Also, you could position the EV charger via OCPP. or do you have your own management system?
4.Q: Are your products can be connected to APP?
A: Yes, we could provide you with a port to connect your own APP.
5.Q: With RFID function, how's your payment procedure works?
A: There are two kind of cards,one is offline card without payment function, just swipe as a key to make Charger to operate. Another card is member card/white card/online card),we can save money inside in your back office, people hold the card to charge his car,and the amount will be reduced.
6.Q: Can I create extra cards?
A: Yes, just assure the card is conform to the following parameters:
ISO standard: 85.5*54mm
Working frequency: 13.56MHz/125KHz
Executive standard: ISO14443A
7.Q: Can I be your distributor?
A: Of course. First, there need be USD 5000 GMV during a year.Second, you need to provide us plan and summary monthly.
