About this product
- Materials: Cast Iron, Carbon Steel, Stainless Steel
- Size: 2" - 24"
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
About this product
- Materials: Cast Iron, Carbon Steel, Stainless Steel
- Size: 2" - 24"
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
Product details
| Materials | Cast Iron, Carbon Steel, Stainless Steel |
|---|---|
| Size | 2" - 24" |
From the supplier
Butterfly Valves are typically used to open and close (seal type) or adjust the medium flow in pipes. They have an extended use in many industrial applications such as oil&gas, chemical and petrochemical plants, water pipelines, mining applications, etc...
Trustworthy can provide centered axis or simple eccentric butterfly valve designs but for severe applications such as high temperatures or at high opening and closing frequencies double or triple eccentric butterfly valves are available.
Butterfly valves ensures a perfect performance and sealing for pressure ratings up to ASME Class 600#. A variety of configurations are available according to API 609 Design standard valves: Double Flanged type, Wafer and Lug construction.
Standards: API 609, MSS SP-67
Inspection Standards: API 598
Valve Design: Centric, Eccentric

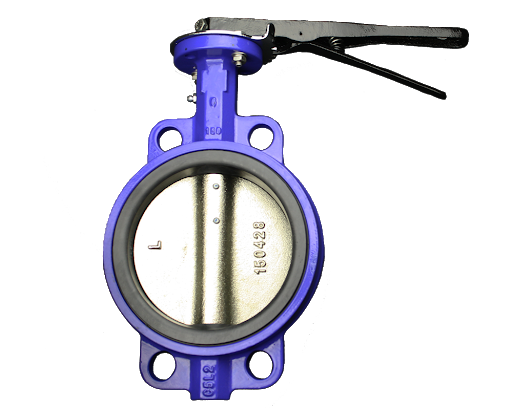

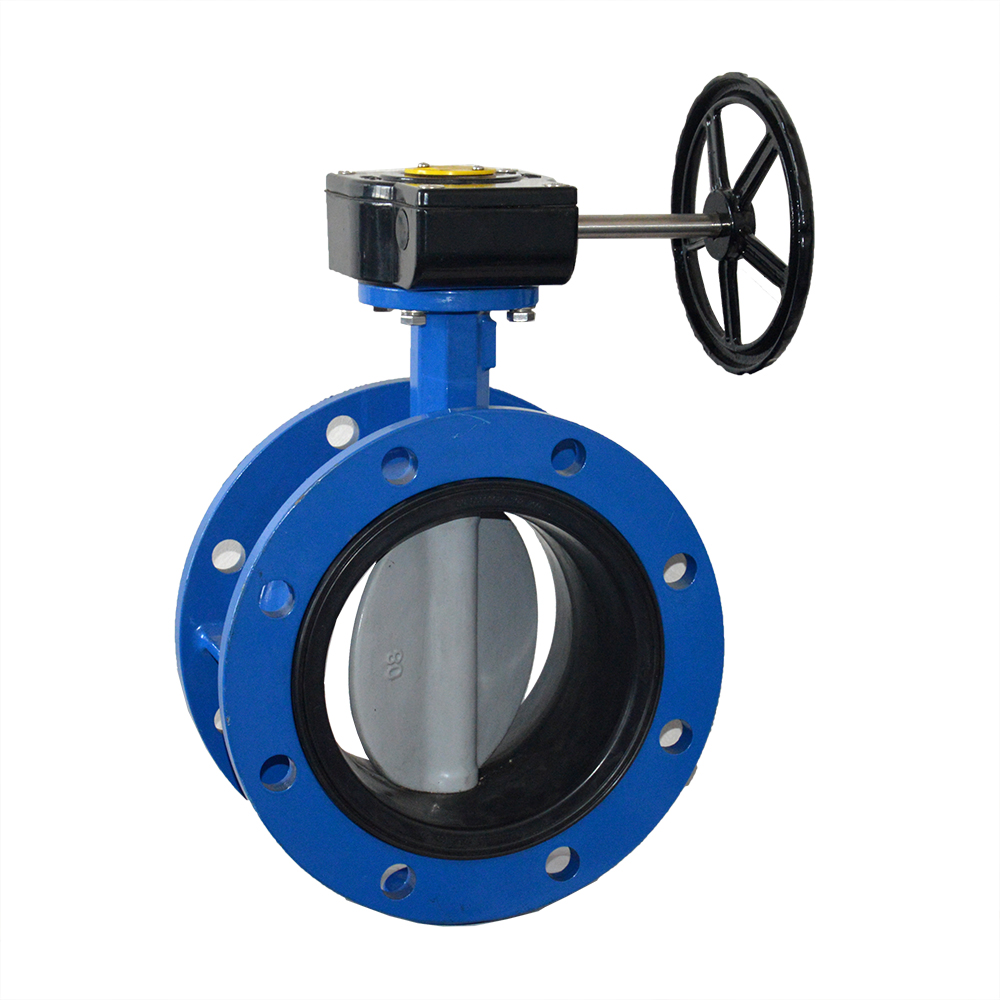

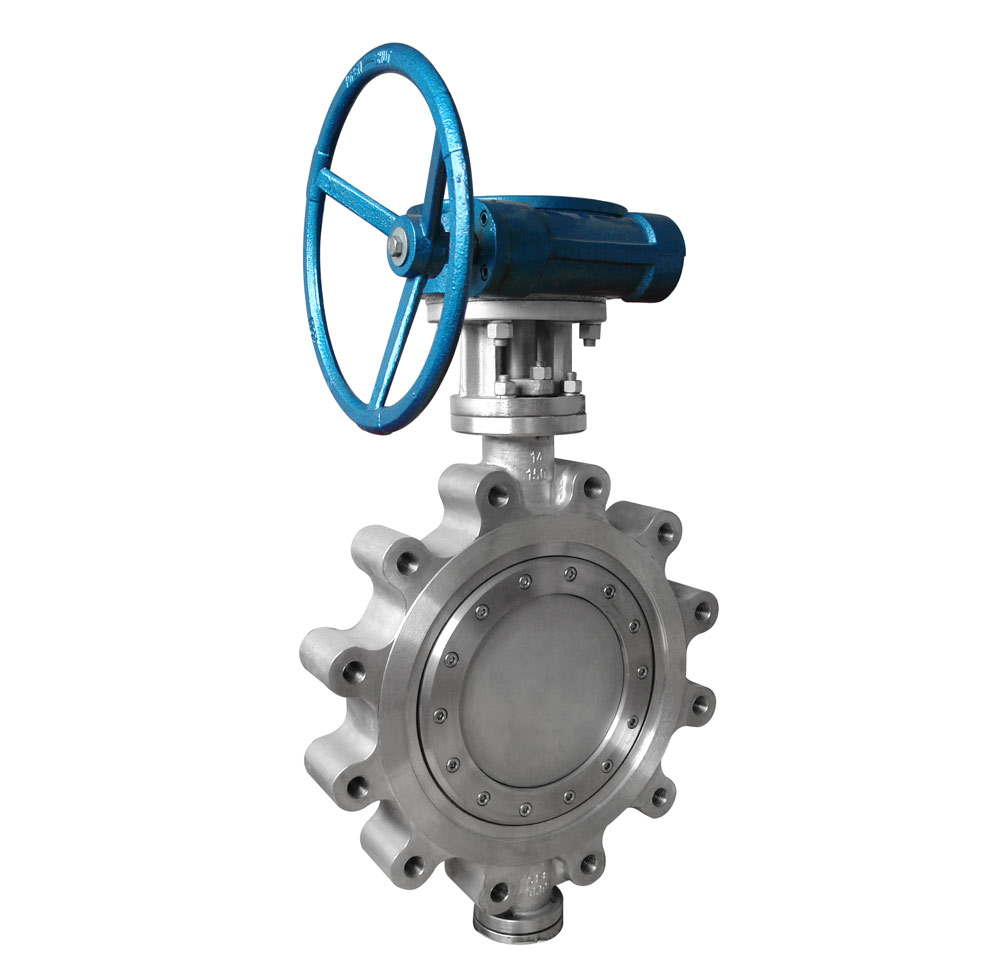

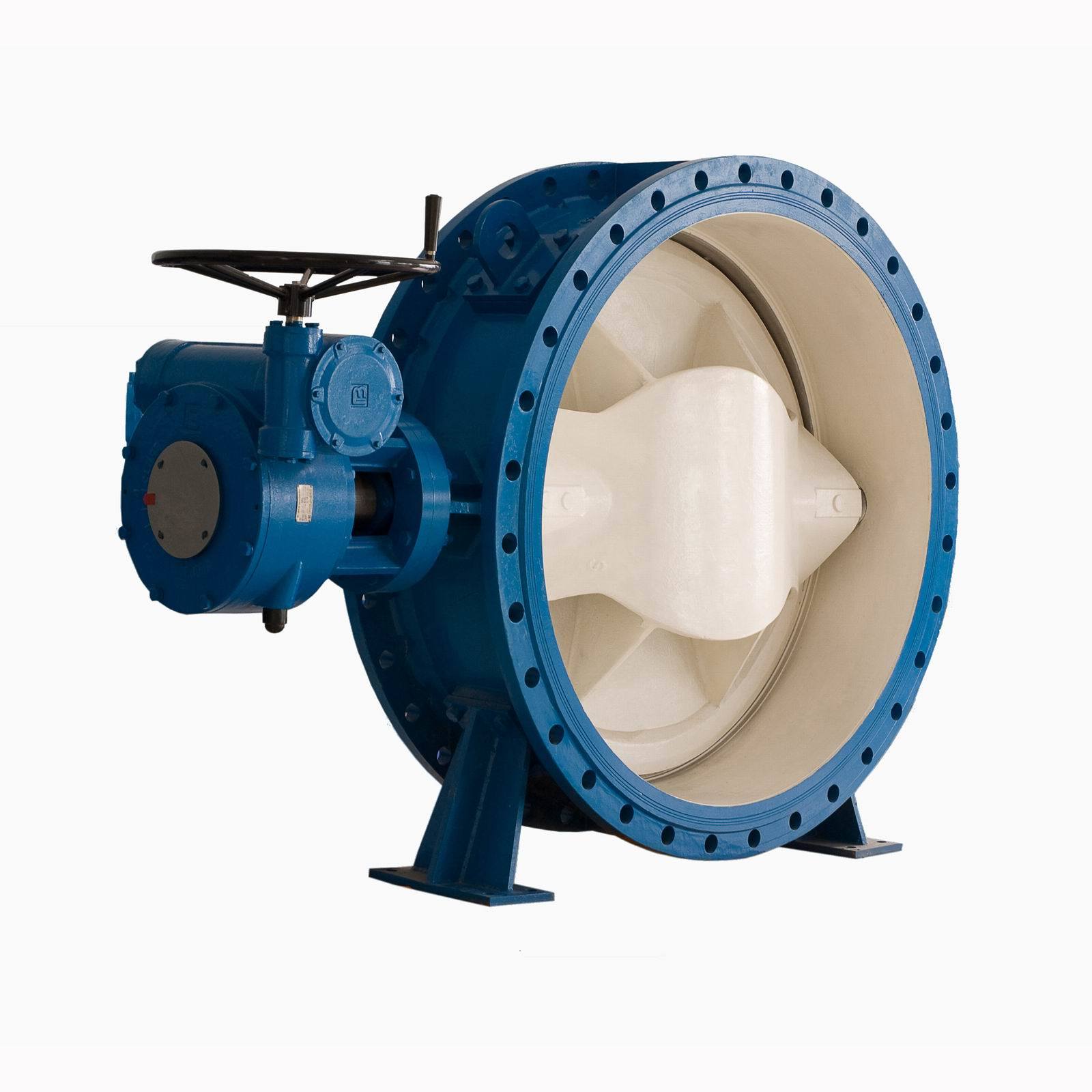

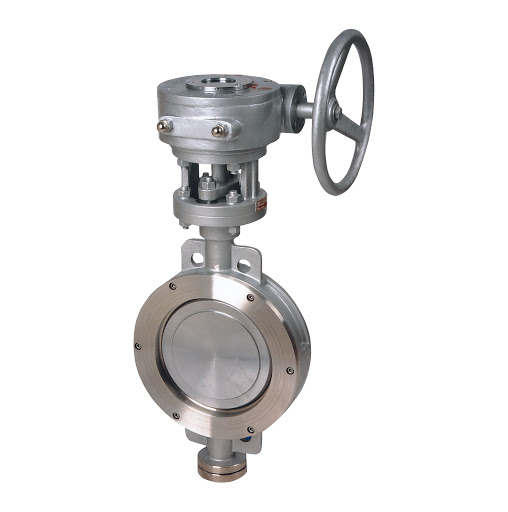

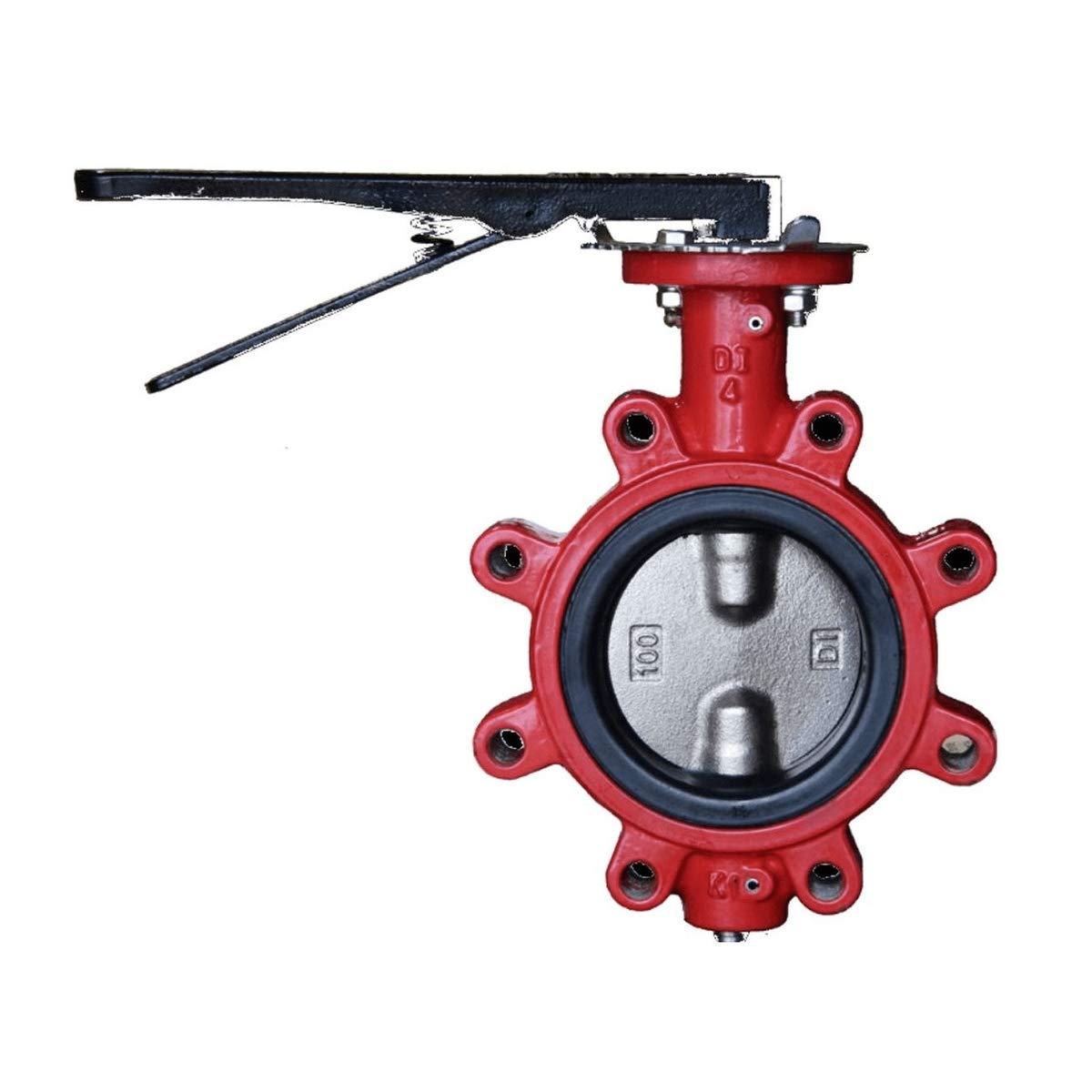

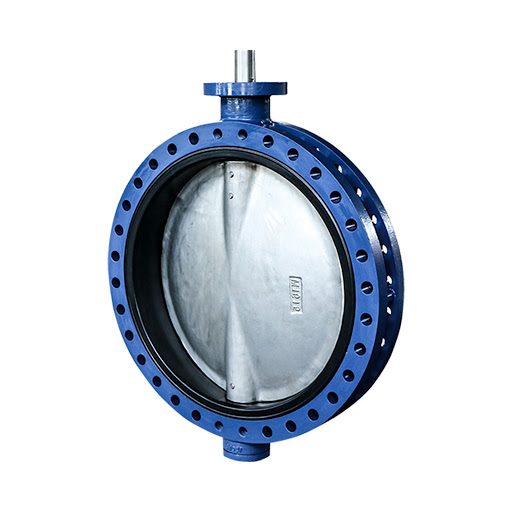

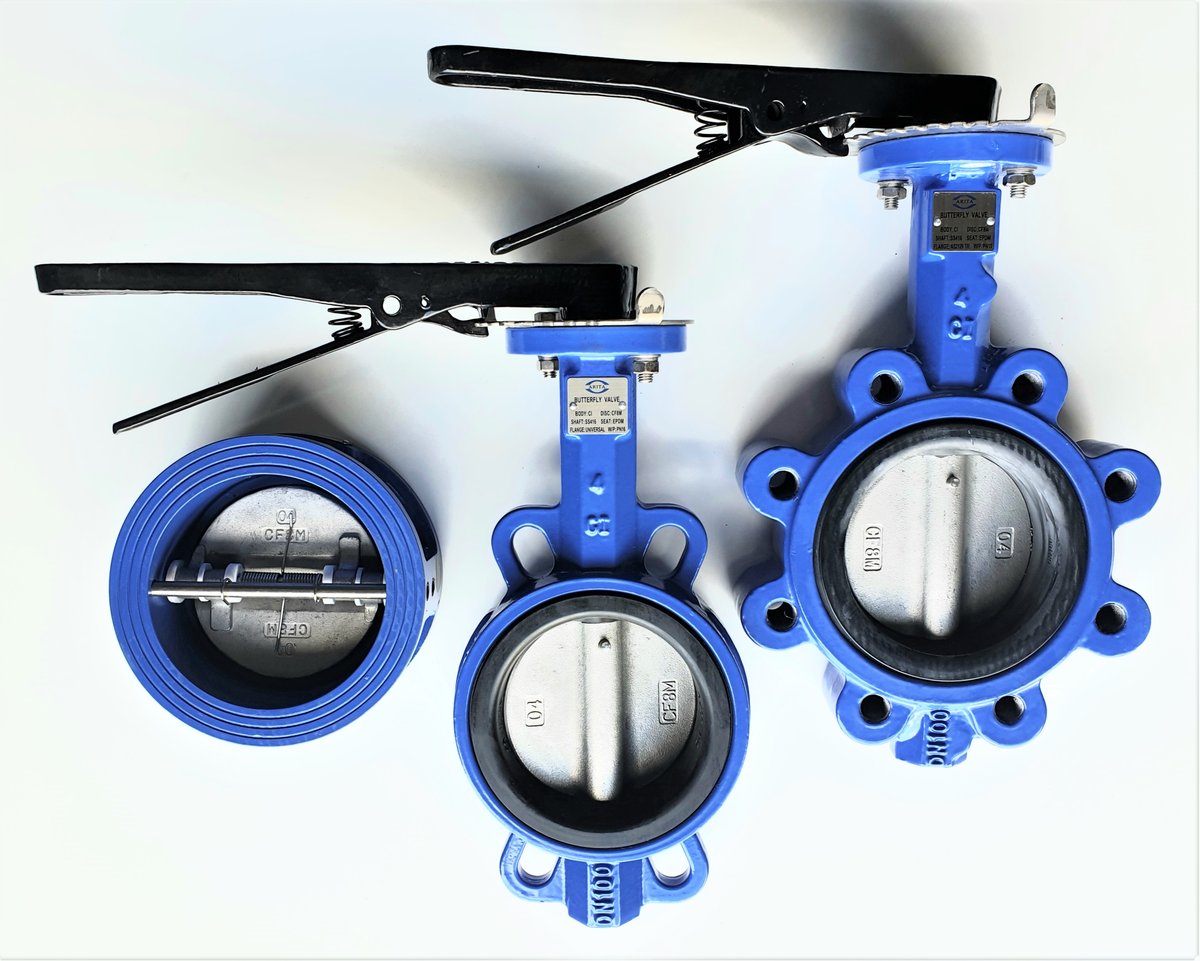

Style: Lug, Wafer, Flanged
Size: 2" - 24"
Pressure Rating: 125lb-250lb (for Cast Iron), 150lb-600lb (for Cast Steel)
Temperature Rating: EPDM -40℃-150℃,NBR -40℃-120℃, PTFE -40℃-200℃, Neoprene -40℃-120℃, Viton -20℃-200℃
Operation: Lever, Gear
Body Material:
Cast Iron: ASTM A126CL.B
Ductile Cast Iron: ASTM A536 65-45-12
Carbon Steel: ASTM A216 WCB
Stainless Steel: ASTM A315 CF8/CF8M
Soft Sealing: BR, EPDM, Neoprene, Viton
Metal Sealing: Metal
