Circuit Breaker Accessories
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Circuit Breaker Accessories
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
From the supplier
Application
Applicable to MCB model JVM21-63(DZ47-63) & JVL6-32, used for remote control and signaling.
Combination Scheme
F2 Auxiliary Contact
Contact capacity:
AC: Un=415V In=3A
Un=240V In=6A
AC: Un=125V In=1A
Un=48V In=2A
Un=24V In=6A
Dielectric strength: kV/1min
Electro-mechanical endurance: ≥5000
Mounted on the left side of the MCB JVM21-63(DZ47-63) & JVM6-32, indicating“ON”, “OFF” status of combined MCB.

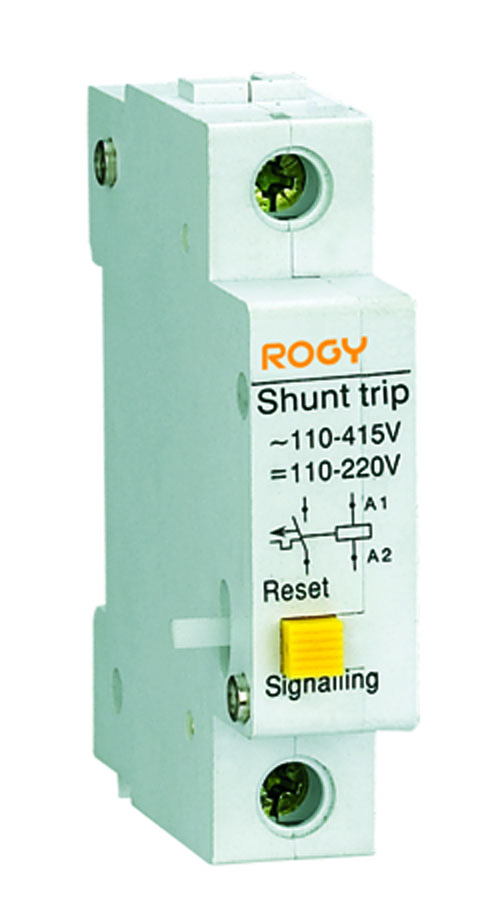

S2 Shunt Tripper
Rated insulating voltage(Ui): 500V
Rated power voltage (Us): AC 400, 230, 125V
Operate voltage range: 70~100% Us
Contact capacity:
AC: 3A/400V
AC: 6A/230V
AC: 9A/125V
Dielectric strength: 2kV/1min
Electro-mechanical endurance: ≥4000
Mounting on the right side of MCB/RCBO, used to trip the combined MCB/RCBO by remote controlling device.

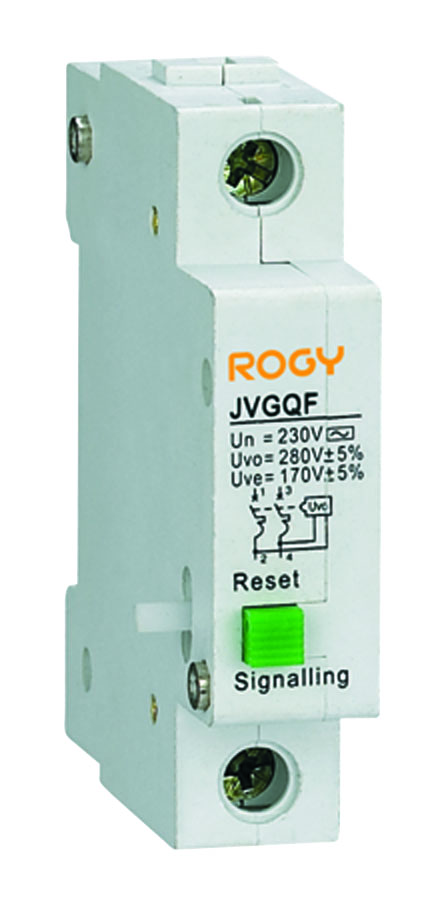

U2+O2 Over-Voltage/Under-Voltage Tripper
Rated voltage (Ue): AC 230V
Rated insulating voltage (Ui): 500V
Over-voltage tripping range: 280V±5%
Under-voltage tripping range: 170V±5%
Electro-mechanical endurance: ≥4000
Mounted on the right side of circuit breaker, actuate the combined device to trip in case of under-voltage or over-voltage, effectively prevent the device from closing operation under abnormal power voltage condition.
From the supplier
Application
Applicable to MCB model JVM21-63(DZ47-63) & JVL6-32, used for remote control and signaling.
Combination Scheme
F2 Auxiliary Contact
Contact capacity:
AC: Un=415V In=3A
Un=240V In=6A
AC: Un=125V In=1A
Un=48V In=2A
Un=24V In=6A
Dielectric strength: kV/1min
Electro-mechanical endurance: ≥5000
Mounted on the left side of the MCB JVM21-63(DZ47-63) & JVM6-32, indicating“ON”, “OFF” status of combined MCB.
S2 Shunt Tripper
Rated insulating voltage(Ui): 500V
Rated power voltage (Us): AC 400, 230, 125V
Operate voltage range: 70~100% Us
Contact capacity:
AC: 3A/400V
AC: 6A/230V
AC: 9A/125V
Dielectric strength: 2kV/1min
Electro-mechanical endurance: ≥4000
Mounting on the right side of MCB/RCBO, used to trip the combined MCB/RCBO by remote controlling device.
U2+O2 Over-Voltage/Under-Voltage Tripper
Rated voltage (Ue): AC 230V
Rated insulating voltage (Ui): 500V
Over-voltage tripping range: 280V±5%
Under-voltage tripping range: 170V±5%
Electro-mechanical endurance: ≥4000
Mounted on the right side of circuit breaker, actuate the combined device to trip in case of under-voltage or over-voltage, effectively prevent the device from closing operation under abnormal power voltage condition.
