About this product
- Materials: Metal
- Size: 2750/3250/3700/4600x1800X2000mm
- Color: light grey&dark grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Anhui, China
About this product
- Materials: Metal
- Size: 2750/3250/3700/4600x1800X2000mm
- Color: light grey&dark grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Anhui, China
Product details
| Materials | Metal |
|---|---|
| Size | 2750/3250/3700/4600x1800X2000mm |
| Color | light grey&dark grey |
Product details
| Materials | Metal |
|---|---|
| Size | 2750/3250/3700/4600x1800X2000mm |
| Color | light grey&dark grey |
From the supplier

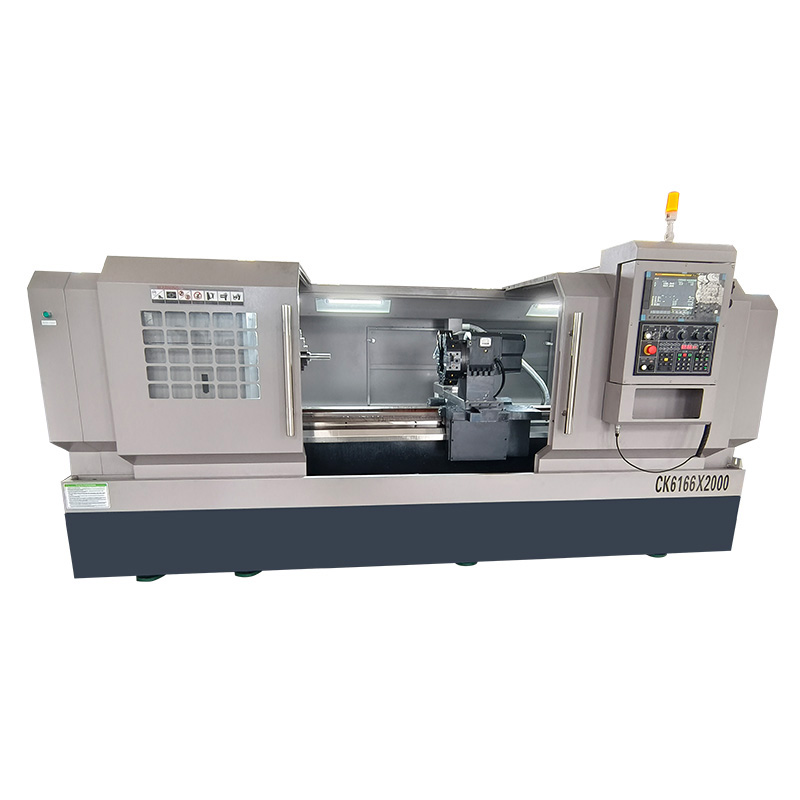

Main Features
1.With wider drag plate, suitable for heavy cutting;
2.Four station electric turret;
3.Variable frequency stepless speed regulation;
4.Standard configuration: manual chuck;
5.Optional configuration: hydraulic chuck.
Specifications
Specification CK6166 Capacity Chuck size 12'' Max. swing dia. over bed 660mm Max. swing dia. over slide 420mm Distance between center 1000/1500/2000/3000mm Width of bed 400mm Spindle Spindle speed range 45-180/180-750/600-1600rpm Spindle bore Ф80mm,*Ф105mm Max. dia. of through-hole Ф60mm,*Ф77mm Spindle nose A2-8(*105mm for C-11) Spindle taper Φ90mm 1:20,*105mm for 120mm 1:20 Axis X axis travel 360mm Z axis travel 1000/1500/2000/3000mm X/Z axis rapid traverse 4/6m/min Turret Type Electrical type No. of tool stations 4,*6,*8 position Max. section of tool 25x25mm Tailstock External diameter Φ75mm Travel of tailstock quill 150mm Taper of tailstock quill MT5 Motor Spindle motor power 11kw Coolant pump power 90w Machine Dimensions Overal dimension (L×W×H) 2750/3250/3700/4600x1800X2000mm Packing size(L×W×H) 2900/3400/3800/4700x2000x2250mm N.w 2700/2900/3300/3800kg G.w 2900/3200/3600/4300kgMachine Details
From the supplier
Main Features
1.With wider drag plate, suitable for heavy cutting;
2.Four station electric turret;
3.Variable frequency stepless speed regulation;
4.Standard configuration: manual chuck;
5.Optional configuration: hydraulic chuck.
Specifications
Specification CK6166 Capacity Chuck size 12'' Max. swing dia. over bed 660mm Max. swing dia. over slide 420mm Distance between center 1000/1500/2000/3000mm Width of bed 400mm Spindle Spindle speed range 45-180/180-750/600-1600rpm Spindle bore Ф80mm,*Ф105mm Max. dia. of through-hole Ф60mm,*Ф77mm Spindle nose A2-8(*105mm for C-11) Spindle taper Φ90mm 1:20,*105mm for 120mm 1:20 Axis X axis travel 360mm Z axis travel 1000/1500/2000/3000mm X/Z axis rapid traverse 4/6m/min Turret Type Electrical type No. of tool stations 4,*6,*8 position Max. section of tool 25x25mm Tailstock External diameter Φ75mm Travel of tailstock quill 150mm Taper of tailstock quill MT5 Motor Spindle motor power 11kw Coolant pump power 90w Machine Dimensions Overal dimension (L×W×H) 2750/3250/3700/4600x1800X2000mm Packing size(L×W×H) 2900/3400/3800/4700x2000x2250mm N.w 2700/2900/3300/3800kg G.w 2900/3200/3600/4300kgMachine Details
