CNC Flat Bed Lathe CNC210

WMT CNC INDUSTRIAL CO.,LTD
10/10 fairsForeign Trade CompanyModel CNC210
CNC Flat Bed Lathe CNC210
Price on request

The supplier hasn’t listed a price. We can get their current prices and MOQ.

Verify from $29 · written report in 3 business days · 100% refund if not satisfied

About this product

  • Materials: metal
  • Size: 1300X800X1500mm
  • Color: grey
  • Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
  • Made in: Anhui, China
Product details
Materialsmetal
Size1300X800X1500mm
Colorgrey
From the supplier

Main Features
  1. The machine can process precisely internal or external diameter,face,taper and threading with high efficiency.

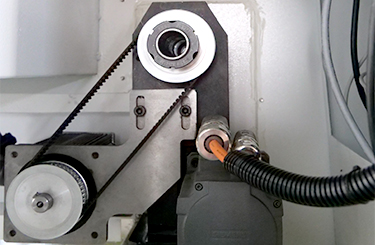

  2. DC brushless spindle motor.
  3. Small occuping,lower energy consumption,easy operation,suitable for small processing.
  4. High-quality spindle by high-precision grinding and support by Angular contact bearing.
  5. Induction harden bed-way,Bed saddle with plastic sticker can improve the accuracy and service life of machine.
  6. Macro arithmetic operation can be performed,the processing of complex parts,fully functional,economical and practical with a textbook for teaching.

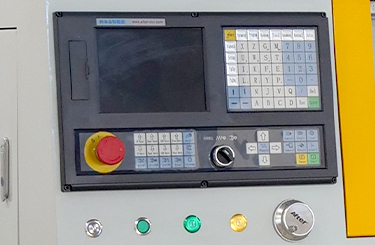

Specifications Specification CNC210 Capacity Max. swing over bed 210mm Distance between centers 400mm Rail width 100mm Spindle Spindle bore dia. 26mm Spindle taper MT4/5C(Optional) Spindle speed 3000rpm Axis X-axis travel 105mm Z-axis travel 300mm X rapid speed 5000mm/min Z rapid speed 5000mm/min Motor Spindle motor power 1.2kw Main motor type Srevo motor Controller system After 990TDB X motor torque 1.9N.m Z motor torque 1.9N.m Min. setting unit 0.001mm Turret Type Electric type No. of tool stations 4 position Max. section of tool 10x10mm Tailstock Tailstock dia. 22mm Tailstock tavel 50mm Tailstock taper MT2 Machine Dimensions Packing size(without stand) 1170X700X860mm Overall size 1300X800X1500mm N.W(without stand) 200kg N.W 230kg Machine Details
