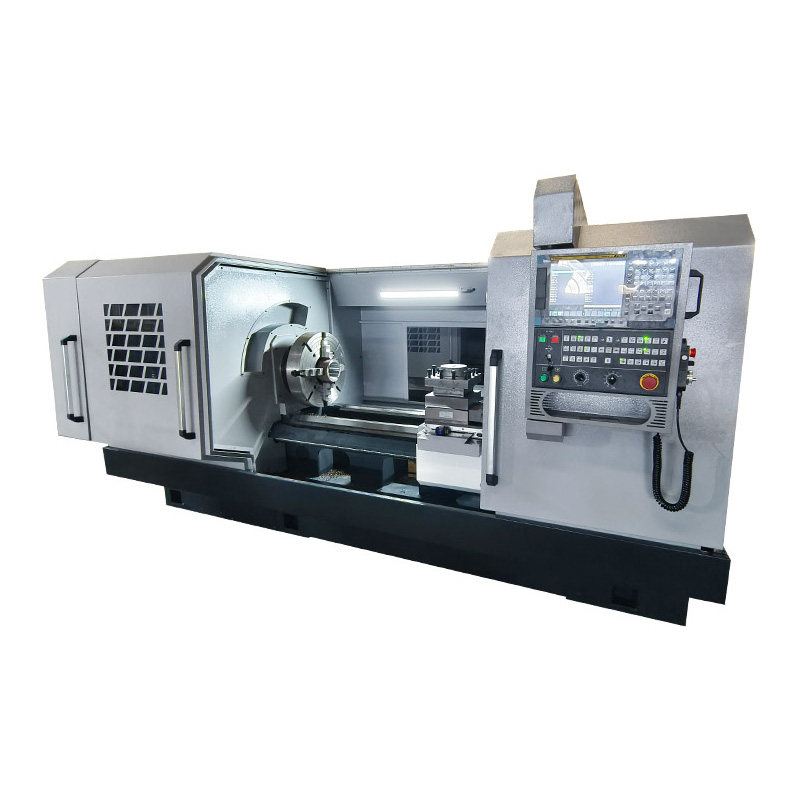

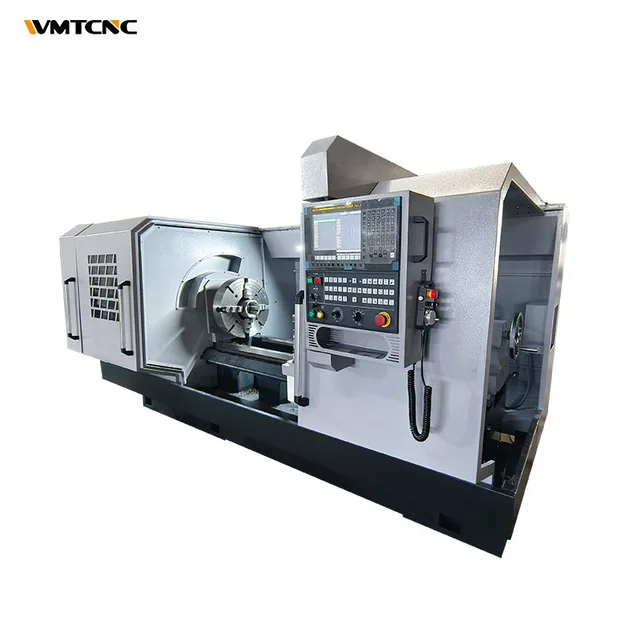

CNC Pipe Threading Lathe Machine
WMT CNC INDUSTRIAL CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
CNC Pipe Threading Lathe Machine
WMT CNC INDUSTRIAL CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Cast Iron
- Size: 3657×1555×1360mm
- Color: grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Cast Iron
- Size: 3657×1555×1360mm
- Color: grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Cast Iron |
|---|---|
| Size | 3657×1555×1360mm |
| Color | grey |
Product details
| Materials | Cast Iron |
|---|---|
| Size | 3657×1555×1360mm |
| Color | grey |
From the supplier
Main Features

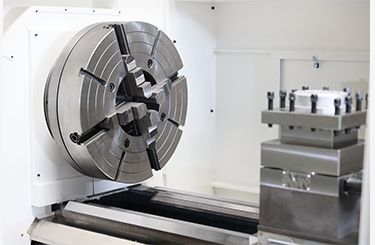

1. Large spindle aperture, high throughput, double chuck clamping workpiece stability.
2. High-quality high-strength cast iron casting whole bed, good rigidity, high precision.
3. The surface of guide rail is quenched by ultra-audio quenching treatment, with high hardness and long service life.
4. The drag plate adopts guide rail surface plasticization process, wear-resistant, high precision.
Specification

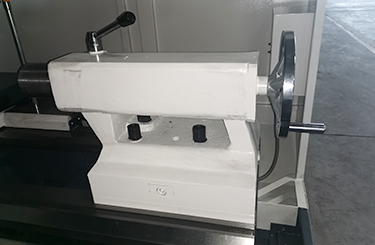

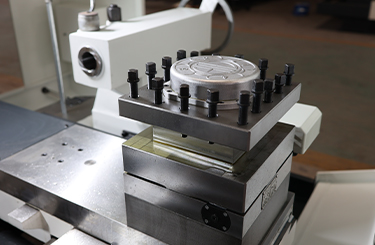

Specification QK1319 Capacity Chuck size 3 jaw chuck (500mm) Max. swing dia over bed 630mm Max. swing dia over slide 330mm Max. length of workpiece 1500mm Width of bed 550mm Spindle Spindle bore 200mm Spindle speed range （L）:25-120r/min （H）:100-500r/min Power of spindle motor 11kw Mode of spindle speed Variable speed in 2 steps Axis Max.travers of X/Z axis X:350mm Z:1250mm X/Z rapid traverse 4000/6000mm/min X-axis motor 1500r/min 10N.m 1.5kw Z-axis motor 1500r/min 15N.m 2.4kw Electric tool-post HAK-21240 4 position 240×240mm 2.6s Tailstock Tailstock quill 100mm 250mm MT5 Positioning accuracy (National standard) Positioning accuracy 0.02mm Repositioning accuracy 0.01mm Machine Dimensions Overall dimensions(LxWxH) 3800x1900x1900mm Machine weight 4.9tMachine Details
From the supplier
Main Features
1. Large spindle aperture, high throughput, double chuck clamping workpiece stability.
2. High-quality high-strength cast iron casting whole bed, good rigidity, high precision.
3. The surface of guide rail is quenched by ultra-audio quenching treatment, with high hardness and long service life.
4. The drag plate adopts guide rail surface plasticization process, wear-resistant, high precision.
Specification
Specification QK1319 Capacity Chuck size 3 jaw chuck (500mm) Max. swing dia over bed 630mm Max. swing dia over slide 330mm Max. length of workpiece 1500mm Width of bed 550mm Spindle Spindle bore 200mm Spindle speed range （L）:25-120r/min （H）:100-500r/min Power of spindle motor 11kw Mode of spindle speed Variable speed in 2 steps Axis Max.travers of X/Z axis X:350mm Z:1250mm X/Z rapid traverse 4000/6000mm/min X-axis motor 1500r/min 10N.m 1.5kw Z-axis motor 1500r/min 15N.m 2.4kw Electric tool-post HAK-21240 4 position 240×240mm 2.6s Tailstock Tailstock quill 100mm 250mm MT5 Positioning accuracy (National standard) Positioning accuracy 0.02mm Repositioning accuracy 0.01mm Machine Dimensions Overall dimensions(LxWxH) 3800x1900x1900mm Machine weight 4.9tMachine Details
