Machine tool
CNC Slant-bed Lathe CDK6150
WMT CNC INDUSTRIAL CO.,LTD10/10 fairsForeign Trade CompanyModel CDK6150
Smart product
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
CNC Slant-bed Lathe CDK6150
WMT CNC INDUSTRIAL CO.,LTD10/10 fairsForeign Trade CompanyModel CDK6150
Smart product
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Metal
- Size: 2800×1750×1800mm
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
About this product
- Materials: Metal
- Size: 2800×1750×1800mm
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
Product details
| Materials | Metal |
|---|---|
| Size | 2800×1750×1800mm |
Product details
| Materials | Metal |
|---|---|
| Size | 2800×1750×1800mm |
From the supplier
Specifications

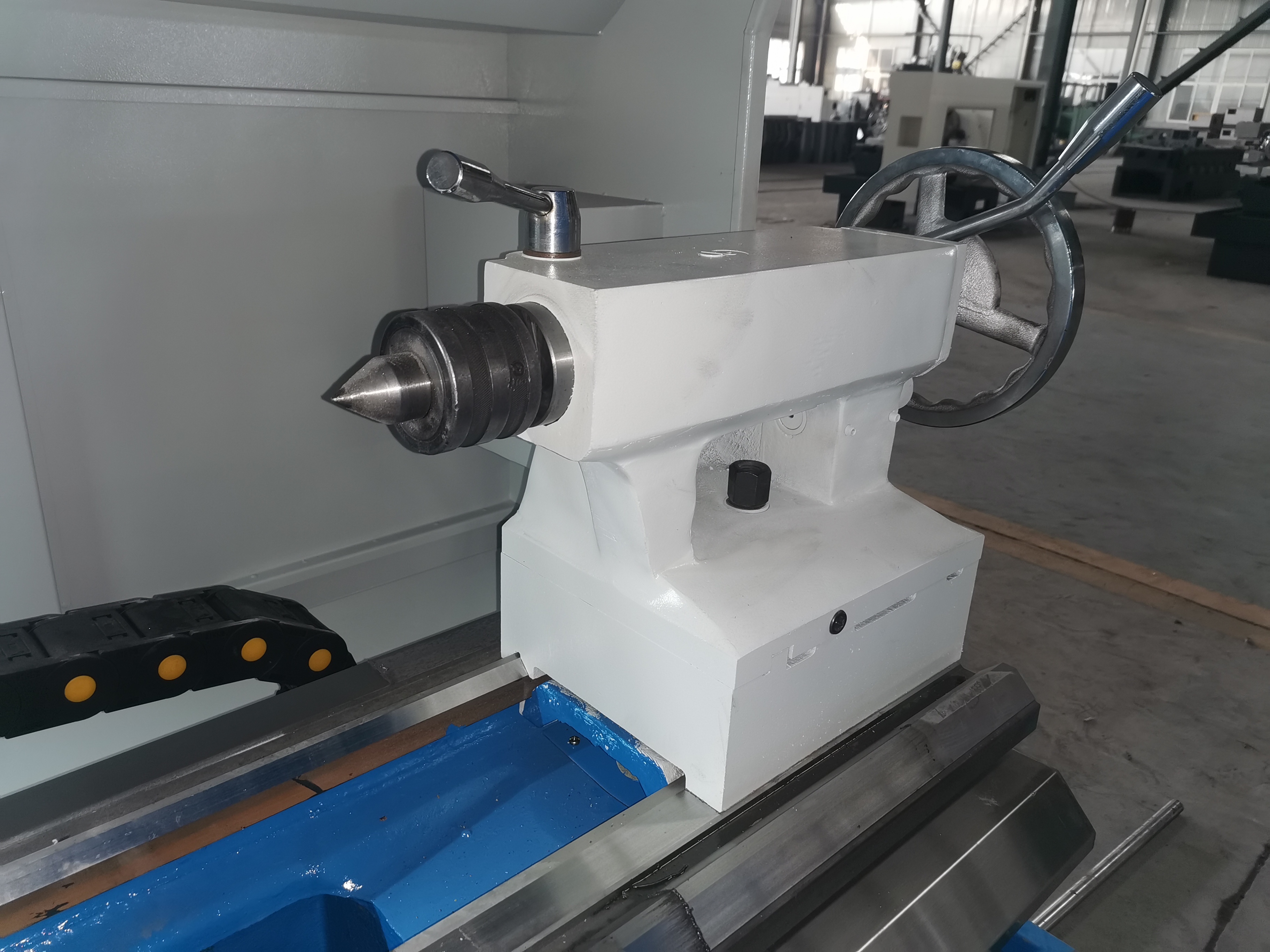

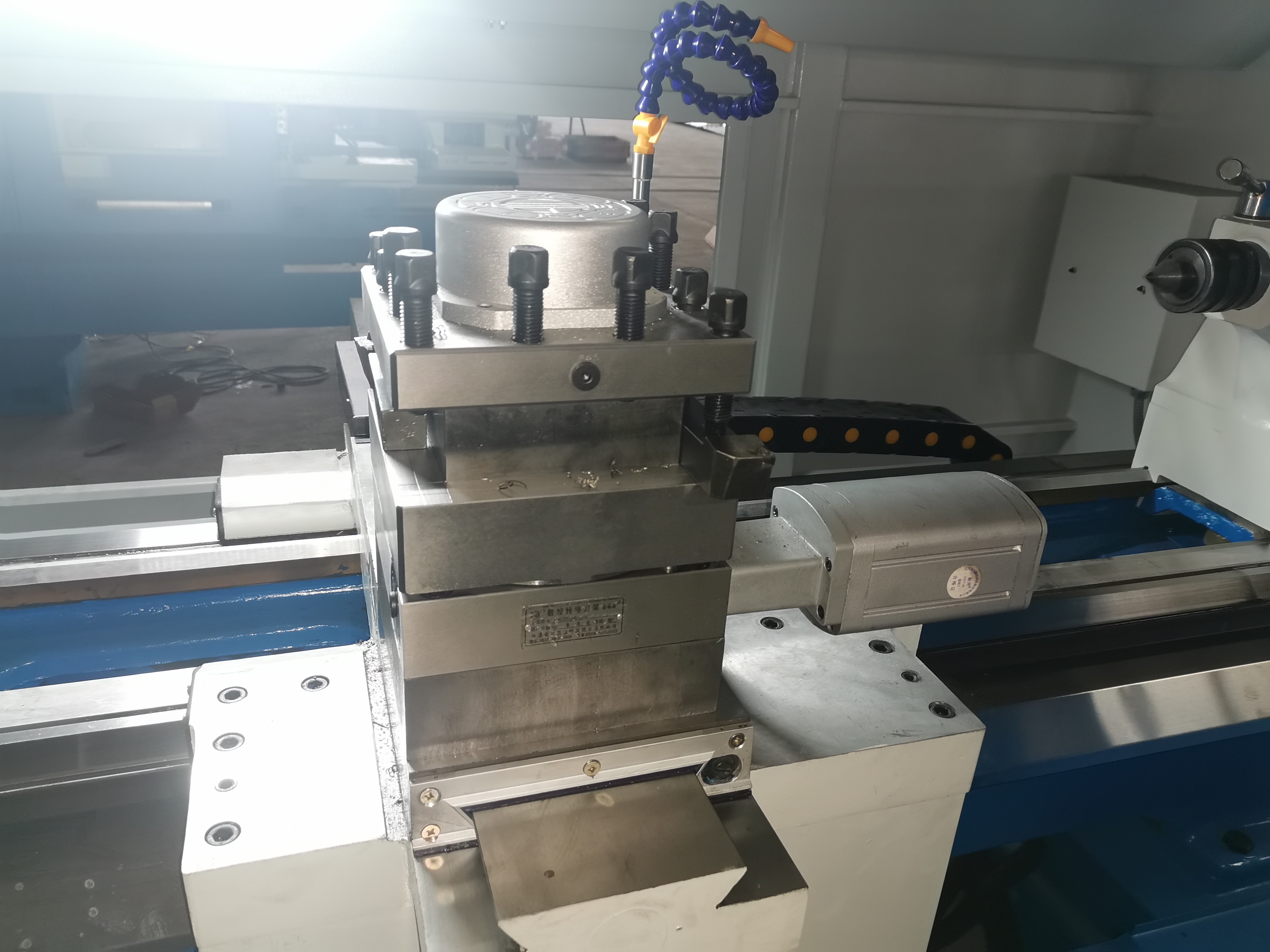

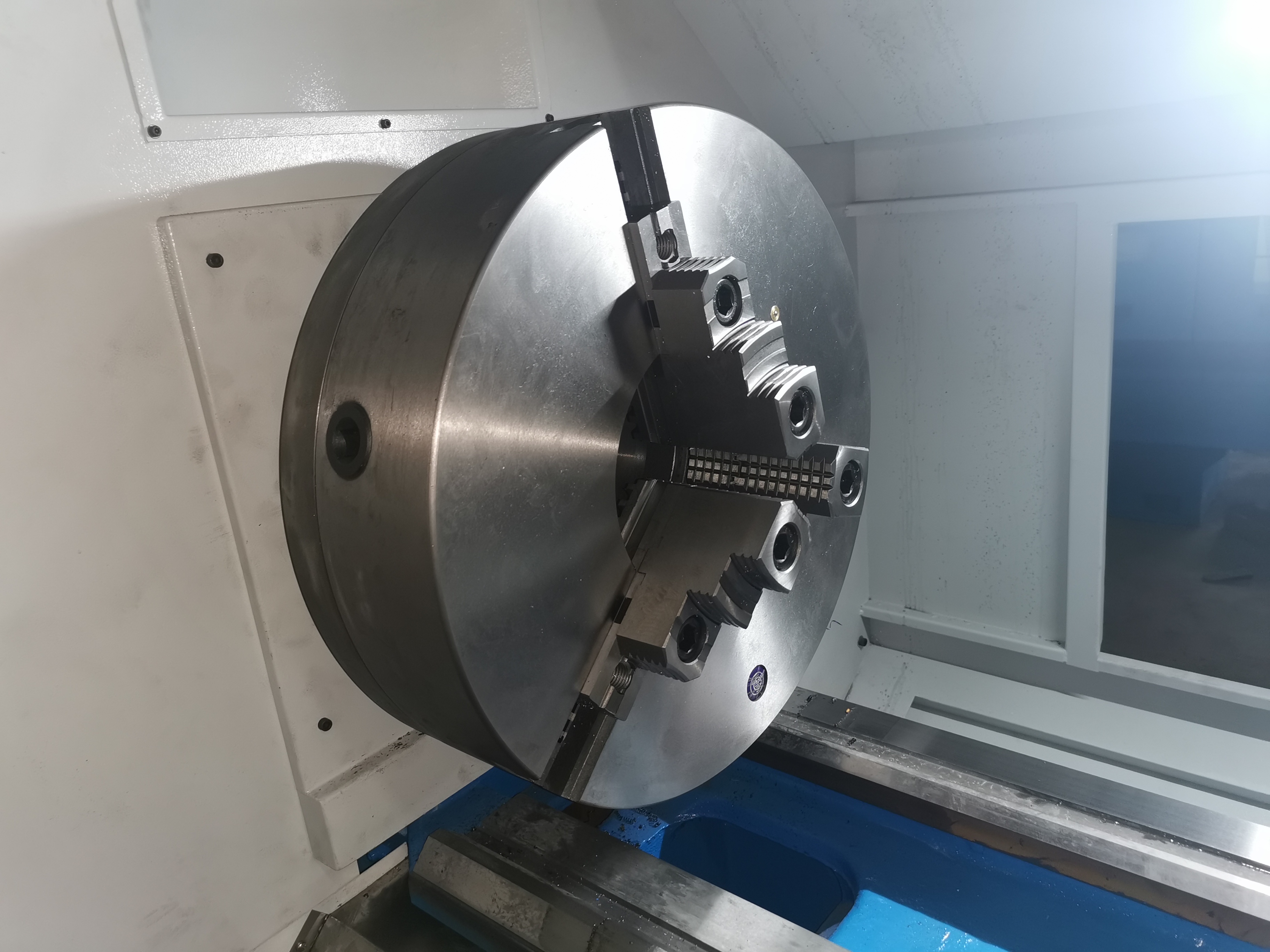

Specification CDK6150 Capacity Chuck size 3-jaw chuck（320)/(380)/(400)/(400) Max. swing dia. over bed 500mm Distance between center 1000/1500/2000/3000mm Max. swing dia. over slide 270mm Width of bed 400mm Spindle Spindle speed range 150-800/70-800/70-700/70-700r/min Mode of spindle speed stepleess Frequency Speed Adjustment Spindle bore 110/140/160/170mm Spindle nose Short cylindrical thread connection Taper of spindle N/A Axis X axis travel 310mm Z axis travel 800mm X/Z axis rapid traverse 4000/5000mm/min X Axis Motor Speed 1500rpm X Axis Motor Torgue 6N.m X Axis Motor Power 1.5kw Z Axis Motor Speed 1500rpm Z Axis Motor Torgue 10N.m Z Axis Motor Power 1.5kw Tailstock External diameter 80mm Travel of tailstock quill 200mm Taper of tailstock quill Morse No. 5 X/Z ballscrew X=25/Z=40mm Turret Type Electrical type Electric tool-post Model HAK21192 No. of tool stations 4 position Max. section of tool 25x25mm Turret indexing time 2.6s Motor Spindle motor power 7.5kw Coolant pump power 0.125KW Positioning accuracy 0.02mm Re-positioning accuracy 0.01mm Machine Dimensions Overal dimension (L×W×H) 2800×1750×1800mm for 1 M Packing size(L×W×H) 3050*2300*2050mm for 1 M N.w 2.5tMachine Details
From the supplier
Specifications
Specification CDK6150 Capacity Chuck size 3-jaw chuck（320)/(380)/(400)/(400) Max. swing dia. over bed 500mm Distance between center 1000/1500/2000/3000mm Max. swing dia. over slide 270mm Width of bed 400mm Spindle Spindle speed range 150-800/70-800/70-700/70-700r/min Mode of spindle speed stepleess Frequency Speed Adjustment Spindle bore 110/140/160/170mm Spindle nose Short cylindrical thread connection Taper of spindle N/A Axis X axis travel 310mm Z axis travel 800mm X/Z axis rapid traverse 4000/5000mm/min X Axis Motor Speed 1500rpm X Axis Motor Torgue 6N.m X Axis Motor Power 1.5kw Z Axis Motor Speed 1500rpm Z Axis Motor Torgue 10N.m Z Axis Motor Power 1.5kw Tailstock External diameter 80mm Travel of tailstock quill 200mm Taper of tailstock quill Morse No. 5 X/Z ballscrew X=25/Z=40mm Turret Type Electrical type Electric tool-post Model HAK21192 No. of tool stations 4 position Max. section of tool 25x25mm Turret indexing time 2.6s Motor Spindle motor power 7.5kw Coolant pump power 0.125KW Positioning accuracy 0.02mm Re-positioning accuracy 0.01mm Machine Dimensions Overal dimension (L×W×H) 2800×1750×1800mm for 1 M Packing size(L×W×H) 3050*2300*2050mm for 1 M N.w 2.5tMachine Details
About the supplier
WMT CNC INDUSTRIAL CO.,LTD
Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2014
- ✓1 certificate on file
Manufacturing exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
65
trust
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2014
- 1 certificate on file
Canton Fair booth: 20.1I32-33 · Large Machinery & Equipment (140th session)
More from WMT CNC INDUSTRIAL CO.,LTD
Similar products from other suppliers

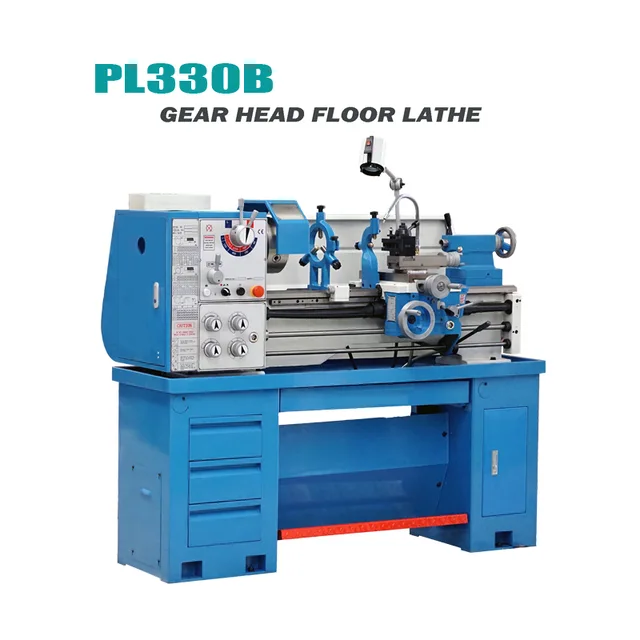

Precision Gear Head Lathe
