Machine tool
3. GSK,Siemens and Fanuc CNC controller for choices. Specifications Specification CK36L Capacity Max. swing dia. over bed φ360mm Max. length of workpiece 500,*750mm Max. swing dia. over slide φ180mm Spindle Spindle speed range 4000rpm Spindle bore φ56,*φ66mm Max. dia. of through-hole φ40mm,*φ50mm Spindle nose A2-5, *A2-6 Chuck size φ160mm,*φ200mm Axis Type of guideway & screw Taiwan linear guideway & screw X axis travel 210mm Z axis travel 500,*750mm X/Z axis rapid traverse 15/15 m/min Turret Type Electric turret,*Hydraulic turret No. of tool stations 8 position Tool shank size 20×20mm Tailstock Type of tailstock Hydraulic sleeves External diameter φ60mm Travel of tailstock quill 80mm Taper of tailstock quill MT4 Motor Spindle motor power 5.5kw,*7.5kw Coolant pump power 370w Machine Dimensions Overal dimension (L×W×H) 2700,*3050×1550×1700mm Packing size(L×W×H) 2950,*3300×2260×2280mm Net/Gross weight 2900/3200,*3300/3600kg
3. GSK,Siemens and Fanuc CNC controller for choices. Specifications Specification CK36L Capacity Max. swing dia. over bed φ360mm Max. length of workpiece 500,*750mm Max. swing dia. over slide φ180mm Spindle Spindle speed range 4000rpm Spindle bore φ56,*φ66mm Max. dia. of through-hole φ40mm,*φ50mm Spindle nose A2-5, *A2-6 Chuck size φ160mm,*φ200mm Axis Type of guideway & screw Taiwan linear guideway & screw X axis travel 210mm Z axis travel 500,*750mm X/Z axis rapid traverse 15/15 m/min Turret Type Electric turret,*Hydraulic turret No. of tool stations 8 position Tool shank size 20×20mm Tailstock Type of tailstock Hydraulic sleeves External diameter φ60mm Travel of tailstock quill 80mm Taper of tailstock quill MT4 Motor Spindle motor power 5.5kw,*7.5kw Coolant pump power 370w Machine Dimensions Overal dimension (L×W×H) 2700,*3050×1550×1700mm Packing size(L×W×H) 2950,*3300×2260×2280mm Net/Gross weight 2900/3200,*3300/3600kg
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Metal
- Size: 2700×3050×1550×1700mm
- Color: grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
About this product
- Materials: Metal
- Size: 2700×3050×1550×1700mm
- Color: grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
Product details
| Materials | Metal |
|---|---|
| Size | 2700×3050×1550×1700mm |
| Color | grey |
Product details
| Materials | Metal |
|---|---|
| Size | 2700×3050×1550×1700mm |
| Color | grey |
From the supplier
Main Features

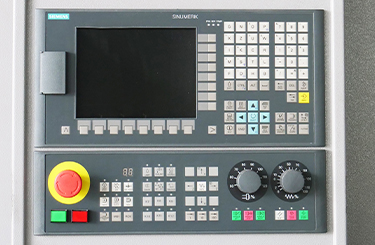

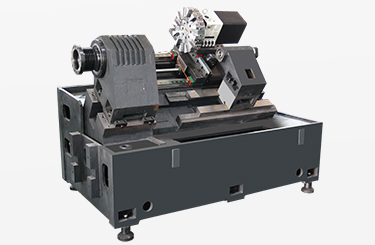

1. Mini lathe cnc machine for slant bed 45 degree. 2. X/Z axis for Taiwan precision ballscrew and Taiwan linear guideway.3. GSK,Siemens and Fanuc CNC controller for choices. Specifications Specification CK36L Capacity Max. swing dia. over bed φ360mm Max. length of workpiece 500,*750mm Max. swing dia. over slide φ180mm Spindle Spindle speed range 4000rpm Spindle bore φ56,*φ66mm Max. dia. of through-hole φ40mm,*φ50mm Spindle nose A2-5, *A2-6 Chuck size φ160mm,*φ200mm Axis Type of guideway & screw Taiwan linear guideway & screw X axis travel 210mm Z axis travel 500,*750mm X/Z axis rapid traverse 15/15 m/min Turret Type Electric turret,*Hydraulic turret No. of tool stations 8 position Tool shank size 20×20mm Tailstock Type of tailstock Hydraulic sleeves External diameter φ60mm Travel of tailstock quill 80mm Taper of tailstock quill MT4 Motor Spindle motor power 5.5kw,*7.5kw Coolant pump power 370w Machine Dimensions Overal dimension (L×W×H) 2700,*3050×1550×1700mm Packing size(L×W×H) 2950,*3300×2260×2280mm Net/Gross weight 2900/3200,*3300/3600kg
Machine Details
From the supplier
Main Features
1. Mini lathe cnc machine for slant bed 45 degree. 2. X/Z axis for Taiwan precision ballscrew and Taiwan linear guideway.3. GSK,Siemens and Fanuc CNC controller for choices. Specifications Specification CK36L Capacity Max. swing dia. over bed φ360mm Max. length of workpiece 500,*750mm Max. swing dia. over slide φ180mm Spindle Spindle speed range 4000rpm Spindle bore φ56,*φ66mm Max. dia. of through-hole φ40mm,*φ50mm Spindle nose A2-5, *A2-6 Chuck size φ160mm,*φ200mm Axis Type of guideway & screw Taiwan linear guideway & screw X axis travel 210mm Z axis travel 500,*750mm X/Z axis rapid traverse 15/15 m/min Turret Type Electric turret,*Hydraulic turret No. of tool stations 8 position Tool shank size 20×20mm Tailstock Type of tailstock Hydraulic sleeves External diameter φ60mm Travel of tailstock quill 80mm Taper of tailstock quill MT4 Motor Spindle motor power 5.5kw,*7.5kw Coolant pump power 370w Machine Dimensions Overal dimension (L×W×H) 2700,*3050×1550×1700mm Packing size(L×W×H) 2950,*3300×2260×2280mm Net/Gross weight 2900/3200,*3300/3600kg
Machine Details
