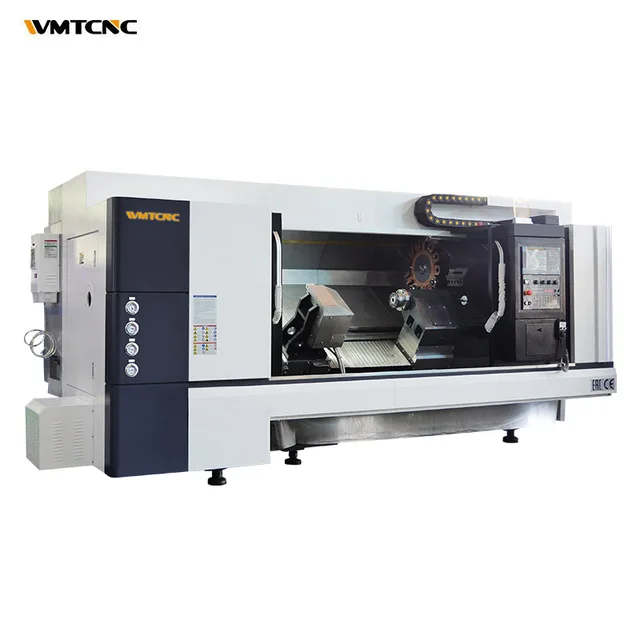

CNC Turn-Mill Machining Center TX600
WMT CNC INDUSTRIAL CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
CNC Turn-Mill Machining Center TX600
WMT CNC INDUSTRIAL CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Metal
- Size: 3200×1920×2250 mm
- Color: black&white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
About this product
- Materials: Metal
- Size: 3200×1920×2250 mm
- Color: black&white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
Product details
| Materials | Metal |
|---|---|
| Size | 3200×1920×2250 mm |
| Color | black&white |
Product details
| Materials | Metal |
|---|---|
| Size | 3200×1920×2250 mm |
| Color | black&white |
From the supplier
1. The models are turning centers able to flexibly handle various workpieces.They feature Belt-Driven or Direct Driven Spindle (Built-in Motor) that achieves high speed with great rigidity,and outstanding C axis accuracy.12-station Power turret enables operators to perform machining of workpieces from simple to complex shaped components with one set up operation.
2. Sub-spindle models come with standard configuration cylindrical roller heavy-duty linear motion guideway, preloaded high-grade ball screw, NSK bearing, DDS spindle, centralized lubricating oil, modular design and manufacture using only the best parts and materials to handles maximum capacity with ease. Specifications Specification TX600 Capacity Hydraulic chuck 10",*12" Max. swing dia. over bed φ600 mm Max. turning diameter N/A Max. length of workpiece 700,*900,*1700 mm Max. swing dia. over silde φ360 mm Spindle Dia. of spindle bore φ86 mm Max. dia. of. through-hole φ75 mm Spindle nose A2-8 Max. spindle speed 3000 rpm Main motor power Belt:18.5/15 kw Sub Spindle Hydraulic chuck N/A Dia. of spindle bore N/A Max. dia. of. through-hole N/A Spindle nose N/A Max. spindle speed N/A Main motor power N/A Axis X axis travel 280 mm Z axis travel 700,*900,*1800 mm Z1/Z2 axis travel N/A Y axis travel N/A X axis rapid traverse 20 m/min Z axis rapid traverse 20 m/min Y axis rapid traverse N/A Turret Type of turret BMT55,*VDI40 No. of tool 12 position OD tool shank size 25X25 mm Boring tool shank size φ32 mm Max. speed of live tooling 4000,*5000 rpm Boring depth of sub spindle N/A Structure Slant bed degree 35° Guideway type LM Tailstock Type of tailstock Hydraulic,*SPT,*HPT Taper of tailstock quill MT5 Travel of tailstock 100-750,*1000 mm，*1700 mm Others Overal dimension (L×W×H) 3200×1920×2250 mm Machine weight 6000,*7000, *8100kgMachine Details
From the supplier
1. The models are turning centers able to flexibly handle various workpieces.They feature Belt-Driven or Direct Driven Spindle (Built-in Motor) that achieves high speed with great rigidity,and outstanding C axis accuracy.12-station Power turret enables operators to perform machining of workpieces from simple to complex shaped components with one set up operation.
2. Sub-spindle models come with standard configuration cylindrical roller heavy-duty linear motion guideway, preloaded high-grade ball screw, NSK bearing, DDS spindle, centralized lubricating oil, modular design and manufacture using only the best parts and materials to handles maximum capacity with ease. Specifications Specification TX600 Capacity Hydraulic chuck 10",*12" Max. swing dia. over bed φ600 mm Max. turning diameter N/A Max. length of workpiece 700,*900,*1700 mm Max. swing dia. over silde φ360 mm Spindle Dia. of spindle bore φ86 mm Max. dia. of. through-hole φ75 mm Spindle nose A2-8 Max. spindle speed 3000 rpm Main motor power Belt:18.5/15 kw Sub Spindle Hydraulic chuck N/A Dia. of spindle bore N/A Max. dia. of. through-hole N/A Spindle nose N/A Max. spindle speed N/A Main motor power N/A Axis X axis travel 280 mm Z axis travel 700,*900,*1800 mm Z1/Z2 axis travel N/A Y axis travel N/A X axis rapid traverse 20 m/min Z axis rapid traverse 20 m/min Y axis rapid traverse N/A Turret Type of turret BMT55,*VDI40 No. of tool 12 position OD tool shank size 25X25 mm Boring tool shank size φ32 mm Max. speed of live tooling 4000,*5000 rpm Boring depth of sub spindle N/A Structure Slant bed degree 35° Guideway type LM Tailstock Type of tailstock Hydraulic,*SPT,*HPT Taper of tailstock quill MT5 Travel of tailstock 100-750,*1000 mm，*1700 mm Others Overal dimension (L×W×H) 3200×1920×2250 mm Machine weight 6000,*7000, *8100kgMachine Details
