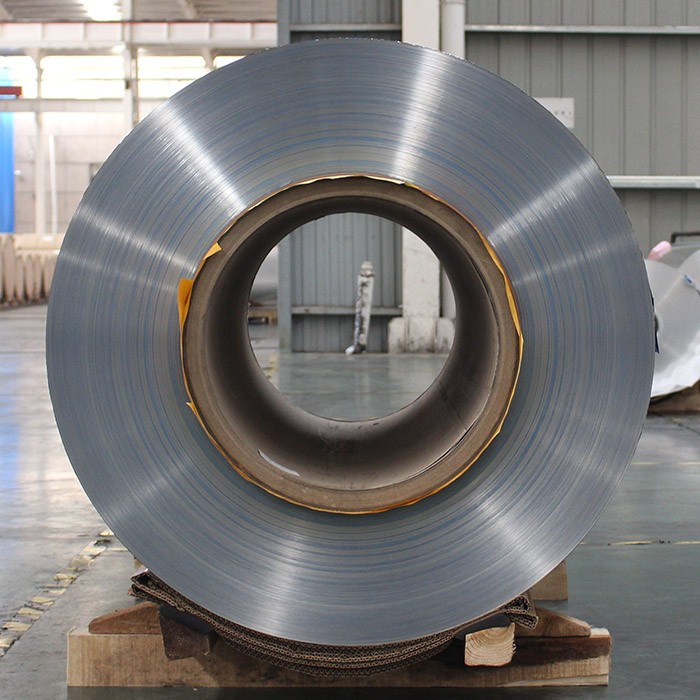

Color Coated Roofing Aluminum Sheet In Coils

Color coated aluminum coil, as its name suggests, is the product after coloring the surface coating of aluminum plate or aluminum roll, mainly divided into PVDF(fluorine-carbon) color coated aluminum coil, PE(polyester) color coated aluminum coil.

Color coated aluminum coil is widely used in the roofing and cladding system, ceiling system, curtain wall plate, shutter, gutter, composite panel, honeycomb panel,advertising sign and embossed aluminum coil.

Applicaiton Area

For Aluminium Composite Panel

For Aluminium Honeycomb Panel

For Advertising Sign

For Gutter System

For Roofing System

For Ceiling System

For Window Shades

For Curtain Wall Panels

For Home Appliances Board

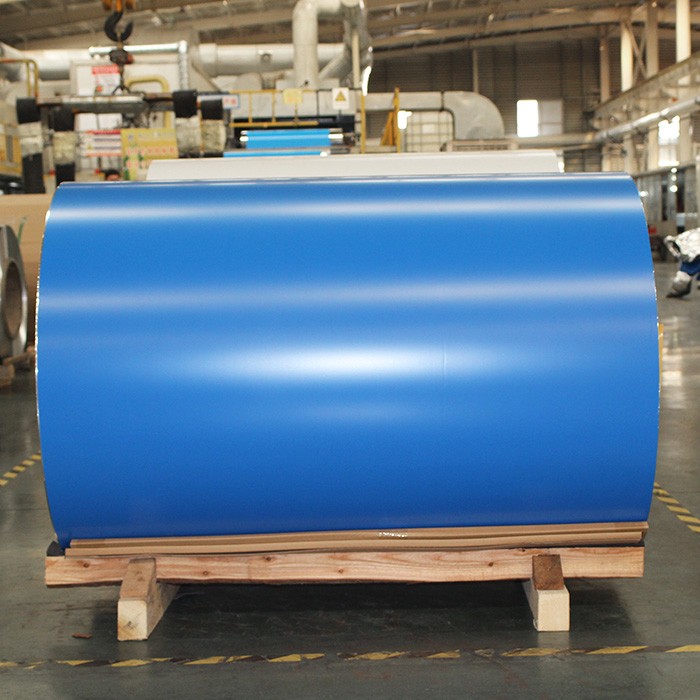

Color Coated Roofing Aluminum Sheet In Coils

Coated Aluminium Specification

Item

Description

Alloy

AA1100,AA3003,etc

Thickness

0.8mm-1.5mm,also can customized up to you(included the coating pe film,tolerance:±0.02mm)

Surface treatment

PVDF/PE coating(PVDF 26-28um/PE16-18um)

Color

RAL/PANTONG or as JINHU color chart or customized

Color Chart of color coated aluminium coil

The color can be customized according to your requirements.

Sample Size: about 30cmL*20cmW

Remark your requirement for samples,for example,color,aluminium thickness,coating,etc

We could offer the sample for free charge but do not pay the cost of freight.

Manufacturing Technique

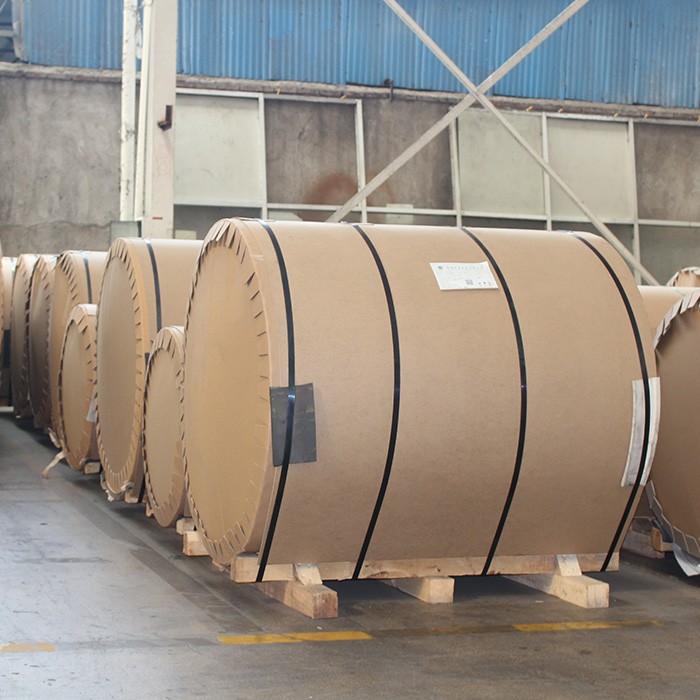

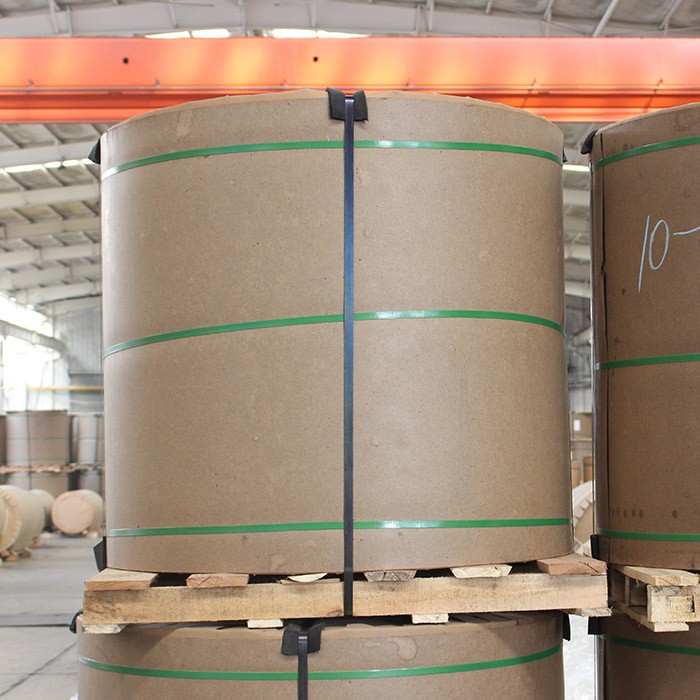

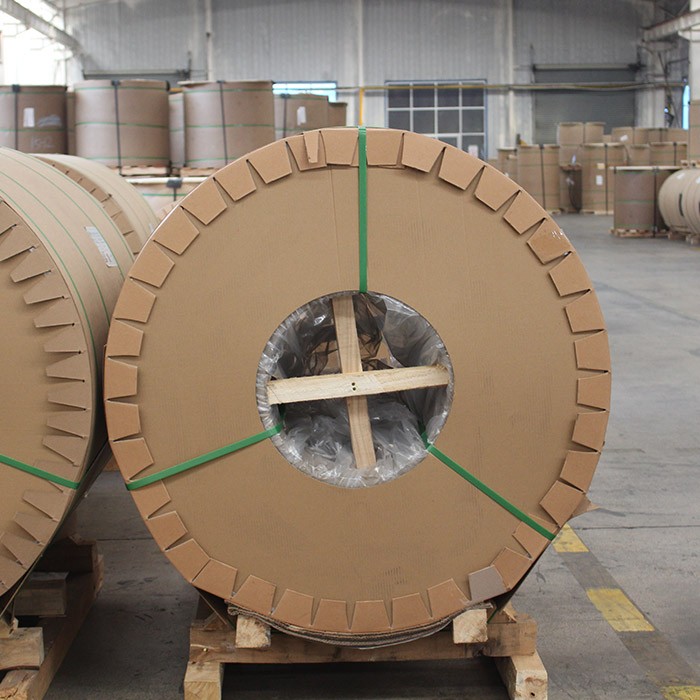

First, The Raw Material Coil Input, Is The Uncoiler Continuous Rewinding To Ensure Continuous Transmission Of The Coil With A Stable Inputting To Production Line. Second, Surface Cleaning And Chemical Treatment, Is To Clean And Chemical Pretreatment The Top And Bottom Faces Of The Aluminum Coil In Order To Ensure That The Paint Can Be Firmly Attached The Coil. The Third Is Painting. Each Production Line Should Have At Least Two Roller Coating Machine To Ensure Prime And Top Coats Can Be Two Layers Coated. Forth Is The Paint Layer Curing That Is The Roll Coil Which Is Finished Painted Just Now Should Be Completed Curing Before Touch The Next Roller To Avoid Mutual Adhesion And Destruction. Generally, It Has At Least Two Curing Boxes In A Production Line. Fifth, Refers To Finished Products Output. It Should Ensure The Production Line's Speed And Finished Coil Transfer Synchronization.TestingPOLYESTERItemTechinical requirementsItemTechinical requirementsThickness of coating film≥18Flexibilty≤2TGloss deviationGlossGloss≥70.Limit of error≤5%Boiling water resisitance2H No color changeHardness pf pencil≥2HColor difference△E≤2.0Adhesion≥1LeverMEK≥150 TimesProduct packaging
