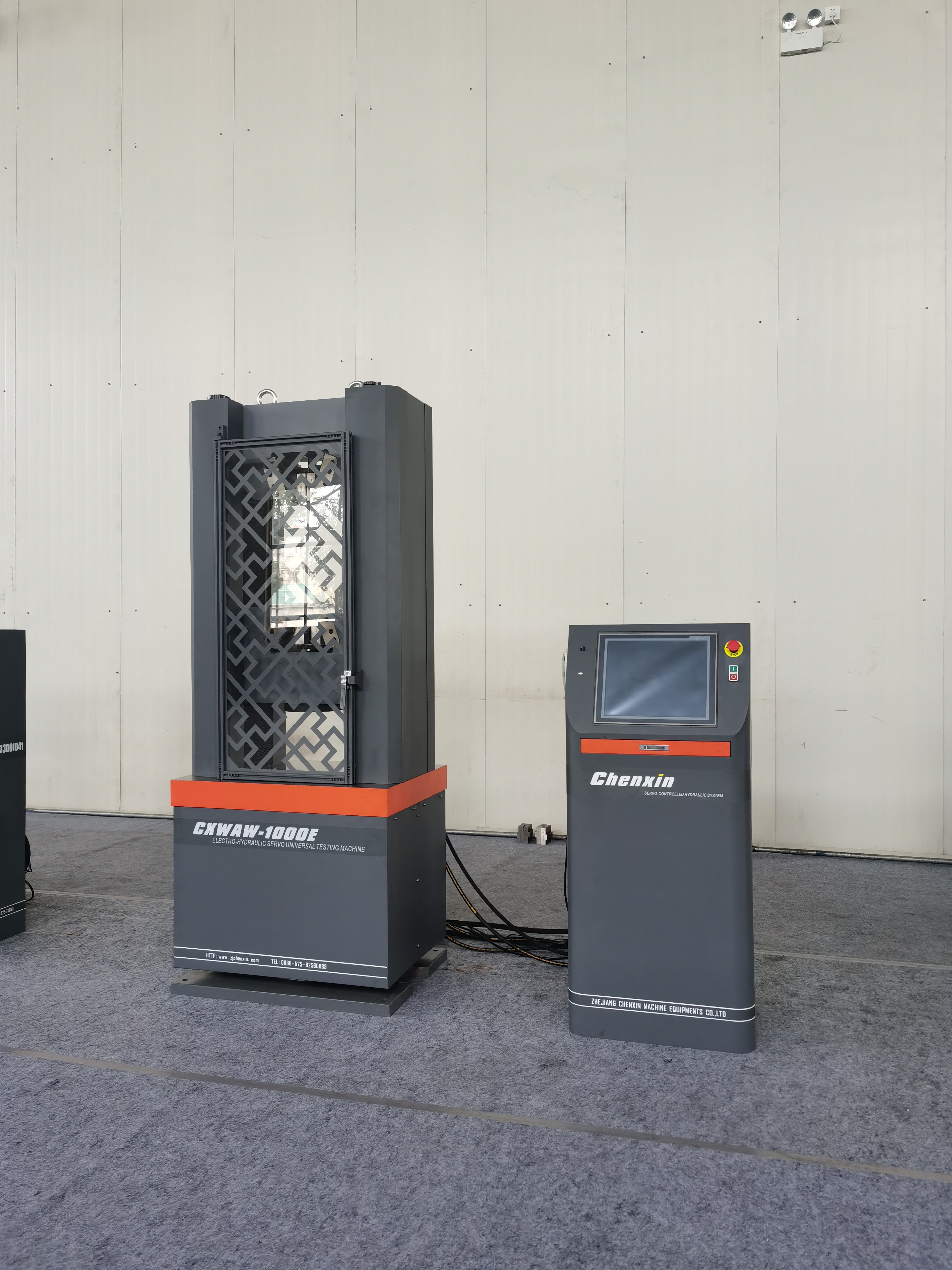

Usage

This product is developed and manufactured with ZL 2016 2 0017574.4, ZL 2017 2 1257894.8, ZL 2017 2 1259588.8 patent technology, mainly used for tensile, compression, bending, shearing, peeling, tearing and other mechanical property tests of metallic and non-metallic materials.

Characteristics

12. 1. It adopts six column frame and I-shaped structure to ensure its super stability and rigidity.

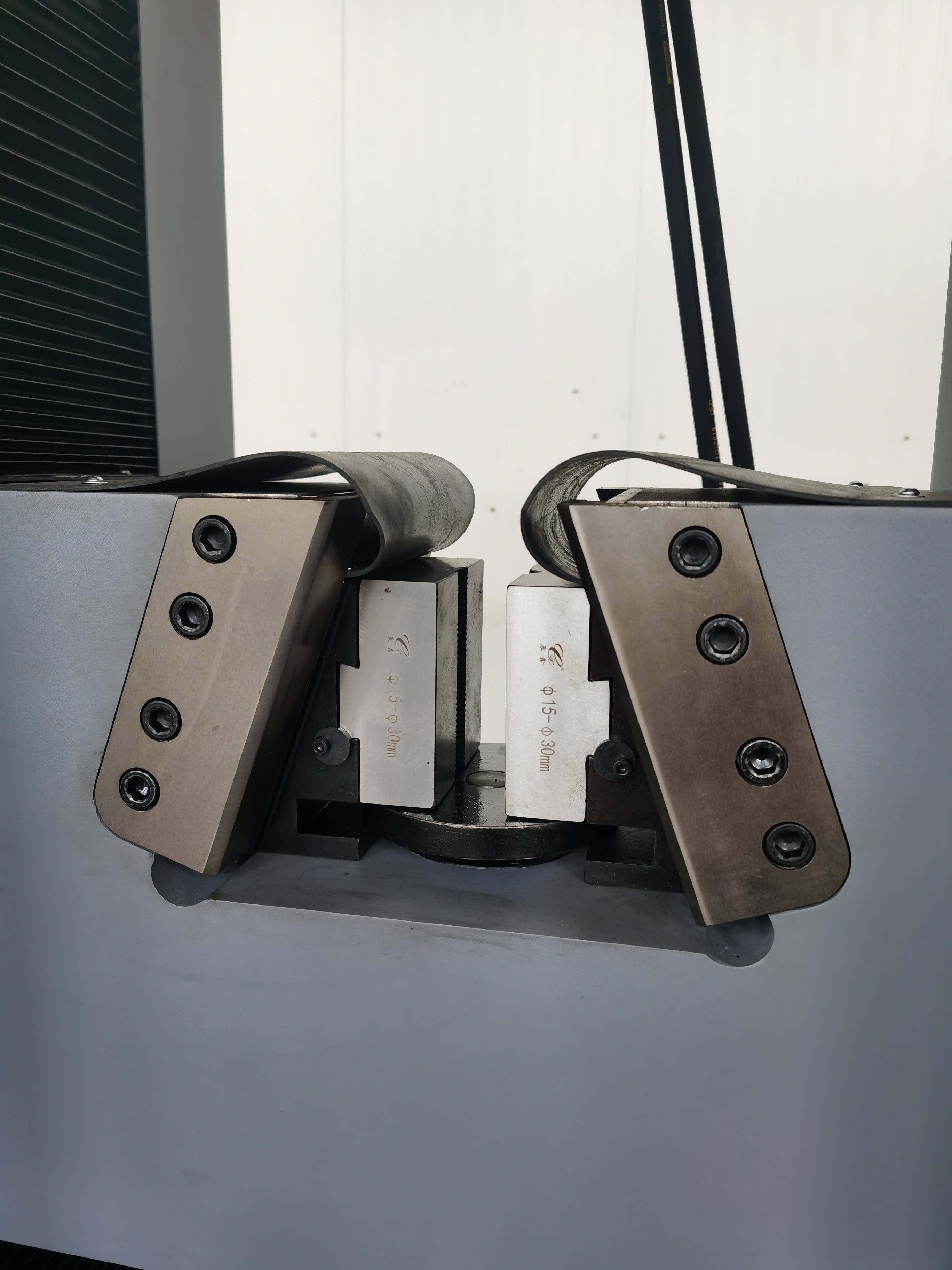

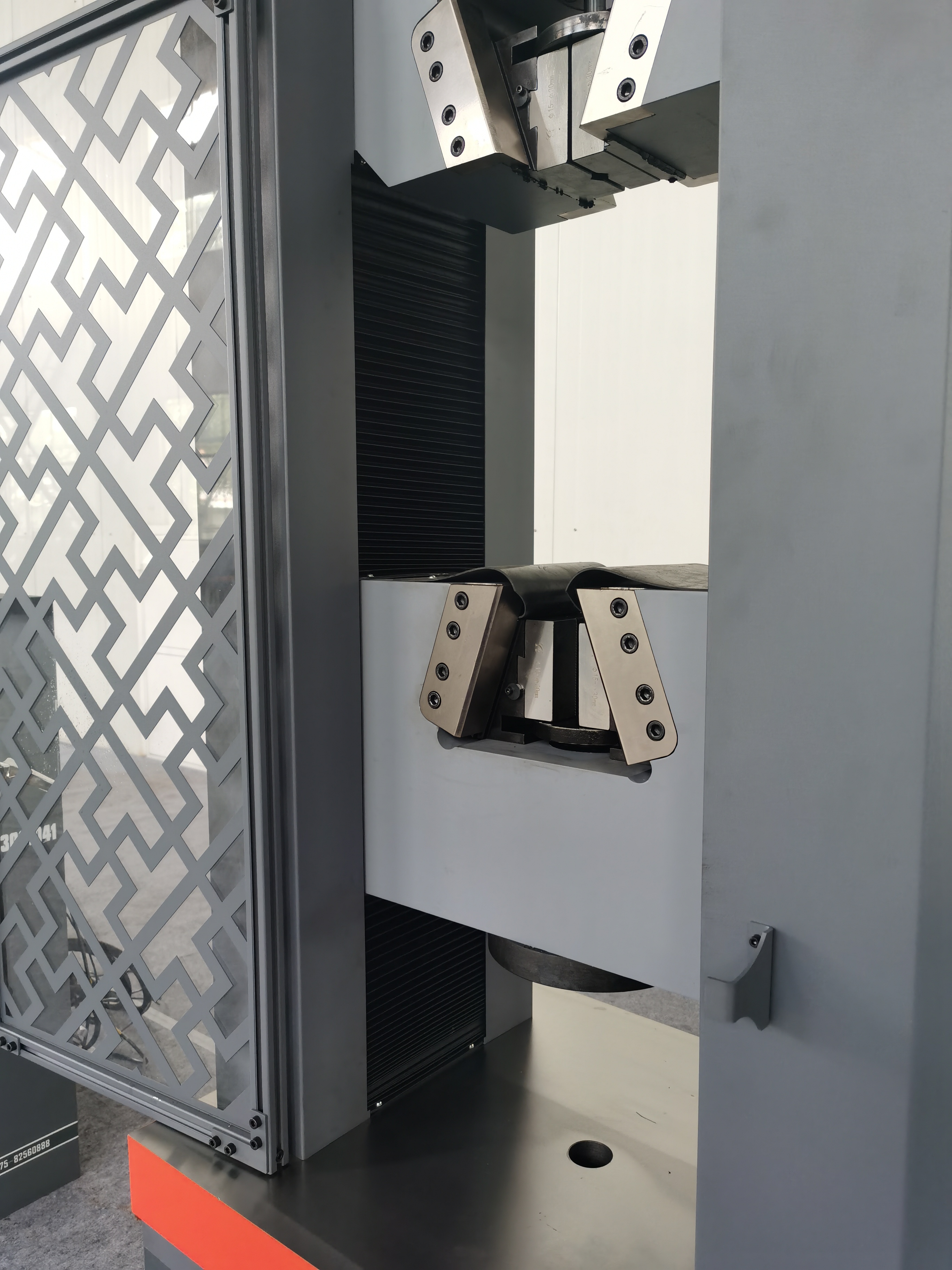

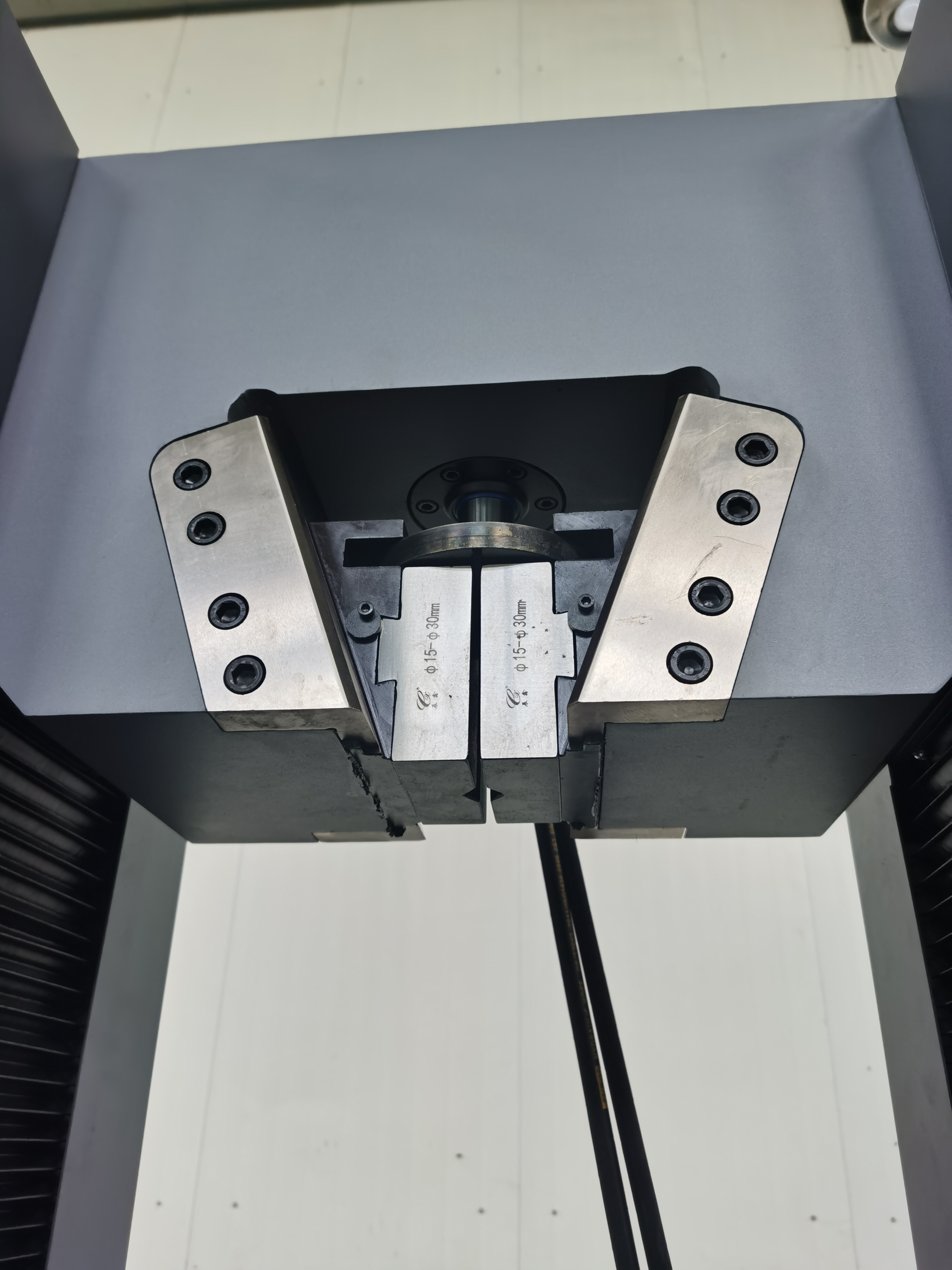

13. 2. With a large opening jaw seat, the sample can be pushed and clamped horizontally, which makes the operation easy and convenient, effectively reduces the labor intensity of the tester and improves the test efficiency
14. 3. With the built-in structure design, the jaw and jaw clamp are not exposed to the outside of the jaw seat during the test run, so that the stress in the jaw of the testing machine is relatively balanced, effectively avoiding the test machine's strain on the test machine's jaw, jaw and jaw seat during the long-term operation, so as to solve the problem of the opposite side and deformation of the jaw seat of the testing machine.
15. 4. Double nut and reverse clearance structure are adopted to effectively solve the problem of increasing clearance caused by friction between screw rod and nut caused by long-term operation of nut, ensure the balance of testing machine, and improve the repeatability and durability of testing machine.
16. 5. The closed protective structure is adopted to effectively prevent dust and oxide skin of the test piece from entering the screw rod and nut, so as to make the test machine run smoothly and have better durability.
17. 6. It adopts the whole machine spray coating process, which is wear-resistant, dirt resistant and easy to clean; the surface of cushion block, pressing plate and integrated block adopts the blackening process; the oil pipe adopts phosphatized high-pressure oil pipe, which is not easy to rust and fade.
18. 7. It adopts the design of computer controlled electro-hydraulic servo loading and the separation of load unit and control cabinet, which has the characteristics of convenient operation, stable and reliable operation, high test accuracy and stable loading.
19. 8. The load, displacement and deformation three closed-loop control technology is adopted, and the smooth switch among the three control modes can be realized, and the automatic data acquisition and processing can be realized.
20. 9. It adopts high-precision digital servo valve to control the loading, and the digital servo valve adjusts the loading rate in real time through calculation according to the data feed back by the sensor.
21. 10. By using Windows system control software, many technical parameters such as elastic modulus E, upper yield strength ReH, lower yield strength ReL, specified non proportional extension strength Rm, specified total extension strength Rt, maximum total extension Agt and yield point elongation can be obtained automatically.
22. 11. The test data and the curve can be displayed on the screen synchronously. The curve can be locally enlarged and compared with multi curve superposition. It has the functions of disk storage of test results, printing test results and test curves, report processing of batch test results, database management, etc., and has network interface. It has the functions of LAN networking and remote database seamless connection.
23. 12. It adopts touch screen and keyboard dual control mode to meet the preferences of different technicians and make the operation more convenient.
24. 13. The main components are imported parts, such as imported Siemens motor and imported radial piston oil pump, which make the loading accuracy of the testing machine higher, noise lower, durability better, and enhance the stability of the machine.
25. 14. The networked measurement and control system has the functions of gain adjustment, zero point fullness, etc. to ensure the smooth operation and accurate measurement of the machine.

Model

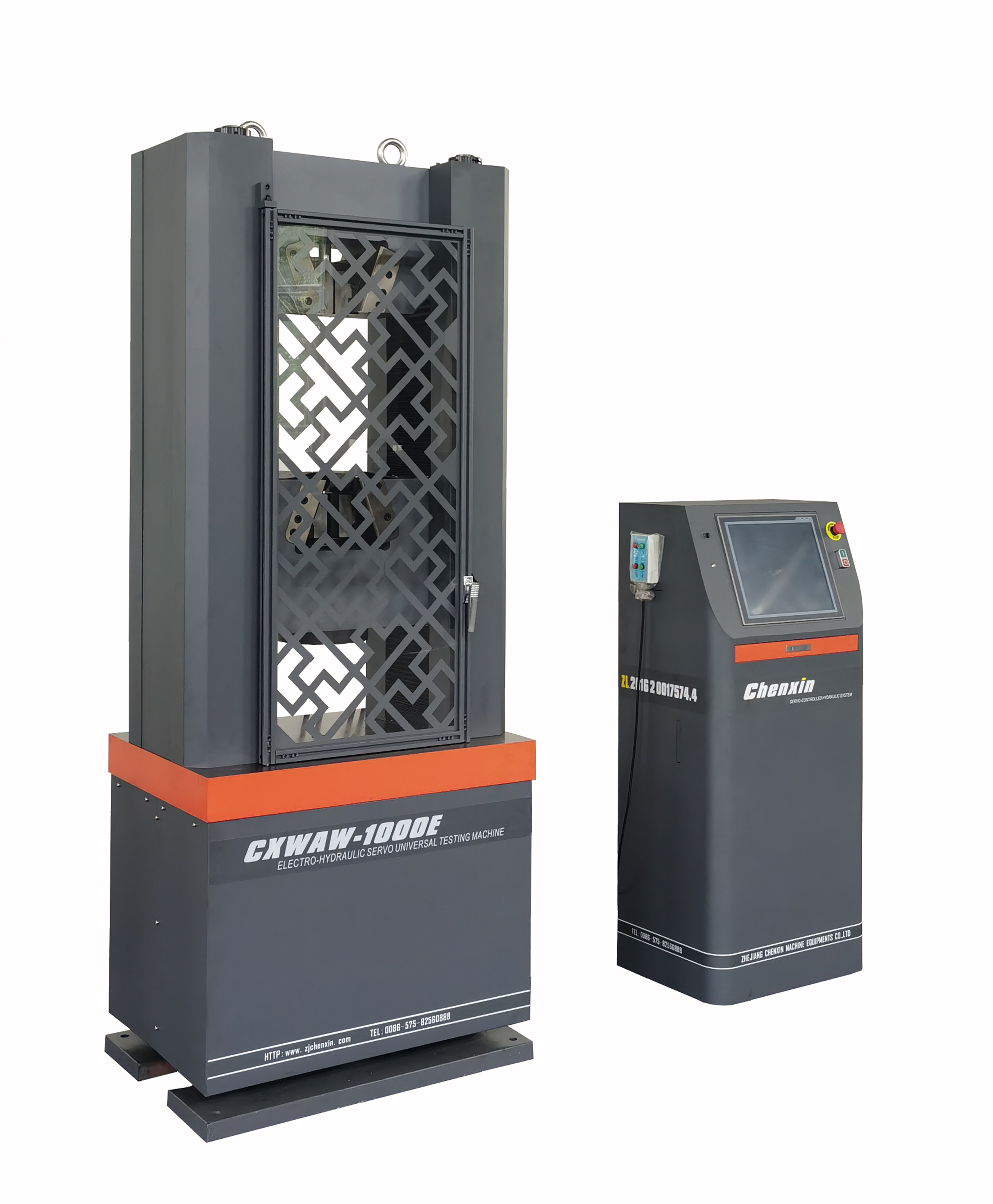

CXWAW-100E

CXWAW-300E

CXWAW-600E

CXWAW-1000E

Load unit

Load unit deformation under max. loading

Column deformation ≤0.45mm

Oil cylinder position

Lower type

Max. load to cylinder (KN)

580

780

1500

2000

Cylinder linear

Ellipticity

≤0.015mm

Verticality

≤⊥0.03mm

Roughness

≤Ra0.4um

Oil source

Oil pump

Flow

2ml/rev

4ml/rev

Pressure

6.5Mpa

19.5 Mpa

23.5 Mpa

24Mpa

Sensor

Sensitivity coefficient

2mv/v

Non-linear

0.2%FS

Repeatability

0.05%FS

Max. test force (KN)

100

300

600

1000

Voltage (V)

380, three phases four lines

Test force measuring range (KN)

2%-100%FS, full range gearless, equivalent to three

Test force indication relative error

≤±1%

Constant rate control range of test force

0.1-100%F.S./min

Constant rate control range of deformation

0.1-100%F.S./min

Deformation measuring resolution

1/300000F.S.

Deformation indication relative error

≤±1%

Crossbeam speed (mm/min)

0-200

Displacement constant speed ratio control

0.5-90mm/min

Speed precision

≤±2% set value

Compression platen size (mm)

φ235

φ235

φ235

φ235

Max. distance between platens (mm)

600

600

700

700

Max. tensile distance

600

600

700

700

Round specimen clamping diameter (mm)

6-22

6-32

10-40

15-60

Flat specimen clamping thickness (mm)

0-20

0-20

0-30

0-40

Flat specimen clamping width (mm)

≤70

≤70

≤70

≤70

Diameter for shearing (mm)

0-10

0-15

0-20

Effective distance between columns (mm)

375

500

550

Piston stroke (mm)

200

250

250

Power

2.2+0.55

3+0.75

Dimension (mm)

680*520*2000

800*600*2150

900*650*2320

Control cabinet dimension (mm)

620*440*1400

Weight (Kg)

1500

2500

3200
