Covered Aerial MV Cable (Spacer Cable or Tree Wire)
Henan Qingzhou Cable Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable

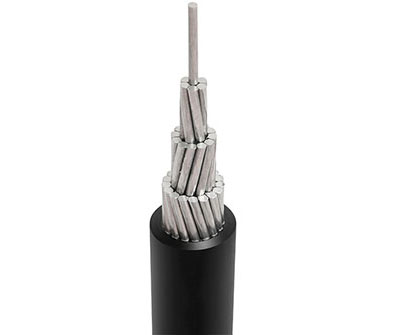

Covered Aerial MV Cable (Spacer Cable or Tree Wire)
Henan Qingzhou Cable Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
From the supplier
Application
Covered Aerial MV Cable – Installed with other Covered Aerial MV cables and a supporting messenger through a series of space- maintaining devices (spacers). The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation, particularly useful in congested areas.
Tree Wire – Used for spans where trees crowd the right-of-way, such as in wooded residential areas, when a minimum of interference with the environment is desired. Covering minimizes power outages due to conductor contact with tree limbs, reducing the need for frequent or severe trimming.
Spacer Cable – Installed with other spacer cables and a supporting messenger through a series of space-maintaining devices (spacers). The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation; particularly useful in congested areas.

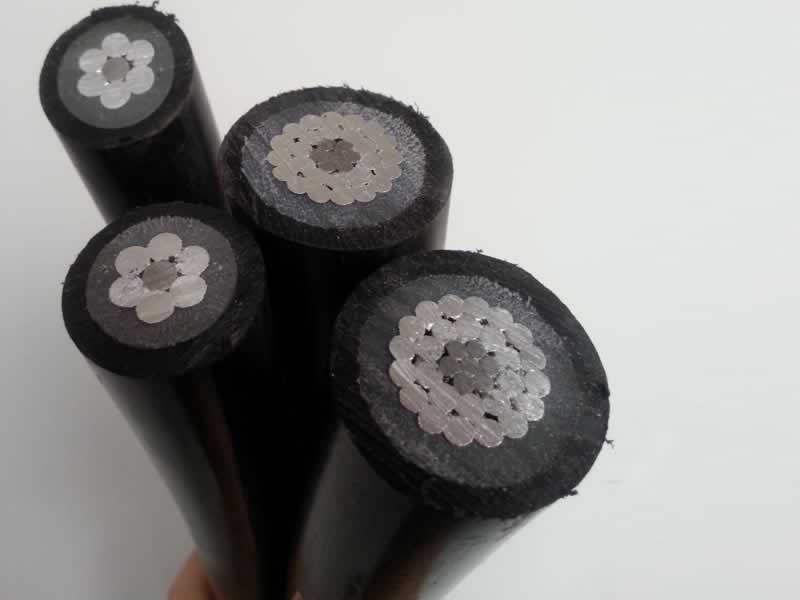

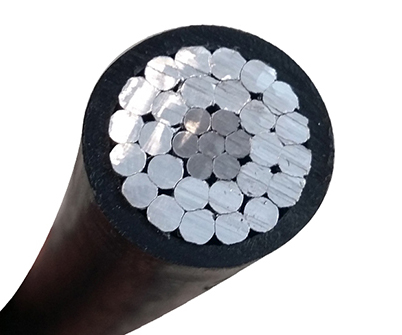

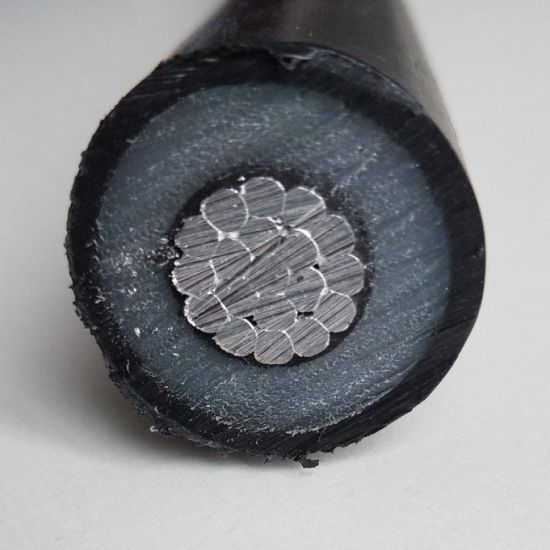

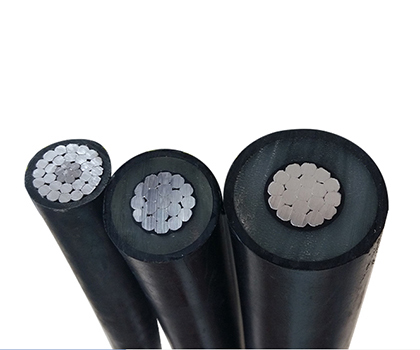

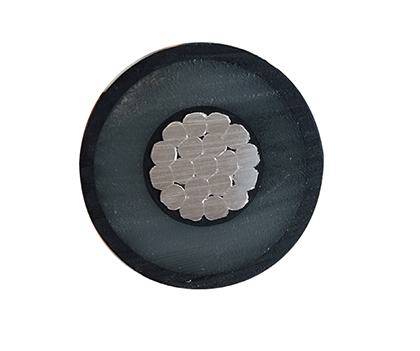

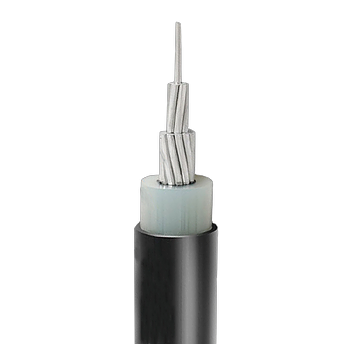

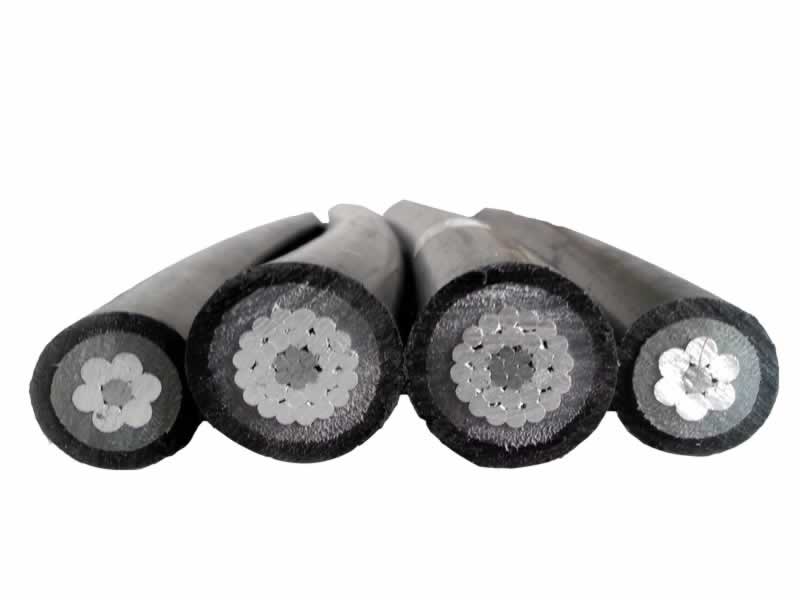

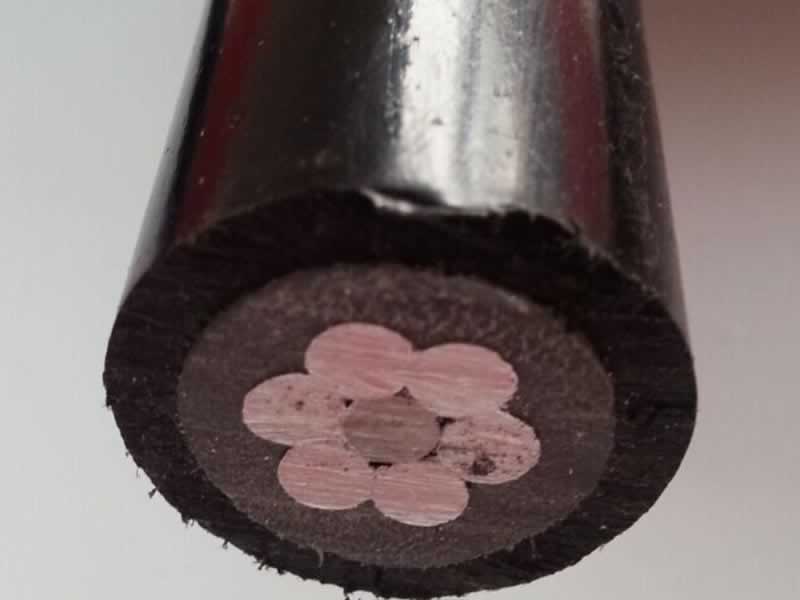

Construction
AAC, AAAC, ACSR Hard drawn Aluminum conductors & high die electric strength; Galvanise steel wire zinc coated & high impact/ abrasion resistant
concentrically stranded insulated with Cross-linked polyethylene (XLPE)
Jacketed with weather, track & sunlight resistant High density polyethylene (HDPE)
IEC BS EN 50397
15kv Overhead Covered Conductor
Cross section
No. of wires
Conductor dia.
Overall Diameter
Minimum breaking load
Approx. weight
Max. DC-resistance at 20°C
Ampacity 90°C
[mm²]
[mm]
[mm]
[kgf]
[kg/km]
[Ohm/km]
[A]
35
7
7.1
13.6
464
190
0.868
187
50
7
8.2
14.7
663
235
0.641
225
70
19
9.7
16.2
928
315
0.443
282
95
19
11.5
18
1259
400
0.32
345
120
19
12.9
19.4
1591
500
0.253
401
150
19
14.2
20.7
1988
580
0.206
456
185
37
16.2
22.6
2452
695
0.164
525
240
37
18.4
24.9
3182
875
0.125
625
300
37
20.7
27.1
3977
1070
0.1
721
25kv Overhead Covered Conductor
Cross section
No. of wires
Conductor dia.
Overall Diameter
Minimum breaking load
Approx. weight
Max. DC-resistance at 20°C
Ampacity 90°C
[mm²]
[mm]
[mm]
[kgf]
[kg/km]
[Ohm/km]
[A]
35
7
7.1
15.7
464
235
0.868
186
50
7
8.2
16.8
663
305
0.641
224
70
19
9.7
18.3
928
370
0.443
280
95
19
11.5
20.1
1259
460
0.32
343
120
19
12.9
21.5
1591
560
0.253
397
150
19
14.2
22.8
1988
650
0.206
450
185
37
16.2
24.8
2452
770
0.164
519
240
37
18.4
27
3182
960
0.125
617
300
37
20.7
29.3
3977
1155
0.1
712
35kv Overhead Covered Conductor
Cross section
No. of wires
Conductor dia.
Overall Diameter
Minimum breaking load
Approx. weight
Max. DC-resistance at 20°C
Ampacity 90°C
[mm²]
[mm]
[mm]
[kgf]
[kg/km]
[Ohm/km]
[A]
70
19
9.7
25.7
928
620
0.443
270
95
19
11.5
27.5
1259
732
0.32
329
120
19
12.9
28.9
1591
830
0.253
381
150
19
14.2
30.2
1988
937
0.206
432
185
37
16.2
32.2
2452
1083
0.164
497
240
37
18.4
34.4
3182
1290
0.125
589
300
37
20.7
36.7
3977
1502
0.1
674
