DONJOY SS316L mini manual stainless steel clamp diaphragm valve for cosmetic
DONJOY Technology，CO，LTD
See what’s includedHide breakdown
- FOB goods (100)
- $5,800
- Ocean freight + handling (1.5 CBM, volume guessed from price)
- $874
- US duty (3.5%)
- $203
- Section 301 tariff (25.0%)
- $1,450
- Customs fees (MPF/HMF)
- $40
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $5,800
- Ocean freight + handling (1.5 CBM, volume guessed from price)
- $874
- US duty (3.5%)
- $203
- Section 301 tariff (25.0%)
- $1,450
- Customs fees (MPF/HMF)
- $40
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
DONJOY SS316L mini manual stainless steel clamp diaphragm valve for cosmetic
DONJOY Technology，CO，LTDSee what’s includedHide breakdown
- FOB goods (100)
- $5,800
- Ocean freight + handling (1.5 CBM, volume guessed from price)
- $874
- US duty (3.5%)
- $203
- Section 301 tariff (25.0%)
- $1,450
- Customs fees (MPF/HMF)
- $40
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $5,800
- Ocean freight + handling (1.5 CBM, volume guessed from price)
- $874
- US duty (3.5%)
- $203
- Section 301 tariff (25.0%)
- $1,450
- Customs fees (MPF/HMF)
- $40
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 69*73
- Color: CNC
- Voltage: Other
- Customized: Customized
- Feature: Other
- Kind: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Size: 69*73
- Color: CNC
- Voltage: Other
- Customized: Customized
- Feature: Other
- Kind: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Size | 69*73 |
|---|---|
| Color | CNC |
| Voltage | Other |
| Customized | Customized |
| Feature | Other |
| Kind | Other |
| Certification | CEISO |
| Finished dosage form | Other |
| Warranty | 1 Year |
| Application | Other |
Product details
| Size | 69*73 |
|---|---|
| Color | CNC |
| Voltage | Other |
| Customized | Customized |
| Feature | Other |
| Kind | Other |
| Certification | CEISO |
| Finished dosage form | Other |
| Warranty | 1 Year |
| Application | Other |
From the supplier

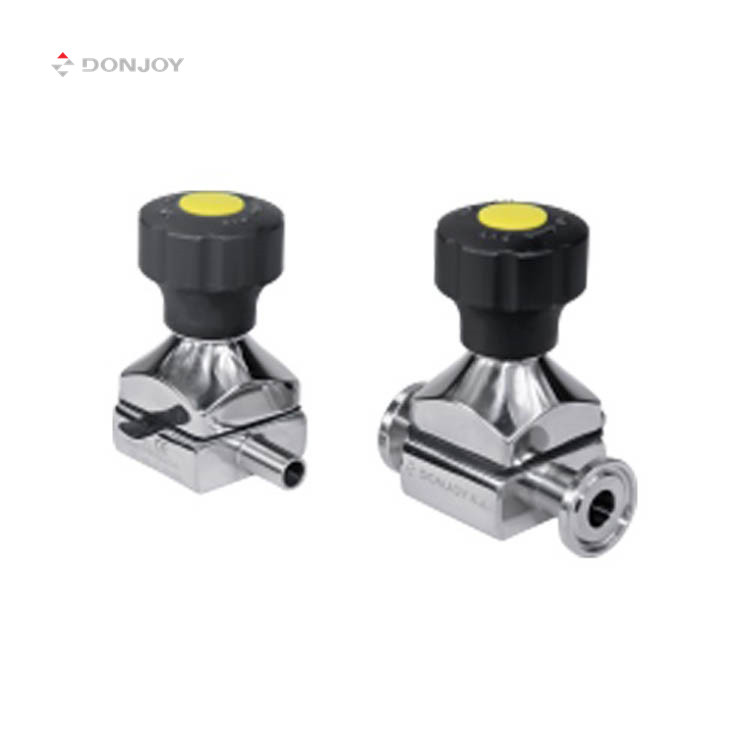

Mini Manual Diaphragm Valve
It is mainly used in liquid sampling, biological systems, laboratories and other projects
The valve is used in the pharmaceutical filling system with a particular advantage that opening and closing times can be up to 150 million life in 3 bar working pressure.
●Size: 1/4 "-3/4", DN6-DN15
●Standard: BPE 3A DIN ISO IDF
●Certificate: PED/97/23/EC，3A/54-04/1580，FDA.177.2600
●Max Temperature: -30℃ to 150℃ (Depending on seal material)(Stainless steel actuator)
●Max Temperature: -30℃ to 130℃ (Depending on seal material)(Plastic actuator)
●Max Pressure: One way (DELTA P=100%)
EPDM8bar, PTFE 6 bar(Option)
EPDM6bar, PTFE 4.5 bar(Option)
Double action EPDM 8 bar，PTFE 6 bar
●Assembling different actuators can meet higher pressure rating.
●Forged Body: 1.4404/316L/1.4435 BN2
●Casting the body: 1.4404/316L
●Connection: Clamp, Weld, Thread, Flange
●Operations: Manual and pneumatic
From the supplier
Mini Manual Diaphragm Valve
It is mainly used in liquid sampling, biological systems, laboratories and other projects
The valve is used in the pharmaceutical filling system with a particular advantage that opening and closing times can be up to 150 million life in 3 bar working pressure.
●Size: 1/4 "-3/4", DN6-DN15
●Standard: BPE 3A DIN ISO IDF
●Certificate: PED/97/23/EC，3A/54-04/1580，FDA.177.2600
●Max Temperature: -30℃ to 150℃ (Depending on seal material)(Stainless steel actuator)
●Max Temperature: -30℃ to 130℃ (Depending on seal material)(Plastic actuator)
●Max Pressure: One way (DELTA P=100%)
EPDM8bar, PTFE 6 bar(Option)
EPDM6bar, PTFE 4.5 bar(Option)
Double action EPDM 8 bar，PTFE 6 bar
●Assembling different actuators can meet higher pressure rating.
●Forged Body: 1.4404/316L/1.4435 BN2
●Casting the body: 1.4404/316L
●Connection: Clamp, Weld, Thread, Flange
●Operations: Manual and pneumatic
