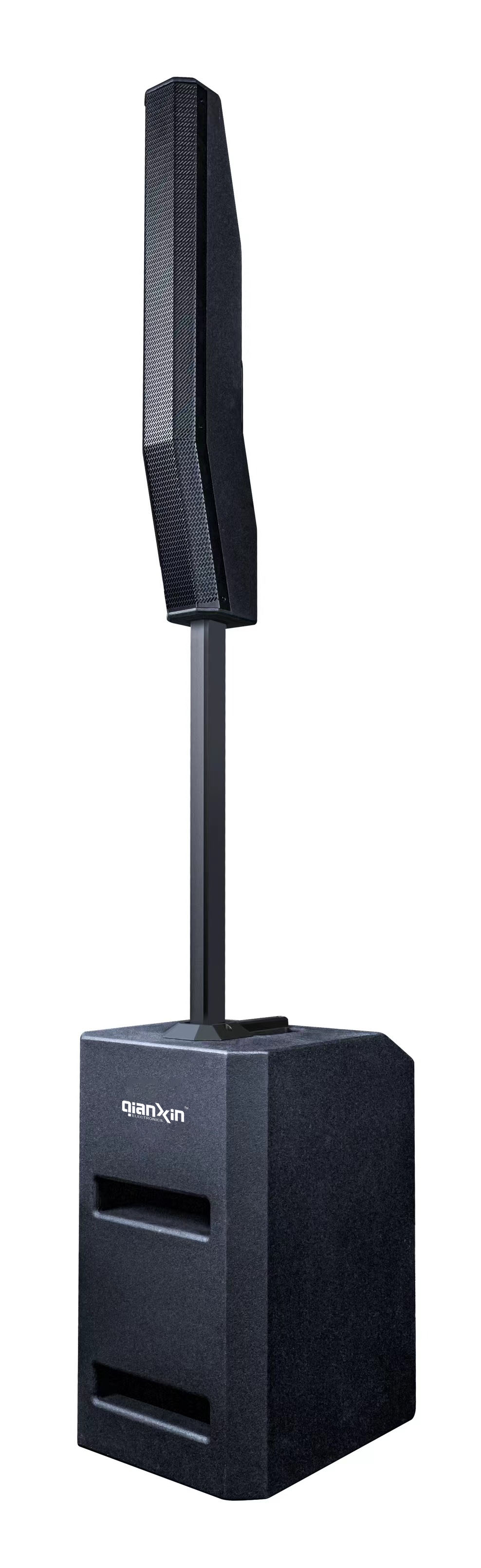

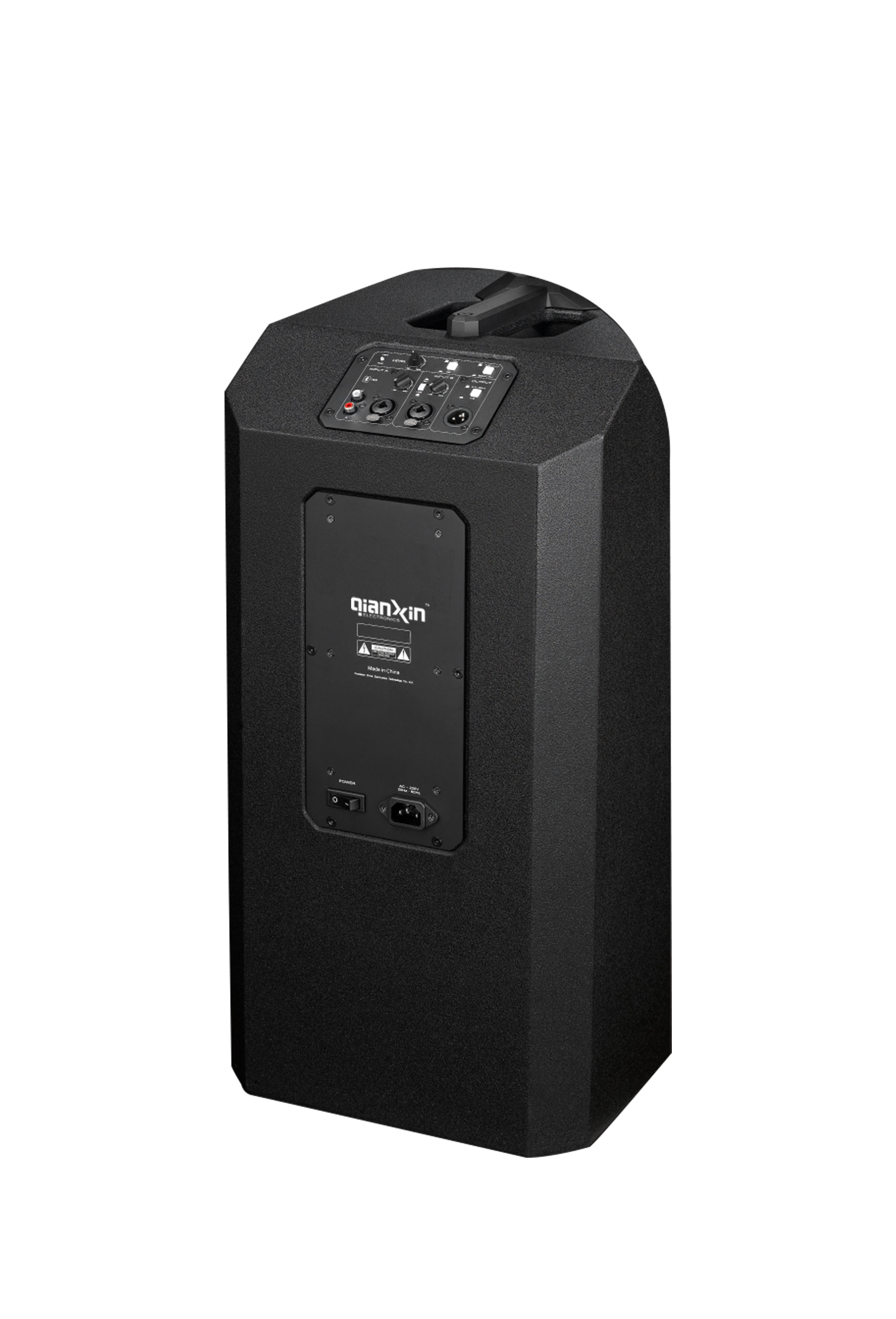

Dsp Power Speaker
Shanghai Qianxin Electronics Co., Ltd7/10 fairsForeign Trade Company
Exhibiting on site
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
From the supplier
Model:
SC803
SC1003
SC1203
Size:
8"
10"
12"
Frequency response (-3 dB):
42Hz-20KHz
42Hz-20KHz
40Hz-20KHz
Frequency range (-10 dB):
40Hz-20KHz
40Hz-20KHz
36Hz-20KHz
Low frequency design:
8"bandpass
10"bandpass
12"bandpass
Mid-high design:
4x2.3 linear array design
8x3.5 linear array design
LF Driver:
8* with 25mm coil
10* with 38mm coil
12* with 51mm coil
HF Driver:
2. 3"with 19mm coil full range
3.5"with 25mm coil full range
Maximum SPL:
122dB
126dB
128dB
Coverage (H x V):
100°X40°
140°X40°
Amplifier rating:
300W
1000W
1200W
LF channel rating:
150W
500W
600W
HF channel rating:
150W
500W
600W
Crossover frequency:
4th / 200h2 DSP
Connectors:
2x XLR/TRS Combo Jack Input
lx Stereo RCA Input
lx Wireless Bluetooth Audio Input
1x XLR THRU Output Enclosure: Sub: 12 m MDF
Column: 12 mm NDF
Pole: Aluminum Sub: 15 mm plywood
Column: 9 mm plywood
Pole: Aluminum Grille: Steel with black or white powder coat Color: Black or white Dimensions (WxHxD): SUB W258 H517 D330 SUB 315 H625 D410 SUB 365 H625 D450 Column W96 H472 D103
Pole W35 H800 D50mm
Total height H1595mm Column W103 H808 D180
Pole W35 H800 D50mm
Total height H2000mm Net weight: SUB :10KG SUB: 15.5KG SUB: 19.5KG Column: 1.95KG Column:4. 8KG Pole: 0.9KG Shipping weight: 13.5kg 24.5kg 28.5kg Shipping Dimensions (HxWxD): Column W211 H850 0150
Sub W405 H566 D333 W520 H890 D500mm W580 H890 D530mm Power consumption: 100 - 240 V AC,50 - 60 Hz, 1.5-0.6 A
lx Stereo RCA Input
lx Wireless Bluetooth Audio Input
1x XLR THRU Output Enclosure: Sub: 12 m MDF
Column: 12 mm NDF
Pole: Aluminum Sub: 15 mm plywood
Column: 9 mm plywood
Pole: Aluminum Grille: Steel with black or white powder coat Color: Black or white Dimensions (WxHxD): SUB W258 H517 D330 SUB 315 H625 D410 SUB 365 H625 D450 Column W96 H472 D103
Pole W35 H800 D50mm
Total height H1595mm Column W103 H808 D180
Pole W35 H800 D50mm
Total height H2000mm Net weight: SUB :10KG SUB: 15.5KG SUB: 19.5KG Column: 1.95KG Column:4. 8KG Pole: 0.9KG Shipping weight: 13.5kg 24.5kg 28.5kg Shipping Dimensions (HxWxD): Column W211 H850 0150
Sub W405 H566 D333 W520 H890 D500mm W580 H890 D530mm Power consumption: 100 - 240 V AC,50 - 60 Hz, 1.5-0.6 A
