2 why help you choose the right petrol station pipeline

Fisrt why: Why PE flexible pipeline not traditional steel pipeline

1. Within -40℃~50℃ temperature range, the burst pressure of PE flexible pipeline which is over 40 standard atmospheric pressure protect the pipeline to perform durably.

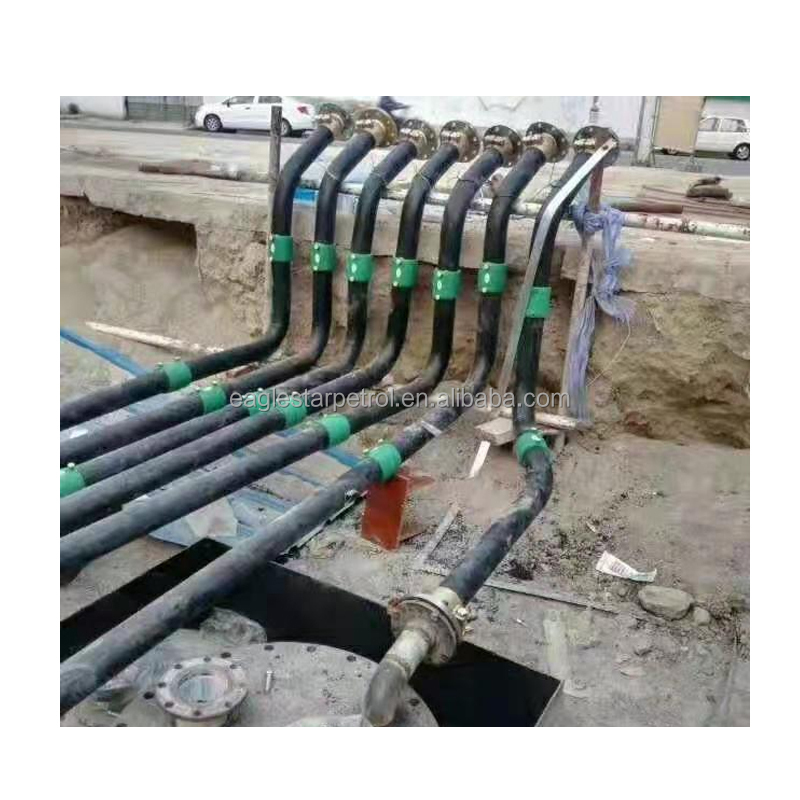

2. The efficient Electro fusion welding techniques connect pipe with its accessories and produce a seamless buried oil-supply pipeline system.

3. The pipeline can eliminate all the leakage from oil tank to fuel dispenser, thus protecting the environment. It prevents the underground water from permeating into the pipe.

4. PE pipeline with polytene composite material can be used for all kinds of fuel, ethanol mixture and additives. According to EN14125 standard testing and proving, the pipe can apply to hydrocarbon, ethanol fuel mixture and biofuel at 10 standard atmospheres of pressure (bar)

5. Excellent static conductivity demonstrates the PE flexible pipeline with high safety performance.

6. No need concrete furrow. It can significantly reduce the construction cost for fuel station.

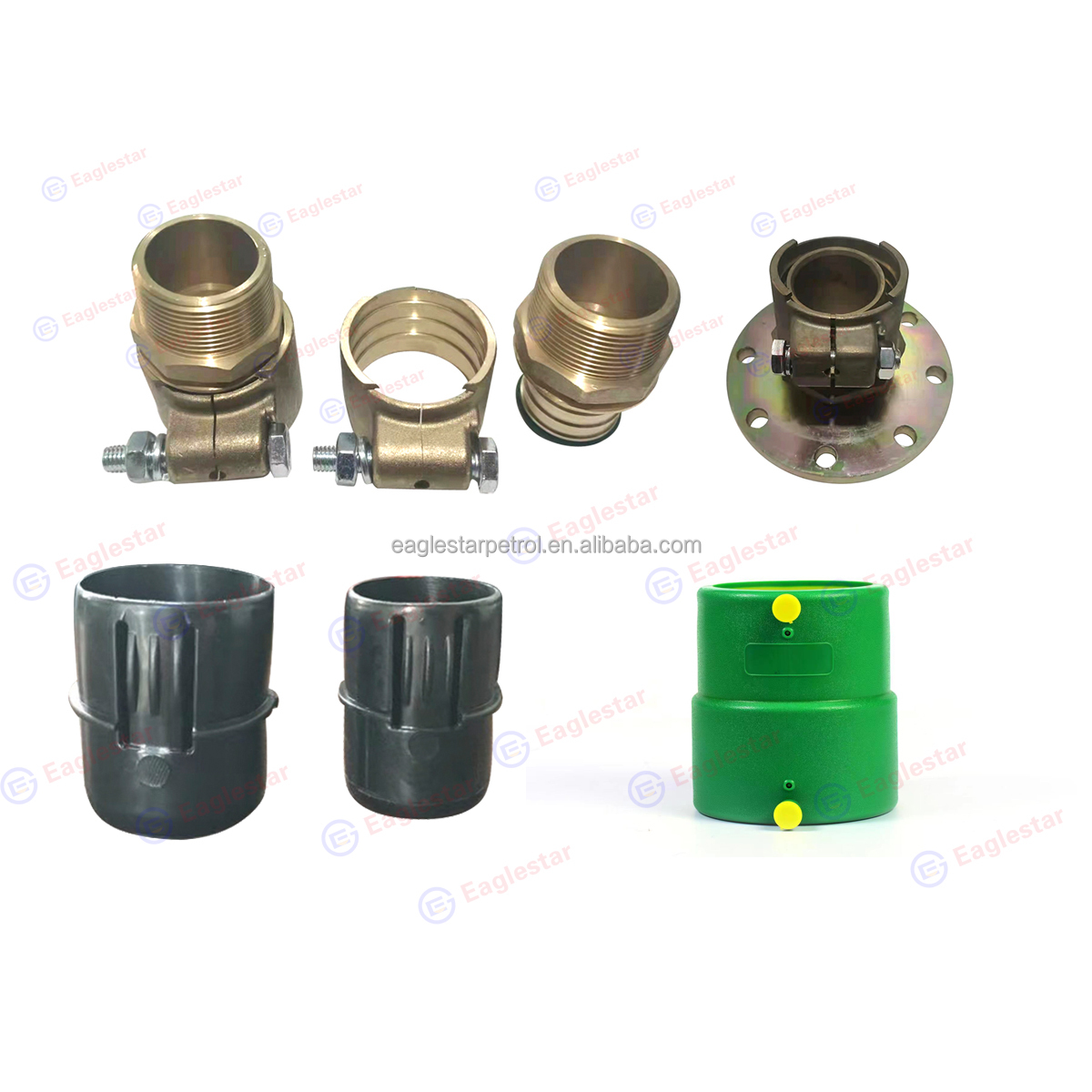

7. Easy installation with rich choice for accessories provides the flexibility of pipeline direction.

Second why: why choose Eaglestar pipeline

1. Strong Oil and Solvent Resistance
The special EVOH lining has smooth surface and good oil resistance, which not only helps to reduce the frictional loss in fuel transmission but also totally cut off fuel permeation, thus improving fueling efficiency.

2. Strong Static Conductivity
With advantage of EVOH resign lining, PE pipe has less than 104Ω electrical resistance. Comparison to other materials, PE pipe has more safety for fuel transmission.

3. Excellent Mechanical Property
Applying to Multi-layer co-extrusion techniques to guarantee the strength and durability, Eaglestar PE pipe has excellent resistance to curve and fracture. It can also bear a pulling force of 7000N, which efficiently prevents oil leakage casing by land subsidence.

4. Strong Corrosion Resistance
The high density polyethylene outer layer has strong corrosion resistance and it can endure the corrosion of various chemical mediators. It has no electrochemical corrosion and never rusts. Compared with metal pipe, polyethylene composite pipe saves much cost for corrosion prevention and reduce much risks casing by pipe corrosion.

5. Wide Range Temperature Suitability
Eaglestar PE pipeline can work well in -40℃ to +50℃ environment without leakage. Its burst pressure which is over 40 standard atmospheric pressure protects the pipeline to perform durably.

6. Super Long Lifetime
The traditional metal pipe generally needs complicated preservative treatment before laying the underground pipes. Even in neutral and non-corrosion soil, the average life of traditional metal pipe is only 10 years. PE flexible pipeline, with PE100 as its outer layer, has a resistance to backfill material and dynamic traffic load. Therefore its life span can achieve 30 years.

Related product

Manhole well is installed on the oil tank manhole of the gas station and fueling station. It provides super large working space for the maintenance personnel of the fueling station to enter the well and to repair the submersible oil pump, communication line and leakage monitor etc. It also provides safe passage for the maintenance personnel to enter the oil tank area for inspection, maintenance and cleaning. Our Manhole well is made from HDPE (high density polyethylene) injection molding, with product features of chemical corrosion resistance, aging resistance and leakage resistance etc.

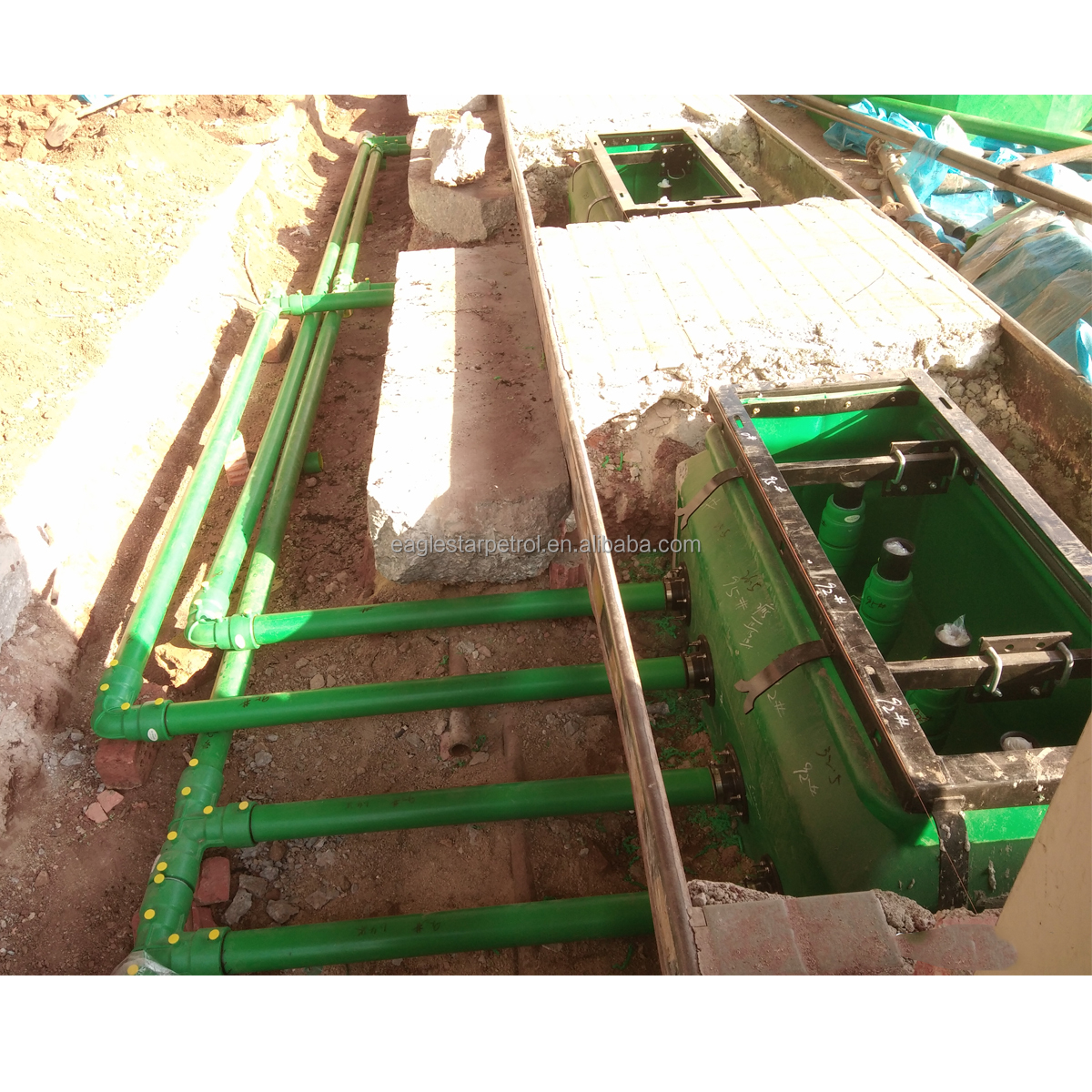

Dispenser sump is installed below the fuel dispenser to provide space for pipe connection, joint and elbow, emergency shut-off valve installation to prevent pipe joint oil leakage. It also prevents the groundwater from getting into the fuel dispenser area to corride metal fittings and valves. It can also provide a clean space of fuel dispenser bottom connected to the ground for future maintenance and repair.
