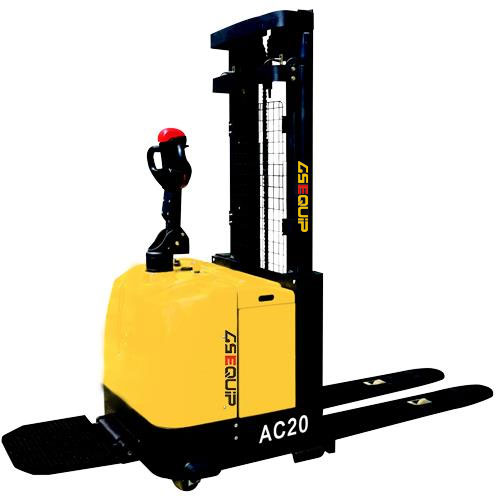

Electric Stacker
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Electric Stacker
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Steel
- Size: 2470*856*1535mm
- Color: Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Steel
- Size: 2470*856*1535mm
- Color: Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Steel |
|---|---|
| Size | 2470*856*1535mm |
| Color | Yellow |
From the supplier
Advantages
Configuration And Performance
⊙Electronic power steering system, light and lownoise
⊙Two-way magnetic valve，three drop speed mode
⊙Drive unit floating bodies with patent design
⊙AC Driving system, No carbon brush, maintenance free
⊙USA CURTIS driving controller
⊙Automatic lifting limit, proximity switch, long lift
Safety
⊙Curve automatic deceleration devices, more safe
⊙Goods high position, vehicle automatic deceleration
⊙Step with Multiple automatic protection
⊙Emergency reversing device /Emergency brake switch
⊙High position automatic reduction device
Feature
Unit
1
Model
GSCDD20
2
Type
Narrow Leg
3
Mast type
2-Stage Mast
4
Load capacity
kg
2000
5
Load center
mm
600
6
Wheel base
mm
1325
7
Operating type
Walkie / Stand On
Wheels8
Wheels type
PU
9
Driving wheel/Balance wheel/Bearing wheel
2001/2/4
Dimension
10
Standard lift height
mm
2000
11
Lowered fork height
mm
86
12
Fork size(length/width/thickness)
mm
1150/185/55
13
Overall length
mm
2050/2470
14
Overall width
mm
856
15
Max extend height
mm
2500
16
Mast lowered height
mm
1535
17
Min.Turning radius
mm
1580/1990
18
Min.Aisle width for pallets 800×1200
mm
2180/2580
19
Min.Aisle width for pallets 1000×1200
mm
2210/2600
20
Min.ground clearance
mm
30
Performance21
Travel speed,laden/unladen
km/h
4/4.5
22
Lift speed,laden/unladen
mm/s
90/170
23
Lowering speed,laden/unladen
mm/s
80/170
24
Gradeability,laden/unladen
%
5/7
Electrical configuration25
Drive motor / Lift motor /Steering motor
KW
AC1.5/DC3/DC0.15
26
Battery voltage
V
24
27
Battery capacity
Ah
280
28
Brake
Electromagnetic / Regenerative
29
Controller
CURTIS 1230
Weight
30
Battery weight
kg
235
31
Service weight with battery
kg
1300
