Visit the ZHUHAI SURELINK COMMUNICATION CABLE CO.,LTD. store
Ethernet network cable lan cable 305m PVC or LSZH jacket indoor ethernet cable utp cat 5e cat5e
4/10 fairsForeign Trade CompanyModel indoor utp cat5e
New for the 140th FairExhibiting on site
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Visit the ZHUHAI SURELINK COMMUNICATION CABLE CO.,LTD. store
Ethernet network cable lan cable 305m PVC or LSZH jacket indoor ethernet cable utp cat 5e cat5e
4/10 fairsForeign Trade CompanyModel indoor utp cat5e
New for the 140th FairExhibiting on site
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: 10
- Color: grey
- Conductor type: Solid
- Conductor material: BC/CCS/CCA/TC/CU/CCAG
- Wire core material: BareCopperWireTinnedWireOther
- Material shape: RoundWire
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea
About this product
- Size: 10
- Color: grey
- Conductor type: Solid
- Conductor material: BC/CCS/CCA/TC/CU/CCAG
- Wire core material: BareCopperWireTinnedWireOther
- Material shape: RoundWire
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea
Product details
| Size | 10 |
|---|---|
| Color | grey |
| Conductor type | Solid |
| Conductor material | BC/CCS/CCA/TC/CU/CCAG |
| Wire core material | BareCopperWireTinnedWireOther |
| Material shape | RoundWire |
| Model | Other |
| Cover material | PEOther |
| Certification | CE |
| Application | LANCableLocalCommunicationCableOther |
| Brand | Other |
Product details
| Size | 10 |
|---|---|
| Color | grey |
| Conductor type | Solid |
| Conductor material | BC/CCS/CCA/TC/CU/CCAG |
| Wire core material | BareCopperWireTinnedWireOther |
| Material shape | RoundWire |
| Model | Other |
| Cover material | PEOther |
| Certification | CE |
| Application | LANCableLocalCommunicationCableOther |
| Brand | Other |
From the supplier

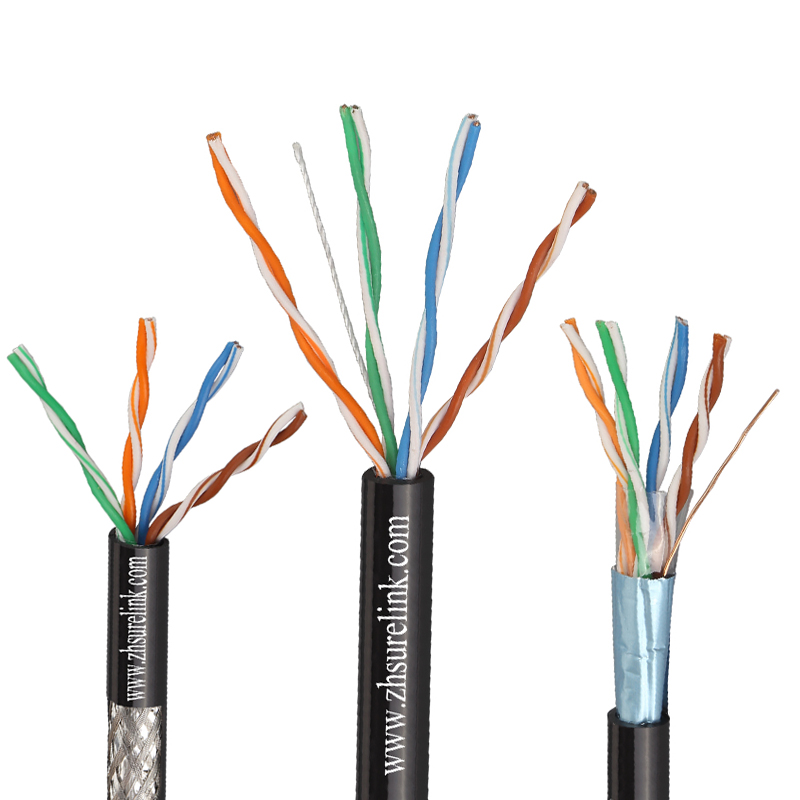

Product Structure
Material Instruction
1.CCA or Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.
Physical Electrical Characteristics
Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Bandwidth is standard 100 MHz.
Support 10-Gigabit Ethernet netword transmission requirements.
DC resistance (max): 4.8Ω/100m at 20°C;
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-100MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -20~+60°C;
Permitted bend radius: 10 times diameter of the cable.
Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
Certificates ISO9001,14000, ROHS.
1.CCA or Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.
Physical Electrical Characteristics
Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Bandwidth is standard 100 MHz.
Support 10-Gigabit Ethernet netword transmission requirements.
DC resistance (max): 4.8Ω/100m at 20°C;
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-100MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -20~+60°C;
Permitted bend radius: 10 times diameter of the cable.
Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
Certificates ISO9001,14000, ROHS.
Email:sales@zhsurelink.com
Wechat: surelink2008
WhatsApp: +86 13926923676
https://www.zhsurelink.com
From the supplier
Product Structure
Material Instruction
1.CCA or Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.
Physical Electrical Characteristics
Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Bandwidth is standard 100 MHz.
Support 10-Gigabit Ethernet netword transmission requirements.
DC resistance (max): 4.8Ω/100m at 20°C;
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-100MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -20~+60°C;
Permitted bend radius: 10 times diameter of the cable.
Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
Certificates ISO9001,14000, ROHS.
1.CCA or Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.
Physical Electrical Characteristics
Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Bandwidth is standard 100 MHz.
Support 10-Gigabit Ethernet netword transmission requirements.
DC resistance (max): 4.8Ω/100m at 20°C;
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-100MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -20~+60°C;
Permitted bend radius: 10 times diameter of the cable.
Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
Certificates ISO9001,14000, ROHS.
Email:sales@zhsurelink.com
Wechat: surelink2008
WhatsApp: +86 13926923676
https://www.zhsurelink.com
About the supplier
ZHUHAI SURELINK COMMUNICATION CABLE CO.,LTD.
Main products: Lan Cable, UTP CAT6,adss cable,fiber cable,ftth cable,plc splitter,fiber terminal box,ODF,fiber patch cord,fiber pigtail,fiber cabinet,microduct,fiber clamp
