About this product
- Materials: Electric boards, fiberglass boards, and all kinds of plastic boards
- Color: GREEN,YELLOW
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Jiangxi, China
About this product
- Materials: Electric boards, fiberglass boards, and all kinds of plastic boards
- Color: GREEN,YELLOW
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Jiangxi, China
Product details
| Materials | Electric boards, fiberglass boards, and all kinds of plastic boards |
|---|---|
| Color | GREEN,YELLOW |
From the supplier
HT-D-1605017

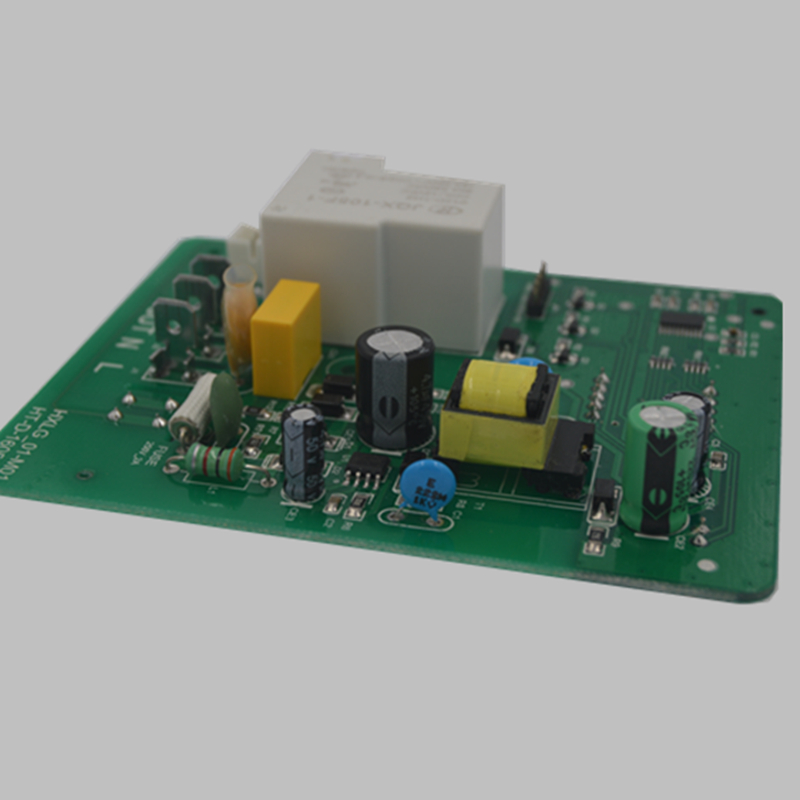

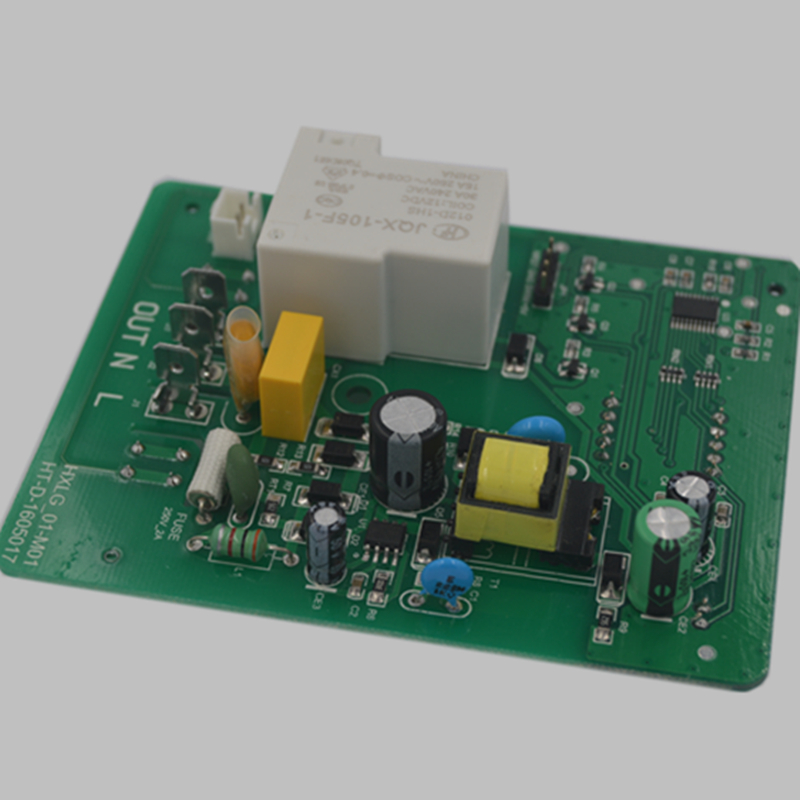

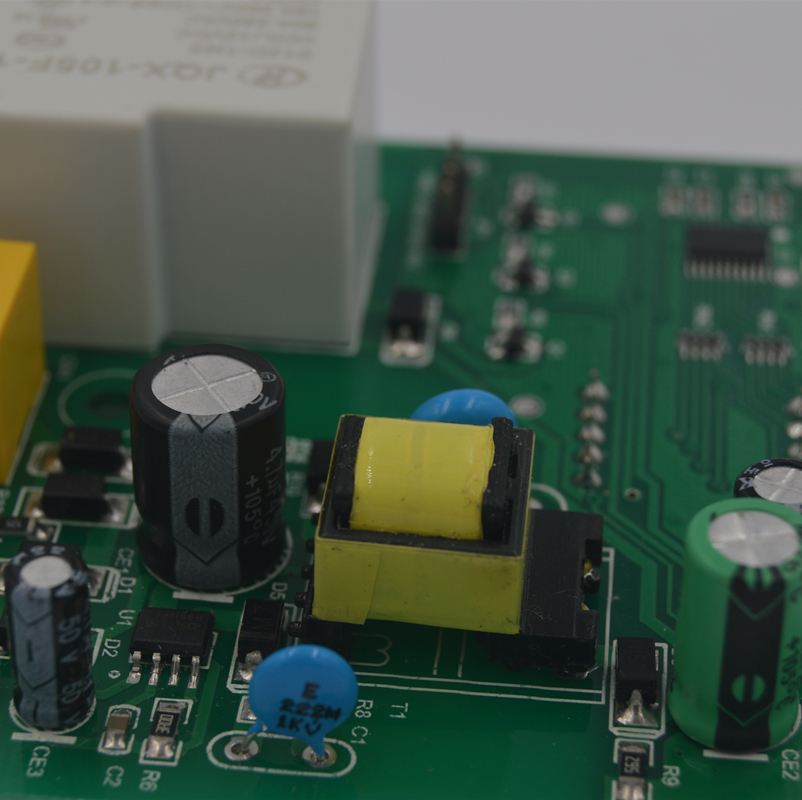

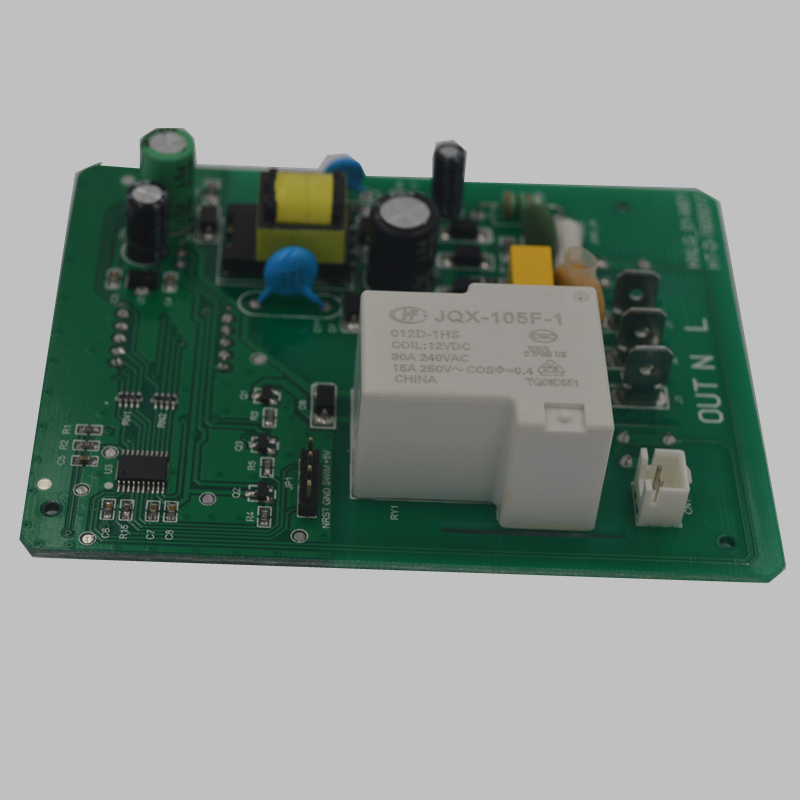

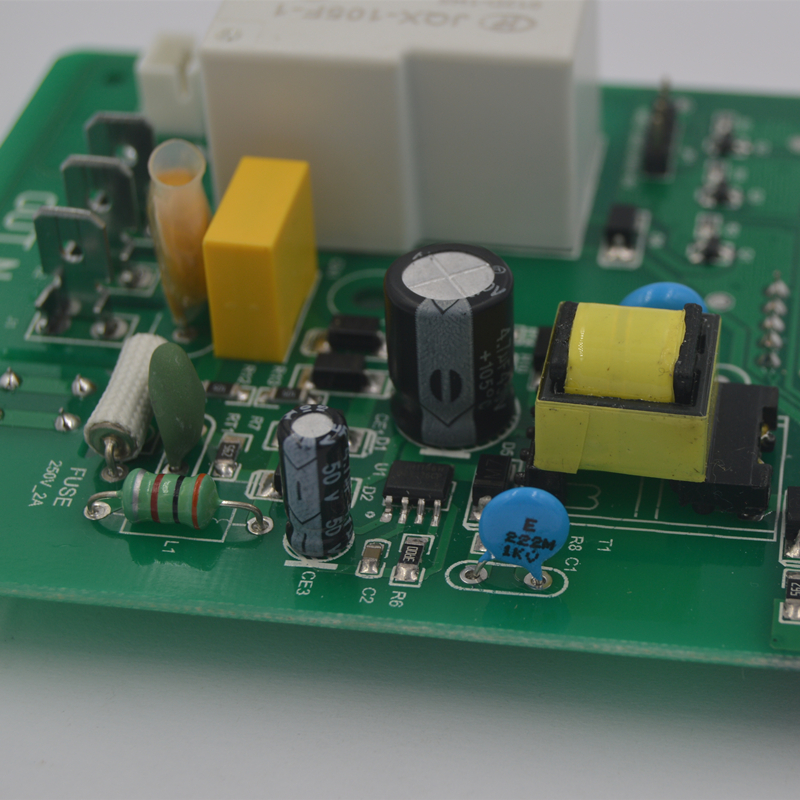

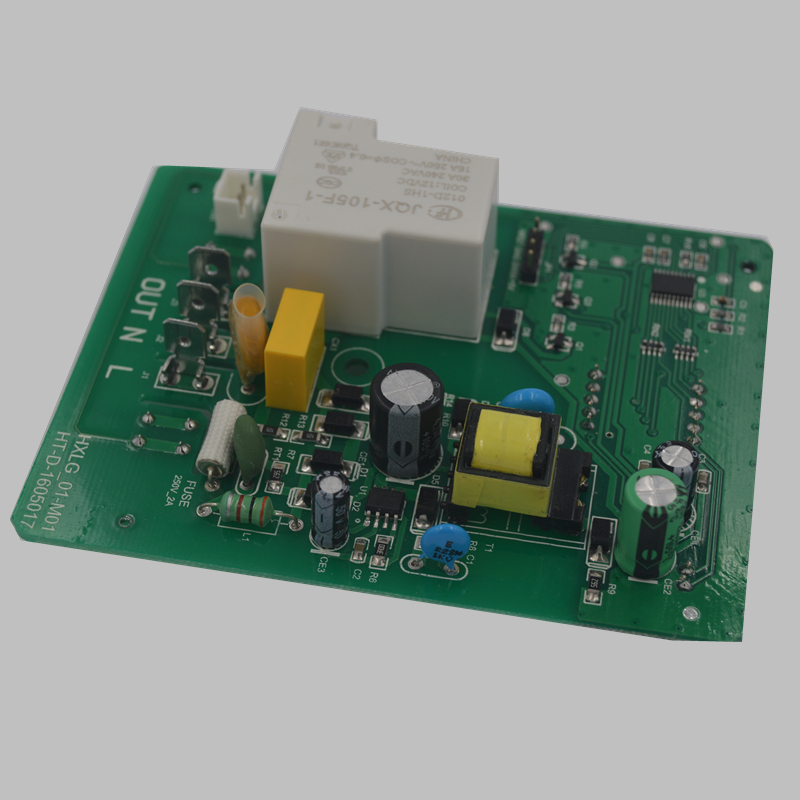

The freezer computer controller
Essential characteristic
Single chip microcomputer control
quick-frozen function
adjustable temperature
Status display
thermistor temperature sensing
self diagnosis and failure warning, process
The key technical indexes
Rating working voltage：220V, 50HZ (AC)
Working voltage range：176V～264V(AC)
Working temperature：-15℃～+70℃
Storage temperature：-40℃～+70℃
Temperature adjust range：-15℃～-36℃
Protection lever: Display board:：IP65
Flame Class UL94V-0
Environmental pollution class II ， No condensation
MTBF：5000 hours
Circuit board static power：＜0.8W
Control board should satisfy refrigerator complete machine EMC and safety performance requirements
Control board should comply to the request of >
Control board should conform to the request of CQC, CCC and RoHS
Main hardware configuration
Single-chip microcomputer system, transformer, load switch, JTAG each 1pcs

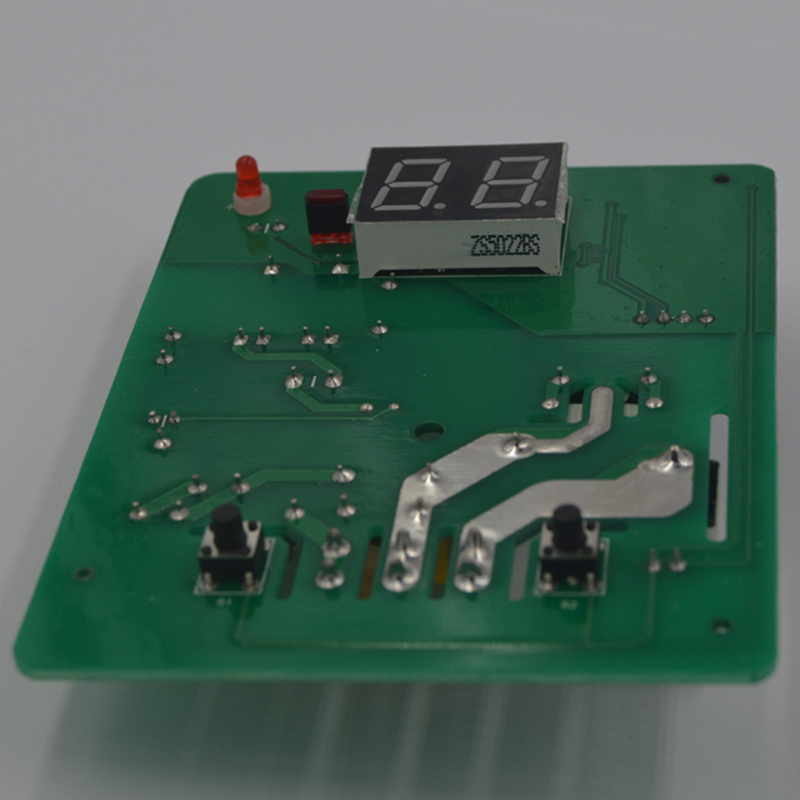

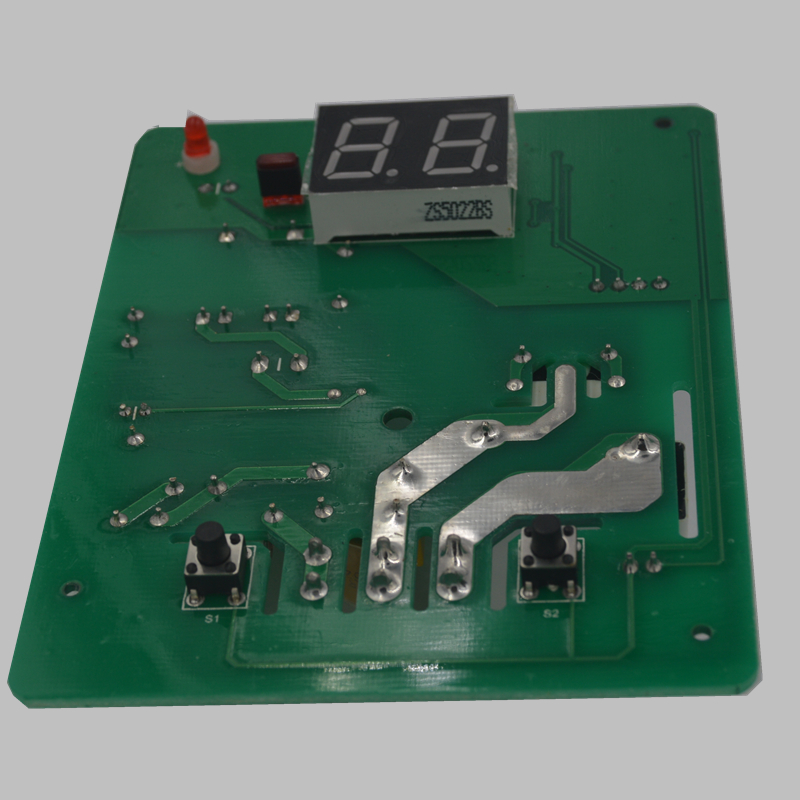

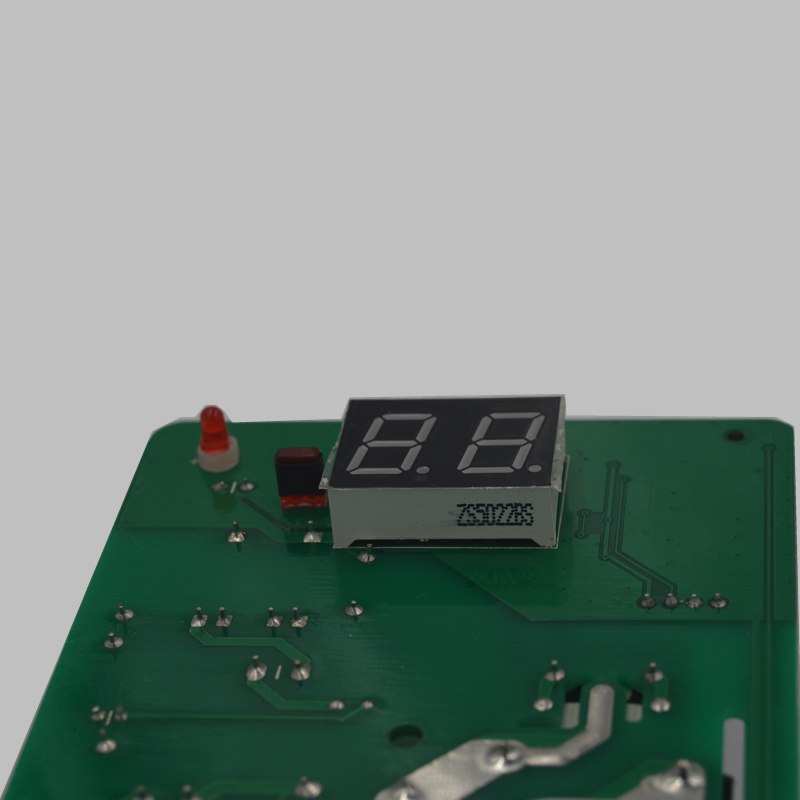

Two-position red digital tube display, red LED running indicator light
Press button 2pcs, refrigeration button 1pcs, and freezer button 1pcs
Temperature-sensing probe (thermistor) 1pcs
Temperature-sensing probe in cabinet Rf 1pcs
Load allocation compressor 1pcs (AC220V, 300W)
