GABION BASKET

Description:

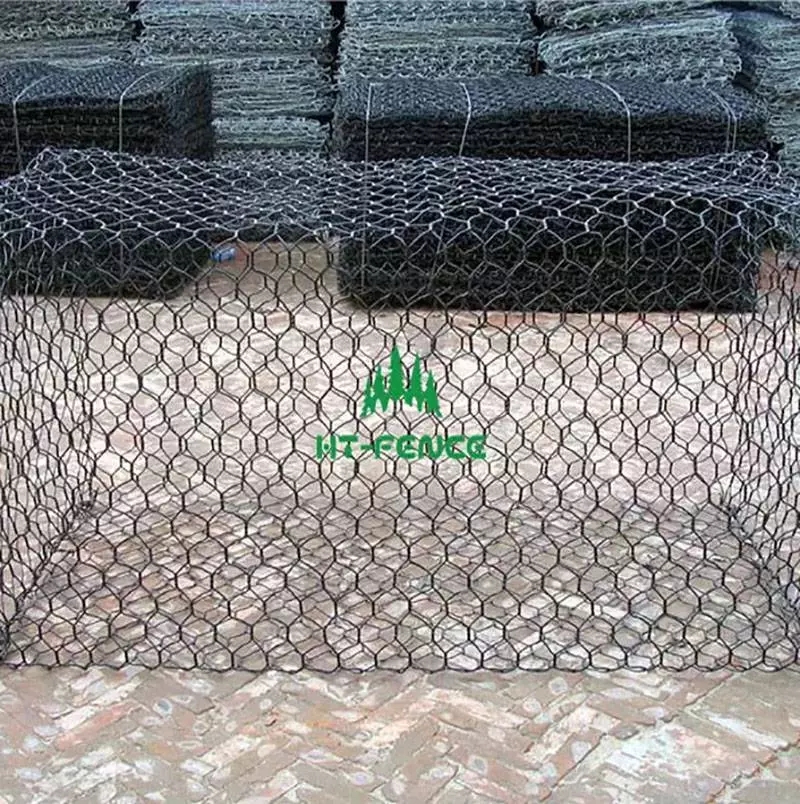

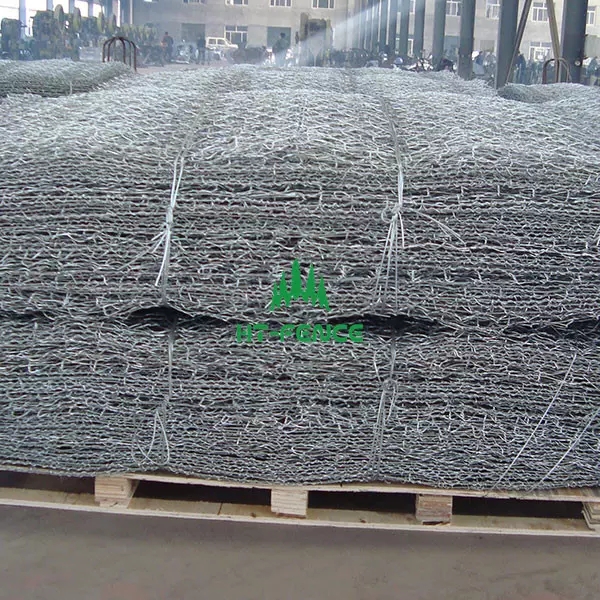

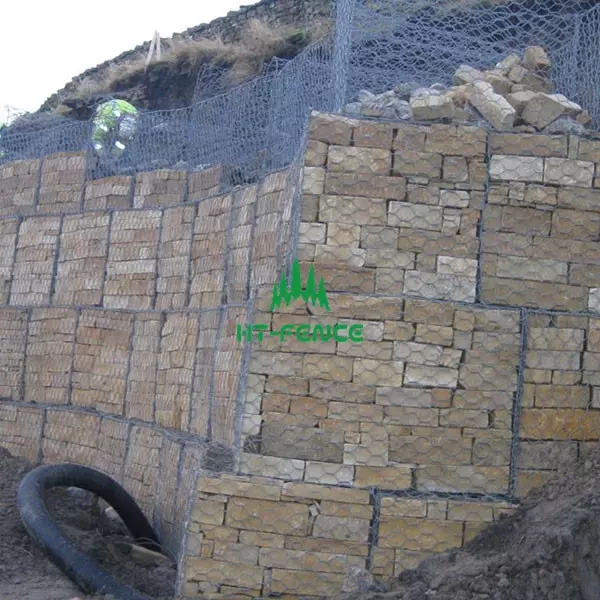

Gabion wire mesh is made from high grade steel wire through twisting and braiding by automatic machine . This kinds products mainly used in supporting and protecting of side slope and basis pit,mountain rock hanging mesh,green guard rail netting on side slope,Gabion wire mesh also can be worked into stone cage or stone cushion and used in reservoir,river or dyke for anti scour or  closure.

Characteristic of Gabion wire mesh:
1.Perviousness is good. Hillside and seaside will be very steady and firm.
2.Favorable of Pliability. Whole configuration have better tractility,and do not worry the connection aperture.
3.Strong anti-corrosion. The heavy galvanized steel wire or GALFAN wire or glued PVC coated wire ,PE coated wire to make the gabion wire mesh can more improve the capability of anti-corrosion ,In that case can adapted to sea environment
4.Good for resist the scour. On the rivers,seaside,and slop construction this products play a significant role for defending.
5.Gabion boxes after assemble on large area. There is do not have any aperture. The project have best capability of holistic, The continuous is best in other materials.
6. Construction is very easy and convenience. Only put into gravel in Gabion box. Do not need water,concrete,module and power to finished the construction perfectly .
7. Suitable for transportation. The Gabion boxes shape can making as design request, It will suitable shape of hillside, beach,dike.
8. Protection of the ecological environment. The gravel will be filled by soil.The botany will grown in to boxes. Very good combine with hillside, beach,dike. The whole area became pliability slope. Realization project and vegetation double protection for hillside, beach,dike. And beautifully for our environment.

Size

Notes

Surface treatment

Length（m）

Width (m)

Height (m)

Mesh size

(mm)

Wire dia

(mm)

Insulate panel（unit）

Volume

（m3）

Galvanized    or Galfan wire welded. Or Glue PVC coated / PE coated

2.00

1.00

0.3

60 x 80

80 x100

80 x120

100 x120

120 x 150

2.2-4.0

1

0.60

3.00

1.00

0.3

2

0.90

4.00

1.00

0.3

3

1.20

2.00

1.00

0.5

1

1.00

3.00

1.00

0.5

2

1.50

4.00

1.00

0.5

3

2.00

1.00

1.00

1.00

0

1.00

1.50

1.00

1.00

0

1.50

2.00

1.00

1.00

1

2.00

3.00

1.00

1.00

2

3.00

4.00

1.00

1.00

3

4.00

Material

Wire used low carbon steel wire,wire diameter2.2-4.0mm

Surface:Galvanized or galfan or glue PVC coated / PE coated finished

The wire used to manufacture double twisted gabion wire mesh is soft annealed, mild steel wire provided with heavy zinc coating as per EN 10244/ASTM A 641 to prevent corrosion. In case of use in aggressive environments, it is further extruded with 0.5mm thick PVC Coating. The Glue PVC coating is UV stabilized as per ASTM A 975.
