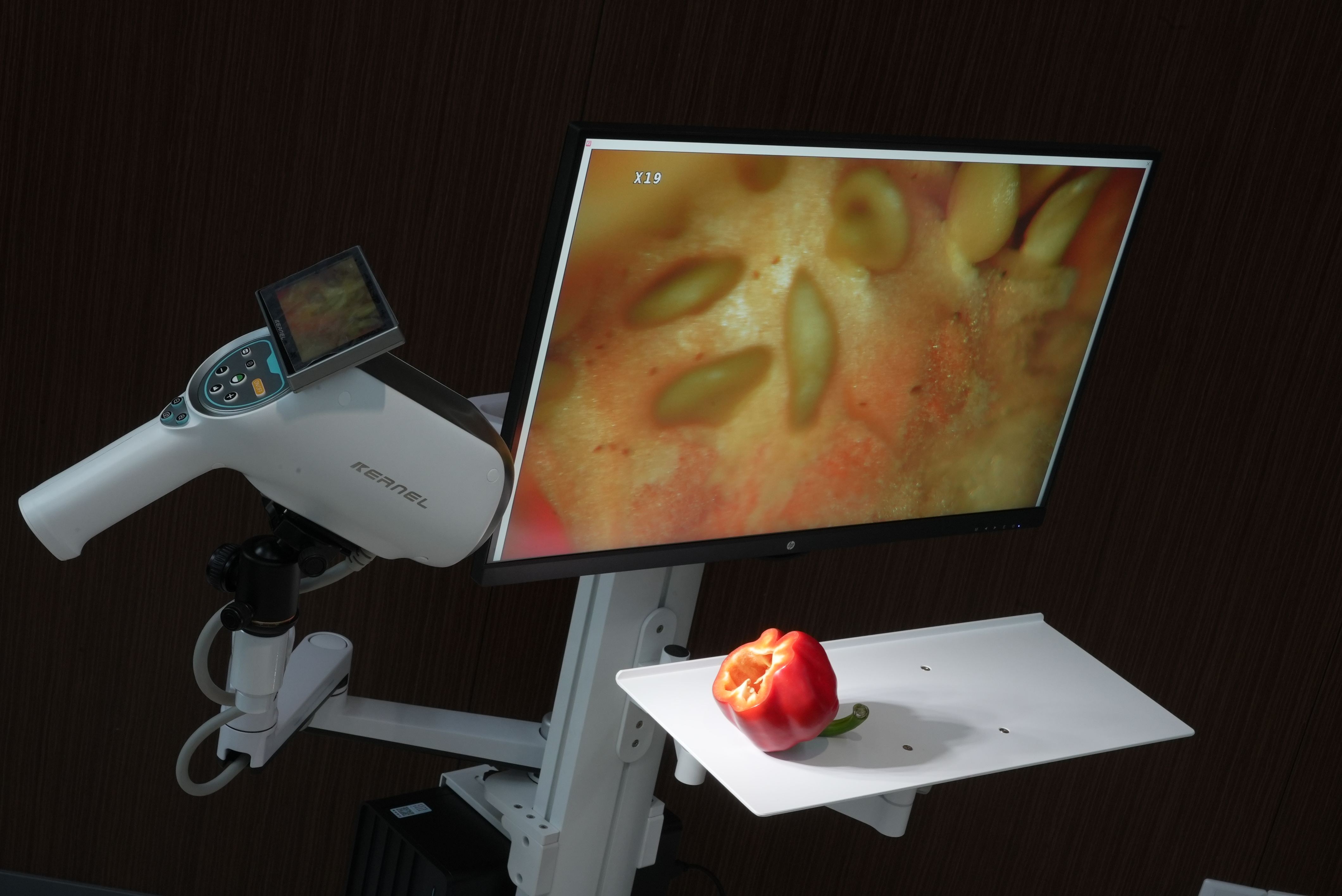

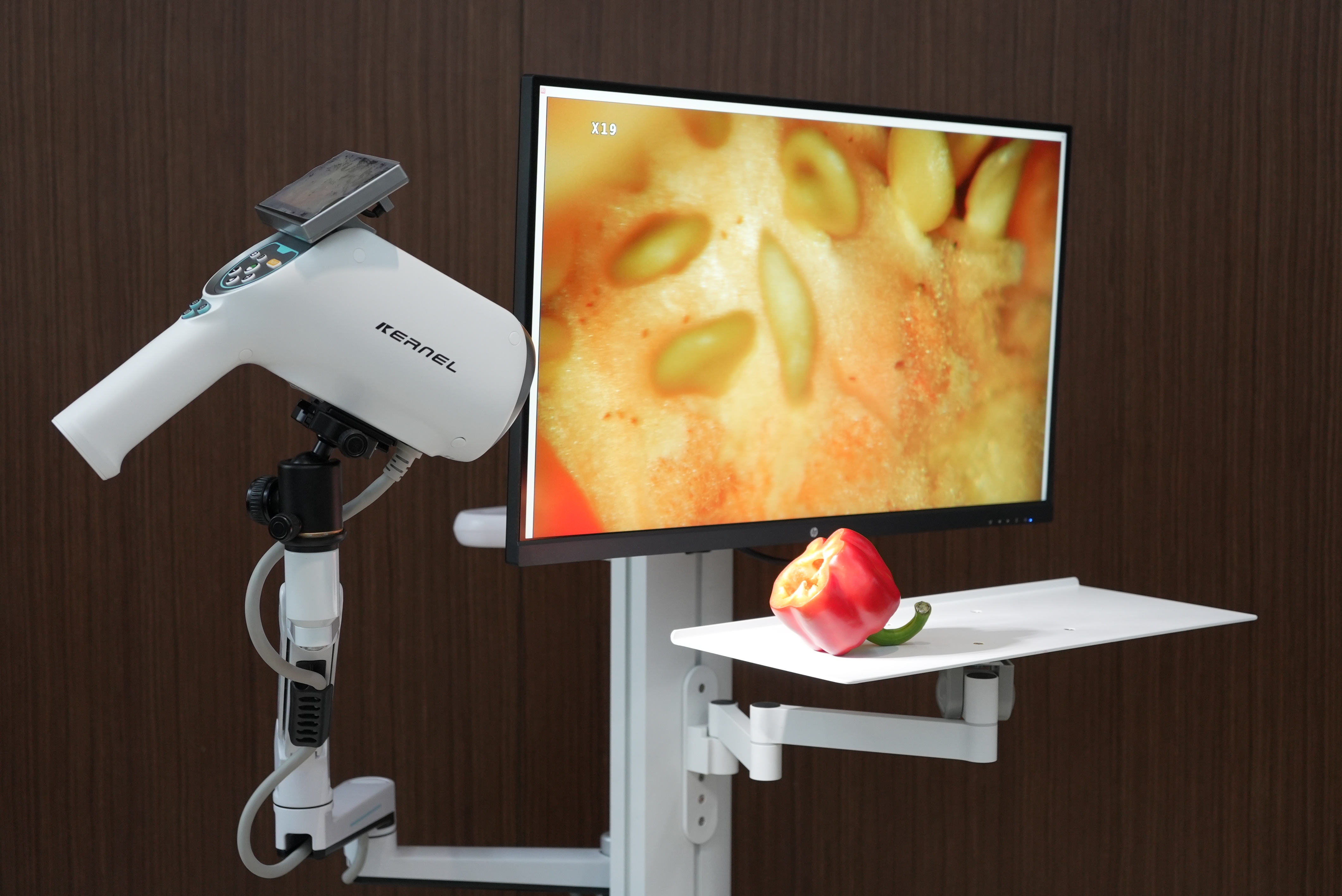

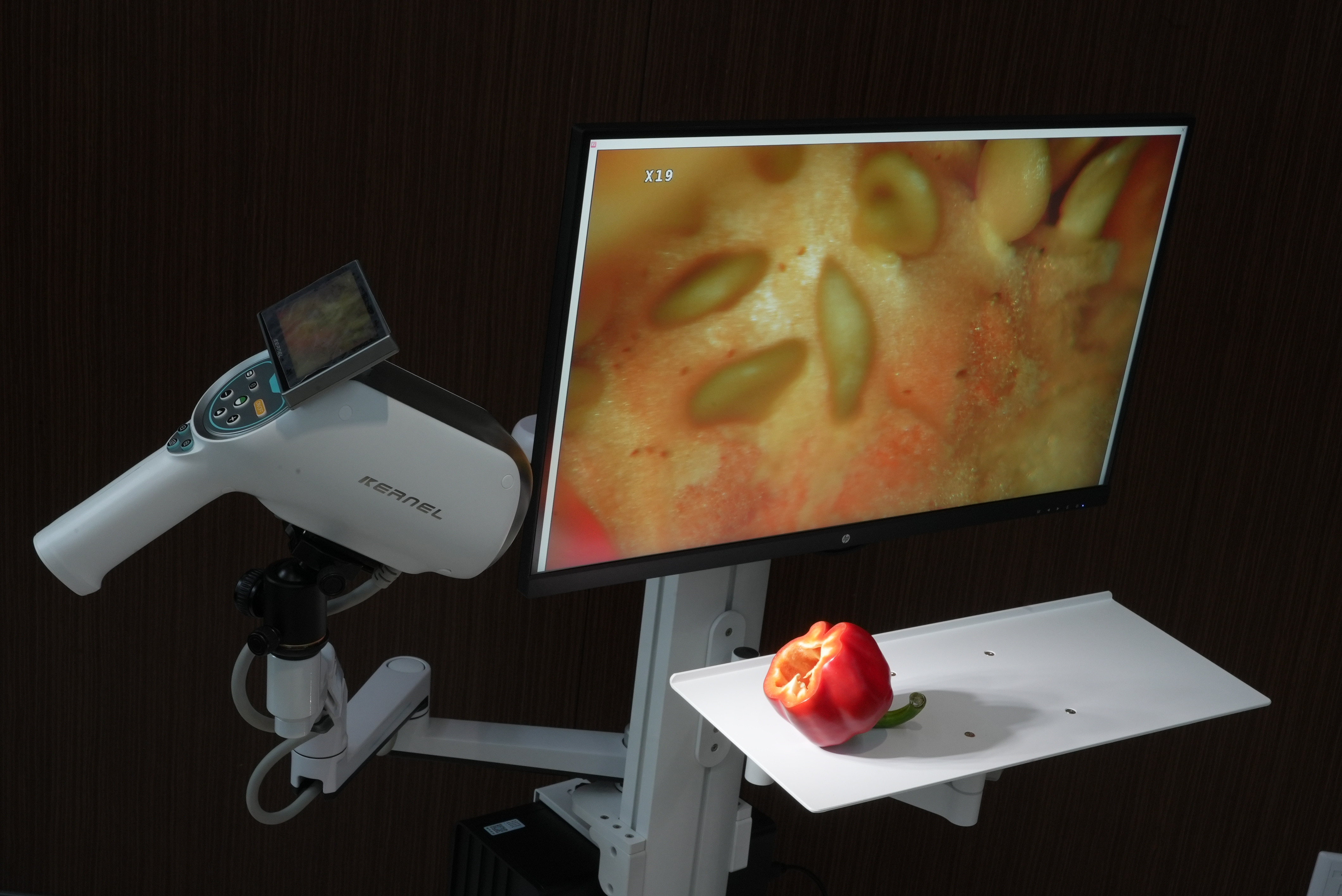

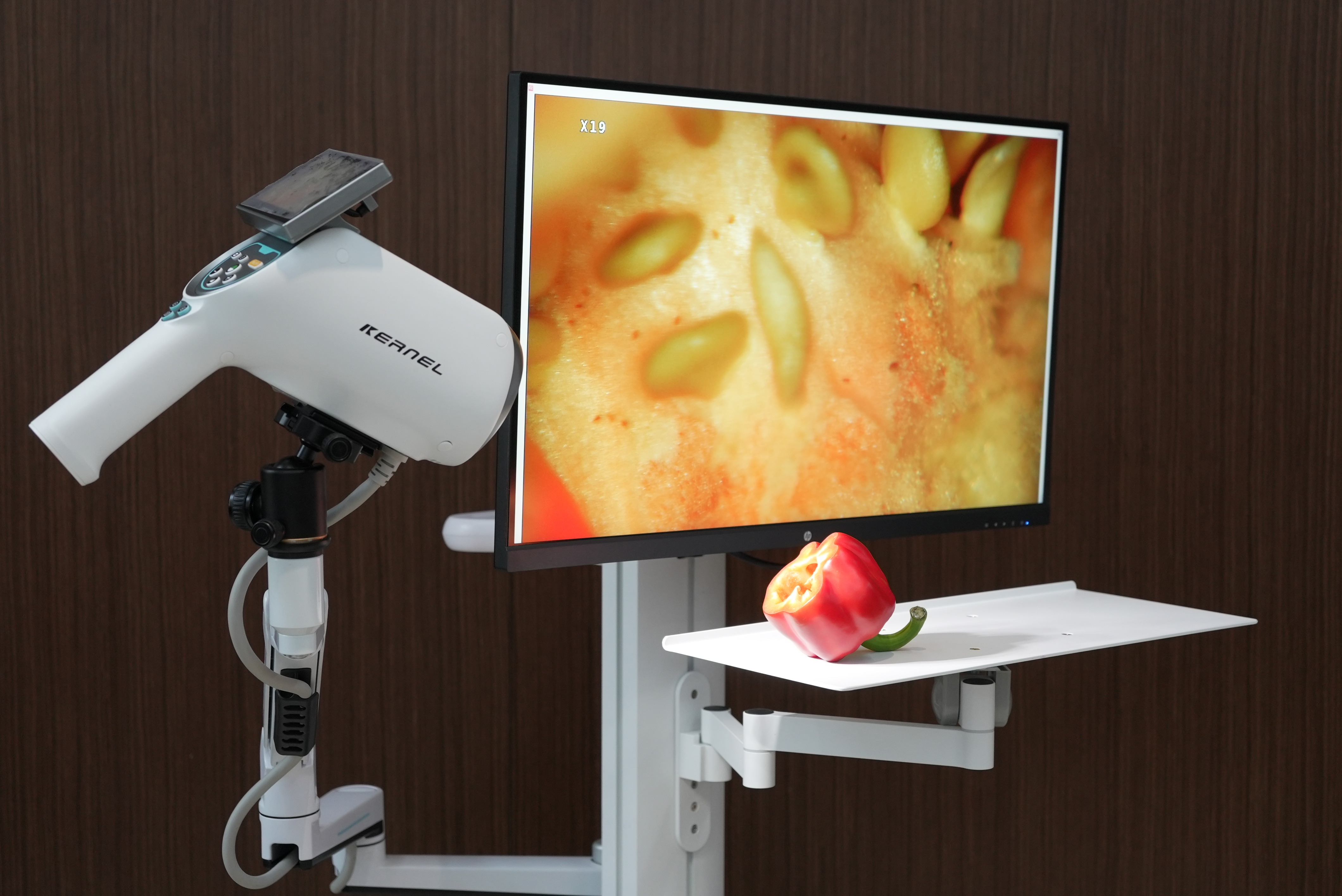

GN-500 HD Digital Video Colposcope for Cervical Screening and Gynecological Examination

Clear Cervical Visualization
40× Optical Zoom Detail
Multi-Mode Imaging System
Stable 360° Positioning
Footswitch Image & Video Capture
Efficient Report Management

• Indications: Gynecological colposcopy examinations for visual assessment of the cervix, vagina, and vulva, including cervical lesion observation, vascular pattern evaluation, biopsy target localization, image documentation, report generation, and follow-up management
• Certification: CFDA
• Light Source: LED
• OEM: Available

Summary Intro

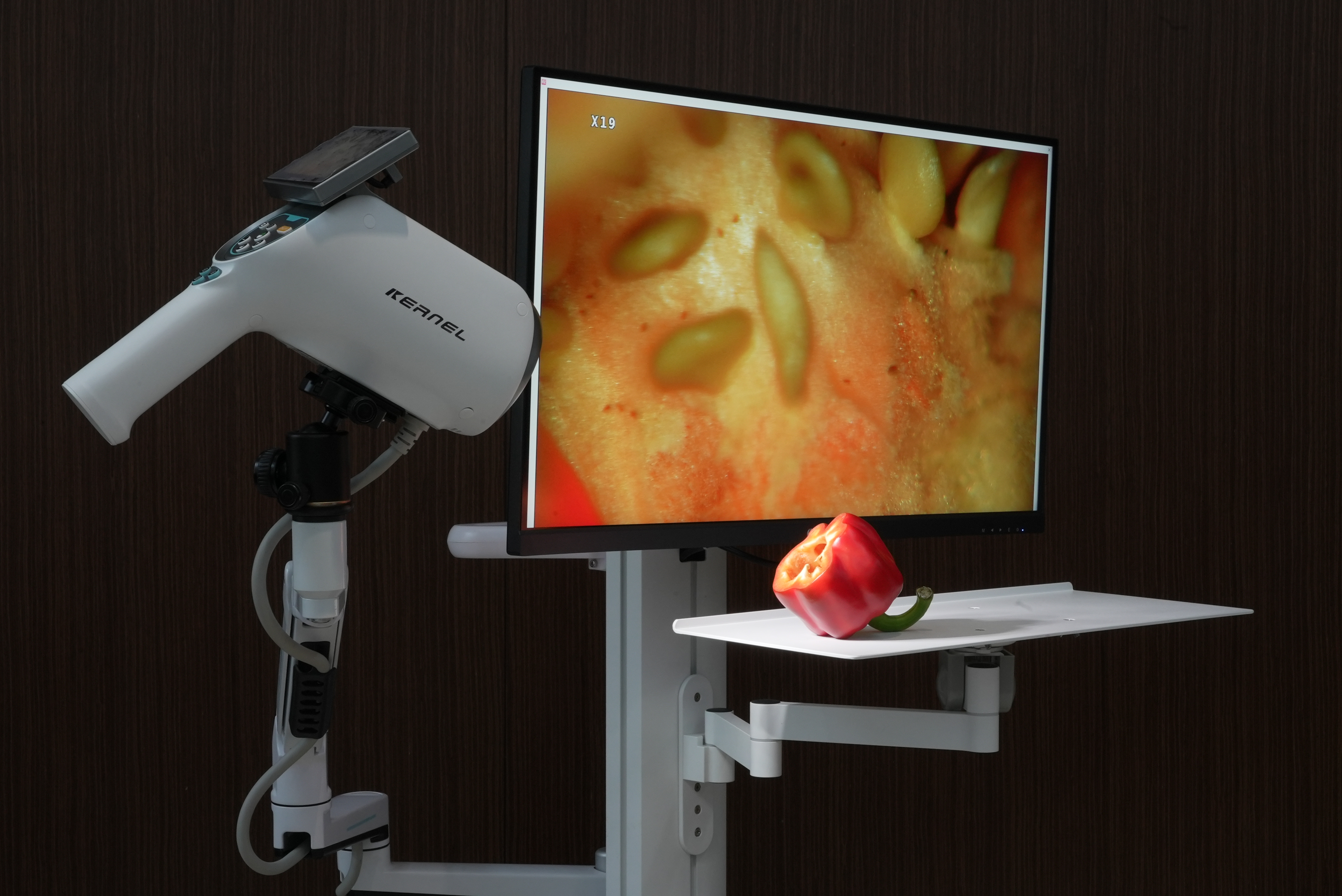

The GN-500 is an HD digital video colposcope designed for cervical screening and routine gynecological examination. With clear Sony imaging, 40× optical zoom, four imaging modes, HDMI output for direct connection to an external HD monitor, and a rear-mounted 4.3-inch preview monitor, it supports clearer lesion observation, more convenient doctor viewing, and more efficient clinical workflow.

Who It's For

The GN-500 is suitable for:

• Gynecology departments

• Hospitals and outpatient clinics

• Cervical screening programs

• Women’s health centers

• Colposcopy examination rooms

• Clinical institutions requiring HD imaging and report management

• Distributors and OEM partners

Overview

High-Resolution Camera

Equipped with a 1/2.8-inch Sony CMOS sensor, 5.12MP effective pixels, and up to 1200 TVL horizontal resolution, the camera delivers clear and detailed cervical images for accurate observation.

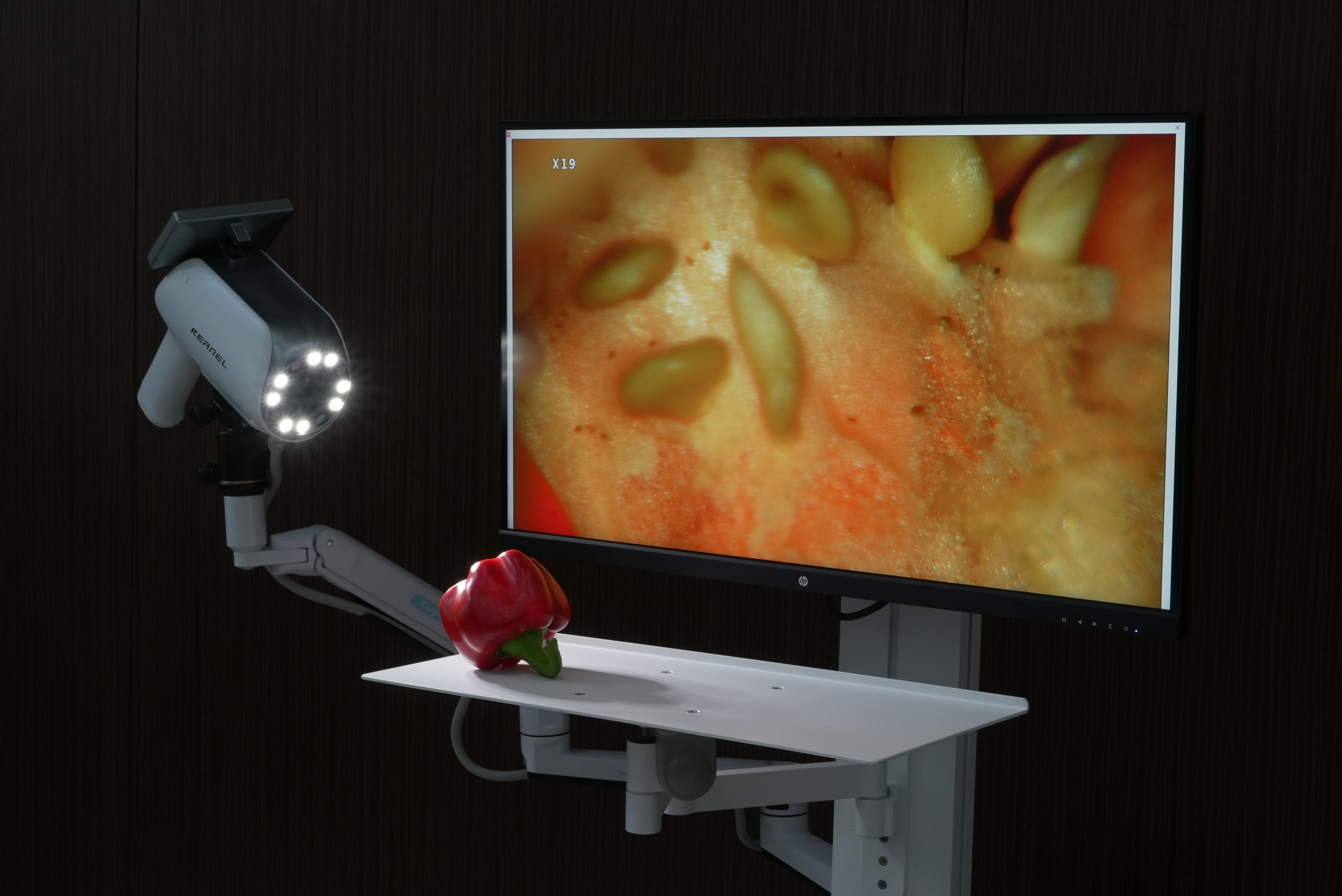

Optimized LED Illumination

High-CRI LED illumination provides bright, uniform, and stable light for cervical examinations, with a 6000–7000K color temperature, blue and green filter modes, and a service life of ≥5,000 hours.

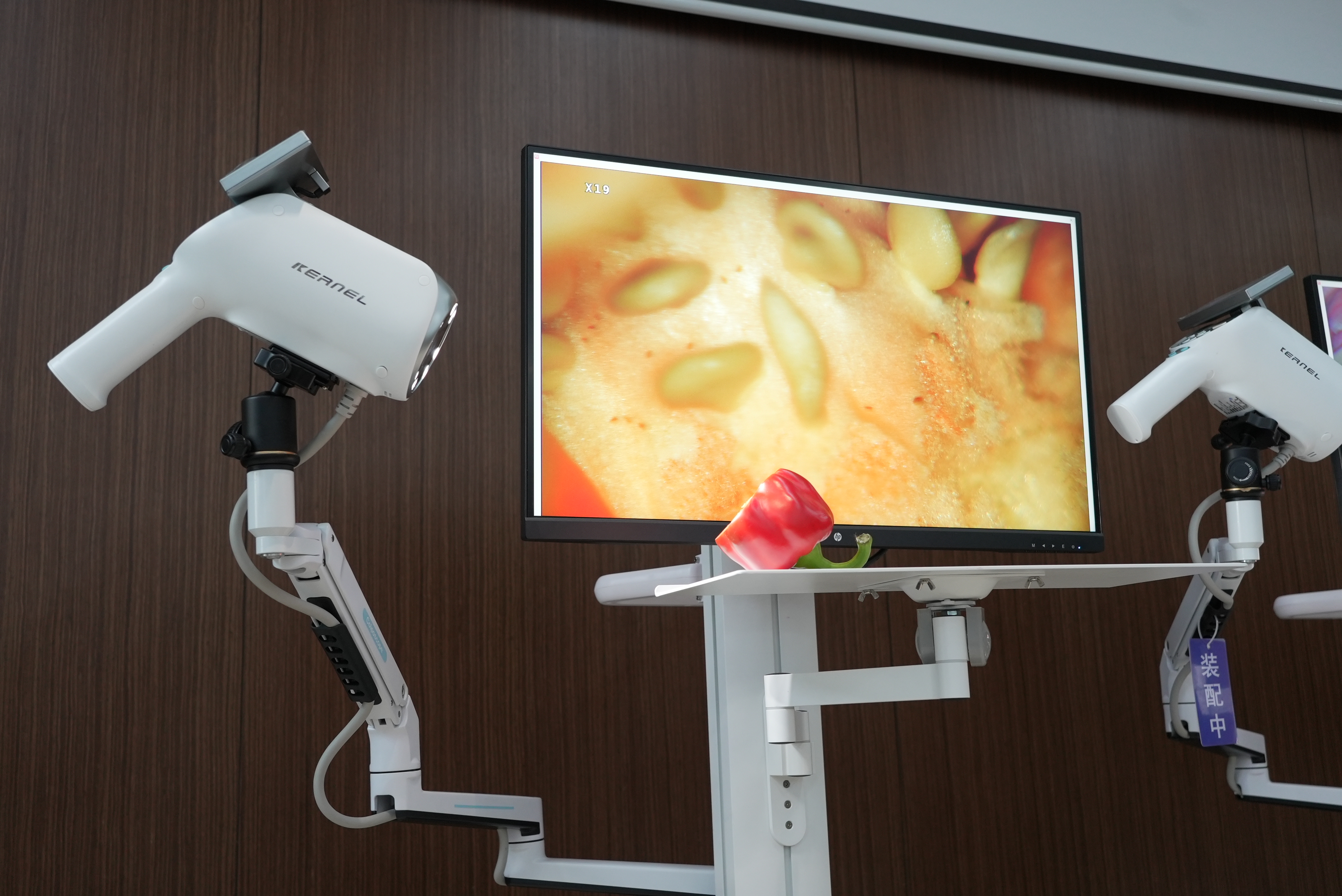

Ergonomic Swing Arm Stand

The articulating swing arm stand enables smooth positioning, flexible adjustment, and stable hovering, supporting comfortable operation during routine gynecological examinations.

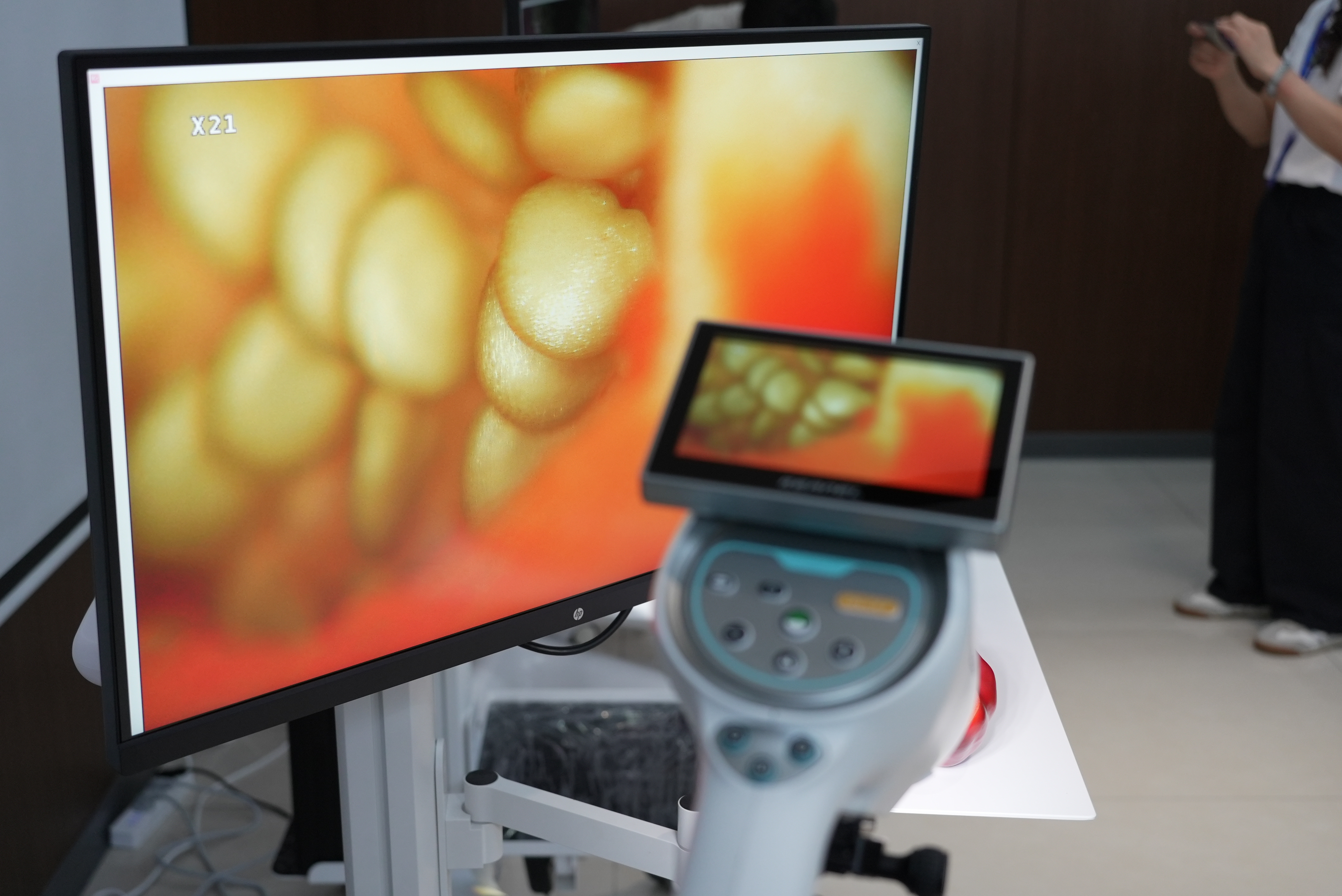

4.3-Inch Rear Preview Monitor

A rear-mounted 4.3-inch preview monitor allows real-time image viewing directly behind the camera, making positioning and dynamic observation more convenient.

Integrated Software & Reporting

Integrated colposcopy software supports image capture, video recording, examination timing, lesion annotation, patient data management, and report generation, helping clinics improve workflow efficiency and standardize documentation.

Key Product Features

40× Optical Zoom for Detailed Cervical Observation

Supports both general examination and close-up observation of cervical lesions, epithelial changes, and biopsy target areas.

Four Imaging Modes for Vascular and Lesion Assessment

Supports multiple imaging modes, including green light, white-blue light, and natural light, to improve visualization of vascular patterns, lesion areas, and fine cervical details during examination.

HDMI Output for Direct HD Monitor Connection

Supports direct connection to an independent HD monitor through an HDMI cable for more convenient image display during examination and consultation.

Rear-Mounted 4.3-Inch Preview Monitor

Provides real-time viewing directly behind the camera, helping improve positioning and dynamic observation during examination.

Stable 360° Positioning

The fully damped positioning structure supports smooth 360° adjustment and stable hovering at different observation angles.

One-Hand Control for Efficient Operation

Allows quick adjustment of zoom, focus, imaging mode, acetic acid timing, image marking, and brightness during examination.

Footswitch Image and Video Capture

Supports hands-free image capture and video recording for a more efficient clinical workflow.

Integrated Software for Reporting and Follow-Up

Supports image processing, report editing, PDF export, case review, and follow-up management for more standardized documentation.

Why Choose GN-500

The GN-500 combines clear HD imaging, detailed optical magnification, flexible positioning, and practical workflow support in one colposcopy system. Its HDMI output allows direct connection to an external HD monitor for more convenient display, while the rear-mounted 4.3-inch preview monitor gives doctors an additional real-time viewing screen directly on the device. Together with 40× optical zoom, four imaging modes, hands-free capture, and integrated reporting functions, it is designed for more efficient cervical examination, clearer lesion assessment, and smoother daily clinical use
