GT,Customization of oilfield load sensors,Electronic equipment & Instruments
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
GT,Customization of oilfield load sensors,Electronic equipment & Instruments
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: ·
- Color: ·
- Production process: Other
- Output: Other
- Theory: Other
- Measured substance: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Size: ·
- Color: ·
- Production process: Other
- Output: Other
- Theory: Other
- Measured substance: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Size | · |
|---|---|
| Color | · |
| Production process | Other |
| Output | Other |
| Theory | Other |
| Measured substance | Other |
| Material | Other |
| Usage | Other |
| Brand | Other |
| Operation form | Other |
| Composition | Other |
Product details
| Size | · |
|---|---|
| Color | · |
| Production process | Other |
| Output | Other |
| Theory | Other |
| Measured substance | Other |
| Material | Other |
| Usage | Other |
| Brand | Other |
| Operation form | Other |
| Composition | Other |
From the supplier

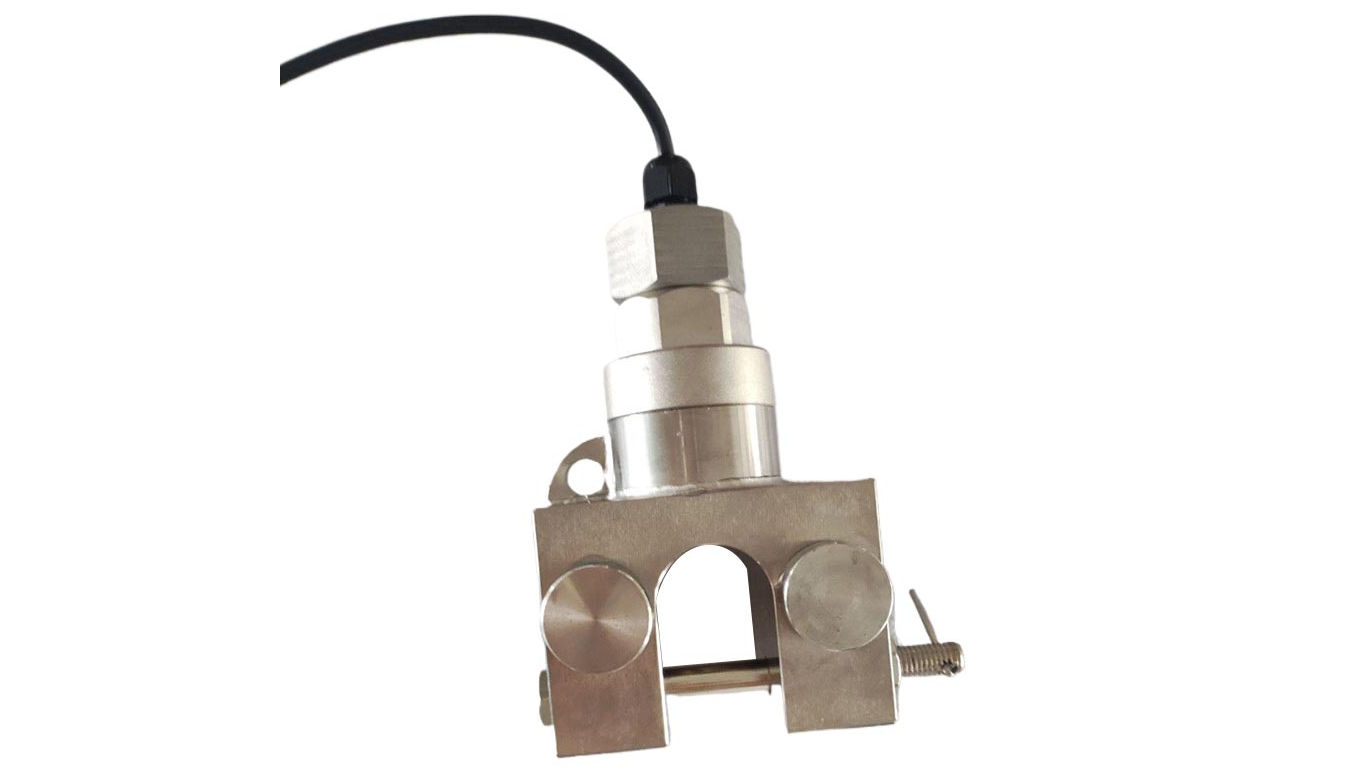

Oilfield load sensors support customization, welcome to inquire with drawings or send samples for inquiry, and support personalized needs such as neutral packaging, brand labeling, and laser marking. Oilfield load sensor is a load sensor used on bumping machines. It is specially used for measurement of oilfield projects and is suitable for data collection at oilfield wellhead. This product is mature and reliable, easy to install, good tightness, high comprehensive precision, good anti-corrosion, moisture-proof, dustproof, dynamic performance and long-term stability. It has been used in many oilfields such as Daqing, Shengli, North China, Xinjiang, and Liaohe.
technical parameters
Rated load: 100~300(kN)
Comprehensive accuracy: 0.3% F. S
Sensitivity: 1.0~2.0mV/V
Creep: ± 0.05% F·S/30min
Zero output: ± 1% F·S
Effect of zero temperature: ± 0.05% F·S/10℃
Output temperature influence: ± 0.05% F·S/10℃
Working temperature: -20℃~+65℃
Input impedance: 700~800Ω
Output impedance: 700±3Ω
Insulation resistance: 5000 MΩ
Safety overload: 150% F·S
Bridge voltage: 10V DC recommended
Material: Alloy steel
Sensor wiring method: input +: red input-: black output +: green output-: white
Our company mainly develops, produces and sells:Load cells, power ice coating detection sensors, torque sensors, tension sensors, axle pin sensors, pressure sensors, tension pressure sensors and supporting measurement and control instruments and other products. The sensor supports non-standard customization. Welcome to inquire with drawings or send samples for inquiry. Support personalized needs such as neutral packaging, brand labeling, and laser marking. Please contact Wang Gong *** for details.
From the supplier
Oilfield load sensors support customization, welcome to inquire with drawings or send samples for inquiry, and support personalized needs such as neutral packaging, brand labeling, and laser marking. Oilfield load sensor is a load sensor used on bumping machines. It is specially used for measurement of oilfield projects and is suitable for data collection at oilfield wellhead. This product is mature and reliable, easy to install, good tightness, high comprehensive precision, good anti-corrosion, moisture-proof, dustproof, dynamic performance and long-term stability. It has been used in many oilfields such as Daqing, Shengli, North China, Xinjiang, and Liaohe.
technical parameters
Rated load: 100~300(kN)
Comprehensive accuracy: 0.3% F. S
Sensitivity: 1.0~2.0mV/V
Creep: ± 0.05% F·S/30min
Zero output: ± 1% F·S
Effect of zero temperature: ± 0.05% F·S/10℃
Output temperature influence: ± 0.05% F·S/10℃
Working temperature: -20℃~+65℃
Input impedance: 700~800Ω
Output impedance: 700±3Ω
Insulation resistance: 5000 MΩ
Safety overload: 150% F·S
Bridge voltage: 10V DC recommended
Material: Alloy steel
Sensor wiring method: input +: red input-: black output +: green output-: white
Our company mainly develops, produces and sells:Load cells, power ice coating detection sensors, torque sensors, tension sensors, axle pin sensors, pressure sensors, tension pressure sensors and supporting measurement and control instruments and other products. The sensor supports non-standard customization. Welcome to inquire with drawings or send samples for inquiry. Support personalized needs such as neutral packaging, brand labeling, and laser marking. Please contact Wang Gong *** for details.
