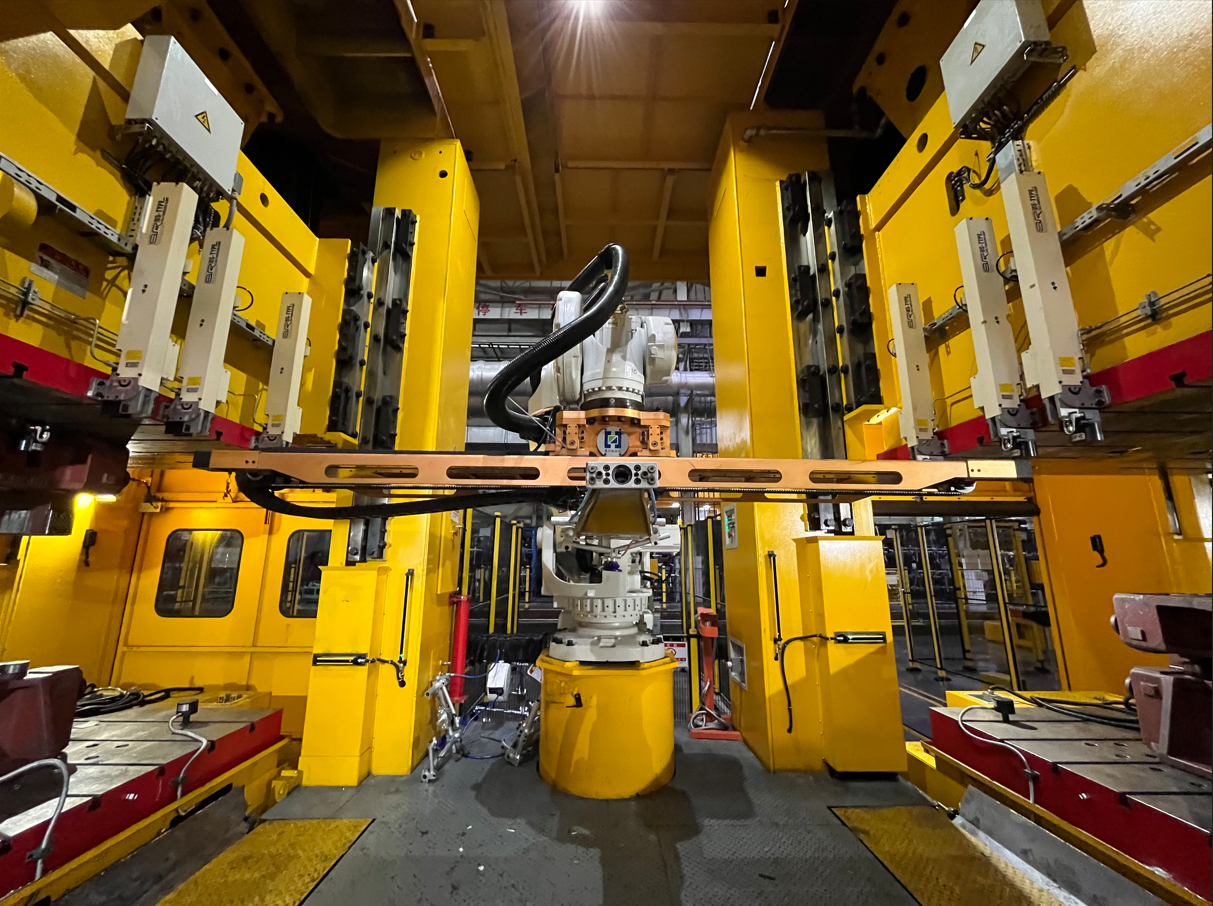

An external translation double-speed axis mechanism, namely the seventh axis, is added to the flange of the sixth axis of the robot to realize the translation of the workpiece between the presses in the front and rear processes, avoiding the complex trajectory and poor stability of the workpiece caused by 180° rotation in the past., etc., and at the same time, it is conducive to a significant improvement in the production pace, up to more than 12SPM at the fastest.

Simplifying the robot's handling trajectory not only improves production efficiency, but also saves space (the spacing between the presses used in large panel stamping production lines is generally 6.2 to 6.3 meters).

The straight 7-axis has the characteristics of light weight and high rigidity, so it can reduce inertia and increase the handling speed. It has a compact structure and large load capacity, and can meet the efficient handling of large size workpieces such as side walls. Our company matches various specifications of seven-axis according to customer production needs to minimize customer investment and use costs.

Combined with the straight line and seven axes, our company has independently developed a continuous operation mode for the entire line, that is, the press does not stop at the top dead center when the production line is running. Compared with the traditional intermittent mode, it effectively improves the beat, saves energy by more than 20%, and can also greatly reduce the loss of the press clutch brake. At the same time, the impact damage to the mold is also greatly reduced. The maintenance cost of equipment and molds has been greatly reduced, bringing huge benefits to customers. Our company is in an industry leading position in this field and has dozens of successful application cases.
