About this product
- Materials: metal
- Size: 4800x3200x2950mm
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
About this product
- Materials: metal
- Size: 4800x3200x2950mm
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
Product details
| Materials | metal |
|---|---|
| Size | 4800x3200x2950mm |
| Color | white |
Product details
| Materials | metal |
|---|---|
| Size | 4800x3200x2950mm |
| Color | white |
From the supplier

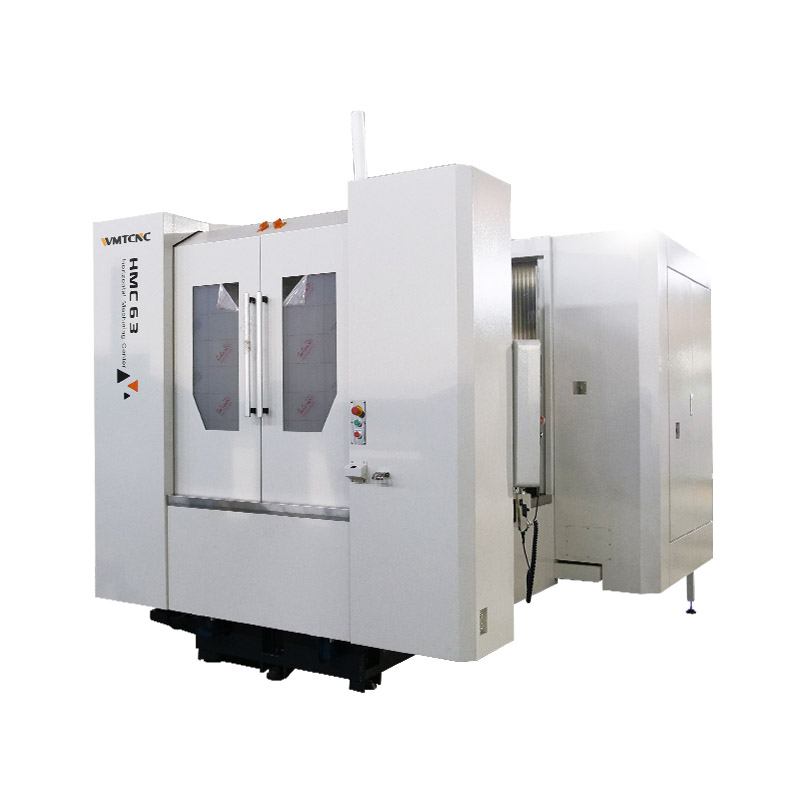

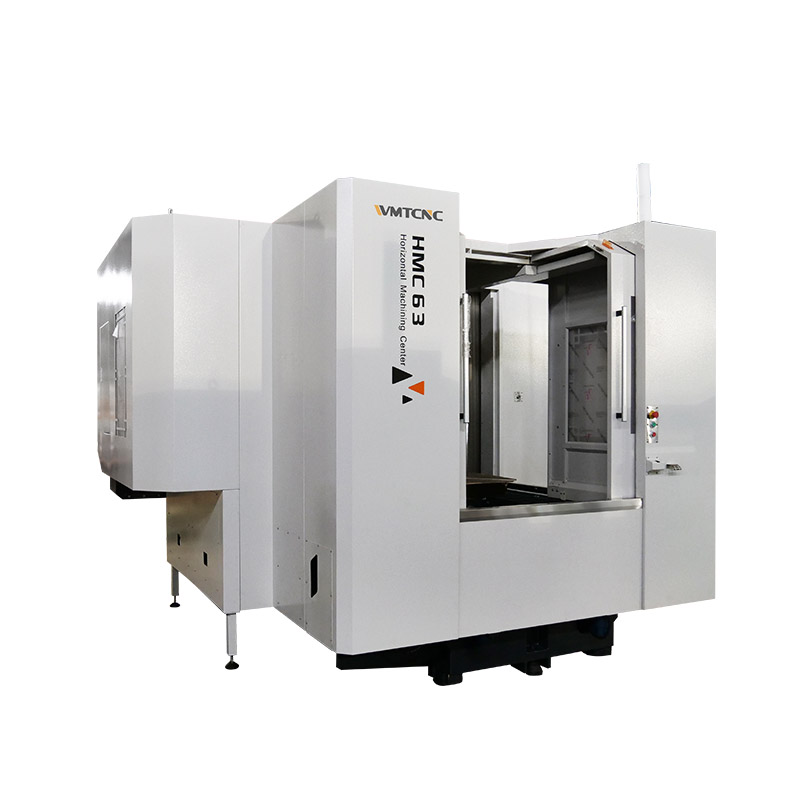

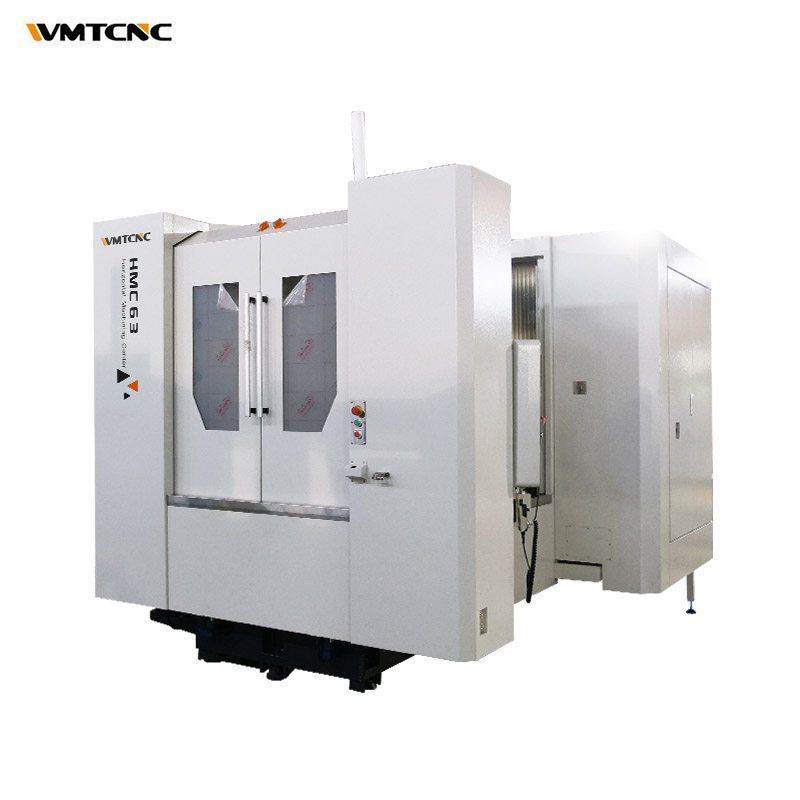

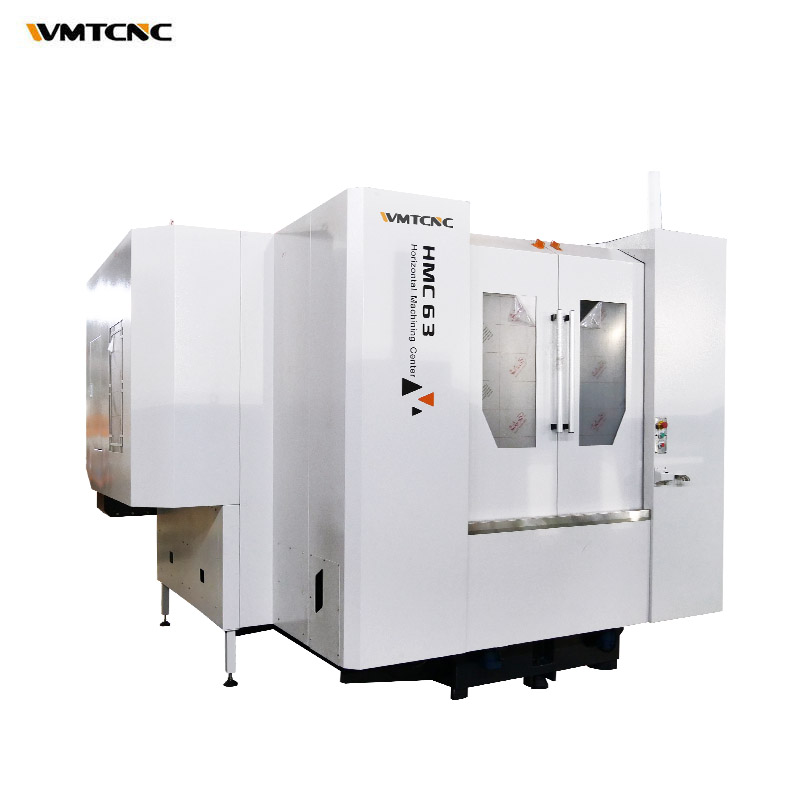

CNC Horizontal machining center HMC63 is mainly composed of the parts of the spindle screw lubrication system, the cooling system, the numerical control operation panel, and the electronic control system.
Specification Specification HMC630A(Inverted T) Worktable Worktable size (W×L) 630×700mm Workpiece clamping type 24×M16 Changing time of worktables / Rotary diameter of workpiece 1380mm Travel X/Y/Z axis 1050/750/900 Distance from spindle center to worktable surface 120-870mm Distance from worktable center to spindle nose 130-1030mm Spindle Spindle hole taper BT50 Spindle speed range 5300rpm Drive type (Spindle) Belt type Spindle power 15/18.5kw Feed X/Y/Z axis rapid feed speed 24/24/24m/min B axis rapid feed speed 10m/min Tool magazine Tool magazine model Manipulator Capacity 24T Max. tools weight 15kg Max. tools length 350mm Tool change time 5.5s Accuracy(National standard) Positioning accuracy (X/Y/Z) ±0.010mm Re-positioning accuracy(X/Y/Z) ±0.006mm B axis division accuracy 10’’ B axis re-division accuracy 5’’ Machine Size L×W×H 4800x3200x2950mm Machine weight Max. loading of worktable 1200kg Machine weight 12000kgMachine Details
From the supplier
CNC Horizontal machining center HMC63 is mainly composed of the parts of the spindle screw lubrication system, the cooling system, the numerical control operation panel, and the electronic control system.
Specification Specification HMC630A(Inverted T) Worktable Worktable size (W×L) 630×700mm Workpiece clamping type 24×M16 Changing time of worktables / Rotary diameter of workpiece 1380mm Travel X/Y/Z axis 1050/750/900 Distance from spindle center to worktable surface 120-870mm Distance from worktable center to spindle nose 130-1030mm Spindle Spindle hole taper BT50 Spindle speed range 5300rpm Drive type (Spindle) Belt type Spindle power 15/18.5kw Feed X/Y/Z axis rapid feed speed 24/24/24m/min B axis rapid feed speed 10m/min Tool magazine Tool magazine model Manipulator Capacity 24T Max. tools weight 15kg Max. tools length 350mm Tool change time 5.5s Accuracy(National standard) Positioning accuracy (X/Y/Z) ±0.010mm Re-positioning accuracy(X/Y/Z) ±0.006mm B axis division accuracy 10’’ B axis re-division accuracy 5’’ Machine Size L×W×H 4800x3200x2950mm Machine weight Max. loading of worktable 1200kg Machine weight 12000kgMachine Details
