Product Parameter Overall Size 3500*1430*1550mm Rear Axle

Chang'an entire floating 37:13 with 2gear boost

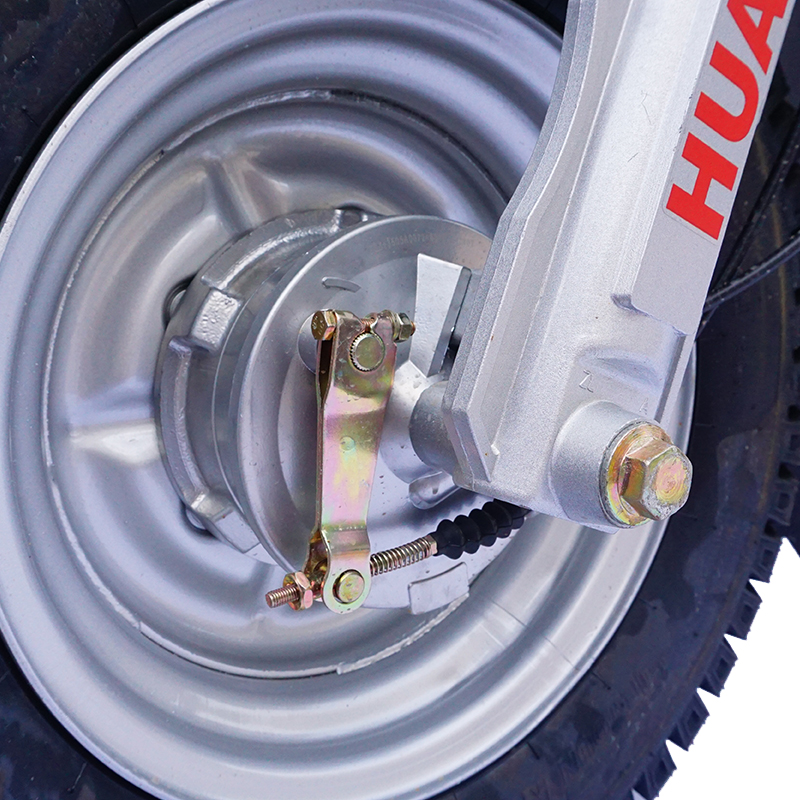

Cargo Box Size 2000*1350*420mm Min. Turning Radius 6500mm Cargo Box Type height 420mm cargo box/low hurdle/thick riffled floor plate Min. Ground Clearance 170mm Engine Type 200CC Water cooling Leaf Spring 7pcs leaf springs Rated Power 10.5kw （1±5%）@7500 rpm（1±1.5%） Tyre (F/R) F/R 5.00-12 Max. torque 15.5N.m（1±5%） @ 5500rpm（1±1.5%） Brake Type Mechanical brake/mechanical brake Cylinder Bore* Stroke φ63.5×62 Brake Mode Drum/Drum Ignition Mode DC CDI Max. Speed 60km/h Compression Ratio 10: 1 Fuel Tank Capacity 26L Transmission 5 Speed cycle gear Mileage Per Charge 570km Driving Mode Shaft transmitted Curb Weight 520 kg Gear Ratio 37: 11 Rated Gross Weight 1120kg Front Suspension Φ50/outter spring/straight hydraulic shock absorber Max. Designed Gross Weight 1520kg Rear Suspension Type Leaf spring non-dependent suspension 40HQ Container Packing Qty. CKD 41 sets Rear Shock absorber 7 pcs leaf spring

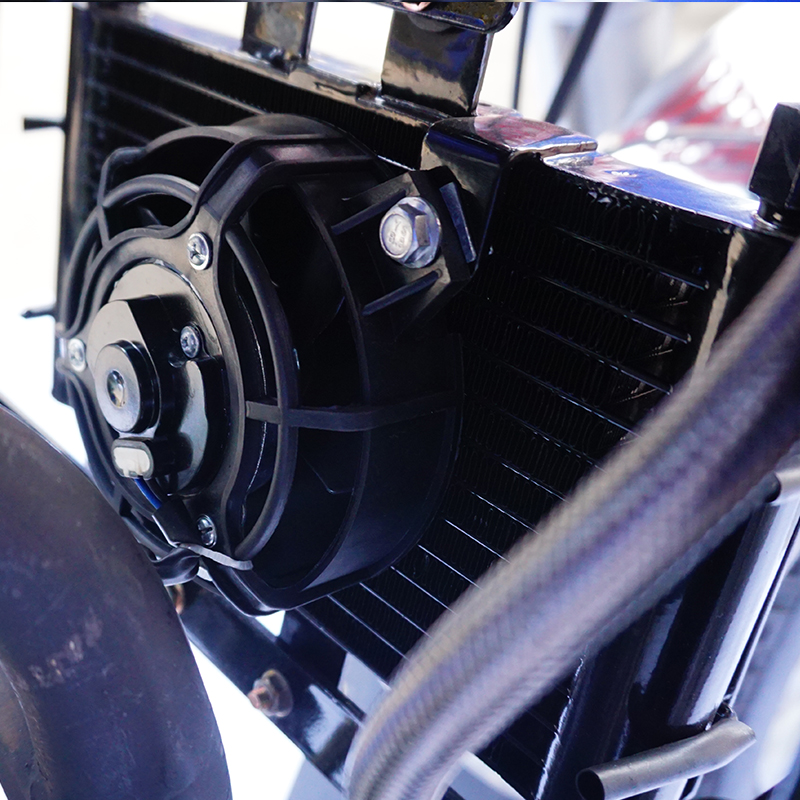

Product Features 1. Power system: Positive developed the oil circuit cycle of the engine and the heat dissipation of the whole machine. At the present stage, the temperature of the engine with the same displacement can be lowered about 40℃; 2. External heat dissipation: the layout position of oil cooler and fan power have been comprehensively tested. After repeated tests, the heat dissipation effect is good and suitable for the African environment. 3. Vehicle performance: new air filter intake structure to ensure the performance of power system, rear axle sliding resistance and main subtraction optimization, front fork steering resistance optimization, to ensure the cost performance of the vehicle.
