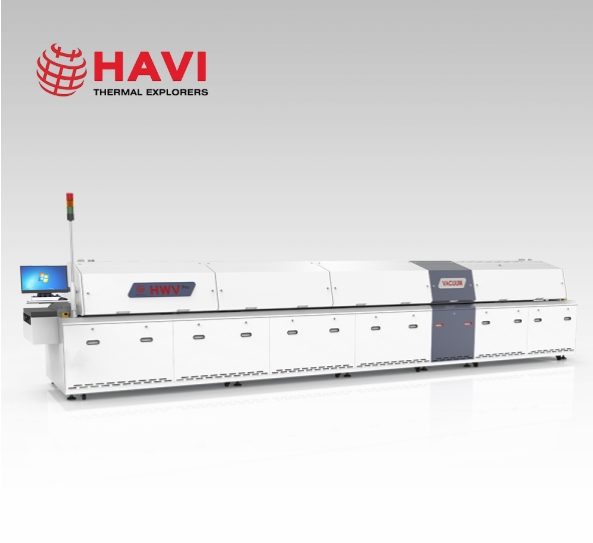

Huawei Thermal Power vacuum reflow soldering HWV-7213 SMT
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Huawei Thermal Power vacuum reflow soldering HWV-7213 SMT
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: ·
- Color: ·
- Pipe material: PEOther
- Application: IndustryOther
- Customized: Non-CustomizedCustomizedOther
- Theory: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America
About this product
- Size: ·
- Color: ·
- Pipe material: PEOther
- Application: IndustryOther
- Customized: Non-CustomizedCustomizedOther
- Theory: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America
Product details
| Size | · |
|---|---|
| Color | · |
| Pipe material | PEOther |
| Application | IndustryOther |
| Customized | Non-CustomizedCustomizedOther |
| Theory | Other |
Product details
| Size | · |
|---|---|
| Color | · |
| Pipe material | PEOther |
| Application | IndustryOther |
| Customized | Non-CustomizedCustomizedOther |
| Theory | Other |
From the supplier
MODEL
HWV-7213
GENERAL
Outside Dimension(L*W*H)
6859mm*1545mm*1565mm
Standard Color
White
Weight
Approx. 3000KG
Number Of Heating Zones
Up10(1IR) / Bottom9
Length Of Heating Zones
4235mm
Number Of Cooling Zones
Up3/ Bottom3 (Cool Air Conversion)
Exhaust Volume
10 M3 / min x 2 Exhausts
Standard Feature Of Control System
Electric Supply Required
Optional: 3 phase, 220V 50/60Hz
Gross Power
87KW
Power For Warm Up
38KW
Power Consumption
12-13KW
Vacuum Level
≦2mbar
Warming Time
≦40 minute
Temp. Setting Range
Room Temp. --- 300℃
Vaccum Temp. Setting Range
Room Temp. --- 300℃
Temperature Control Method
PID Close Loop Control + SSR Driving
Temperature Control Precision
± 1.0℃
Temperature Deviation on PCB
± 1.5℃
Heating Element
Especial Heating elements For Long Life
Data Storage
Process Data and Status Storage
Abnormal Alarm
Abnormal Temperature (Extra-high / Extra-low Temp.)
Standard Features Of Conveyor System
Rail Structure
Subsection Integrated Type
Rang Width Of PCB
min80mm-max450mm
Rang Length Of PCB
min150mm-max400mm
Components Clearance
Top 30 / Bottom 30mm
Converyor Direction
Option: R→L)
Fixed Rail Side
Front Rail Fixed
PCB Transmission Agent
Chain
Converyor Height
900±20mm
Lubrication Auto-Afflux
Standard
Process Gasses N2
N2 containment at Entry and Exit End
Standard
Flux Reclaim System
Standard
Nitrogen Flow Meter
Standard confguration:foat flowmeter cntol system;(Option:CIosed oop cotrolsystem for nirogen)
Oxygen Analyser
Standard
(N2≦ 5PPM O2) Nitrogen Consumption [Standard]
500PPM at 18-22m3/hr
Note:The power shown in the BOM above does not include the power of vacuum pumpand ciller
From the supplier
MODEL
HWV-7213
GENERAL
Outside Dimension(L*W*H)
6859mm*1545mm*1565mm
Standard Color
White
Weight
Approx. 3000KG
Number Of Heating Zones
Up10(1IR) / Bottom9
Length Of Heating Zones
4235mm
Number Of Cooling Zones
Up3/ Bottom3 (Cool Air Conversion)
Exhaust Volume
10 M3 / min x 2 Exhausts
Standard Feature Of Control System
Electric Supply Required
Optional: 3 phase, 220V 50/60Hz
Gross Power
87KW
Power For Warm Up
38KW
Power Consumption
12-13KW
Vacuum Level
≦2mbar
Warming Time
≦40 minute
Temp. Setting Range
Room Temp. --- 300℃
Vaccum Temp. Setting Range
Room Temp. --- 300℃
Temperature Control Method
PID Close Loop Control + SSR Driving
Temperature Control Precision
± 1.0℃
Temperature Deviation on PCB
± 1.5℃
Heating Element
Especial Heating elements For Long Life
Data Storage
Process Data and Status Storage
Abnormal Alarm
Abnormal Temperature (Extra-high / Extra-low Temp.)
Standard Features Of Conveyor System
Rail Structure
Subsection Integrated Type
Rang Width Of PCB
min80mm-max450mm
Rang Length Of PCB
min150mm-max400mm
Components Clearance
Top 30 / Bottom 30mm
Converyor Direction
Option: R→L)
Fixed Rail Side
Front Rail Fixed
PCB Transmission Agent
Chain
Converyor Height
900±20mm
Lubrication Auto-Afflux
Standard
Process Gasses N2
N2 containment at Entry and Exit End
Standard
Flux Reclaim System
Standard
Nitrogen Flow Meter
Standard confguration:foat flowmeter cntol system;(Option:CIosed oop cotrolsystem for nirogen)
Oxygen Analyser
Standard
(N2≦ 5PPM O2) Nitrogen Consumption [Standard]
500PPM at 18-22m3/hr
Note:The power shown in the BOM above does not include the power of vacuum pumpand ciller
