Industrial Door
- FOB goods (100)
- $62,500
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $2,188
- Section 301 tariff (25.0%)
- $15,625
- Customs fees (MPF/HMF)
- $295
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Industrial Door
- FOB goods (100)
- $62,500
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $2,188
- Section 301 tariff (25.0%)
- $15,625
- Customs fees (MPF/HMF)
- $295
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Galvanised steel, PU foam
- Size: 5000x5000
- Color: WhiteRAL9002
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: Galvanised steel, PU foam
- Size: 5000x5000
- Color: WhiteRAL9002
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | Galvanised steel, PU foam |
|---|---|
| Size | 5000x5000 |
| Color | WhiteRAL9002 |
From the supplier

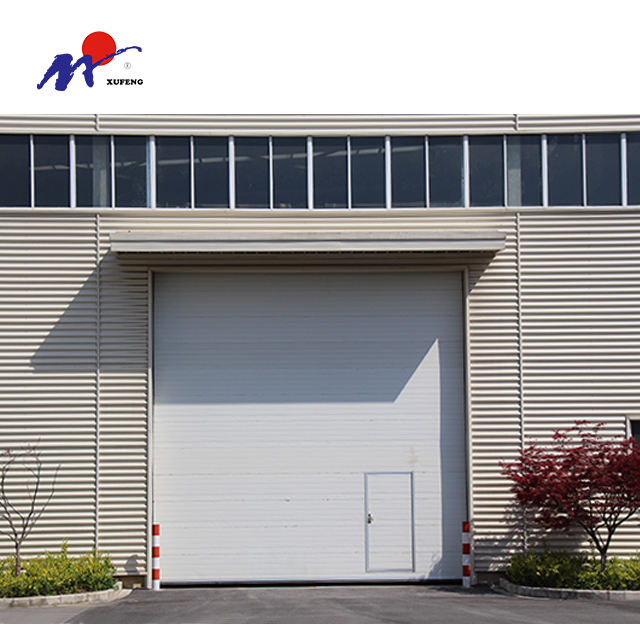

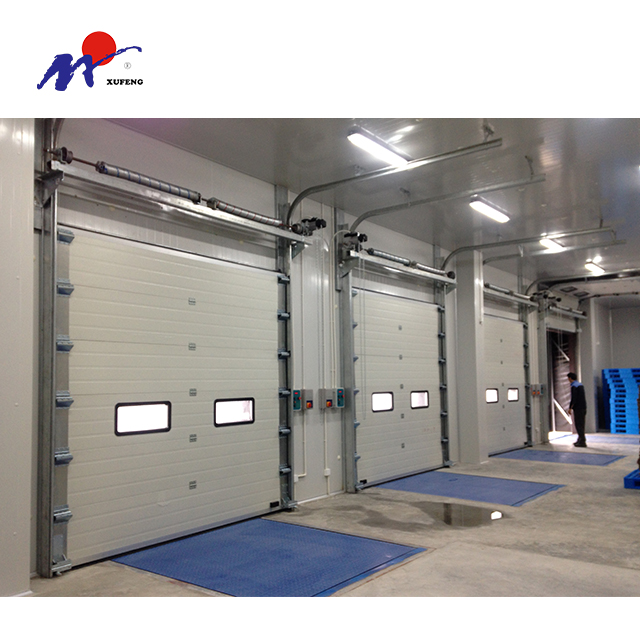

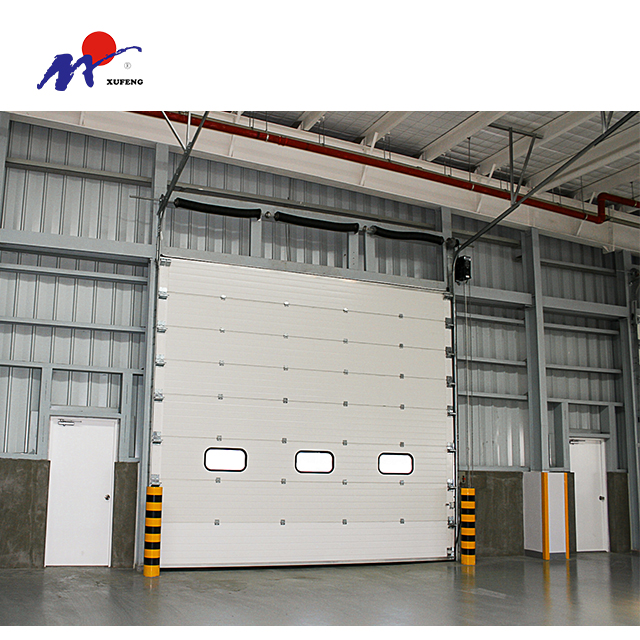

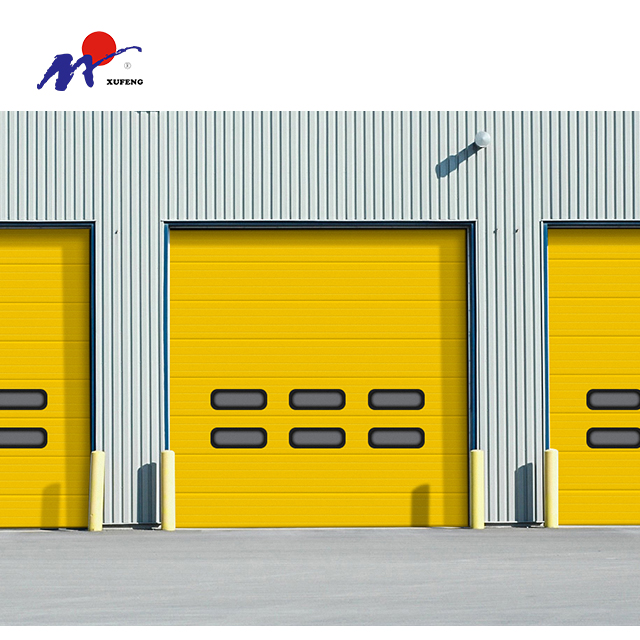

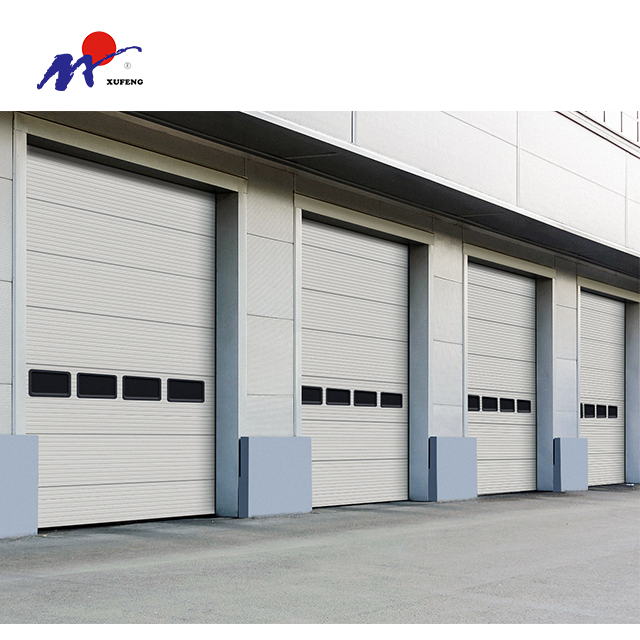

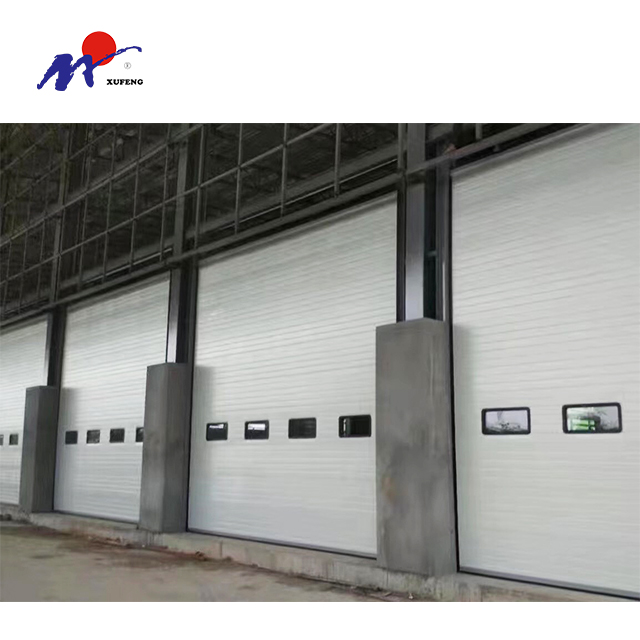

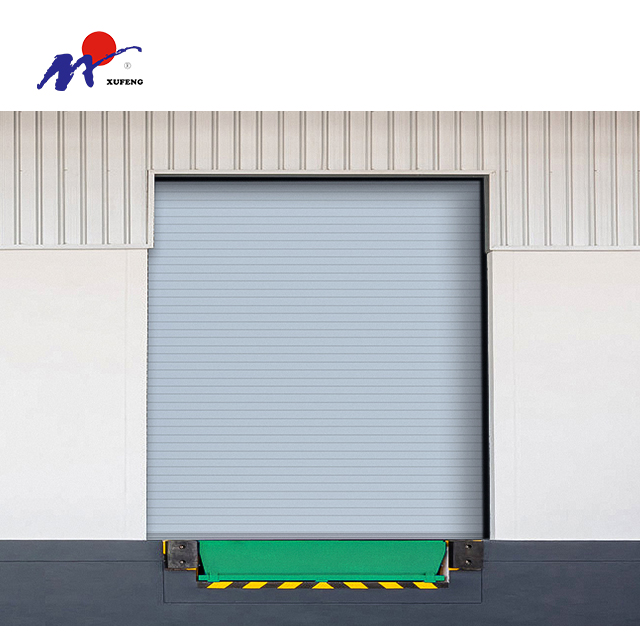

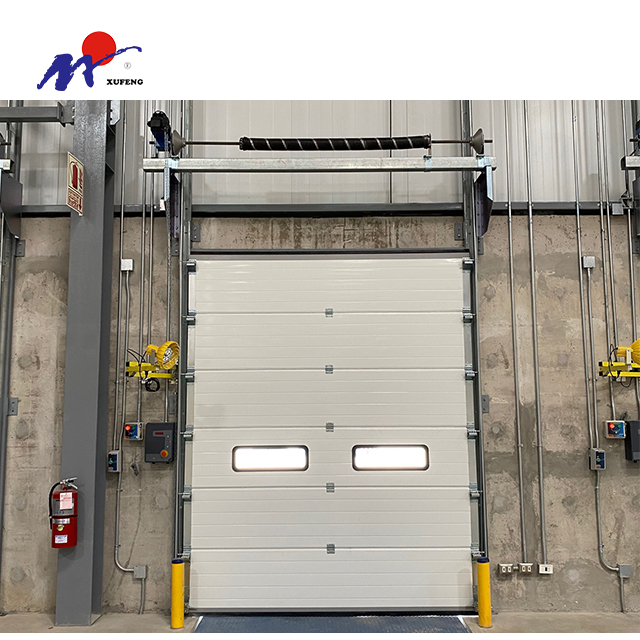

Industrial door
Application size: Max. width 9000mm, Max. Height 8000mm
Panel: 40mm thickness , PU foam
with 1.0mm reinforcement steel sheet, with sponge seal
Aluminum top & bottom with industrial rubber seal

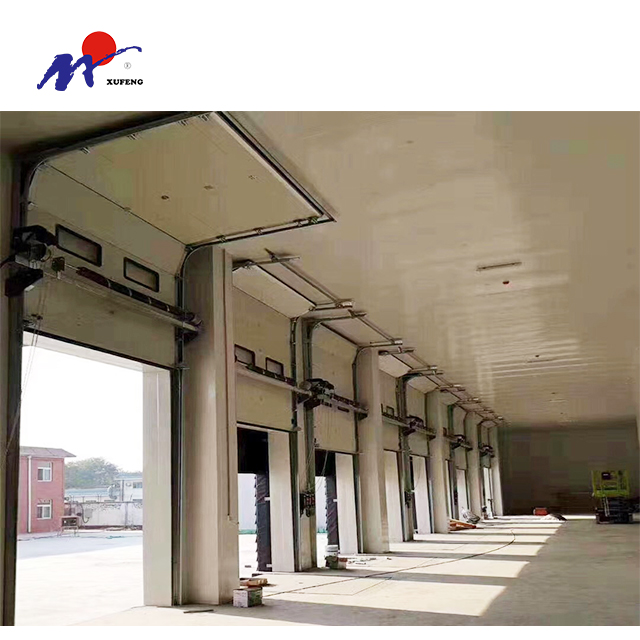

Lift type: Standard lift, High lift, Vertical lift

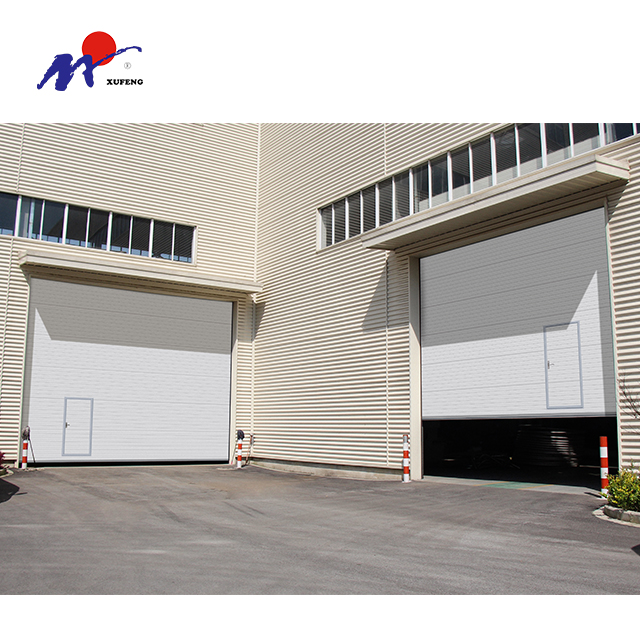

Optional: door-in-door 900*1800mm, vision window
Product Type
Insulation industrial door
Application
Industrial ware house, Logistic warehouse
Open Style
Standard overhead lift, High lift, Vertical lift
Including
2" galvanised hardware, 3" galvanised hardware, Torsion spring
Safety optional
Spring broken device, Cable broken device, Photocell, Radar, Geomagnetic, Pull rope, Wall switch
Material
Glavanised steel, PU foam ( DOW) CFC free,PE protective film
Steel Thickness
0.326mm, 0.45mm thickness
1.0mm thickness reinforcement sheet
Panel Color
Standard: RAL9002 Offwhite
Panel Design
Finger-protection
Panel Weight
9.2kg/m2-11.2kg/m2
Thickness
40+2mm
Density
45±2kg/m3
Max. Length
11.8m for 40HQ
Panel width
500mm
Surface treatment
Finished
Embossed orange peel
Opener

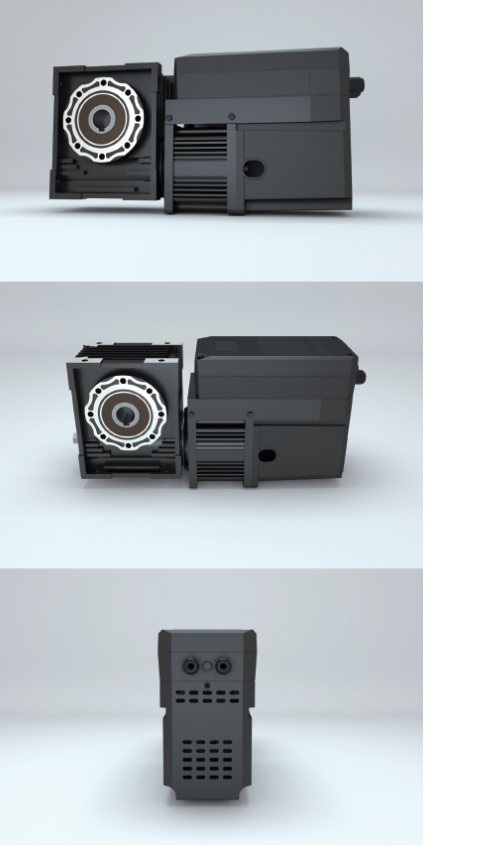

Side industrial motor
Voltage
110V/220V/380V
Warranty
3-5years
Certificate
ISO9001:2015 CE TUV
Packing
Exported standard carton
Port
Shanghai port
Devliery time
15-25days
Xufeng Door, professional door solution supplier since 1988, was founded by Mr. Xufeng Yang. By the year 2000, we became the first factory in China producing sectional insulated garage door.
By 2018, Xufeng's 30 years anniversary, we were awarded as NATIONAL EXPORT DEMAONSTRATION BASE OF GARAGE DOOR & INDUSTRIAL DOOR by CCMSA. As the leading company in this field in China, our customers are from over 30 countries all over Europe, North and South America, East Asia, Africa^ like CASTCORMA, OBI, LORRYMERILIN, Lowe's and etc.
Q1:What is your MOQ?
Re:Our automatic continous line required 200m.Also accept sample order
Q2:What is the delivery time?
Re:About 15-30days, need check stocked raw material spec is enough or not.
Q3:What is the Max. available size of the panels?
Re:The max. length of panel can be 11.8m. Standard width 500mm.
Q4:What about your package?
Re:Carton box for full container order, Polywood box for sample order
Q5:What kind of payment terms would you accept?
Re:Usually we accept T/T, L/C, Western Union, Credit Card etc. If you prefer other payment terms, please feel free to discuss with us.
Q6:We want to be your agent of our area. How to apply for this?
Re:Please send your idea and your profile to us. Let's cooperate.
Q7:Can I get a sample to check your quality?
Re:Sample panel is available.
Q8:How can I know the price exactly?
Re:Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.
Q9:Is it difficult to install your door?
Re:Easy to install. We have manual book and installation video for your reference.We also provide support for training your staff in our factory or let our engineer go to your city provide techinical support.
Q10:Do you produce other products? What about your export experience?
Re. Except for sectional garage door, we also produce industrial door, roll shutter door, high speed door, hangar door etc.We had export since 2003 year, we have cooperated with Low'es, RONA etc.Had designed and produced for Maldives airport. Mongolia airport, Nepal airport, Romania airport etc.
