JET SELF-PRIMLNG JET PUMPS

APPlication

Self-priming jet water pumps with a very high hydraulic

performance and a considerable pressure capacity.

Able topump up to 9mt. depth and work perfectly even in

soda-water. Suitable for water lifting and distribution in

domestic fttingsby small and medium sized tanks.

Operating conditions

• ● Liquid temperature up to 60C
• ●  Ambient temperature up to 40C
• ● Total suction lift up to 9m.
• ● l Continuous duty

Motor

• ● Two-pole induction motor
• ● l Insulation Class B
• ●  Protection lp44

Material

• ●  Pump body: Cast iron
• ● l Motor support: Cast iron
• ● Molor housing: Aluminum
• ●  impeller: Brass
• ● Dilfuser: Noryl
• ● l Shaft: 45#SteeAISI 416 stainless steel if request
• ●  Mechanical seal: Carbon/Ceramic

Single phase 220V-240V/50Hz

Single phase 110V- 127V/60Hz if request

Single/three phase 220V/60Hz if request

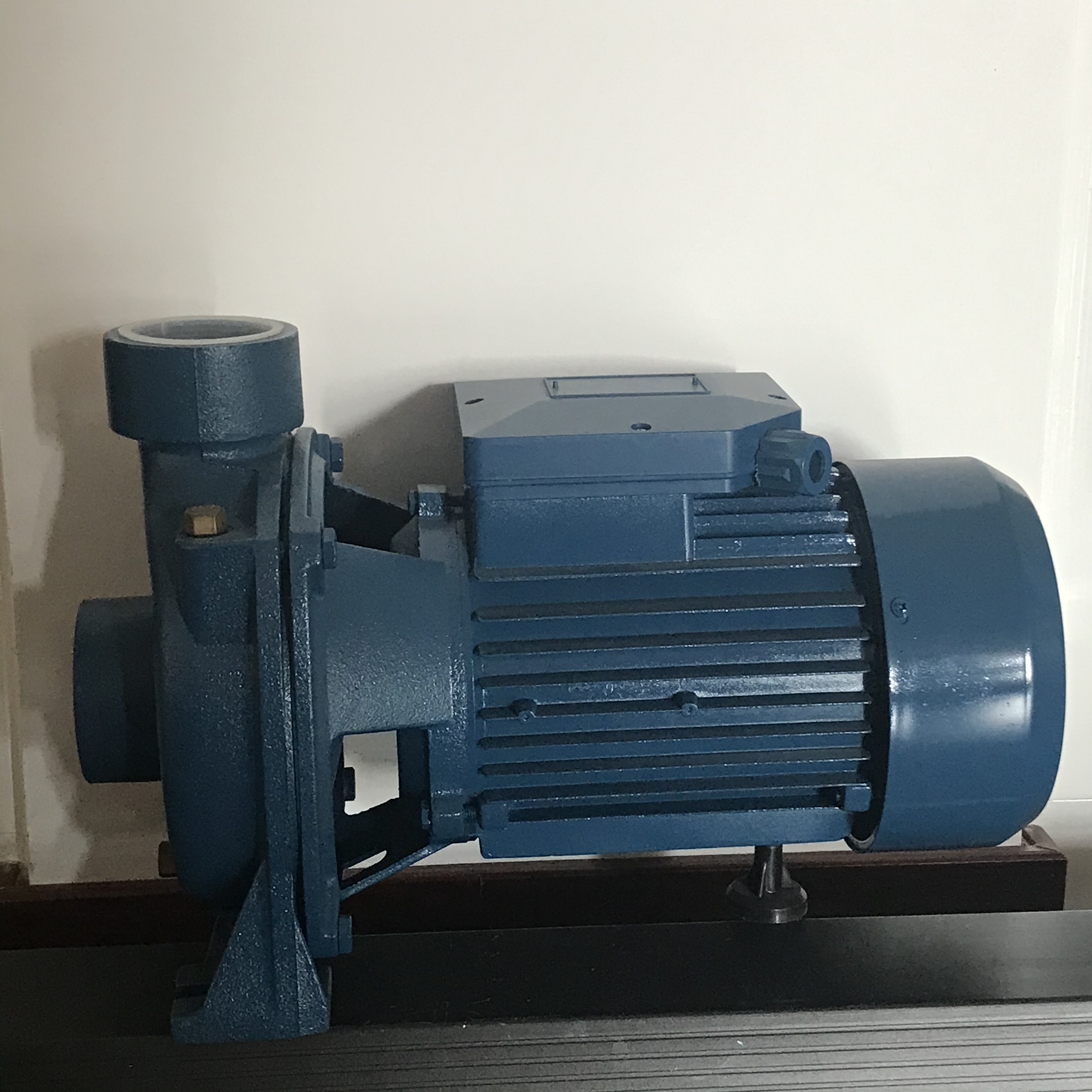

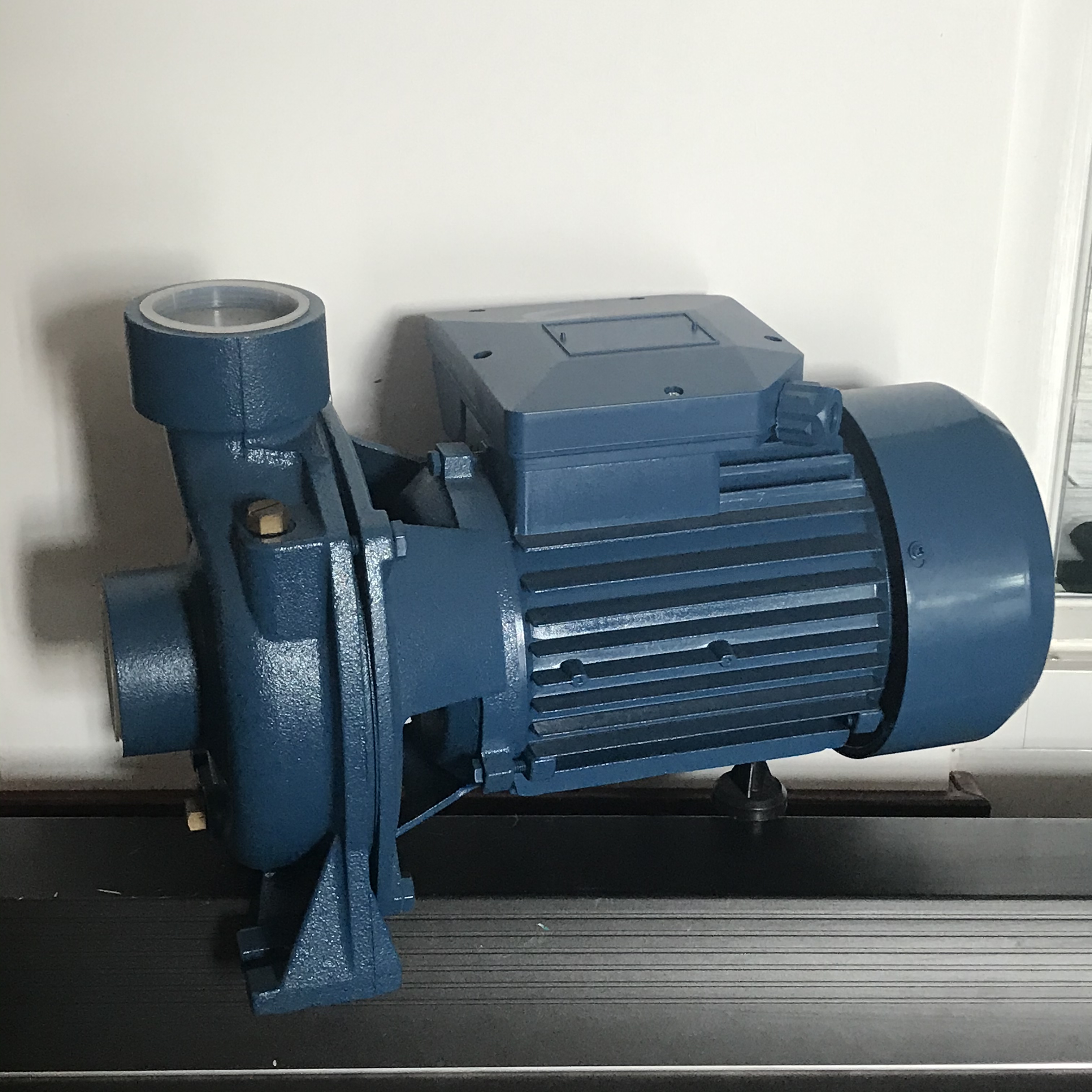

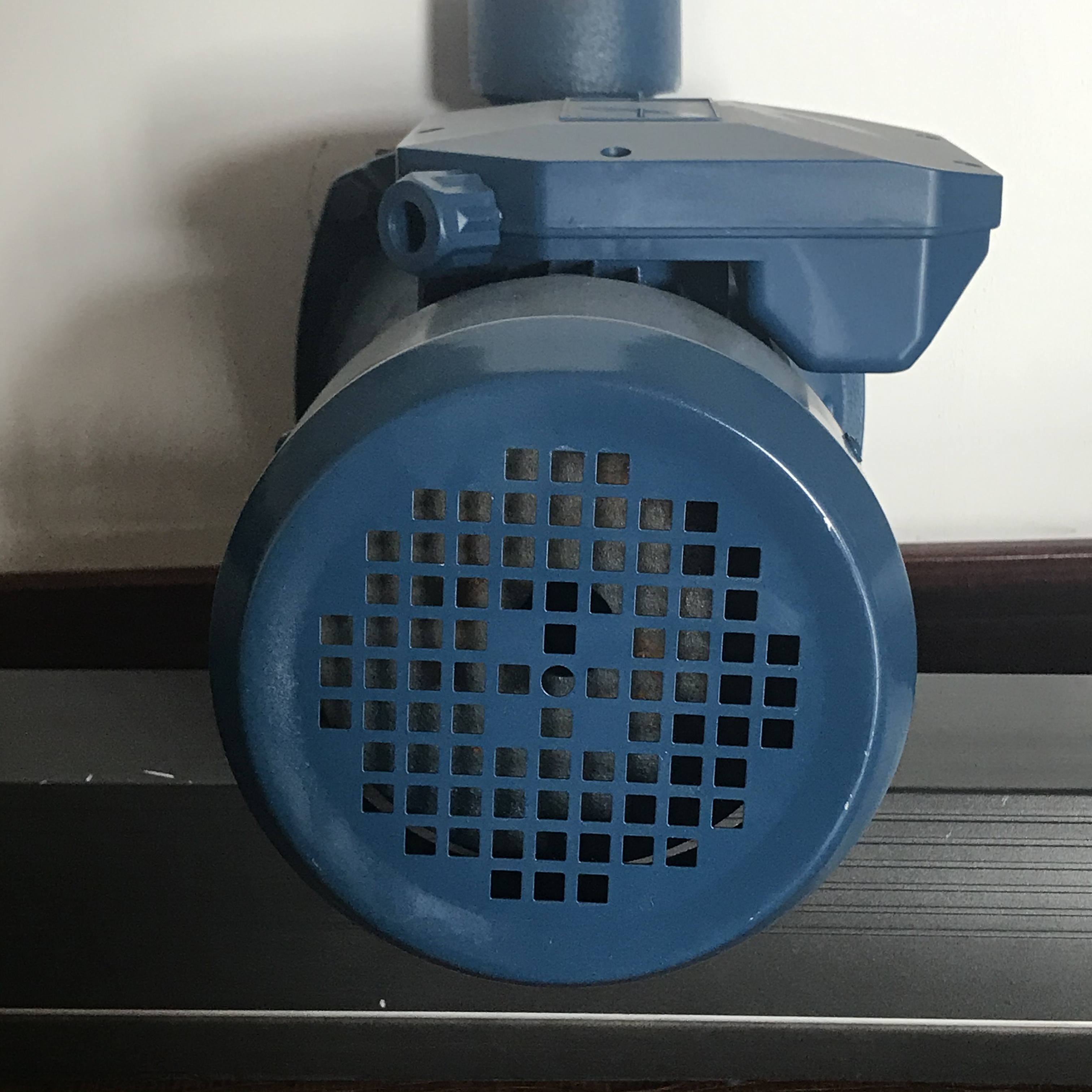

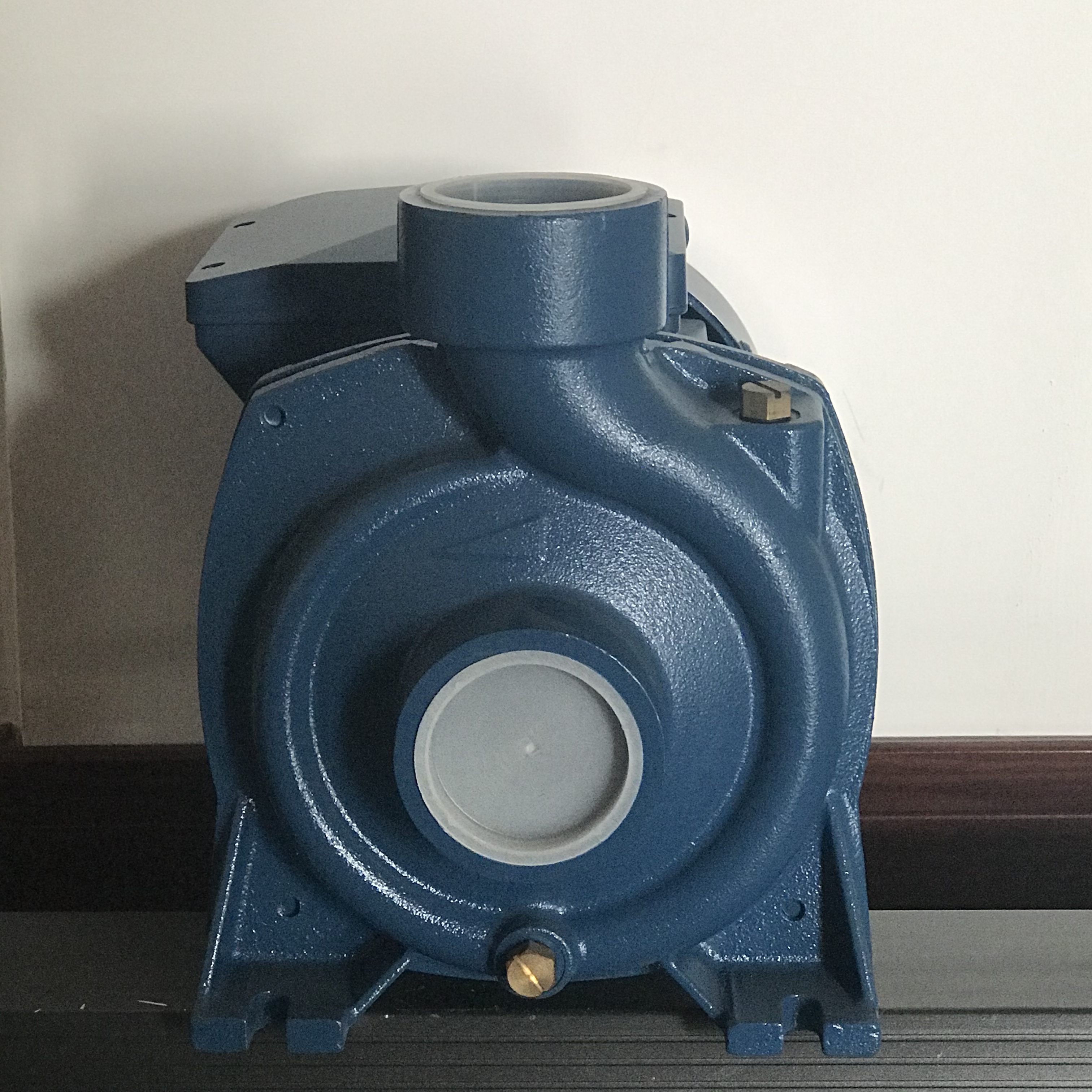

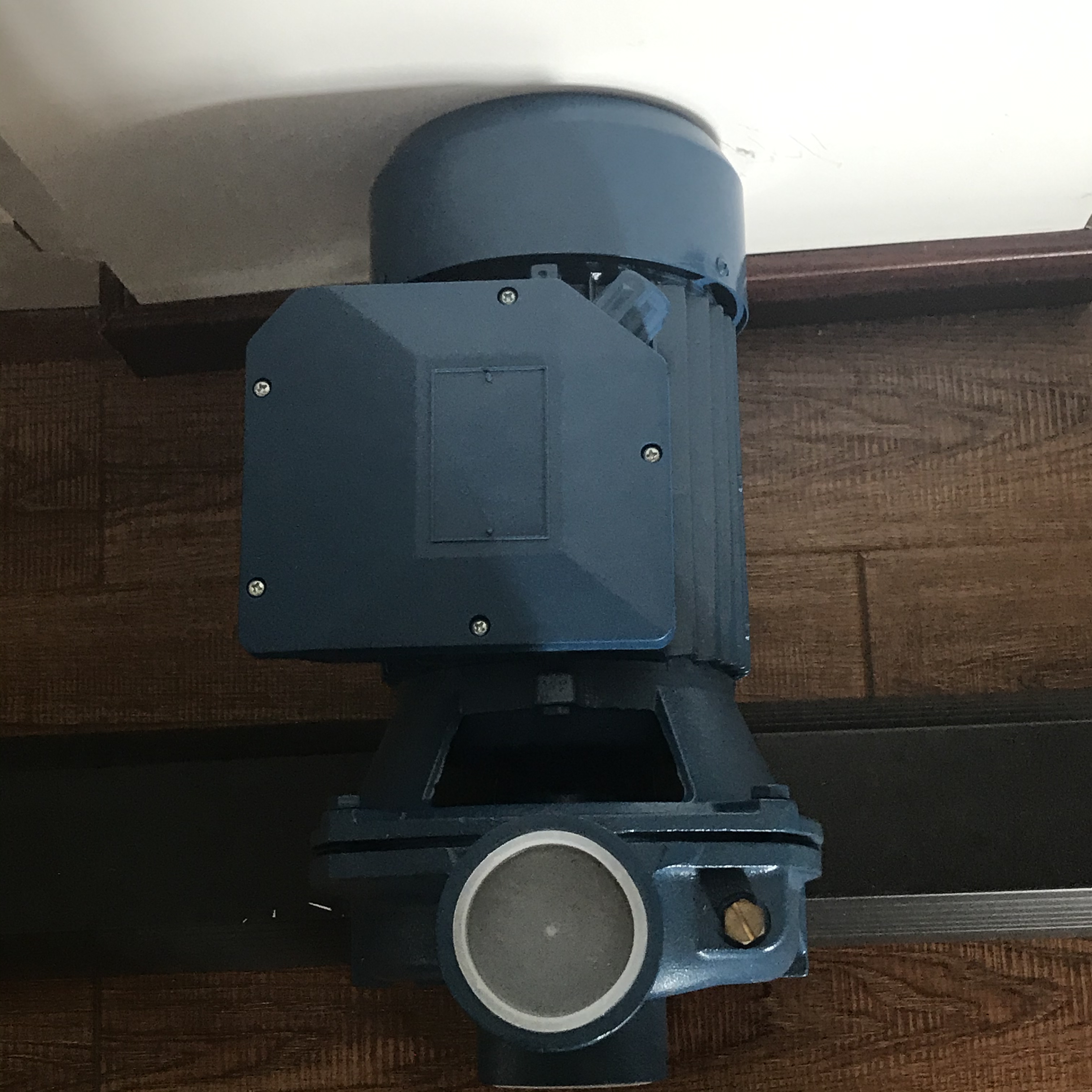

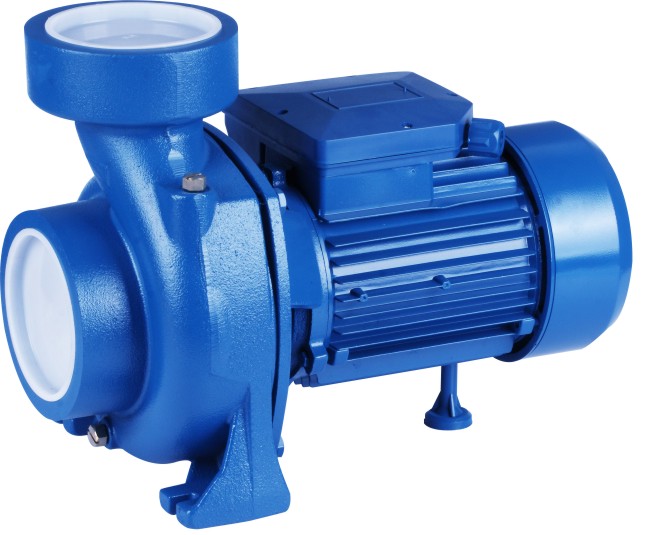

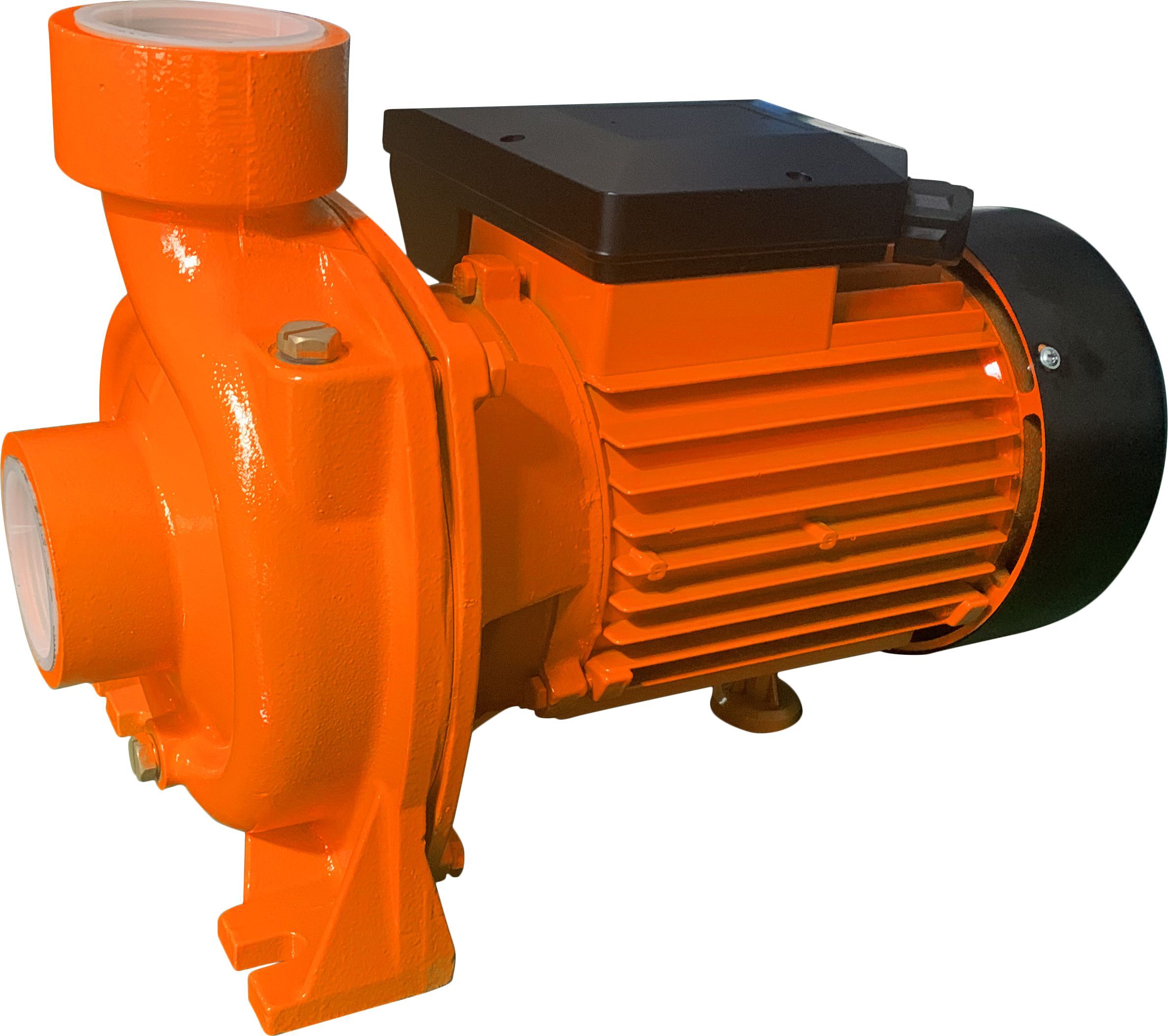

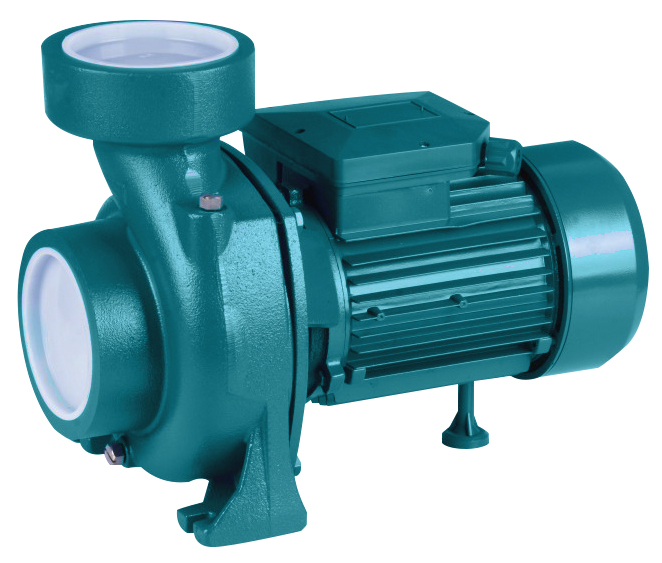

HF CENTRIFUGAL PUMPS

Applications

Centrifugal single impeller low head water pumps for flow

rrigation systems with high flow rates.

Suitable to pump clean water or non-aggressive liquids

changed with small solid impurities

To be used in flow rrigation systems in gardening and

agriculture and in industrial fttings.

MOTOR

• ● Two-pole induction motor
• ● Insulation Class B
• ● Protection Ip44

Operating conditions

Max.working pressure 3. 50bar

Liquid temperature up to 60C

Ambient temperature up to 40C

Total suction lift up to 8m.

Continuous duty

Material

Pump body: Cast iron

Motor Support: Cast iron

Impeller: Brass

Shaft: 45#steel, AISI 416 stainless steel if request

Mechnical seal; Carbon/Ceramic
