Liquor filling machine, whiskey filling machine
JIANGSU JINRONG MACHINERY CO., LTD
See what’s includedHide breakdown
- FOB goods (100)
- $3,000,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $105,000
- Section 301 tariff (25.0%)
- $750,000
- Customs fees (MPF/HMF)
- $4,385
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $3,000,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $105,000
- Section 301 tariff (25.0%)
- $750,000
- Customs fees (MPF/HMF)
- $4,385
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Liquor filling machine, whiskey filling machine
JIANGSU JINRONG MACHINERY CO., LTDSee what’s includedHide breakdown
- FOB goods (100)
- $3,000,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $105,000
- Section 301 tariff (25.0%)
- $750,000
- Customs fees (MPF/HMF)
- $4,385
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $3,000,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $105,000
- Section 301 tariff (25.0%)
- $750,000
- Customs fees (MPF/HMF)
- $4,385
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: SS304
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: SS304
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | SS304 |
|---|
Product details
| Materials | SS304 |
|---|
From the supplier
General description

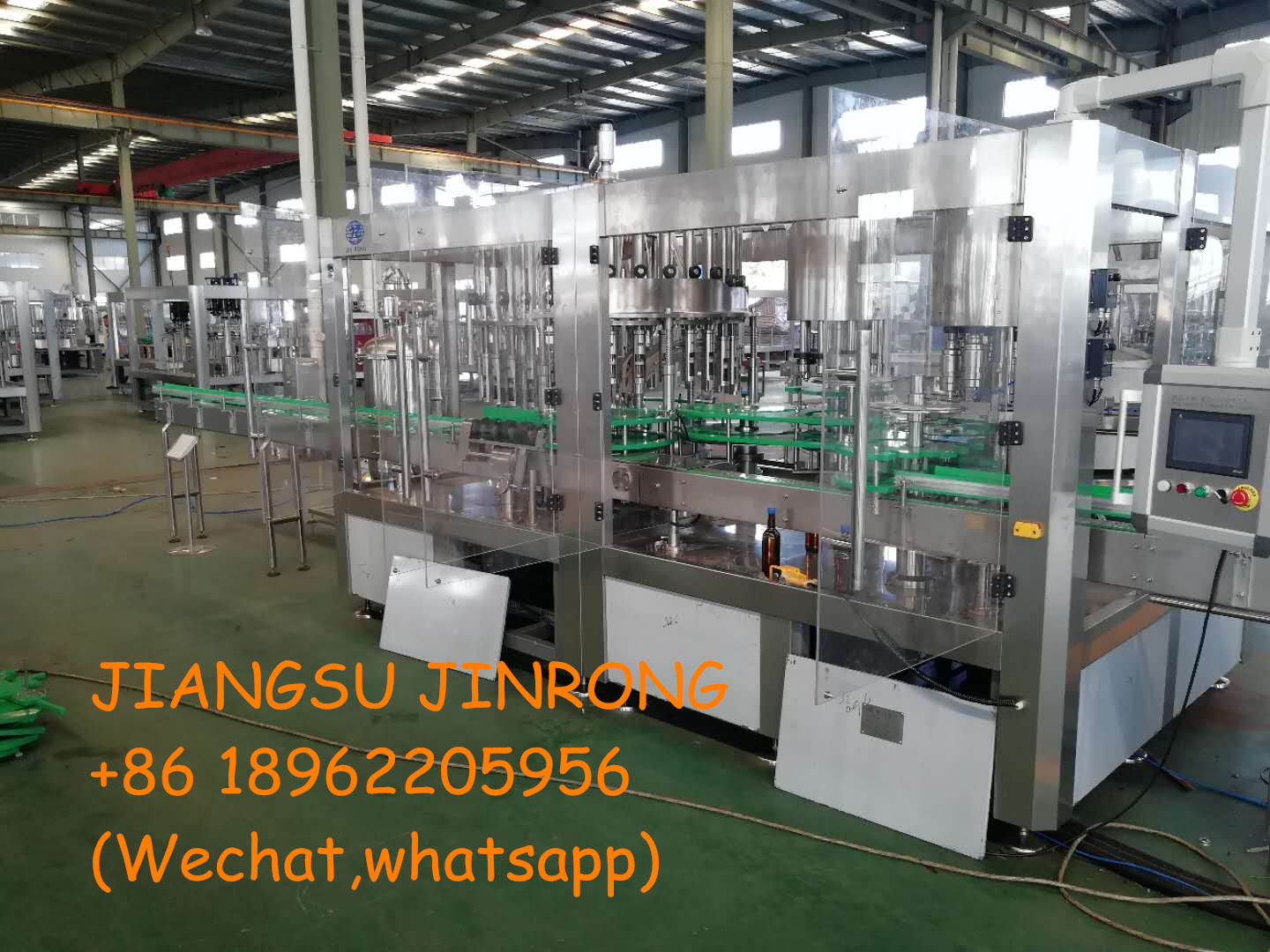

It is rinsing bottle,filling and capping(It can be produced separated type by order.It’s good for different caps and bottles).Material of machine is stainless steel 304.You can choose SUS316 by order.

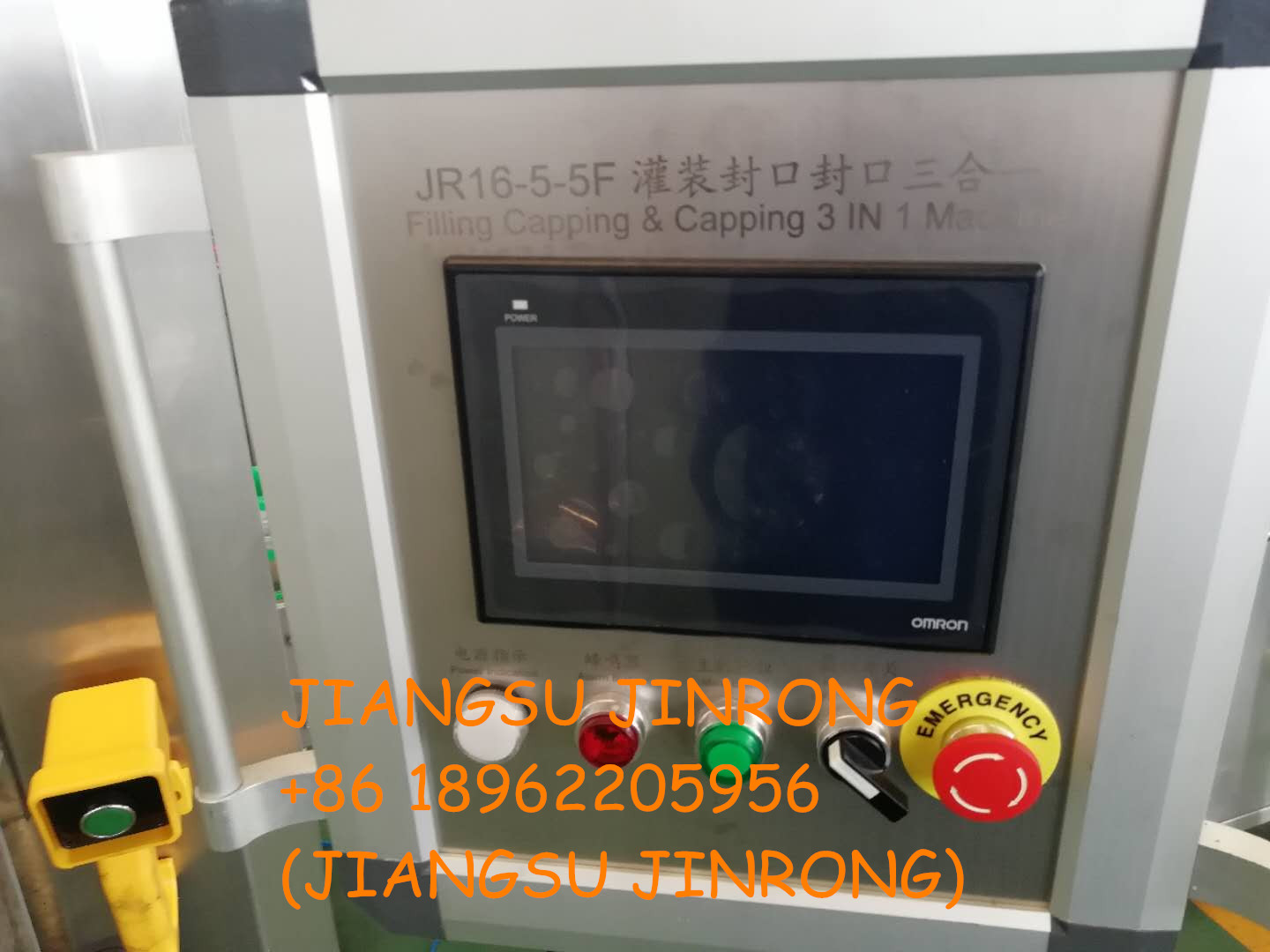

Main electric equipment are Omron,Mitsubishi,Siemens and so on.Cantilever controller is good for engineer to adjust machine and nice surface.
It fills wine into glass bottles.There are 3 functions.That’s rinsing bottle,filling and capping(It can be produced separated type by order.It’s good for different caps and bottles).Material of machine is stainless steel 304.You can choose SUS316 by order.
Main electric equipment are Omron,Mitsubishi,Siemens and so on.Cantilever controller is good for engineer to adjust machine and nice surface.
Working principle

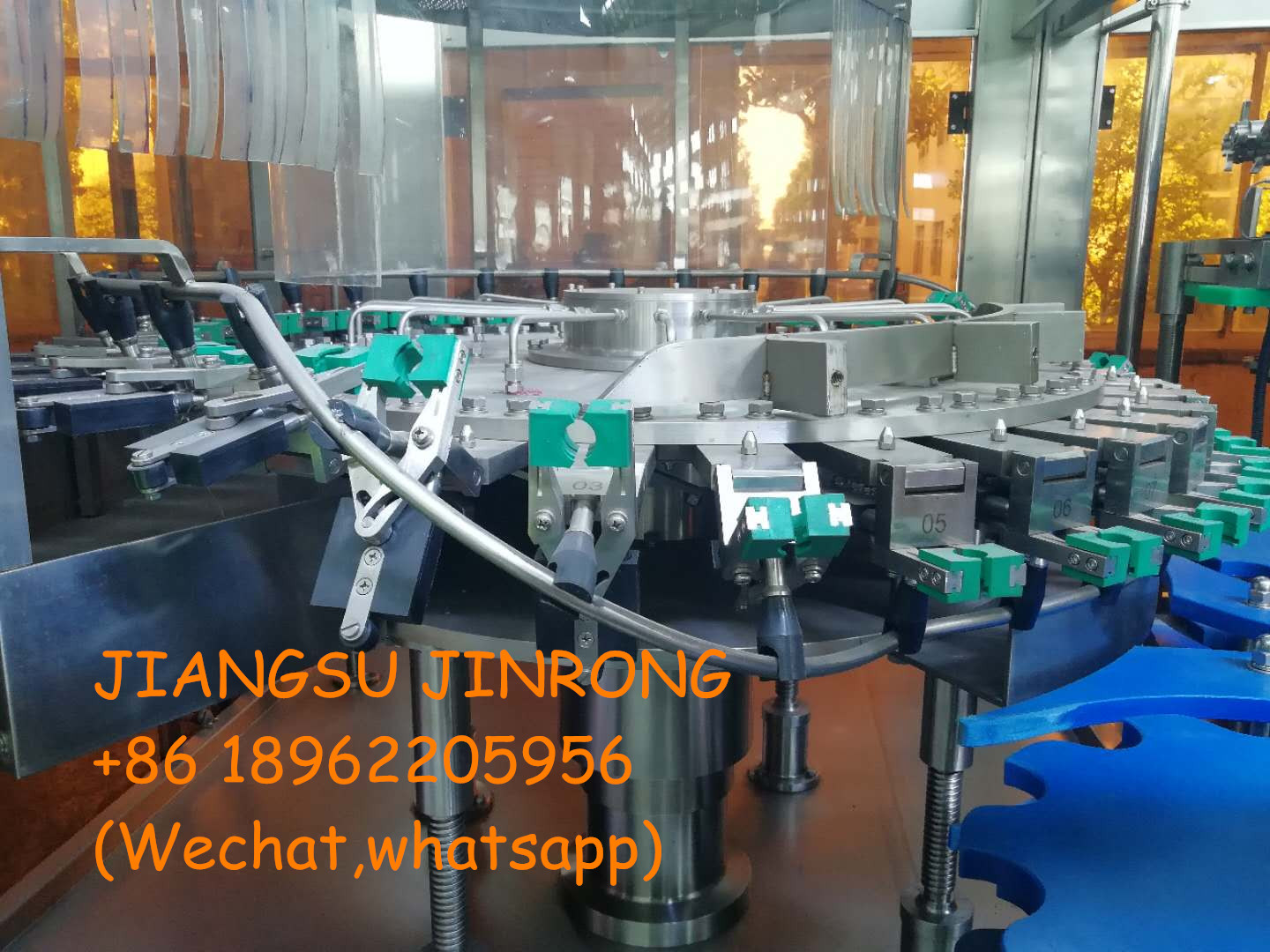

Pre-flush bottle with its head upward is transferred by conveyor to star wheel, then is held and turned upside down by bottle-clamper. When it reaches the rinsing head, the spraying of sanitizing water will flush the bottle. After rinsing the bottle goes to the draining position for draining the remained sanitizing water. Then the bottle-clamper return the bottle with its head upward and the bottle is transferred by star wheel to conveyor which transfers the bottle to the next procedure--filling.
just machine and nice surface.
Working principle

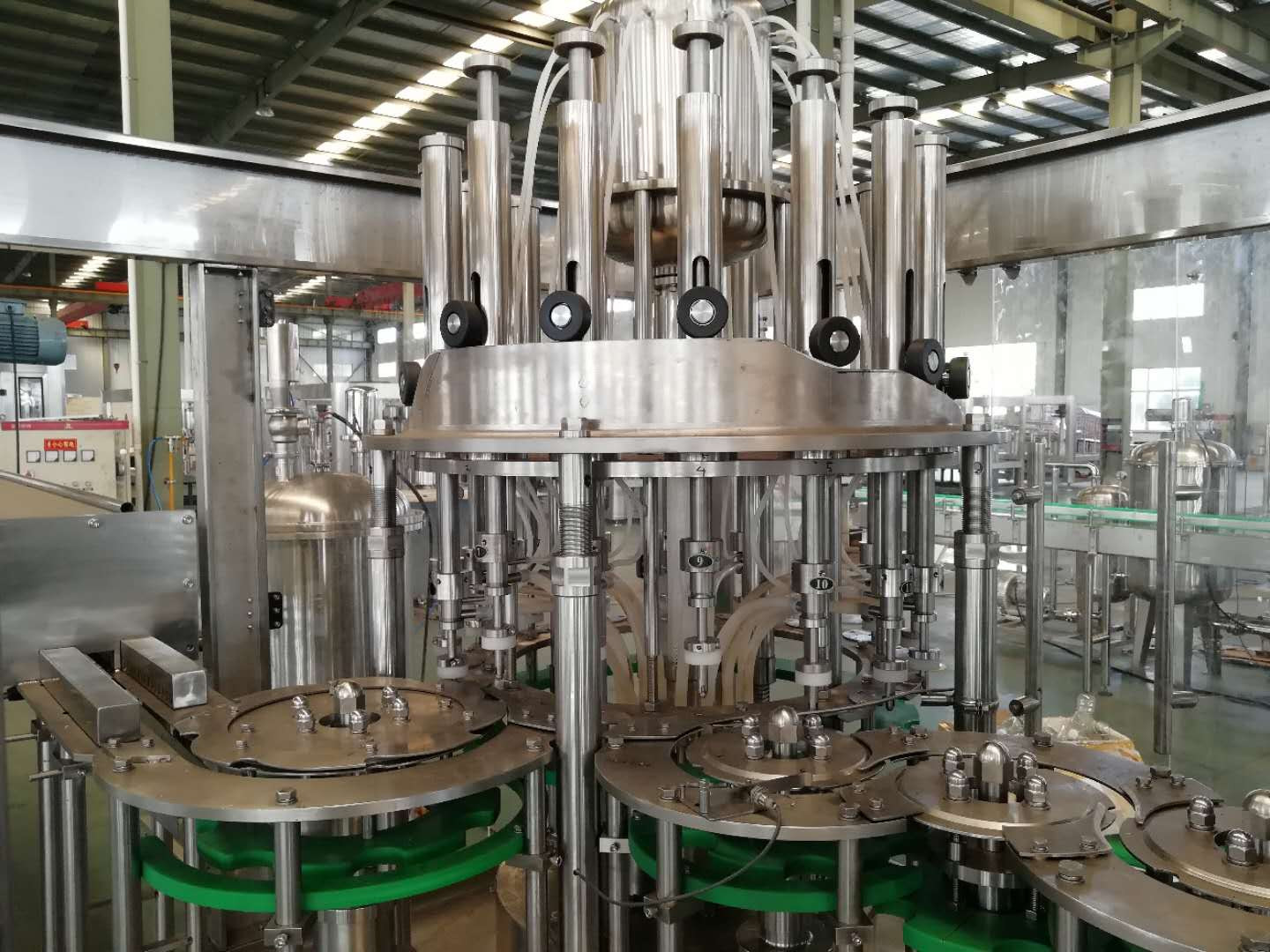

Level of alcohol liquid in tank remains invariable liquid and one portion of air pressure under automatic controlling valve. As alcohol valve fills liquid into bottle through the alcohol liquid pipe, the pressurized valve will take out the air inside the bottle, and swiftly become negative pressure (vacuum), at this time, alcohol liquid in tank goes into the bottle under the role of pressure discrepancy. It will automatically stop taking out air, as the pressure discrepancy is disappearing. Filling is over at this time.
1.Overall Dimension: 2400*1900*2800mm Weight: 4000kg
2.Washing Heads: 18
3.Filling Heads: 18
4.Production Capacity: 4500-5000BPH (for wine)
6.Filling material: wine
7.Filling temperature: Normal temperature
8.Total power:3 KW
9.Conveyor form: SUS304 chain
10.Material: stainless steel 304
11.Bottle application: glass bottle
12.Diameter of bottle body: Φ50mm—Φ100mm
13.Height: 150mm-320mm
14.Maximum of cap: Φ40mm
15.Cap application:Aluminum
16.Adjustable form: transducer
17.Power of Cap unscramble: 0.37kw
18.Pressure of water supplier: ≥0.06MPa≤0.2Mpa
19.Air supplier: ≥0.5MPa
Contact person:Jack Ni Wechat/whatsapp:+86 18962205956
From the supplier
General description
It is rinsing bottle,filling and capping(It can be produced separated type by order.It’s good for different caps and bottles).Material of machine is stainless steel 304.You can choose SUS316 by order.
Main electric equipment are Omron,Mitsubishi,Siemens and so on.Cantilever controller is good for engineer to adjust machine and nice surface.
It fills wine into glass bottles.There are 3 functions.That’s rinsing bottle,filling and capping(It can be produced separated type by order.It’s good for different caps and bottles).Material of machine is stainless steel 304.You can choose SUS316 by order.
Main electric equipment are Omron,Mitsubishi,Siemens and so on.Cantilever controller is good for engineer to adjust machine and nice surface.
Working principle
Pre-flush bottle with its head upward is transferred by conveyor to star wheel, then is held and turned upside down by bottle-clamper. When it reaches the rinsing head, the spraying of sanitizing water will flush the bottle. After rinsing the bottle goes to the draining position for draining the remained sanitizing water. Then the bottle-clamper return the bottle with its head upward and the bottle is transferred by star wheel to conveyor which transfers the bottle to the next procedure--filling.
just machine and nice surface.
Working principle
Level of alcohol liquid in tank remains invariable liquid and one portion of air pressure under automatic controlling valve. As alcohol valve fills liquid into bottle through the alcohol liquid pipe, the pressurized valve will take out the air inside the bottle, and swiftly become negative pressure (vacuum), at this time, alcohol liquid in tank goes into the bottle under the role of pressure discrepancy. It will automatically stop taking out air, as the pressure discrepancy is disappearing. Filling is over at this time.
1.Overall Dimension: 2400*1900*2800mm Weight: 4000kg
2.Washing Heads: 18
3.Filling Heads: 18
4.Production Capacity: 4500-5000BPH (for wine)
6.Filling material: wine
7.Filling temperature: Normal temperature
8.Total power:3 KW
9.Conveyor form: SUS304 chain
10.Material: stainless steel 304
11.Bottle application: glass bottle
12.Diameter of bottle body: Φ50mm—Φ100mm
13.Height: 150mm-320mm
14.Maximum of cap: Φ40mm
15.Cap application:Aluminum
16.Adjustable form: transducer
17.Power of Cap unscramble: 0.37kw
18.Pressure of water supplier: ≥0.06MPa≤0.2Mpa
19.Air supplier: ≥0.5MPa
Contact person:Jack Ni Wechat/whatsapp:+86 18962205956
