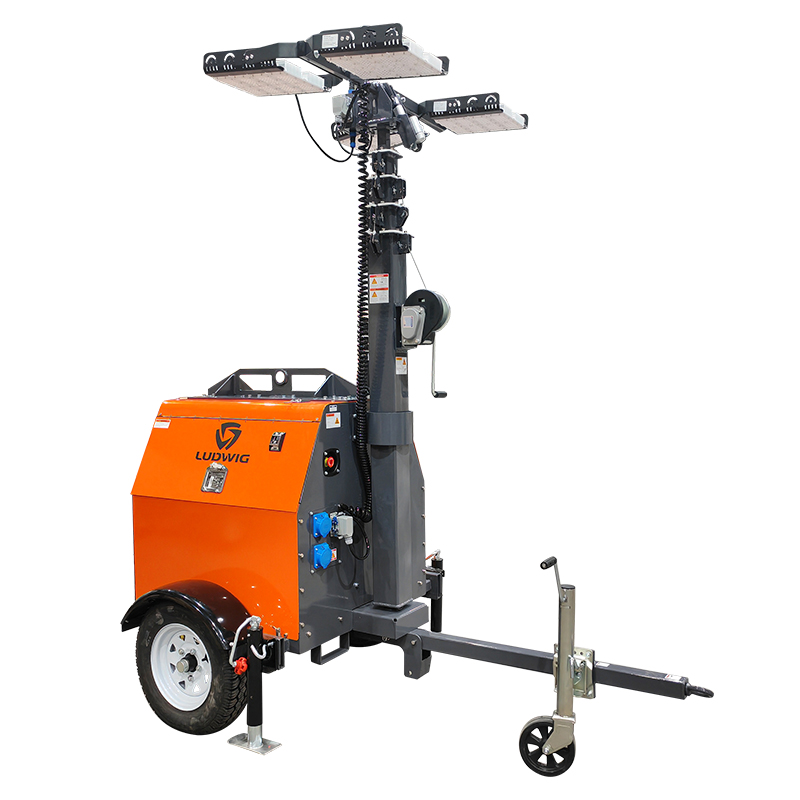

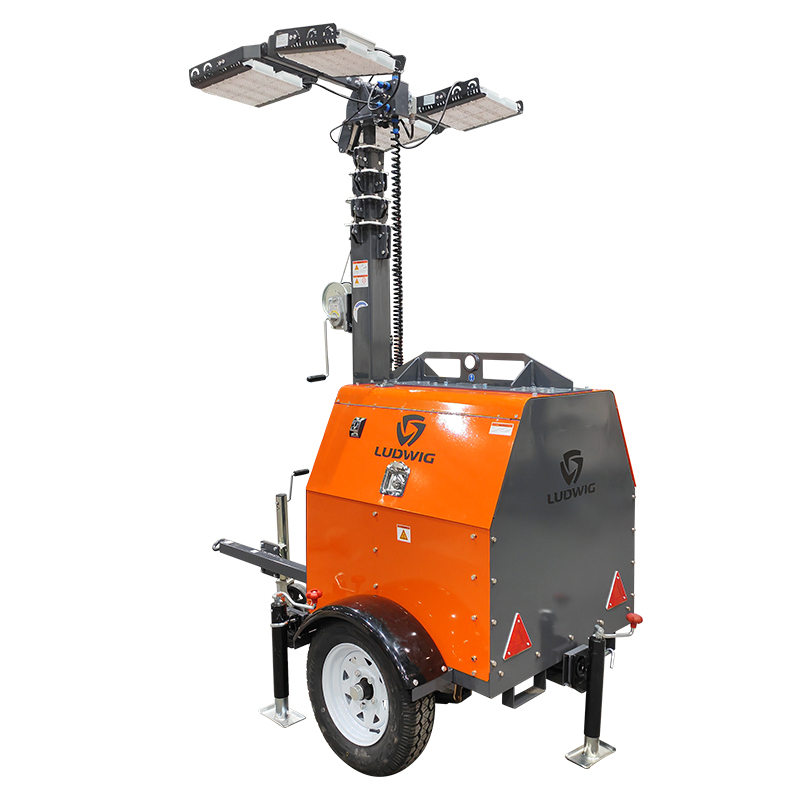

LUDWIG Mobile Lighting Equipment GLTW550 LED/Metal Halide
ANHUI GEWILSON MACHINERY MANUFACTURING CO., LTD.10/10 fairsIndustry and Trade Company
$2,20000–$3,50000/ unit FOB
Unit not stated by the supplier (piece, set, box); we confirm it when we get the quote.
MOQ 10 unit
Estimated landed cost
$3,685 / unit
range $2,849–$4,521 · total ≈ $368,516
See what’s includedHide breakdown
- FOB goods (100)
- $285,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $9,975
- Section 301 tariff (25.0%)
- $71,250
- Customs fees (MPF/HMF)
- $991
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $285,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $9,975
- Section 301 tariff (25.0%)
- $71,250
- Customs fees (MPF/HMF)
- $991
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
LUDWIG Mobile Lighting Equipment GLTW550 LED/Metal Halide
ANHUI GEWILSON MACHINERY MANUFACTURING CO., LTD.10/10 fairsIndustry and Trade Company
$2,20000–$3,50000/ unit FOB
Unit not stated by the supplier (piece, set, box); we confirm it when we get the quote.
MOQ 10 unit
Estimated landed cost
$3,685 / unit
range $2,849–$4,521 · total ≈ $368,516
See what’s includedHide breakdown
- FOB goods (100)
- $285,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $9,975
- Section 301 tariff (25.0%)
- $71,250
- Customs fees (MPF/HMF)
- $991
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $285,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $9,975
- Section 301 tariff (25.0%)
- $71,250
- Customs fees (MPF/HMF)
- $991
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 1656x1264x2433mm
- Color: GLTS4005
- Customized: Customized
- Walking mode: Wheeled
- Automatic grade: Other
- Power source: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: 1656x1264x2433mm
- Color: GLTS4005
- Customized: Customized
- Walking mode: Wheeled
- Automatic grade: Other
- Power source: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | 1656x1264x2433mm |
|---|---|
| Color | GLTS4005 |
| Customized | Customized |
| Walking mode | Wheeled |
| Automatic grade | Other |
| Power source | Other |
| Engine type | Diesel Engine |
Product details
| Size | 1656x1264x2433mm |
|---|---|
| Color | GLTS4005 |
| Customized | Customized |
| Walking mode | Wheeled |
| Automatic grade | Other |
| Power source | Other |
| Engine type | Diesel Engine |
From the supplier
Model
GLTS4005
Order number
TS-101
TS-102
TS-103
Light
Type Of Light
LED
Metal halide
Metal halide
Light Power
4*300W / 4*500W / 4*600W
4*400W
4*1000W
Total Lumen
4* 39000Lm / 65000Lm / 78000Lm
4* 44000Lm
4* 110000Lm
Max.height (Ground To Top)
7 m
7 m
7 m
Mast
Sections
4
4
4
Lifting System
Manual
Manual
Manual
Lifting Pole
Steel pole
Steel pole
Steel pole
Max. Wind Speed
90 km/h
90 km/h
90 km/h
Engine
Engine Model No.
LD188F
LD188F
LD192F
Engine Rated Power
7.5 Kw
7.5 Kw
7.5 Kw
Engine type
Diesel engine, air cooled, single cylinder, 4-stroke, vertical,
direct injection, natural aspiration Diesel engine, air cooled, single cylinder, 4-stroke, vertical,
direct injection, natural aspiration Diesel engine, air cooled, single cylinder, 4-stroke, vertical,
direct injection, natural aspiration Bore X Stroke 88×75 mm 88×75 mm 92×75 mm Displacement 456 cc 456 cc 499 cc Speed 3600RPM 3600RPM 3600RPM Fuel tank capacity 110 Litres 110 Litres 110 Litres Continuous time 120 Hours 120 Hours 120 Hours Generator Frequency 50Hz / 60Hz 50Hz / 60Hz 50Hz / 60Hz Voltage 220V/240V, 110V/120V 220V/240V, 110V/120V 220V/240V, 110V/120V Prime power 6.0Kw 6.0Kw 6.0Kw Phase & Power Factor Single phase, cosΦ=1 Single phase, cosΦ=1 Single phase, cosΦ=1 Excitation Mode Brush type, self-excitation Brush type, self-excitation Brush type, self-excitation Sockets 2 2 2 Chassis Chassis traction kit Standard Standard Standard Signalling lamps Reflectors Reflectors Reflectors Tyre size 2 x 155R12 2 x 155R12 2 x 155R12 Stabilisers 4 4 4 Braking system Standard Standard Standard Packing Net weight 620 kgs 620 kgs 620 kgs Quantity by 20GP/40HC 8 units / 18 units 8 units / 18 units 8 units / 18 units
direct injection, natural aspiration Diesel engine, air cooled, single cylinder, 4-stroke, vertical,
direct injection, natural aspiration Diesel engine, air cooled, single cylinder, 4-stroke, vertical,
direct injection, natural aspiration Bore X Stroke 88×75 mm 88×75 mm 92×75 mm Displacement 456 cc 456 cc 499 cc Speed 3600RPM 3600RPM 3600RPM Fuel tank capacity 110 Litres 110 Litres 110 Litres Continuous time 120 Hours 120 Hours 120 Hours Generator Frequency 50Hz / 60Hz 50Hz / 60Hz 50Hz / 60Hz Voltage 220V/240V, 110V/120V 220V/240V, 110V/120V 220V/240V, 110V/120V Prime power 6.0Kw 6.0Kw 6.0Kw Phase & Power Factor Single phase, cosΦ=1 Single phase, cosΦ=1 Single phase, cosΦ=1 Excitation Mode Brush type, self-excitation Brush type, self-excitation Brush type, self-excitation Sockets 2 2 2 Chassis Chassis traction kit Standard Standard Standard Signalling lamps Reflectors Reflectors Reflectors Tyre size 2 x 155R12 2 x 155R12 2 x 155R12 Stabilisers 4 4 4 Braking system Standard Standard Standard Packing Net weight 620 kgs 620 kgs 620 kgs Quantity by 20GP/40HC 8 units / 18 units 8 units / 18 units 8 units / 18 units
From the supplier
Model
GLTS4005
Order number
TS-101
TS-102
TS-103
Light
Type Of Light
LED
Metal halide
Metal halide
Light Power
4*300W / 4*500W / 4*600W
4*400W
4*1000W
Total Lumen
4* 39000Lm / 65000Lm / 78000Lm
4* 44000Lm
4* 110000Lm
Max.height (Ground To Top)
7 m
7 m
7 m
Mast
Sections
4
4
4
Lifting System
Manual
Manual
Manual
Lifting Pole
Steel pole
Steel pole
Steel pole
Max. Wind Speed
90 km/h
90 km/h
90 km/h
Engine
Engine Model No.
LD188F
LD188F
LD192F
Engine Rated Power
7.5 Kw
7.5 Kw
7.5 Kw
Engine type
Diesel engine, air cooled, single cylinder, 4-stroke, vertical,
direct injection, natural aspiration Diesel engine, air cooled, single cylinder, 4-stroke, vertical,
direct injection, natural aspiration Diesel engine, air cooled, single cylinder, 4-stroke, vertical,
direct injection, natural aspiration Bore X Stroke 88×75 mm 88×75 mm 92×75 mm Displacement 456 cc 456 cc 499 cc Speed 3600RPM 3600RPM 3600RPM Fuel tank capacity 110 Litres 110 Litres 110 Litres Continuous time 120 Hours 120 Hours 120 Hours Generator Frequency 50Hz / 60Hz 50Hz / 60Hz 50Hz / 60Hz Voltage 220V/240V, 110V/120V 220V/240V, 110V/120V 220V/240V, 110V/120V Prime power 6.0Kw 6.0Kw 6.0Kw Phase & Power Factor Single phase, cosΦ=1 Single phase, cosΦ=1 Single phase, cosΦ=1 Excitation Mode Brush type, self-excitation Brush type, self-excitation Brush type, self-excitation Sockets 2 2 2 Chassis Chassis traction kit Standard Standard Standard Signalling lamps Reflectors Reflectors Reflectors Tyre size 2 x 155R12 2 x 155R12 2 x 155R12 Stabilisers 4 4 4 Braking system Standard Standard Standard Packing Net weight 620 kgs 620 kgs 620 kgs Quantity by 20GP/40HC 8 units / 18 units 8 units / 18 units 8 units / 18 units
direct injection, natural aspiration Diesel engine, air cooled, single cylinder, 4-stroke, vertical,
direct injection, natural aspiration Diesel engine, air cooled, single cylinder, 4-stroke, vertical,
direct injection, natural aspiration Bore X Stroke 88×75 mm 88×75 mm 92×75 mm Displacement 456 cc 456 cc 499 cc Speed 3600RPM 3600RPM 3600RPM Fuel tank capacity 110 Litres 110 Litres 110 Litres Continuous time 120 Hours 120 Hours 120 Hours Generator Frequency 50Hz / 60Hz 50Hz / 60Hz 50Hz / 60Hz Voltage 220V/240V, 110V/120V 220V/240V, 110V/120V 220V/240V, 110V/120V Prime power 6.0Kw 6.0Kw 6.0Kw Phase & Power Factor Single phase, cosΦ=1 Single phase, cosΦ=1 Single phase, cosΦ=1 Excitation Mode Brush type, self-excitation Brush type, self-excitation Brush type, self-excitation Sockets 2 2 2 Chassis Chassis traction kit Standard Standard Standard Signalling lamps Reflectors Reflectors Reflectors Tyre size 2 x 155R12 2 x 155R12 2 x 155R12 Stabilisers 4 4 4 Braking system Standard Standard Standard Packing Net weight 620 kgs 620 kgs 620 kgs Quantity by 20GP/40HC 8 units / 18 units 8 units / 18 units 8 units / 18 units
