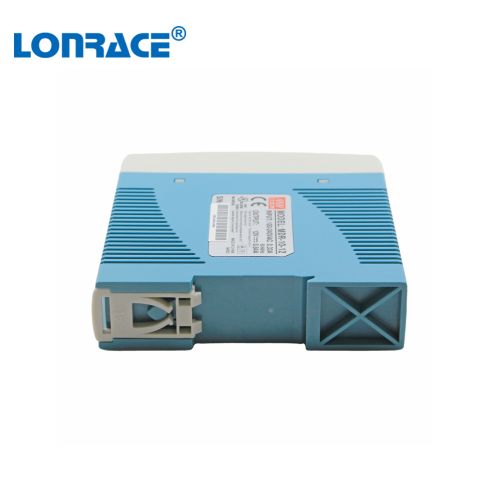

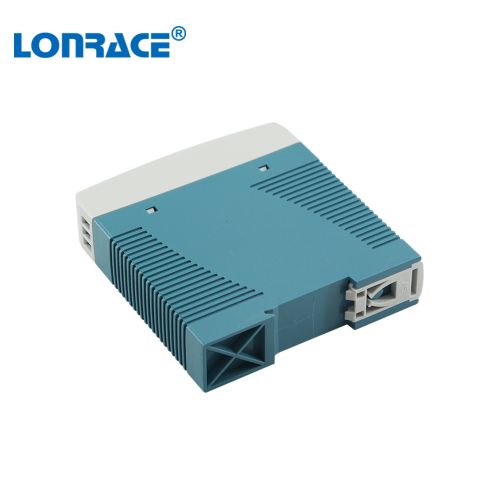

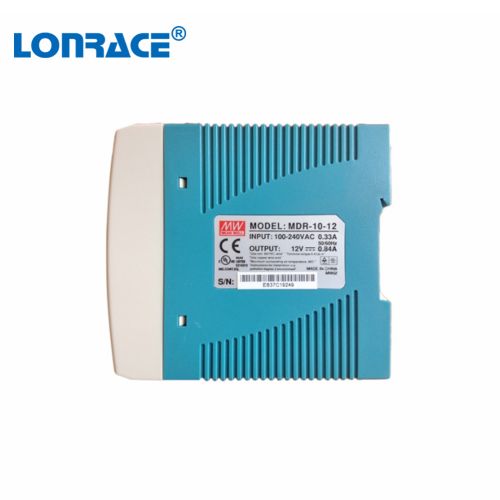

Mean Well Mdr-10-12 DIN Rail Power Supply 10W 12V
LONRACE INDUSTRY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Mean Well Mdr-10-12 DIN Rail Power Supply 10W 12V
LONRACE INDUSTRY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
From the supplier
Product description:
Universal AC input/Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35 / 7.5 or 15
Built in DC OK active signal
LED indicator for power on
No load power consumption<0.75W
100% full load burn-in test100% full load burn-in test
Common size:
OUTPUT
Model
MDR-10-5
MDR-10-12
MDR-10-15
MDR-10-24
DC Voltage
5V
12V
15V
24V
Rated Current
2A
0.84A
0.67A
0.42A
Current Range
0-2A
0-0.84A
0-0.67A
0-0.42A
Rated Power
10W
10W
10W
10W
Ripple & Noise
80mVp-p
120mVp-p
120mVp-p
150mVp-p
Voltage Adj. Range
-5%,+10%
±10%
±10%
±10%
Voltage Tolerance
±2%
±1%
±1%
±1%
Setup, Rise, Hold Up Time
1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full
load 70ms/230VAC 16ms/115VAC at full load
INPUT
Voltage Range
85 ~ 264VAC 120 ~ 370VDC
AC Current
0.88A/115VAC 0.48A/230VAC
Efficiency
74%
84%
83.5%
85%
Inrush Current
COLD START 35A/115VAC 65A/230VAC
PROTECTION
Over Load
105%~160%
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage
115%~135%
Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT
Working Temp., Humidity
-10°C~+60°C; 20%~90%RH
Storage Temp., Humidity
-40°C~+85°C; 10%~95%RH
Temp. Coefficient
±0.03%/°C(0~50°C)
Vibration
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage
I/P-O/P: 3KVAC
Isolation Resistance
I/P-O/P: 100M Ohms / 500VDC
STANDARD
Safety Standard
Design refer to UL60950-1,TUV EN60950-1,EN50178
EMC Standard
Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2,EN61204-3
OTHERS
Dimension
25*93*56mm(L*W*H)
Weight
0.15Kg
Packing
100pcs/carton
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
From the supplier
Product description:
Universal AC input/Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35 / 7.5 or 15
Built in DC OK active signal
LED indicator for power on
No load power consumption<0.75W
100% full load burn-in test100% full load burn-in test
Common size:
OUTPUT
Model
MDR-10-5
MDR-10-12
MDR-10-15
MDR-10-24
DC Voltage
5V
12V
15V
24V
Rated Current
2A
0.84A
0.67A
0.42A
Current Range
0-2A
0-0.84A
0-0.67A
0-0.42A
Rated Power
10W
10W
10W
10W
Ripple & Noise
80mVp-p
120mVp-p
120mVp-p
150mVp-p
Voltage Adj. Range
-5%,+10%
±10%
±10%
±10%
Voltage Tolerance
±2%
±1%
±1%
±1%
Setup, Rise, Hold Up Time
1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full
load 70ms/230VAC 16ms/115VAC at full load
INPUT
Voltage Range
85 ~ 264VAC 120 ~ 370VDC
AC Current
0.88A/115VAC 0.48A/230VAC
Efficiency
74%
84%
83.5%
85%
Inrush Current
COLD START 35A/115VAC 65A/230VAC
PROTECTION
Over Load
105%~160%
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage
115%~135%
Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT
Working Temp., Humidity
-10°C~+60°C; 20%~90%RH
Storage Temp., Humidity
-40°C~+85°C; 10%~95%RH
Temp. Coefficient
±0.03%/°C(0~50°C)
Vibration
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage
I/P-O/P: 3KVAC
Isolation Resistance
I/P-O/P: 100M Ohms / 500VDC
STANDARD
Safety Standard
Design refer to UL60950-1,TUV EN60950-1,EN50178
EMC Standard
Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2,EN61204-3
OTHERS
Dimension
25*93*56mm(L*W*H)
Weight
0.15Kg
Packing
100pcs/carton
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
