From the supplier
I Description:

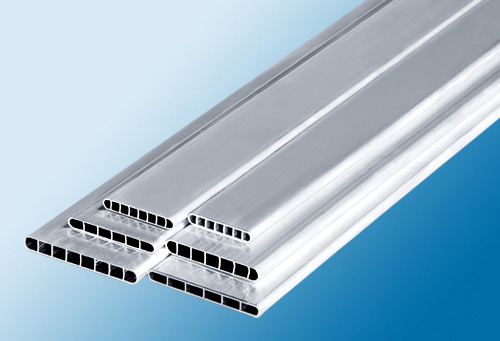

Parallel-flow condenser in automotive air conditioner uses microchannel flat aluminum tube which is also called as multiport tube.

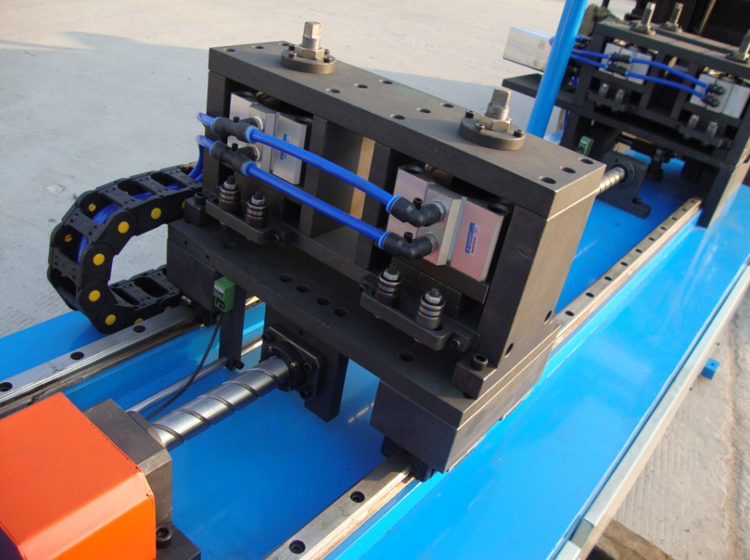

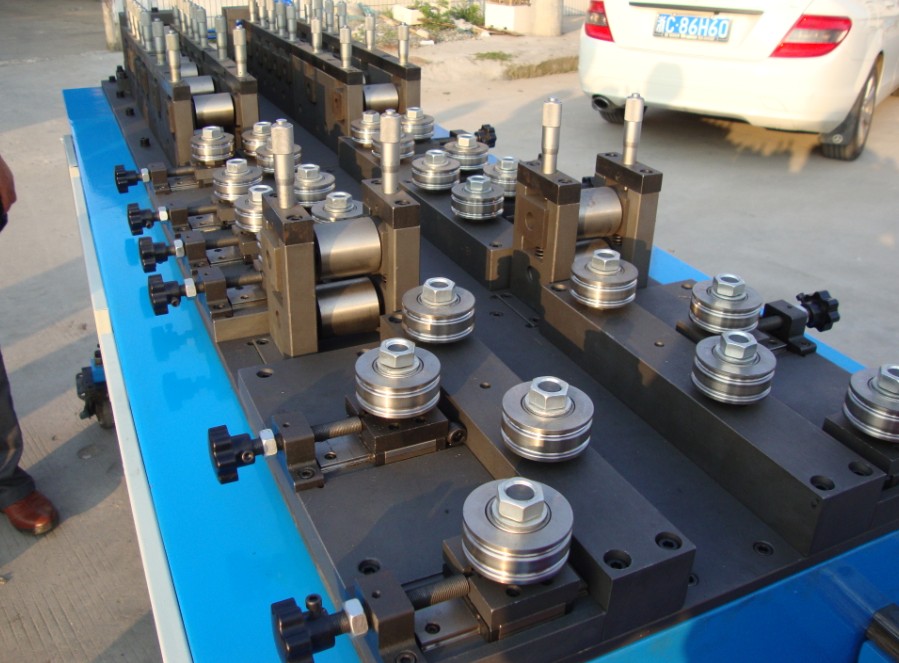

This machine is specially designed for decoiling reel shaped microchannel aluminum tube, straightening and cutting to length automatically.

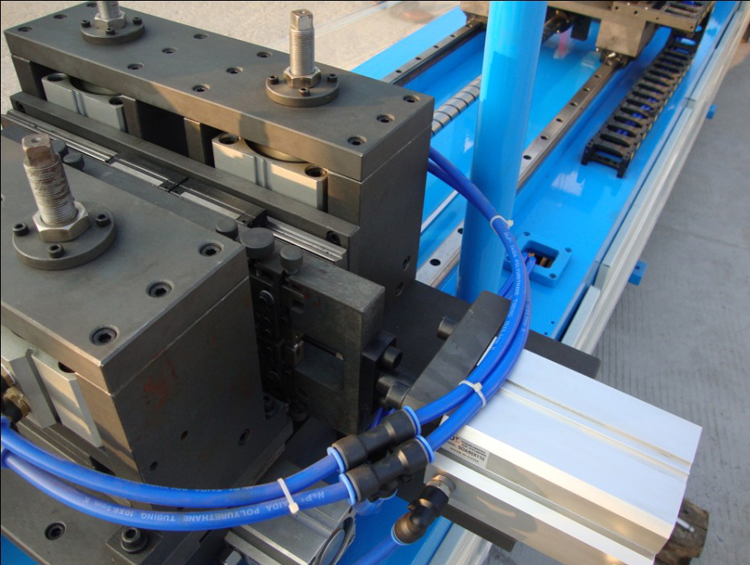

This machine adopts special nicking cutting technology, chip-less and very small deformation on cutting section.
And the machine has special function for shrinking tube ends which is good for further core assembling.
This machine can cut two microchannel aluminum tubes simultaneously.
II Main Features:

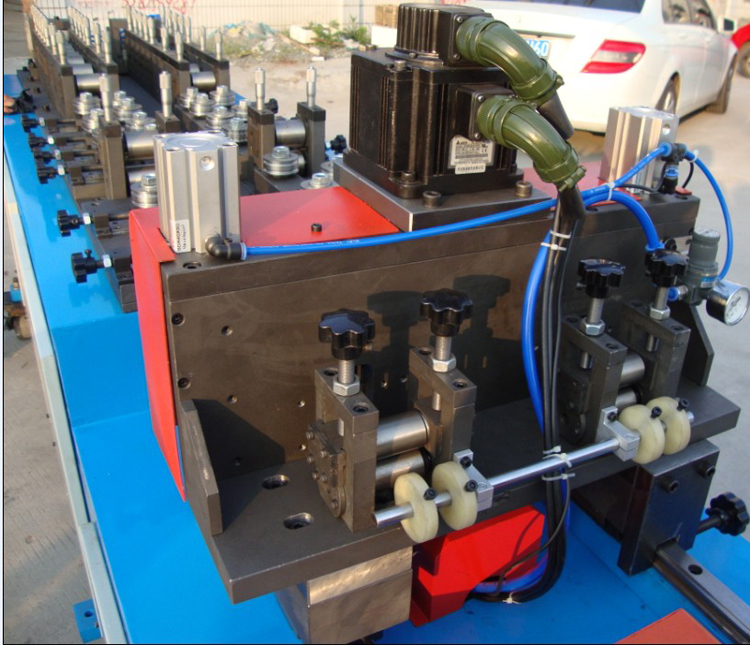

- Servo feeding, stable and high re-positioning precision
- One time cutting two pieces, high efficient
- With special stretch-breaking cutting function, burrless cutting
- PLC control, high automation – auto decoiling, auto feeding, auto cutting.
III Main Technical Data:
Item
Data
Suitable material
Coil flat aluminum tube
Flat aluminum tube width
12-32mm
Flat aluminum tube thickness
1.2-3mm
Aluminum coil size
Outer diameter: 1200mm
Inner diameter: 450-500mm
Height: 300-350mm
Weight: max. 300kg
Cutting pieces
2
Cutting length
Min. 100 mm, no max. limit
One-time feeding stroke
200-900 mm
Cutting speed
15~22 cuts per minute (@500mm length)
Cut-to-length precision
≤ ±0.2mm (@ 500mm length)
Straightening width error
Less than 0.02mm
Straightening thickness error
Less than 0.04mm
Straightening precision in width direction
Less than 0.4 / 800mm
Straightening precision in thickness direction
Less than 0.8 / 800mm
Duration for changing cutting blade
≤ 5min
Duration for changing tube width
≤ 15min
Total electric power
About 5kW
Air source
0.5-0.7MPa
Total weight
About 3000kg
Main machine dimension
About 6000 x 850 x 700mm
IV Main configurations
- PLC & HMI: Delta from Taiwan
- Servo motor & driver: Delta from Taiwan
- Linear guide: TPI from Taiwan
- Contactor& circuit breaker: Schneider (Chinese joint venture)
- Approaching switch: Omron from Japan
- Pneumatic components: Airtac from Taiwan
