Mung bean is also called green bean or moong bean.  People like to peel & split or grind mung bean for various diet cooking. Win Tone Mung Bean Peeling, Splitting and Grinding Plantadopts excellent automatic solutions and can reduce labor cost and production cost. Meanwhile, it can reduce the influence from impurities, dust and bran. Mung Bean Peeling, Splitting and Grinding Plant can process soybean, broad bean, lentil, cowpea, mung bean, black soya bean, kidney bean and other beans.

　　The complete Mung Bean Peeling, Splitting and Grinding Plant has the featuresof advanced technology, strong specificity, reasonable layout, low energy consumption, high yield, low breakage rate, high quality of end products, automatic and continuous production. This bean processing line can produce polished and graded beans, peeled and graded bean kernels, graded bean grits and graded bean flour. It is widely used in food and grain processing enterprises. And the core equipments have obtained the national patents.

　　Technology introduction of Mung Bean Peeling, Splitting and Grinding Plant:

　　According to the structure of various beans and the features of bean endosperm and its skin, we designed this bean processing plant. It realizes the value of bean processing from bean cleaning, bean color sorting, bean peeling and splitting, and bean flour milling.

　　Technological process of Mung Bean Peeling, Splitting and Grinding Plant: 1.Bean cleaning section: it adopts two screening sections, two destoning sections, one magnetic separation section, and removes the big, small and light impurities, pebbles and magnetic material from the beans to ensure the quality of the end products.

　　2. Bean color sorting section: it adopts the color sorter to separate the moldy kernels, shriveled beans and foreign species of beans according to the color and luster feature of the beans.

　　3. Bean peeling and splitting section: it adopts peeling, splitting, brushing and shunting technology (it can utilize the segregation valve to choose peeling and brushing according to the material character.)

　　1)Peeling and splitting: it can remove the bean bran, split the bean kernels and separate and collect corn kernels by effective aspiration system;

　　2)Brushing: it can separate the micro bran and dust which adheres to the material surface.

　　4. Grading section: it adopts different screens and classify the material into different grades according to the size.

　　5. Mung Bean kernel making and grits milling section: it adopts the technology of three peeling sections, one grits making section, grading and suspension.

　　1)Peeling section: it can remove the bean bran and separate and collect it by effective aspiration system and produce peeled kernels;

　　2) Bean grits making section: it uses fine bean grits machine and mill beans into bean grits;

　　3) Bean kernels and bean grits grading section: it adopts different screens and classifies bean kernels or bean grits into different grades according to the size.

　　4)Suspension: it separates bean bran by utilizing airflow according to different material gravity.

　　6. Bean flour milling section: it adopts the technology of burdening, several processes of grinding and screening and grading.

　　1)Burdening: it can mix different material according to different requirements for different products;

　　2)Grinding: it can grind or mill the beans into fine bean flour by the professional bean grinder;

　　3)Screening: it separates the bean flour.

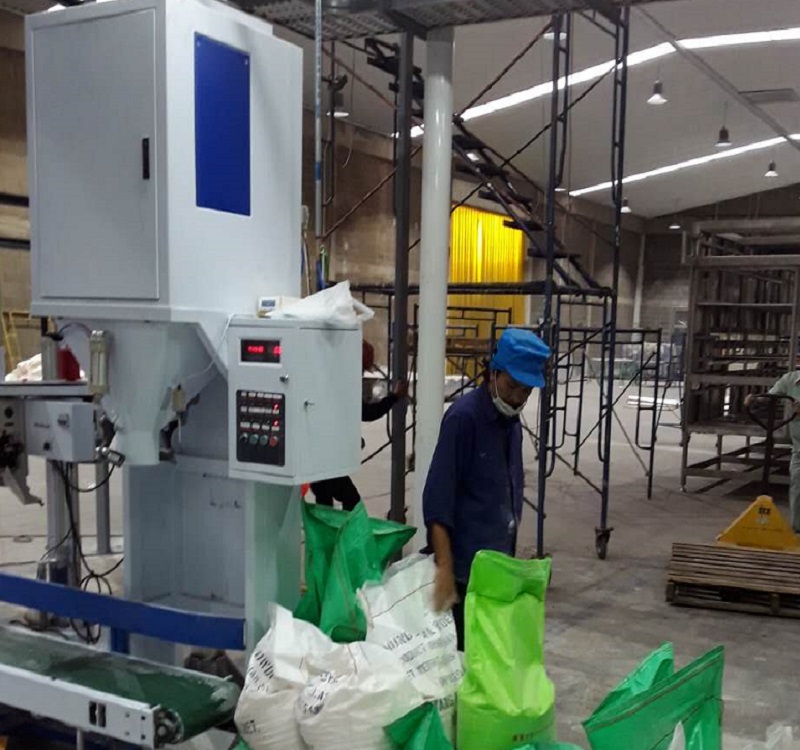

　　7. Measuring and packaging section: storage can reduce the amount of labor used. Measuring can be artificial or electronic.

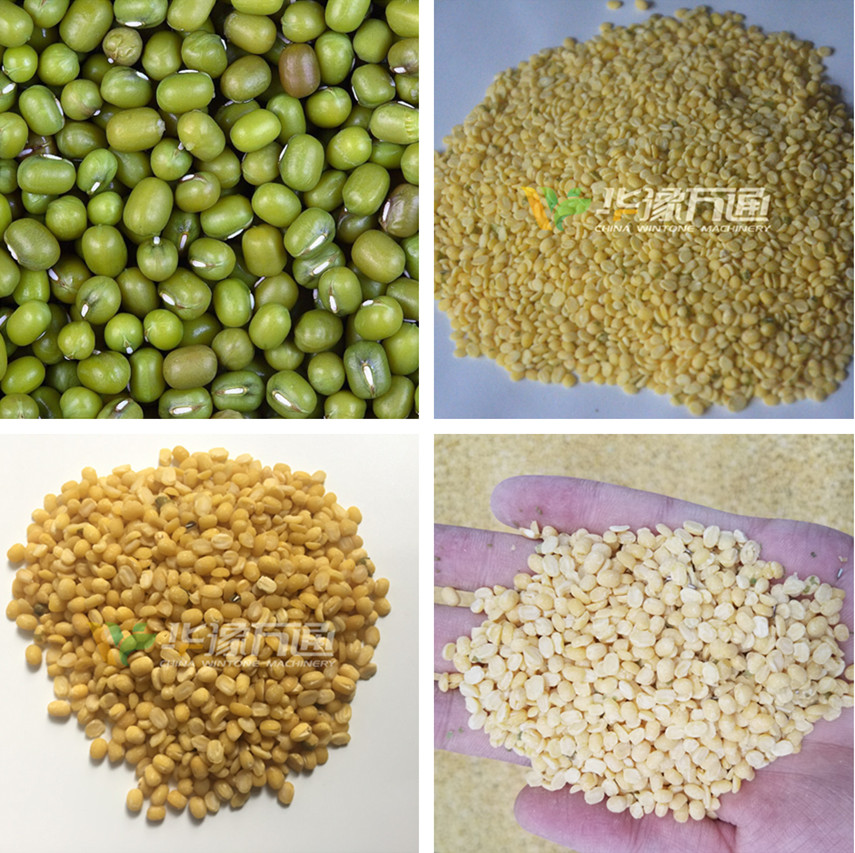

　　End products of Mung Bean Peeling, Splitting and Grinding Plant:

　　1.Range of application：soybean, broad bean, lentil, cowpea, mung bean, black soya bean, kidney and other beans processing.

　　2. Structure of the end products: fine beans, bean kernels, bean grits, bean flour.

　　3. Yield rate: it can be adjustable according to your requirement.

　　4.Technical index of the end products:

　　A. Sand content：

　　B. Magnetic metal content:

　　C. Moisture：storage type

　　D. Appearance and taste: good color, high peeling efficiency, bright and smooth bean kernels, pure bean taste.

　　Advantages of Win Tone Machinery:

　　1. We have the professional engineering team so that we can design the processing technology according to your requirements and different grain species.

　　2. The excellent equipment ensures the high yield rate and long service life of the machines.

　　3. Win Tone Machinery, as the professional complete set of equipments and project contractor, can supply you with thorough systematic engineering service, such as project design, manufacturing, installation, debugging, training and after-sales service.

　　Mung Bean Peeling, Splitting and Grinding Plant Technical parameter:

Type

Power (kw)

Power Consumption(kw/h)

Capacity(t/24h)

Workshop Dimension(l*w*h/m)

10t

24

38-40

10

10*4*4 (steel structure)

20t

56

38-40

20

16*5*5 (steel structure)

30t

72

38-40

30

20*5*5 (steel structure)

50t

119

38-40

50

20*5*7 (steel structure)

100t

238

38-40

100

30*5*7 (steel structure)

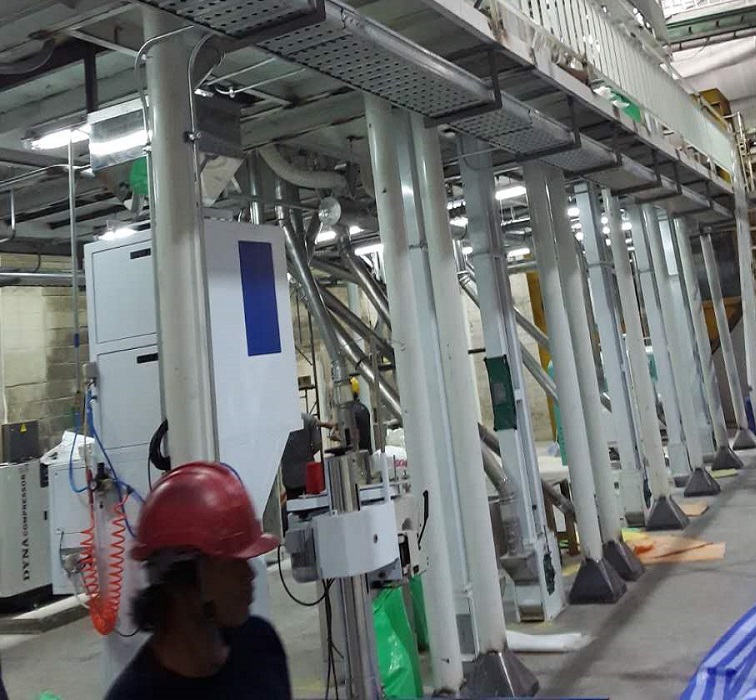

　　Our Overseas Projects
