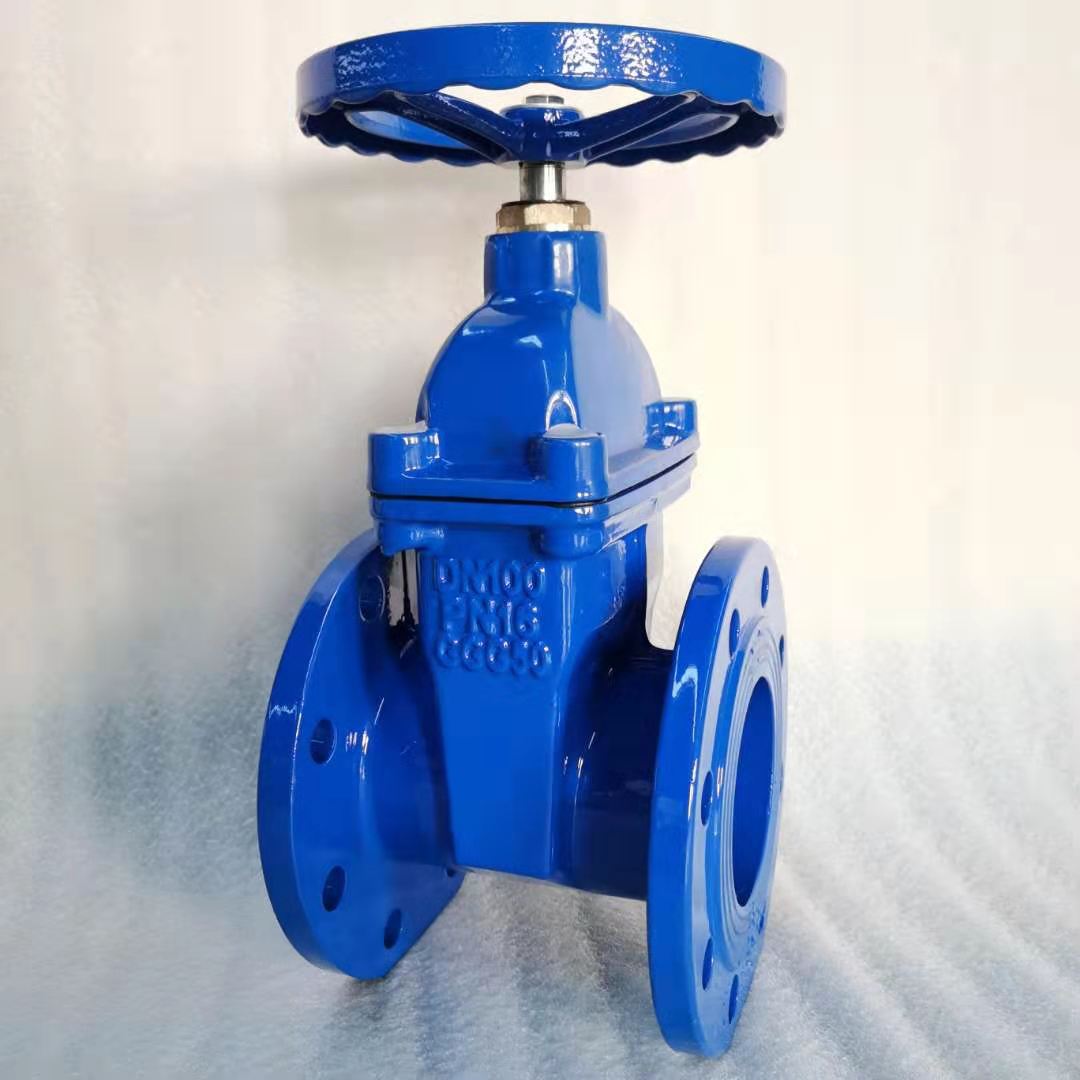

NON-Rising stem solid wedge gate valve

TESTS

HYDRAULIC TEST ACC TO DIN3352-F4—F5

SEAT:1.1XPN.BODY:1.5 XPN OPERATINGtorque test.

DESSIGN&MANUFACTURESTANDARD

BS 5150 PN16

\n \n

APPLICABLE STANDARDS

1.FLANGE DRILLEDACC. TO TO BS4504-2000

2.FACE TO FACE DIMENSIONACC.TO TO BS1414-1988

3.FLANGE RAISED FACE FLANGE

4.MAXIMUM WORKING PRESSURE 16BAR(1.6mpa)

5. MAXIMUM WORKING TEMPERATURE 100℃

\n \n

MATERIAL LIST

1.BODY : GREY CAST IRON/DUCTILE IRON

2.BONNET: GREY CAST IRON/DUCTILEILRON

3.STEM: BRASS OR STAINLESS STEEL

4.YOKE NUT: CAST BRASS

5.Seat sealing: CAST BRASS

6.Wedge Sealing: CAST BRASS

7.Handwheel: GREY CAST IRON

8.Gland Packing: Polytetrafluoroethylene

Dimensions Unit:mm

Size

L

D

D1

D2

b

Z-фd

f

H

in.2(50mm)

178

165

125

102

20

4-18

3

224

in.2½ (65mm)

190

185

145

122

20

4-18

3

265

in.3(80mm)

203

200

160

138

22

8-18

3

300

in.4(100mm)

229

220

180

158

24

8-18

3

354

in.5(125mm)

254

250

210

188

26

8-18

3

415

in.6(150mm)

267

285

240

212

26

8-22

3

466

in.8(200mm)

292

340

295

268

30

12-22

3

580

in.10(250mm)

330

405

355

320

32

12-26

3

700

in.12(300mm)

356

460

410

378

32

12-26

4

802

in.14(350mm)

381

520

470

438

36

16-26

4

890

in.16(400mm)

406

580

525

490

38

16-30

4

980

in.18(450mm)

432

640

585

550

40

20-30

4

1060

"}
