Resilient Seat Gate Valve with ISO Actuator Flange DIN3352 F4
BOTOU YAXING FLUID EQUIPMENT CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Resilient Seat Gate Valve with ISO Actuator Flange DIN3352 F4
BOTOU YAXING FLUID EQUIPMENT CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: DUCTILE IRON
- Size: DN40-DN1200
- Color: EPOXY POWDER COATED-DARK BLUE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Hebei, China
About this product
- Materials: DUCTILE IRON
- Size: DN40-DN1200
- Color: EPOXY POWDER COATED-DARK BLUE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Hebei, China
Product details
| Materials | DUCTILE IRON |
|---|---|
| Size | DN40-DN1200 |
| Color | EPOXY POWDER COATED-DARK BLUE |
Product details
| Materials | DUCTILE IRON |
|---|---|
| Size | DN40-DN1200 |
| Color | EPOXY POWDER COATED-DARK BLUE |
From the supplier

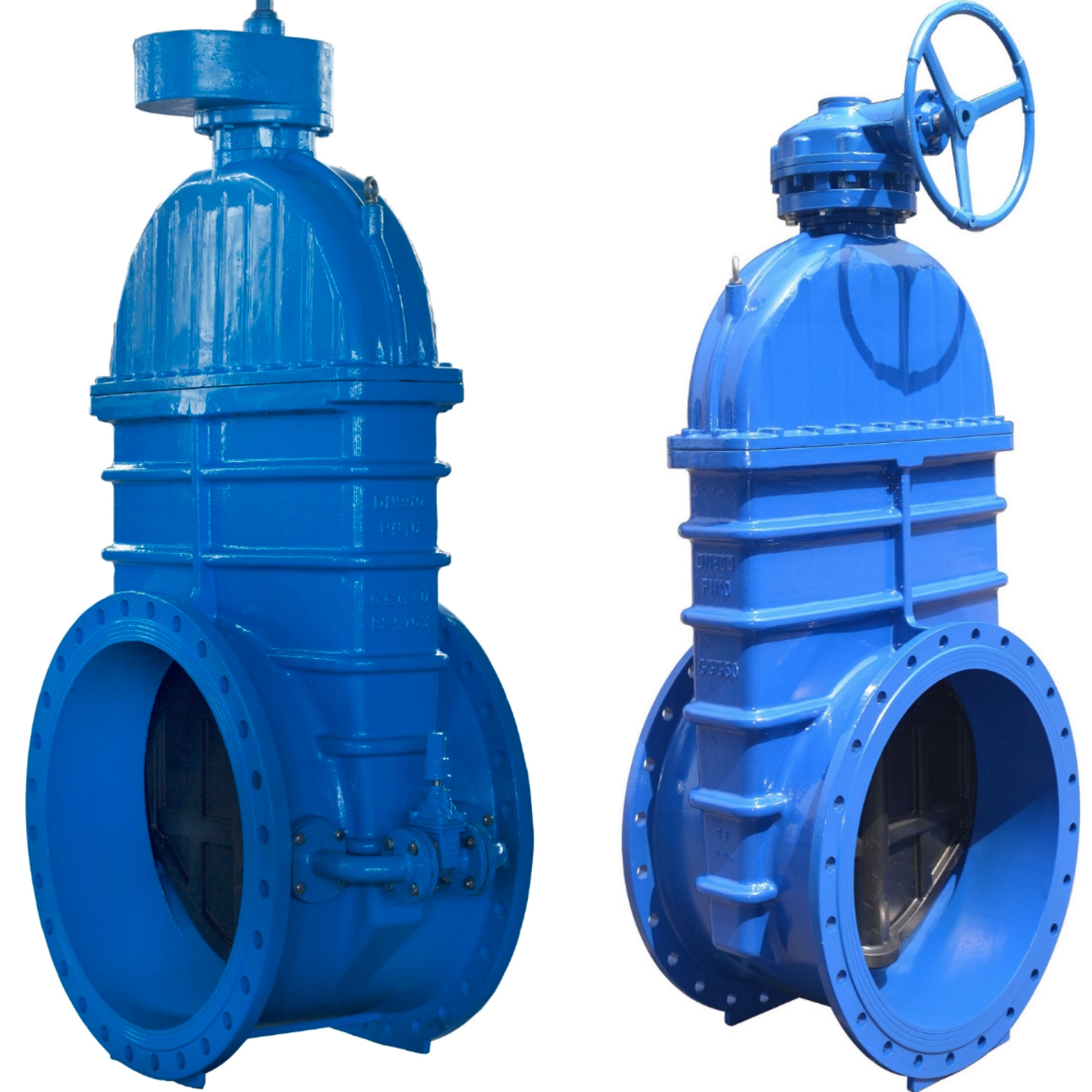

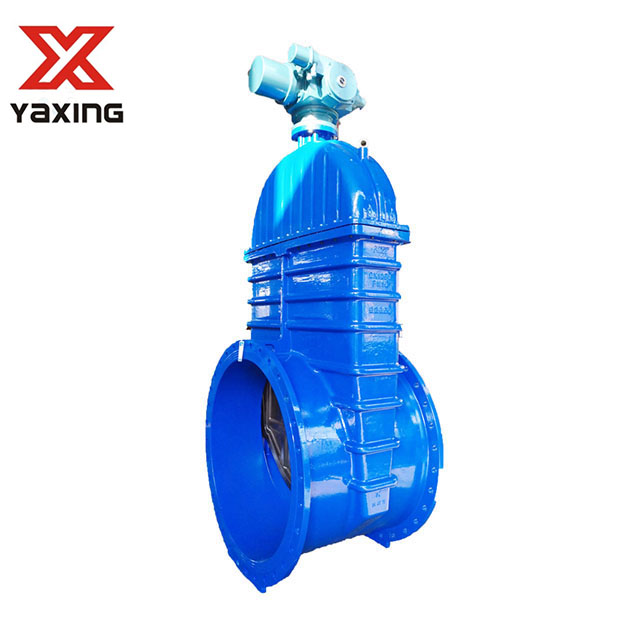

DIN3352-F4 Resilient Seat Gate Valve with ISO Actuator Flange
Resilient Seat Gate Valve Features
The ductile iron core is fully vulcanized with EPDM rubber, no iron parts are exposed to the medium and the excellent rubber vulcanization prevents creeping corrosion underneath the rubber.
Guides in the wedge and on the valve body ensure a uniform closure, safe operation ensured as the guides prevent overloading of the stem.
Stainless steel stem with rolled threads for high strength.
The valve can replace stem seals under pressure.
Full bore.
Body inside and outside fusion bonded epoxy coating with excellent corrosion resistant performance.
Resilient Seat Gate Valve Standard
Seat:1.1*PN(in bar), Body:1.5*PN(in bar)
Resilient Seat Gate Valve Technical Parameters
Resilient Seat Gate Valve Main Raw Material
Components may be substituted with equivalent or higher class materials.
Resilient Seat Gate Valve Dimension
From the supplier
DIN3352-F4 Resilient Seat Gate Valve with ISO Actuator Flange
Resilient Seat Gate Valve Features
The ductile iron core is fully vulcanized with EPDM rubber, no iron parts are exposed to the medium and the excellent rubber vulcanization prevents creeping corrosion underneath the rubber.
Guides in the wedge and on the valve body ensure a uniform closure, safe operation ensured as the guides prevent overloading of the stem.
Stainless steel stem with rolled threads for high strength.
The valve can replace stem seals under pressure.
Full bore.
Body inside and outside fusion bonded epoxy coating with excellent corrosion resistant performance.
Resilient Seat Gate Valve Standard
Seat:1.1*PN(in bar), Body:1.5*PN(in bar)
Resilient Seat Gate Valve Technical Parameters
Resilient Seat Gate Valve Main Raw Material
Components may be substituted with equivalent or higher class materials.
Resilient Seat Gate Valve Dimension
About the supplier
Main products: Check valve,Butterfly valve,Float ball valve,Gas regulator valve,Air valve,Hydraulic valve,Gate valve,Brass fittings,Pipe fittings,Filter ,Other Valves
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 2008
Hardware & Tools exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 2008
