BS5163/DIN F4/F5 Resilient Seated Gate Valve ,Cast Iron Valve for water pipes
BOTOU YAXING FLUID EQUIPMENT CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
BS5163/DIN F4/F5 Resilient Seated Gate Valve ,Cast Iron Valve for water pipes
BOTOU YAXING FLUID EQUIPMENT CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Ductile Iron / Cast Iron
- Size: DN40-DN1200
- Color: BLUE, RED
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Hong Kong China, Macao China and Taiwan China
- Made in: Hebei, China
About this product
- Materials: Ductile Iron / Cast Iron
- Size: DN40-DN1200
- Color: BLUE, RED
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Hong Kong China, Macao China and Taiwan China
- Made in: Hebei, China
Product details
| Materials | Ductile Iron / Cast Iron |
|---|---|
| Size | DN40-DN1200 |
| Color | BLUE, RED |
Product details
| Materials | Ductile Iron / Cast Iron |
|---|---|
| Size | DN40-DN1200 |
| Color | BLUE, RED |
From the supplier

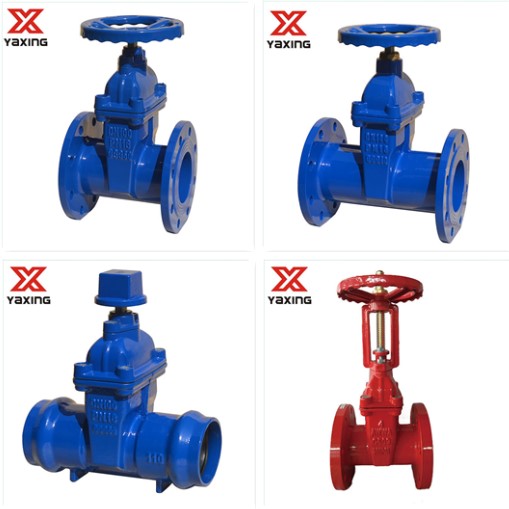

DIN3353 F4 F5/BS5163 gate valve Features
● The ductile iron core is fully vulcanized with EPDM rubber, no iron parts are exposed to the medium and the excellent rubber vulcanization prevents creeping corrosion underneath the rubber.
● Guides in the wedge and on the valve body ensure a uniform closure, safe operation ensured as the guides prevent overloading of the stem.
● Stainless steel stem with rolled threads for high strength.
● The valve can replace stem seals under pressure.
● Full bore.
● Body inside and outside fusion bonded epoxy coating with excellent corrosion resistant performance.
din f4 gate valve Standard
Designstandard DIN3352 F4, EN1171, BS5163 Flange drilling standard EN1092-2 PN10/PN16 Facetofacestandard EN558-1 Series 14 Hydraulic test standard EN1074-1 and 2 /EN12266 Seat:1.1*PN(in bar), Body:1.5*PN(in bar)Technical Parameters
Nominaldiameter(mm) 40～1200 40～1200 Nominalpressure(Mpa) 1.0 1.6 Testingpressure Shell(Mpa) 1.5 2.4 Seal(Mpa) 1.1 1.76 Suitabletemperature -40°C～150°C Suitablemedium Drinkingwater、sewage、seawater、irrigation,or other neutral liquid.din f4 gate valve Main Raw Material
1 Body Ductile Iron 9 Gland bolt Steel gr.8.8 2 Wedge Ductile Iron+EPDM 10 Handwheel Ductile Iron 3 Wedge Nut Brass 11 Gland Ductile Iron 4 Stem Stainless steel 12 O-ring EPDM rubber 5 Bonnet gasket EPDM rubber 13 Nut Stainless steel 6 Bonnet Ductile iron 14 Washer Steel 7 Thrust collar Brass 15 Bonnet bolt Steel gr.8.8 8 O-ring EPDM rubber
Components may be substituted with equivalent or higher class materials.
din f4 gate valve Dimension
Size L D C B n-d b f H DN50 150 165 125 99 4-19 19 3 280 DN65 170 185 145 119 4-19 19 3 305 DN80 180 200 160 133 4-19 8-19 19 3 350 DN100 190 220 180 154 8-19 19 3 390 DN125 200 250 210 184 8-19 19 3 470 DN150 210 285 240 210 8-23 19 3 525 DN200 230 340 295 265 8-23 12-23 20 3 630 DN250 250 405 350 355 319 12-23 12-28 22 3 780 DN300 270 460 400 410 370 12-23 12-28 24.5 4 870 DN350 290 520 460 470 429 16-23 16-28 26.5 4 1100 DN400 310 565 580 515 525 480 16-28 16-32 28 4 1200 DN450 330 640 565 585 548 20-28 16-32 30 4 1300 DN500 350 670 715 620 650 582 20-28 20-32 31.5 5 1450 DN600 390 780 840 725 770 682 20-31 20-37 36 5 1650From the supplier
DIN3353 F4 F5/BS5163 gate valve Features
● The ductile iron core is fully vulcanized with EPDM rubber, no iron parts are exposed to the medium and the excellent rubber vulcanization prevents creeping corrosion underneath the rubber.
● Guides in the wedge and on the valve body ensure a uniform closure, safe operation ensured as the guides prevent overloading of the stem.
● Stainless steel stem with rolled threads for high strength.
● The valve can replace stem seals under pressure.
● Full bore.
● Body inside and outside fusion bonded epoxy coating with excellent corrosion resistant performance.
din f4 gate valve Standard
Designstandard DIN3352 F4, EN1171, BS5163 Flange drilling standard EN1092-2 PN10/PN16 Facetofacestandard EN558-1 Series 14 Hydraulic test standard EN1074-1 and 2 /EN12266 Seat:1.1*PN(in bar), Body:1.5*PN(in bar)Technical Parameters
Nominaldiameter(mm) 40～1200 40～1200 Nominalpressure(Mpa) 1.0 1.6 Testingpressure Shell(Mpa) 1.5 2.4 Seal(Mpa) 1.1 1.76 Suitabletemperature -40°C～150°C Suitablemedium Drinkingwater、sewage、seawater、irrigation,or other neutral liquid.din f4 gate valve Main Raw Material
1 Body Ductile Iron 9 Gland bolt Steel gr.8.8 2 Wedge Ductile Iron+EPDM 10 Handwheel Ductile Iron 3 Wedge Nut Brass 11 Gland Ductile Iron 4 Stem Stainless steel 12 O-ring EPDM rubber 5 Bonnet gasket EPDM rubber 13 Nut Stainless steel 6 Bonnet Ductile iron 14 Washer Steel 7 Thrust collar Brass 15 Bonnet bolt Steel gr.8.8 8 O-ring EPDM rubber
Components may be substituted with equivalent or higher class materials.
din f4 gate valve Dimension
Size L D C B n-d b f H DN50 150 165 125 99 4-19 19 3 280 DN65 170 185 145 119 4-19 19 3 305 DN80 180 200 160 133 4-19 8-19 19 3 350 DN100 190 220 180 154 8-19 19 3 390 DN125 200 250 210 184 8-19 19 3 470 DN150 210 285 240 210 8-23 19 3 525 DN200 230 340 295 265 8-23 12-23 20 3 630 DN250 250 405 350 355 319 12-23 12-28 22 3 780 DN300 270 460 400 410 370 12-23 12-28 24.5 4 870 DN350 290 520 460 470 429 16-23 16-28 26.5 4 1100 DN400 310 565 580 515 525 480 16-28 16-32 28 4 1200 DN450 330 640 565 585 548 20-28 16-32 30 4 1300 DN500 350 670 715 620 650 582 20-28 20-32 31.5 5 1450 DN600 390 780 840 725 770 682 20-31 20-37 36 5 1650About the supplier

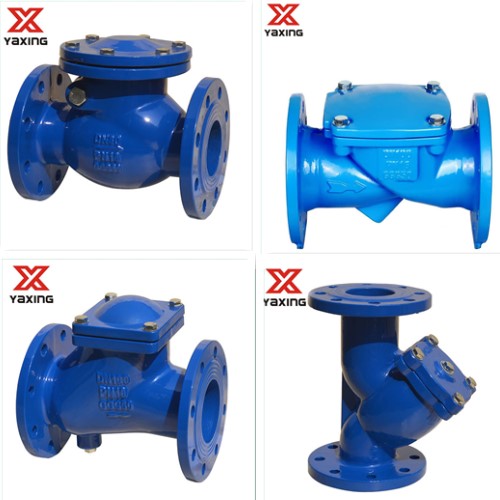

Main products: Check valve,Butterfly valve,Float ball valve,Gas regulator valve,Air valve,Hydraulic valve,Gate valve,Brass fittings,Pipe fittings,Filter ,Other Valves
