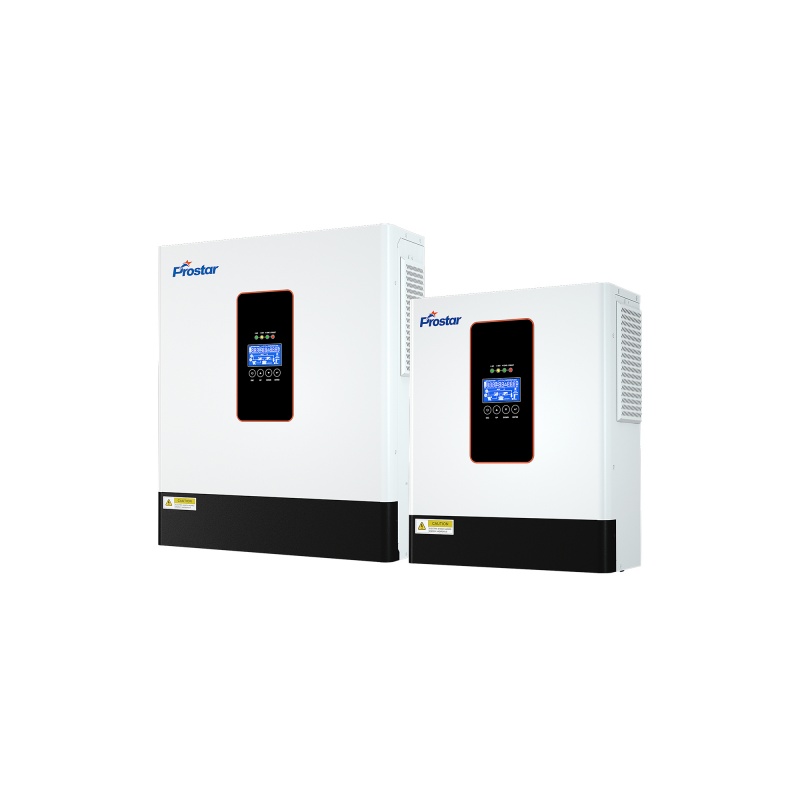

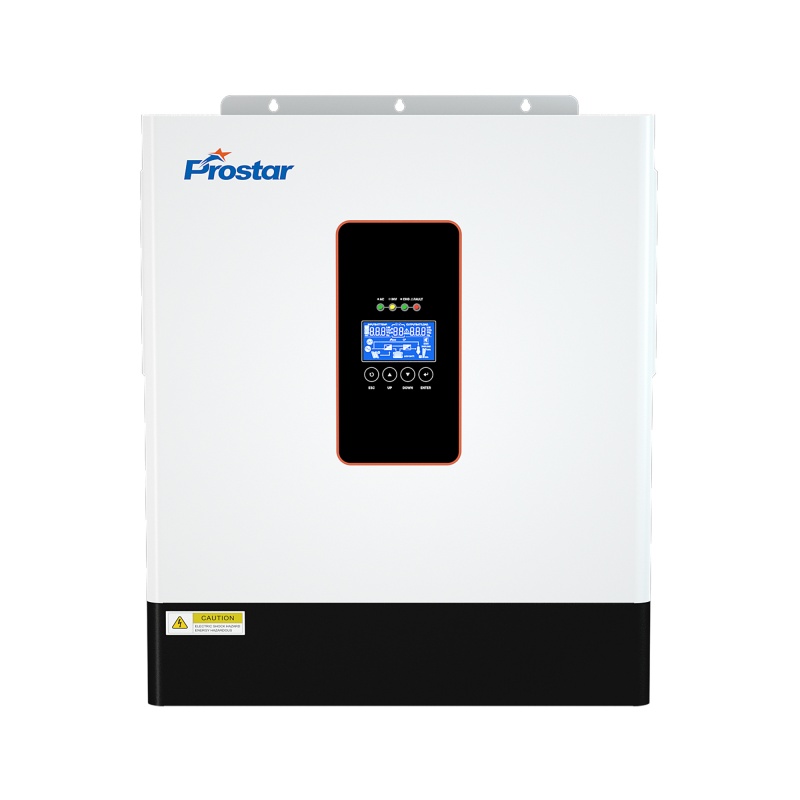

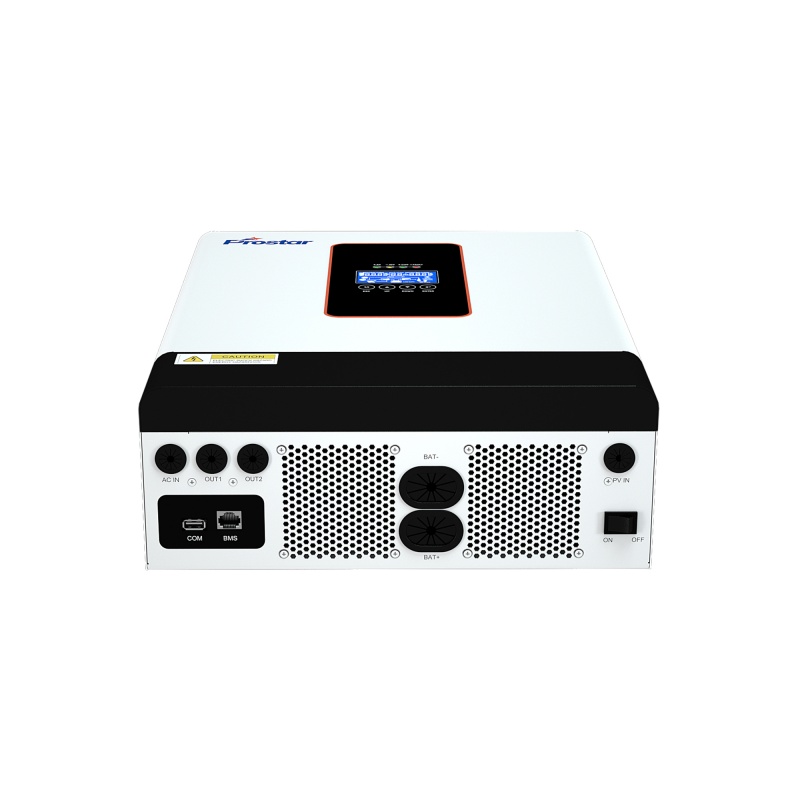

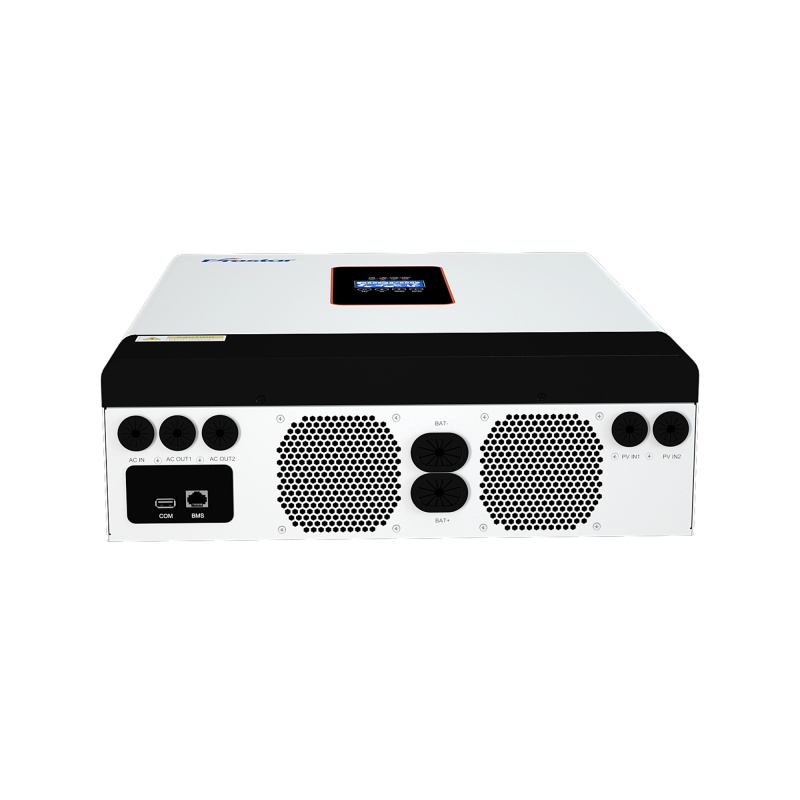

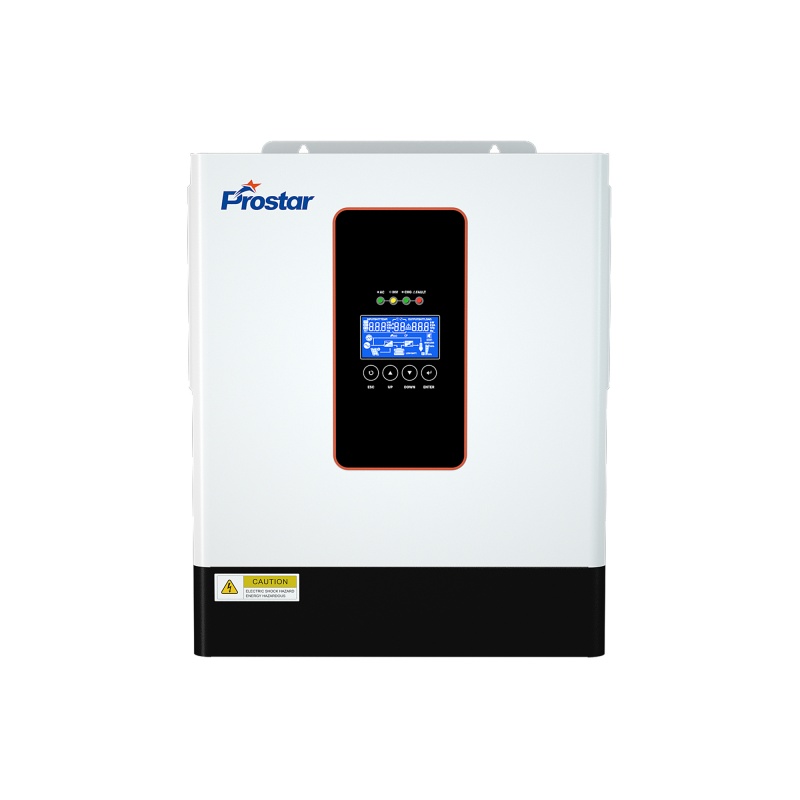

Prostar PIM Series Hybrid Solar Inverter 6.5/12kW – Parallel Ready with 9 Units
Guangdong Prostar New Energy Technology Co., Ltd.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Prostar PIM Series Hybrid Solar Inverter 6.5/12kW – Parallel Ready with 9 Units
Guangdong Prostar New Energy Technology Co., Ltd.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 495x425x135mm
- Color: Black
- Application: Other
- Natureof wave string: SineWaveInverter
- Brand: Other
- Output power: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia
- Made in: Guangdong, China
About this product
- Size: 495x425x135mm
- Color: Black
- Application: Other
- Natureof wave string: SineWaveInverter
- Brand: Other
- Output power: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia
- Made in: Guangdong, China
Product details
| Size | 495x425x135mm |
|---|---|
| Color | Black |
| Application | Other |
| Natureof wave string | SineWaveInverter |
| Brand | Other |
| Output power | Other |
| Power source | ElectricPowerSolarPower |
| Natureof source flow | ActiveInverter |
| Phase | Single |
| Certification | CEISO9001 |
| Circuit topologies | Other |
Product details
| Size | 495x425x135mm |
|---|---|
| Color | Black |
| Application | Other |
| Natureof wave string | SineWaveInverter |
| Brand | Other |
| Output power | Other |
| Power source | ElectricPowerSolarPower |
| Natureof source flow | ActiveInverter |
| Phase | Single |
| Certification | CEISO9001 |
| Circuit topologies | Other |
From the supplier
⚡ 6.5kW / 12kW 🔗 Up to 9 Units Parallel 🔄 1-Phase / 3-Phase
-
🔗 9 Units · 108kW — Single-phase scaling to 108kW or 3-phase 380V system
-
⚡ 10ms Transfer — Seamless grid/inverter switching, load unaware
-
🛡️ Fault Isolation — Failed unit disconnects automatically, others continue
-
🔋 Battery-less Run — Start and operate without batteries — lower initial cost
-
🎯 Dual Output — Priority power for critical loads, smart energy management
-
🌐 Cloud + OTA — One WiFi module monitors all 9 units, remote updates
⚙️ Parallel Architecture: 9-Unit Scalability
Single-Phase Parallel — up to 108kW total · 3-Phase System — 3/6/9 units, 380V line voltage
📊 Technical SpecificationsModel
PIM6.5K-48TL
PIM12K-48TL
Rated Power
6.5kVA / 6.5kW
12kVA / 12kW
Parallel Units
Up to 9
Up to 9
System Config
1-phase parallel / 3-phase group
1-phase parallel / 3-phase group
Redundancy
N+X (fault isolation)
N+X (fault isolation)
Battery Voltage
48V
48V
MPPT Range
60-450V
60-450V
Max Charge Current (PV)
120A
160A
Max Total Charge Current
120A
160A
Output Voltage
208/220/230/240V ±5%
208/220/230/240V ±5%
Output Channels
2 (priority/secondary)
2 (priority/secondary)
Surge Power
12000VA
24000VA
Efficiency (Battery Mode)
94%
94%
Dimensions (W×D×H)
410×336×128mm
495×425×135mm
Net Weight
10.2kg
17kg
🏭 Applications🏠 Residential Homes — Energy independence with scalable capacity
🏪 Commercial Sites — Shops, restaurants, offices — critical load protection
🏭 Light Industry — 3-phase 380V systems for motors and machinery
🏥 Medical Facilities — Uninterruptible power for diagnostic equipment
📡 Telecom — Base stations, communication nodes — high reliability
🌾 Agriculture — Farms, greenhouses, irrigation systems — off-grid power
❓ How many PIM inverters can be connected in parallel?
Up to 9 units. Build a single-phase system up to 108kW or a 3-phase 380V system with 3/6/9 units.
❓ If one unit fails in a parallel system, do others keep working?
Yes. Fault isolation technology automatically disconnects the failed unit, remaining units continue operating and redistribute the load — no complete system shutdown.
❓ Can the system run without batteries?
Yes. PIM supports battery-less operation — direct solar or grid-tied, reducing initial investment.
❓ How to build a 3-phase system from single-phase inverters?
Configure 3 units (or multiples of 3) as a 3-phase group. Each unit handles one phase, synchronized via internal bus, star connection with common neutral.
❓ Does each inverter need its own WiFi module?
No. One WiFi module installed on the master unit monitors all 9 devices and supports OTA firmware updates.
📊 System Sizing — Engineers will calculate optimal parallel configuration
📥 Download PIM Catalog — Full specs, wiring diagrams, parallel guide
⚙️ Tech Support — Expert engineer consultation
