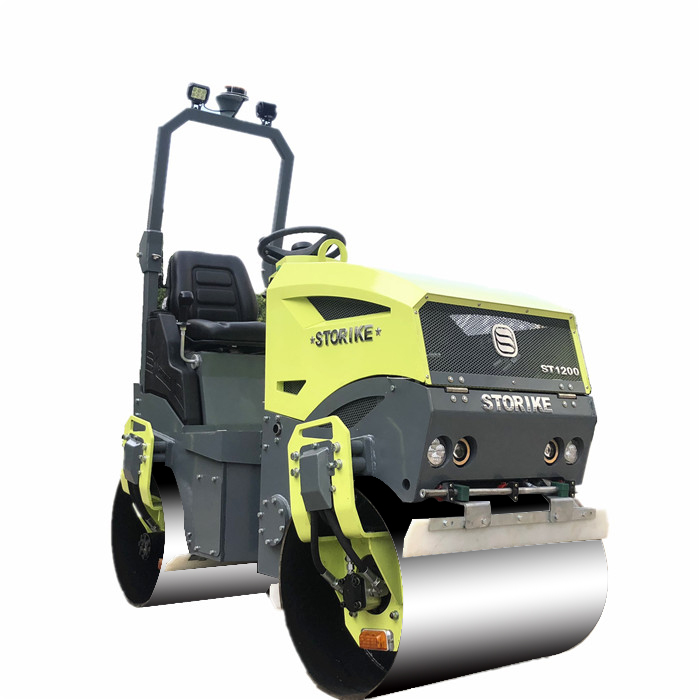

Road roller

10/10 fairsManufacturerModel ST1500
New for the 140th Fair
Road roller
$8,50000$11,30000/ unit FOB
The supplier did not say what one unit is (piece, set, box). We confirm this when we get the quote.
MOQ 1 unit
Estimated landed cost
$12,748 / unit
range $10,948$14,549 · total ≈ $1,274,842
FOB goods (100)
$990,000
Ocean freight + handling (1.0 CBM)
$820
US duty (3.5%)
$34,650
Section 301 tariff (25.0%)
$247,500
Customs fees (MPF/HMF)
$1,872

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Service
From $29 per supplier (Verify)
You get
Phone and video verification, a quote sheet and a written report
Turnaround
3 business days
Contact details
Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

About this product

  • Materials: Metal
  • Size: 2150*1050*2465
  • Color: yellow, green
  • Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Others
  • Made in: Shandong, China

Product details

MaterialsMetal
Size2150*1050*2465
Coloryellow, green

From the supplier

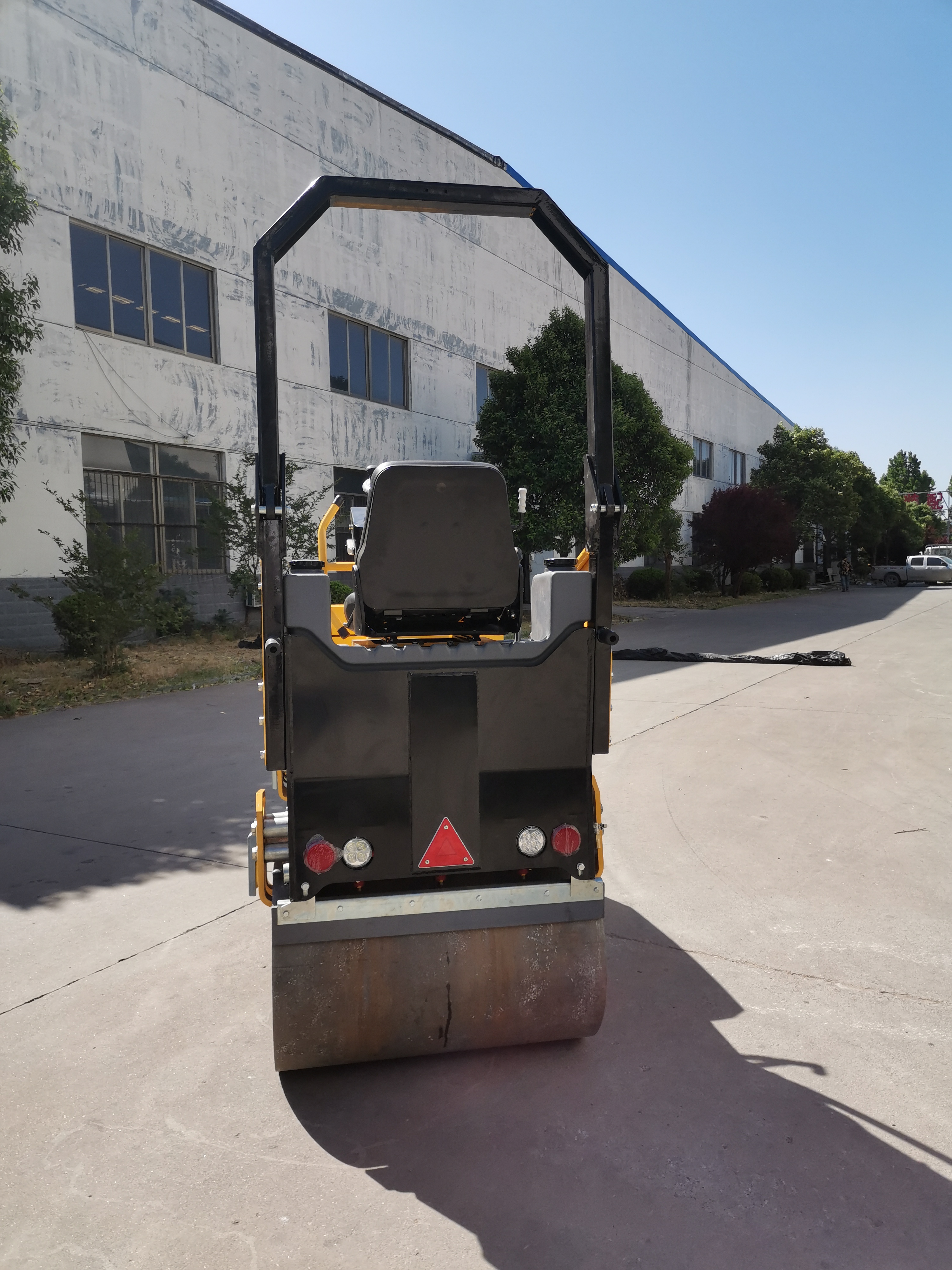

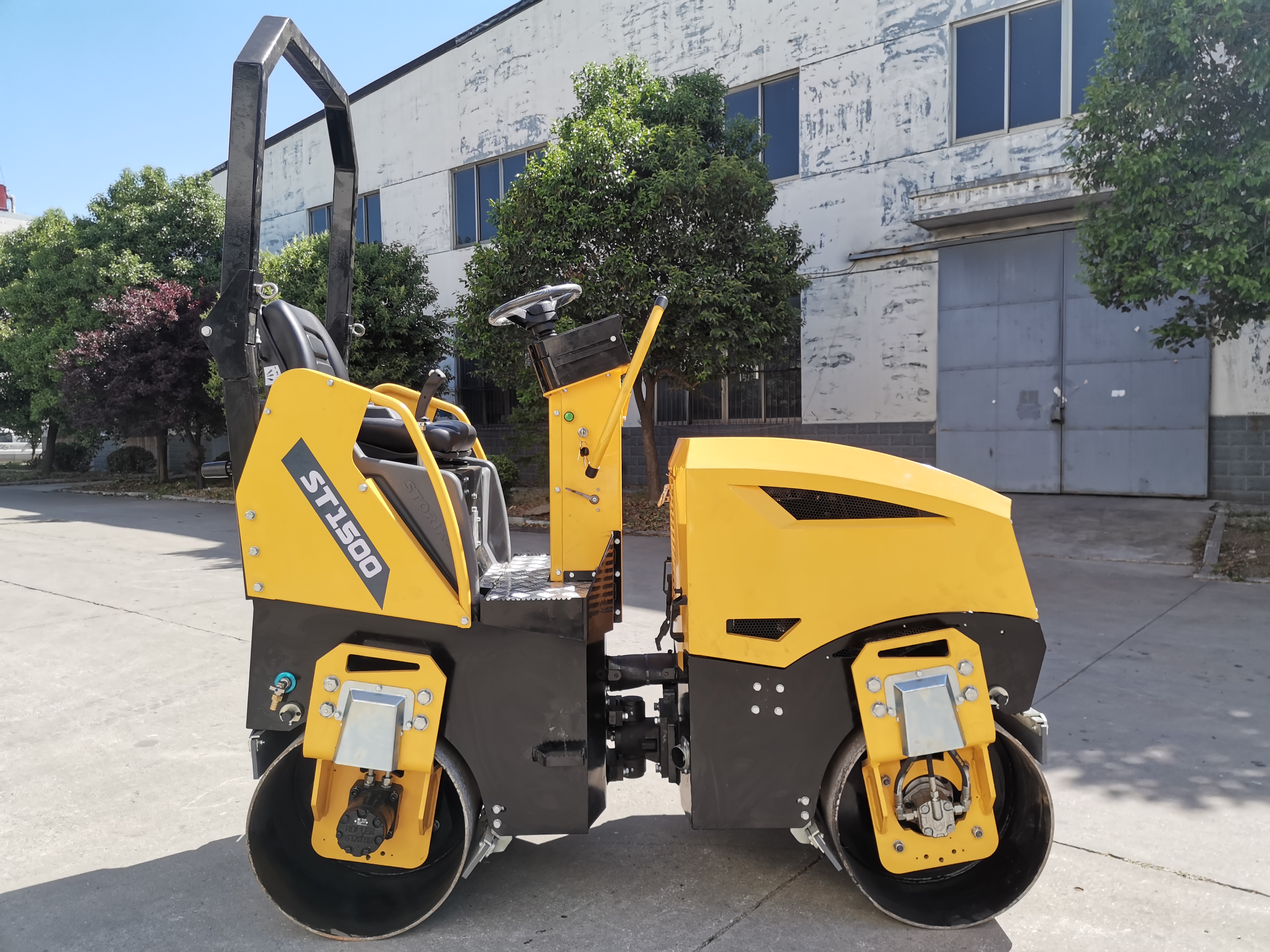

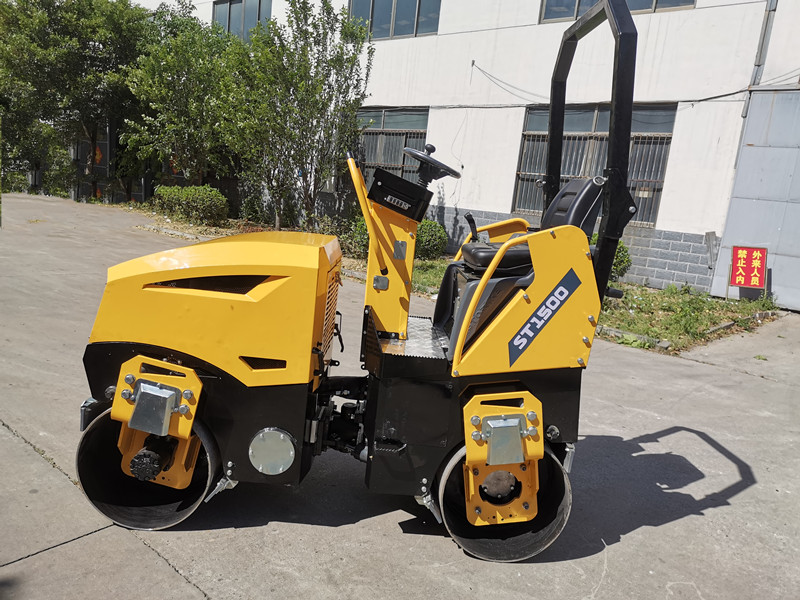

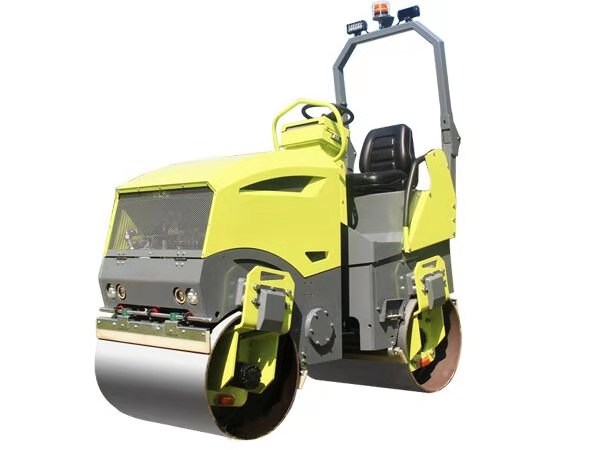

ST1500

Articulated double drum vibratory roller



FEATURES

  • 1. Equipped with famous brand engine, could guarantee quality  stability and excellent performance.
  • 2. Hawkeye-shaped body design, wide field of vision, and beautiful appearance
  • 3. Used international famous brand hydraulic pump and motor, which can be steplessly shifted and walk forward and backward.
  • 4. LED display instrument panel.
  • 5. Assembled with working light and warning light, could work at night.
  • 6. Ergonomic chair.
  • 7. Passed CE, SGS and ISO certification and won Red Star Award design.
  • 8. The steel wheels are equipped with outline marker lamps, could ensure the safety of the operator.

Overall Size

Total length (L)

mm

2150

Working width (W)

mm

1050

Total height (H)

mm

2465

Height loading, min. (H1)

mm

1790

Drum width (W1)

mm

900

Wheel base

mm

1515



Technical Data                     Unit                              ST1500




Model

ST1500

Weights

Operating weight

kg

1500

Static linear load

N/cm

82

Dimensions

Working width

mm

1050

Total length

mm

2150

Total height with ROPS

mm

2465

Turning radius (inner/outer)

mm

2800/3850

Drum width

mm

900

Drum diameter

mm

560

Wheel base

mm

1515

Drive

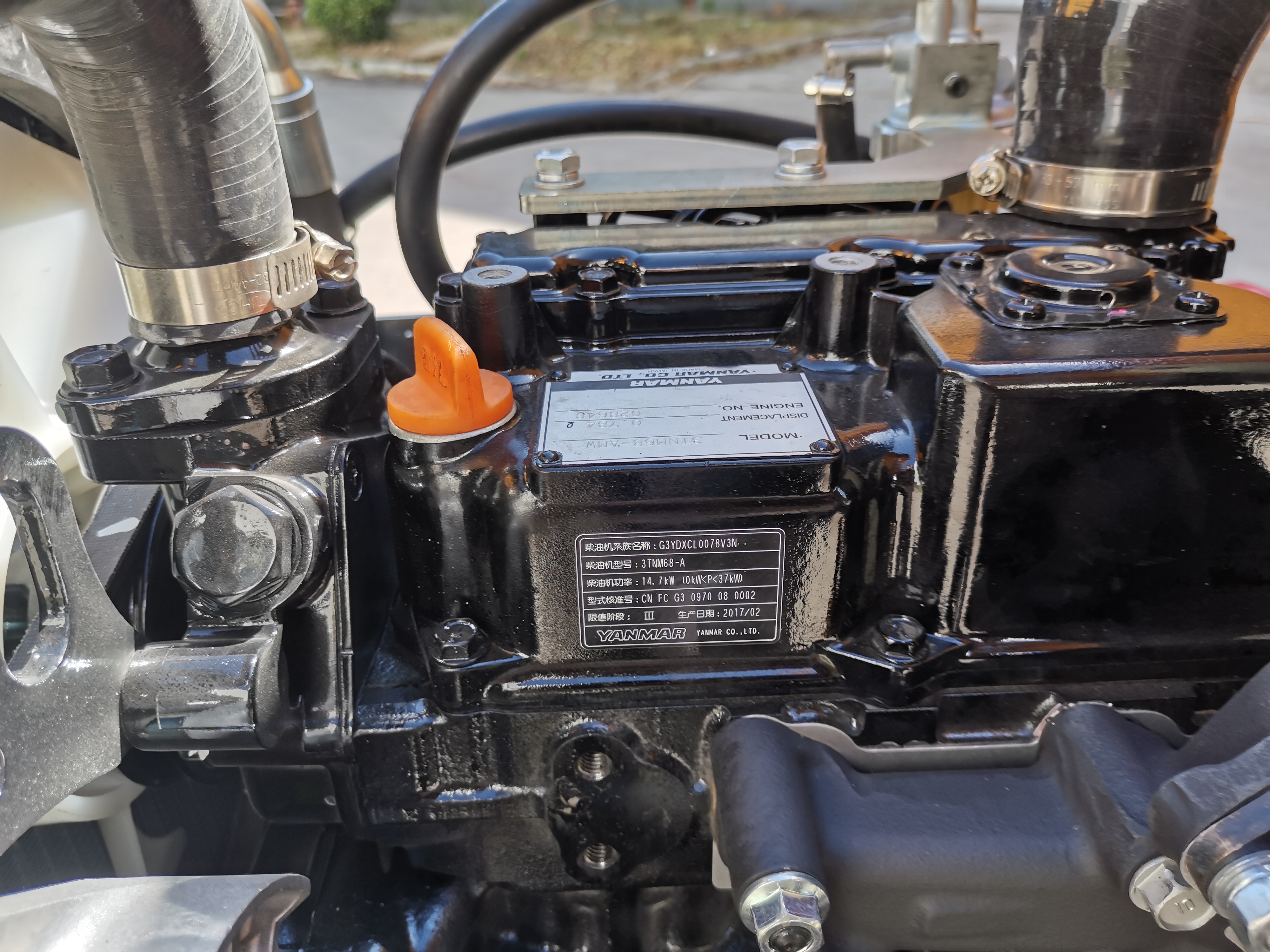

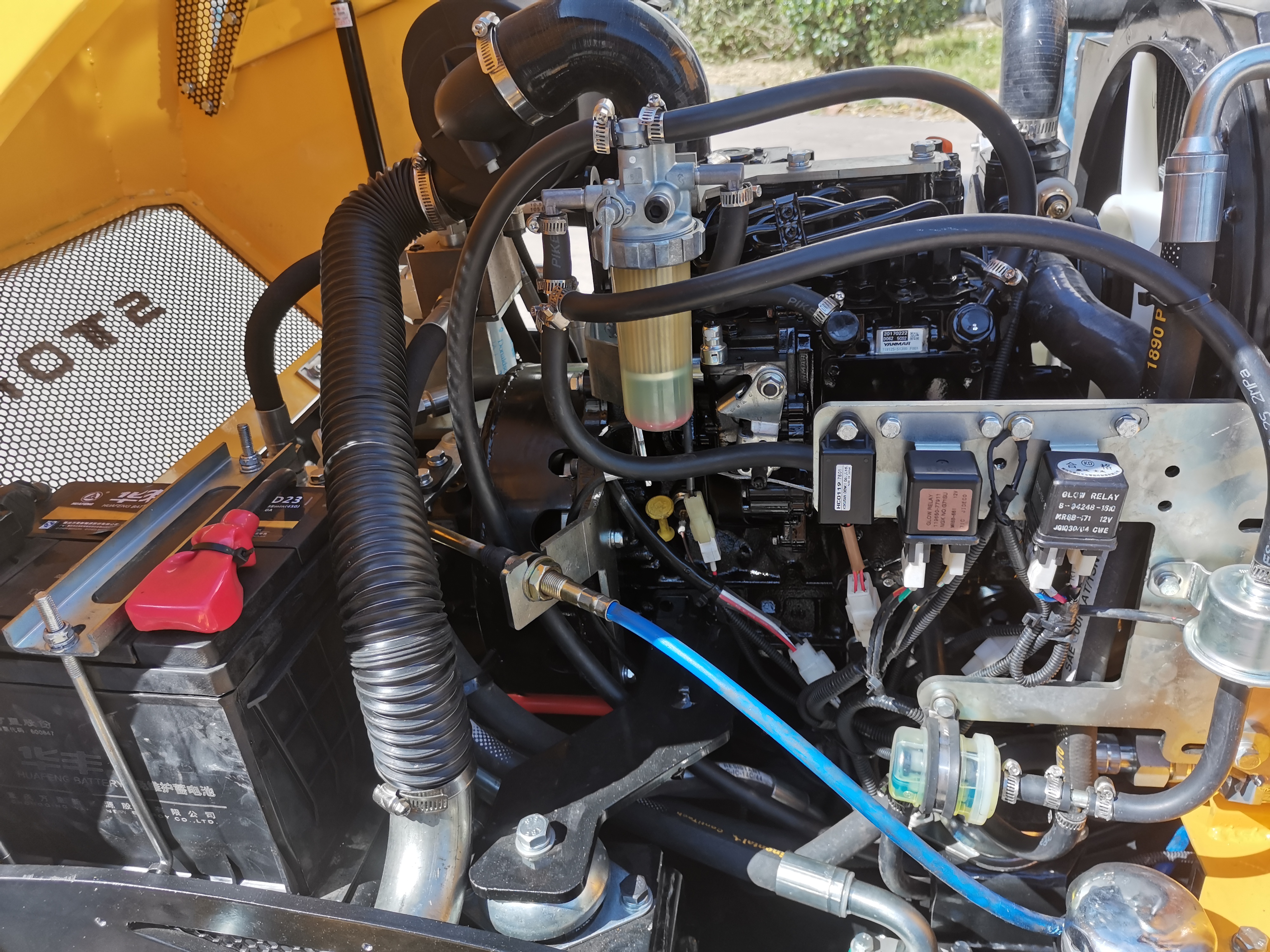

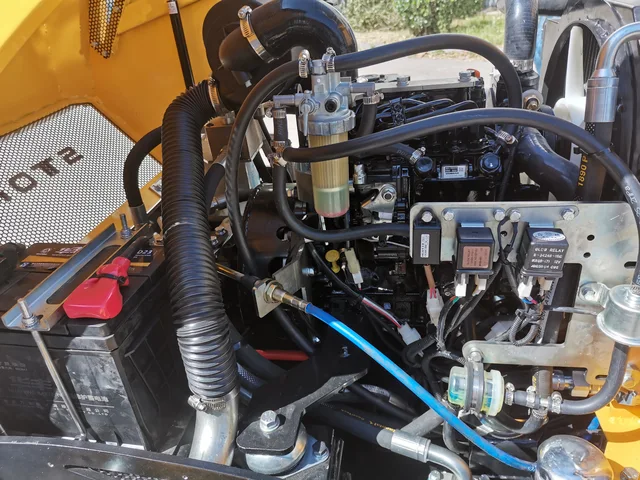

Engine manufacturer



YANMAR

Type



3TNM68-AMW

Engine type



Diesel, vertical, water-cooled, four-stroke

Number of cylinders



3

Power ISO 14396

kW

14.7

Rating speed

rpm

3600

Electric equipment

V

12

Drive mode



Variable displacement pump, stepless speed change, two wheels drive motor parallel

Driving characteristics

Speed

km/h

0-6

Climbing ability, vibration on/off

%

30/35

Brakes

Working brake



Variable displacement pump

Steering

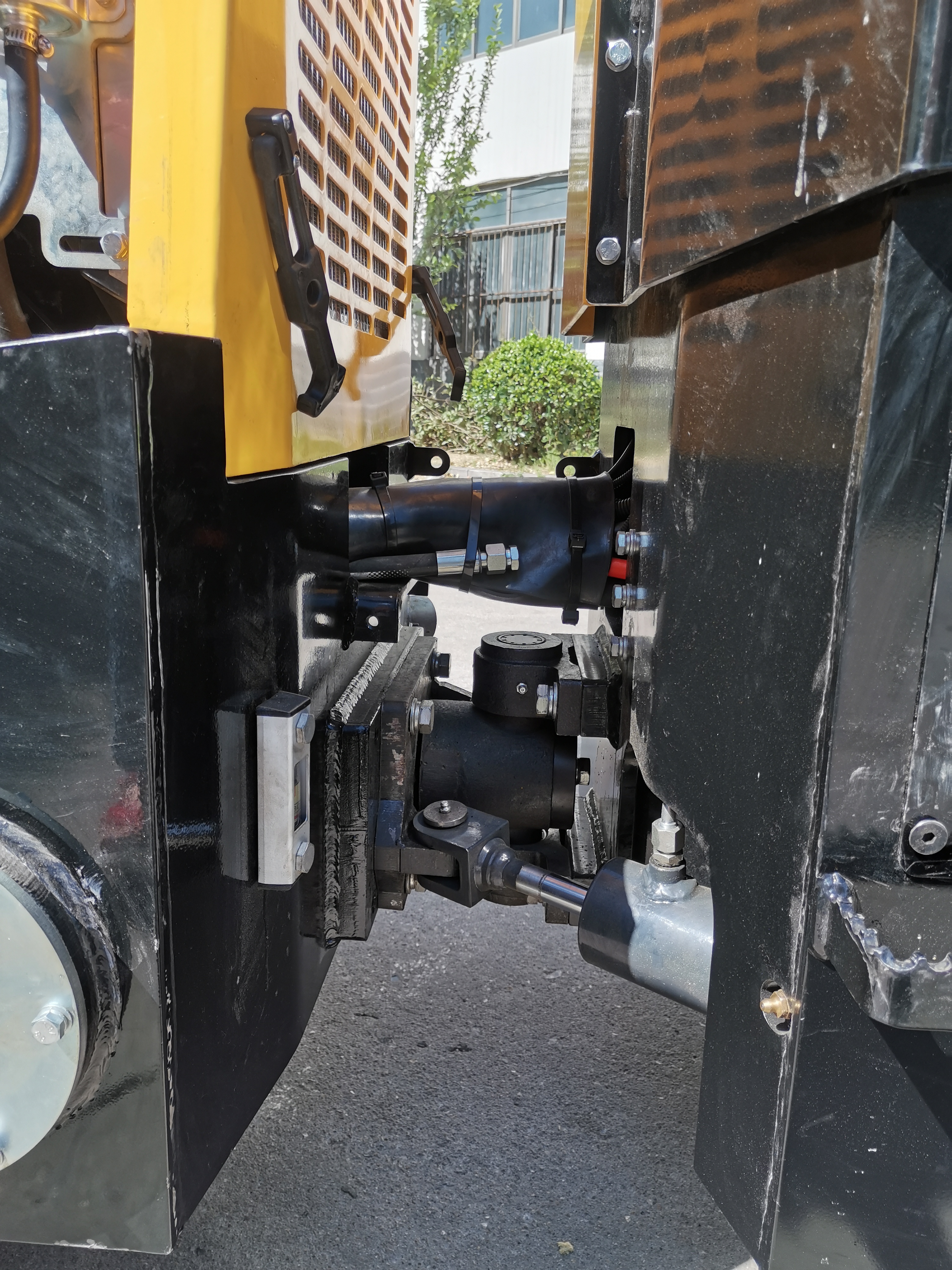

Steering method



Hydraulic cylinder, articulated steering

Steering system



Swing articulated

Exciter system

Vibrating drum



Front

Driving form



Hydraulic motors

Frequency

Hz

65

Amplitude

mm

0.5

Centrifugal force

kN

25

Sprinkler system

Type of sprinkling



Pressure

Capacities

Hydraulic oil

l

45

Fuel

l

36

Water

l

160
