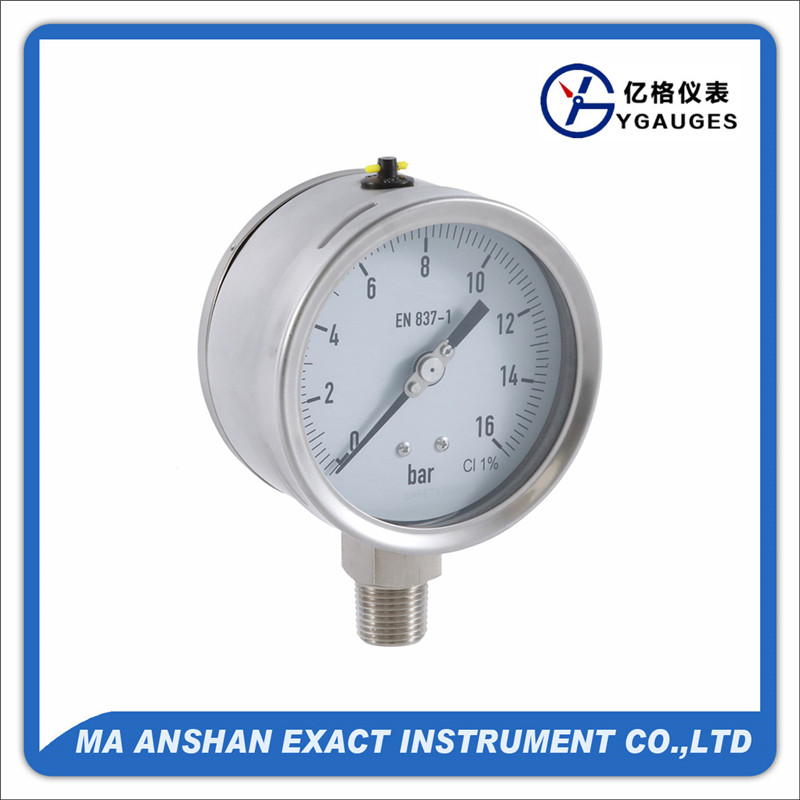

Safety pattern pressure gauge-solid front pressure gauge-blow back manometer
ANHUI EXACT INSTRUMENT CO.,LTD
See what’s includedHide breakdown
- FOB goods (100)
- $2,275
- Ocean freight + handling (0.57 CBM, volume guessed from price)
- $820
- US duty (3.5%)
- $80
- Section 301 tariff (25.0%)
- $569
- Customs fees (MPF/HMF)
- $36
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $2,275
- Ocean freight + handling (0.57 CBM, volume guessed from price)
- $820
- US duty (3.5%)
- $80
- Section 301 tariff (25.0%)
- $569
- Customs fees (MPF/HMF)
- $36
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Safety pattern pressure gauge-solid front pressure gauge-blow back manometer
ANHUI EXACT INSTRUMENT CO.,LTDSee what’s includedHide breakdown
- FOB goods (100)
- $2,275
- Ocean freight + handling (0.57 CBM, volume guessed from price)
- $820
- US duty (3.5%)
- $80
- Section 301 tariff (25.0%)
- $569
- Customs fees (MPF/HMF)
- $36
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $2,275
- Ocean freight + handling (0.57 CBM, volume guessed from price)
- $820
- US duty (3.5%)
- $80
- Section 301 tariff (25.0%)
- $569
- Customs fees (MPF/HMF)
- $36
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: SS
- Size: 63mm/100mm/150mm
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: SS
- Size: 63mm/100mm/150mm
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | SS |
|---|---|
| Size | 63mm/100mm/150mm |
Product details
| Materials | SS |
|---|---|
| Size | 63mm/100mm/150mm |
From the supplier
safety pattern pressure gauge-solid front pressure gauge-blow back manometer
Applications
Increased safety requirements
With liquid-filled case for applications with high dynamic pressure loads or vibrations
For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive ambience Solid front
Normal Size:
2.5"(63mm),4"(100mm),6"(150mm)
Pressure Range:
-1Bar(-30"Hg)-0-1000Bar(15000Psi)
Accuracy:
±1%,±1.6%
Operating temperature:
-40°C to +60°C
Case:
Stainless steel
Bezel:
Stainless steel
Bourdon tube:
Stainless steel
≥100Bar: Helical Type
Connection:
Stainless steel
Movement:
Stainless steel
Dial:
Aluminum
Pointer:
Aluminum
Window:
Polycarbonate or Glass
Thread:
1/8",1/4", 3/8",1/2";
PT(BSPT,ZG),BSP(G,PF),NPT etc.
Liquid:
Glycerin or Silicone
From the supplier
safety pattern pressure gauge-solid front pressure gauge-blow back manometer
Applications
Increased safety requirements
With liquid-filled case for applications with high dynamic pressure loads or vibrations
For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive ambience Solid front
Normal Size:
2.5"(63mm),4"(100mm),6"(150mm)
Pressure Range:
-1Bar(-30"Hg)-0-1000Bar(15000Psi)
Accuracy:
±1%,±1.6%
Operating temperature:
-40°C to +60°C
Case:
Stainless steel
Bezel:
Stainless steel
Bourdon tube:
Stainless steel
≥100Bar: Helical Type
Connection:
Stainless steel
Movement:
Stainless steel
Dial:
Aluminum
Pointer:
Aluminum
Window:
Polycarbonate or Glass
Thread:
1/8",1/4", 3/8",1/2";
PT(BSPT,ZG),BSP(G,PF),NPT etc.
Liquid:
Glycerin or Silicone
