SCWN,Inert Gas Protection Mechanical Jet Mill,Chemical & pharmaceutical machinery,Metallurgical mac
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
SCWN,Inert Gas Protection Mechanical Jet Mill,Chemical & pharmaceutical machinery,Metallurgical mac
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: ·
- Color: ·
- Crushing degree: Other
- Drive: Other
- Customized: Non-CustomizedCustomized
- Finished surface: Other
- Exports to: Mainland China, Africa, South Asia, Central Asia, EU, Other European Countries
About this product
- Size: ·
- Color: ·
- Crushing degree: Other
- Drive: Other
- Customized: Non-CustomizedCustomized
- Finished surface: Other
- Exports to: Mainland China, Africa, South Asia, Central Asia, EU, Other European Countries
Product details
| Size | · |
|---|---|
| Color | · |
| Crushing degree | Other |
| Drive | Other |
| Customized | Non-CustomizedCustomized |
| Finished surface | Other |
| Compressive strength | Other |
| Motor type | Other |
| Object | Other |
| Crushing style | Other |
Product details
| Size | · |
|---|---|
| Color | · |
| Crushing degree | Other |
| Drive | Other |
| Customized | Non-CustomizedCustomized |
| Finished surface | Other |
| Compressive strength | Other |
| Motor type | Other |
| Object | Other |
| Crushing style | Other |
From the supplier
Working Principle:
After being refrigerated, filtered, and dried, compressed air is converted into supersonic airflow through nozzles and injected into the crushing chamber, fluidizing the materials. The accelerated materials converge at the intersection of jet streams from multiple nozzles, where intense collisions, friction, and shearing occur to achieve ultra-fine particle pulverization. The crushed materials are conveyed by the ascending airflow to the impeller classification zone. Under the combined action of the centrifugal force from the classifying wheel and the suction force of the induced draft fan, separation of coarse and fine powders is realized. Coarse powders fall back into the crushing chamber by their own gravity for further grinding, while qualified fine powders follow the airflow into the cyclone collector. Fine dust is captured by the bag filter, and purified gas is discharged through the induced draft fan.
Feature:
1. Low energy consumption: Saves up to 30% energy compared to traditional mechanical crushers.
2. Built-in self-shunting micro-powder classifier: Ensures concentrated particle size distribution with no oversized particles in the final product.
3. Compact structure: Small footprint, saving installation space.
4. No material residue or dead corners in the crushing chamber: Easy to disassemble, clean, and sterilize; convenient for changing material types, meeting GMP requirements.
5. . Low-temperature, medium-free crushing: Especially suitable for materials with low ignition points, heat sensitivity, sugar content, or volatility.
6. Inert gas-compatible for flammable/explosive materials: Enables fully enclosed crushing using inert gas as the medium, with minimal inert gas loss due to recycling.

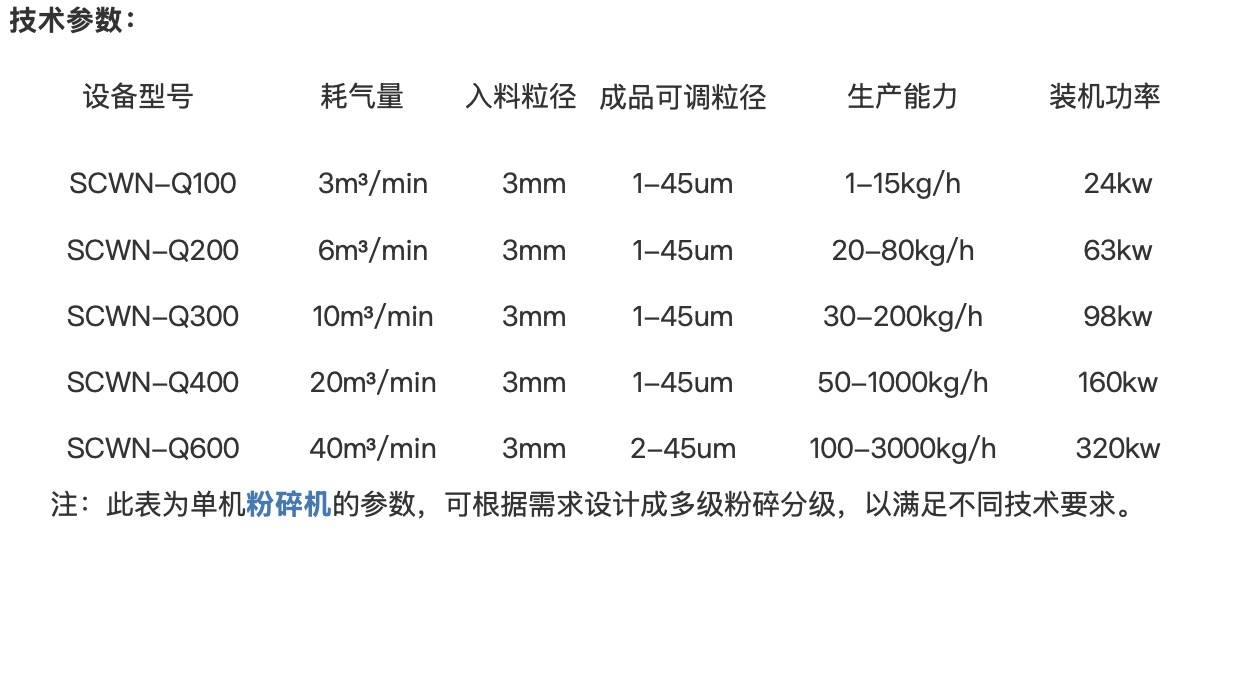

7. Wide grinding range: Finished particle size adjustable from 0.5 to 45μm; various models available with output ranging from 5 to 3000 kg/h.
8. Negative pressure operation: Dust-free production, ensuring a clean working environment.
9. High automation level: Stable performance and easy operation.
From the supplier
Working Principle:
After being refrigerated, filtered, and dried, compressed air is converted into supersonic airflow through nozzles and injected into the crushing chamber, fluidizing the materials. The accelerated materials converge at the intersection of jet streams from multiple nozzles, where intense collisions, friction, and shearing occur to achieve ultra-fine particle pulverization. The crushed materials are conveyed by the ascending airflow to the impeller classification zone. Under the combined action of the centrifugal force from the classifying wheel and the suction force of the induced draft fan, separation of coarse and fine powders is realized. Coarse powders fall back into the crushing chamber by their own gravity for further grinding, while qualified fine powders follow the airflow into the cyclone collector. Fine dust is captured by the bag filter, and purified gas is discharged through the induced draft fan.
Feature:
1. Low energy consumption: Saves up to 30% energy compared to traditional mechanical crushers.
2. Built-in self-shunting micro-powder classifier: Ensures concentrated particle size distribution with no oversized particles in the final product.
3. Compact structure: Small footprint, saving installation space.
4. No material residue or dead corners in the crushing chamber: Easy to disassemble, clean, and sterilize; convenient for changing material types, meeting GMP requirements.
5. . Low-temperature, medium-free crushing: Especially suitable for materials with low ignition points, heat sensitivity, sugar content, or volatility.
6. Inert gas-compatible for flammable/explosive materials: Enables fully enclosed crushing using inert gas as the medium, with minimal inert gas loss due to recycling.
7. Wide grinding range: Finished particle size adjustable from 0.5 to 45μm; various models available with output ranging from 5 to 3000 kg/h.
8. Negative pressure operation: Dust-free production, ensuring a clean working environment.
9. High automation level: Stable performance and easy operation.
