Self-Tapping Screw - Philips Drive - Pan Head
Shanghai Kingpluse Industry Co., Ltd.
See what’s includedHide breakdown
- FOB goods (500)
- $25
- Ocean freight + handling (1.5 CBM)
- $880
- US duty (3.0%)
- $0.75
- Section 301 tariff (25.0%)
- $6.25
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 7318/8302/8301), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (500)
- $25
- Ocean freight + handling (1.5 CBM)
- $880
- US duty (3.0%)
- $0.75
- Section 301 tariff (25.0%)
- $6.25
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 7318/8302/8301), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Self-Tapping Screw - Philips Drive - Pan Head
Shanghai Kingpluse Industry Co., Ltd.See what’s includedHide breakdown
- FOB goods (500)
- $25
- Ocean freight + handling (1.5 CBM)
- $880
- US duty (3.0%)
- $0.75
- Section 301 tariff (25.0%)
- $6.25
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 7318/8302/8301), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (500)
- $25
- Ocean freight + handling (1.5 CBM)
- $880
- US duty (3.0%)
- $0.75
- Section 301 tariff (25.0%)
- $6.25
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 7318/8302/8301), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Materials: Low carbon steel
- Color: Black Phosphate, Zinc Plated, Yellow Zinc
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: Low carbon steel
- Color: Black Phosphate, Zinc Plated, Yellow Zinc
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | Low carbon steel |
|---|---|
| Color | Black Phosphate, Zinc Plated, Yellow Zinc |
Product details
| Materials | Low carbon steel |
|---|---|
| Color | Black Phosphate, Zinc Plated, Yellow Zinc |
From the supplier
Tencharacter groovePanSelf-Tapping Screws

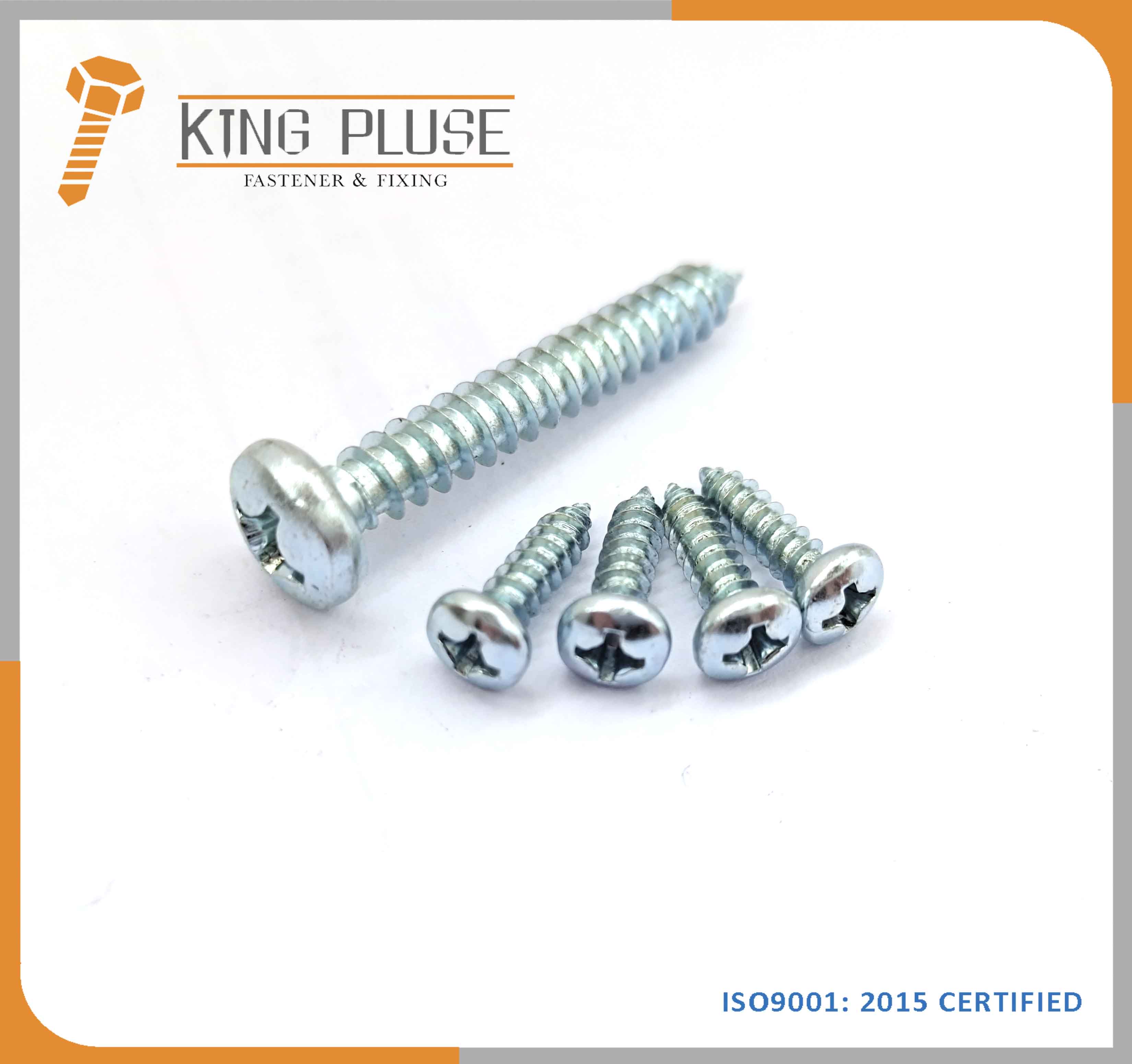

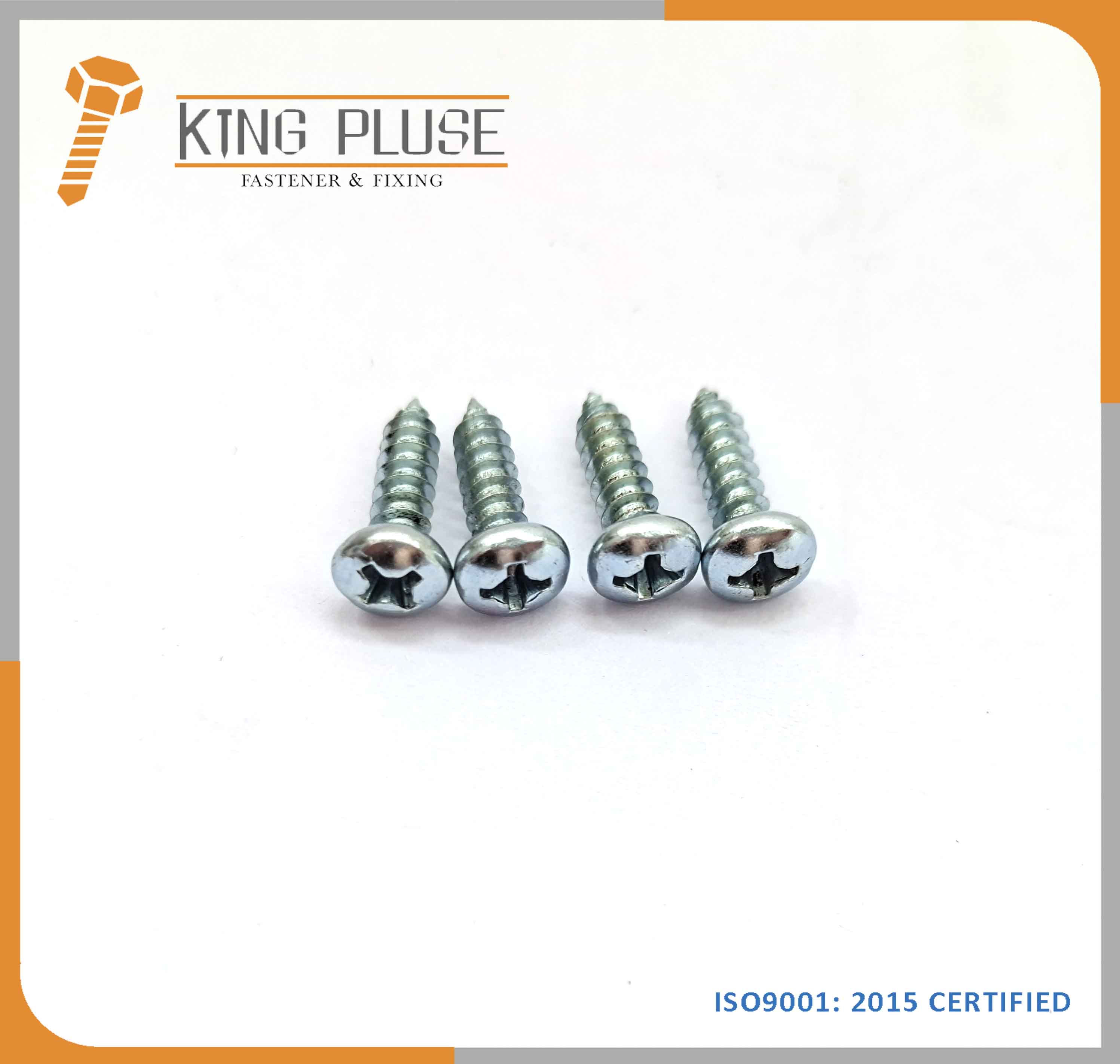

Self-Tapping Screw - Philips Drive - Pan Head
Tomillo Auto Aterrajador - Ranura Philips - Cabeza de Pan
Dimensions: DIN 7981
Self-tapping thread type C - DIN 7970 (ISO 1478)
Material: Low carbon steel
Treatment: Case-hardened
Dimensiones: DIN 7981
Rosca: Auto aterrajadora tipo C - DIN 7970 (ISO 1478)
Material: Acero bajo carbono
Tratamiento: Cementado
PART No: SCR0018

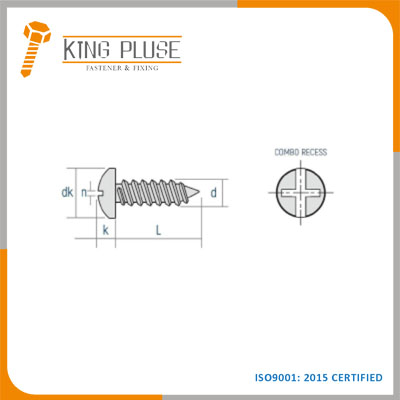

Dimensions / Dimensiones (mm)
d
dk (max.)
k
L (mm)
L (inch)
3.5 (#6)
6.9
1.85 - 2.10
9.5 - 40
3/8” – 1.1/2”
3.9 (#7)
7.5
2.00 – 2.25
9.5 – 40
3/8” – 1.1/2”
4.2 (#8)
8.2
2.15 – 2.45
13 – 45
1/2” – 1.3/4”
4.8 (#10)
9.5
2.50 – 2.80
13 – 45
1/2” – 1.3/4”
5.5 (#12)
10.80
2.85 – 3.20
16 – 50
5/8” – 2”
6.3 (#14)
12.50
3.30-3.65
19 - 75
3/4” – 3”
Surface Treatment:
Black Phosphorus
Blue & White Zinc
Yellow Zinc
FINISH:
Black Phosphate
Zinc Plated
Yellow Zinc
ACABADO:
Fosfato Negro
Zincado Blanco
Zincado Amarillo
From the supplier
Tencharacter groovePanSelf-Tapping Screws
Self-Tapping Screw - Philips Drive - Pan Head
Tomillo Auto Aterrajador - Ranura Philips - Cabeza de Pan
Dimensions: DIN 7981
Self-tapping thread type C - DIN 7970 (ISO 1478)
Material: Low carbon steel
Treatment: Case-hardened
Dimensiones: DIN 7981
Rosca: Auto aterrajadora tipo C - DIN 7970 (ISO 1478)
Material: Acero bajo carbono
Tratamiento: Cementado
PART No: SCR0018
Dimensions / Dimensiones (mm)
d
dk (max.)
k
L (mm)
L (inch)
3.5 (#6)
6.9
1.85 - 2.10
9.5 - 40
3/8” – 1.1/2”
3.9 (#7)
7.5
2.00 – 2.25
9.5 – 40
3/8” – 1.1/2”
4.2 (#8)
8.2
2.15 – 2.45
13 – 45
1/2” – 1.3/4”
4.8 (#10)
9.5
2.50 – 2.80
13 – 45
1/2” – 1.3/4”
5.5 (#12)
10.80
2.85 – 3.20
16 – 50
5/8” – 2”
6.3 (#14)
12.50
3.30-3.65
19 - 75
3/4” – 3”
Surface Treatment:
Black Phosphorus
Blue & White Zinc
Yellow Zinc
FINISH:
Black Phosphate
Zinc Plated
Yellow Zinc
ACABADO:
Fosfato Negro
Zincado Blanco
Zincado Amarillo
About the supplier
Main products: Bolts,Drilling Screw,Washer,Nut,Typeit,Hardware fittings,Jacks,Thread bars,Regular Screw,Structural Frame
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2011
Hardware & Tools exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2011
