About this product
- Materials: PVC,FEP,Copper-nickle alloy wire
- Size: 7.5
- Color: blue
- Exports to: Central Asia, USA and Canada, Russia, EU, Other European Countries, Others
- Made in: Anhui, China
About this product
- Materials: PVC,FEP,Copper-nickle alloy wire
- Size: 7.5
- Color: blue
- Exports to: Central Asia, USA and Canada, Russia, EU, Other European Countries, Others
- Made in: Anhui, China
Product details
| Materials | PVC,FEP,Copper-nickle alloy wire |
|---|---|
| Size | 7.5 |
| Color | blue |
From the supplier

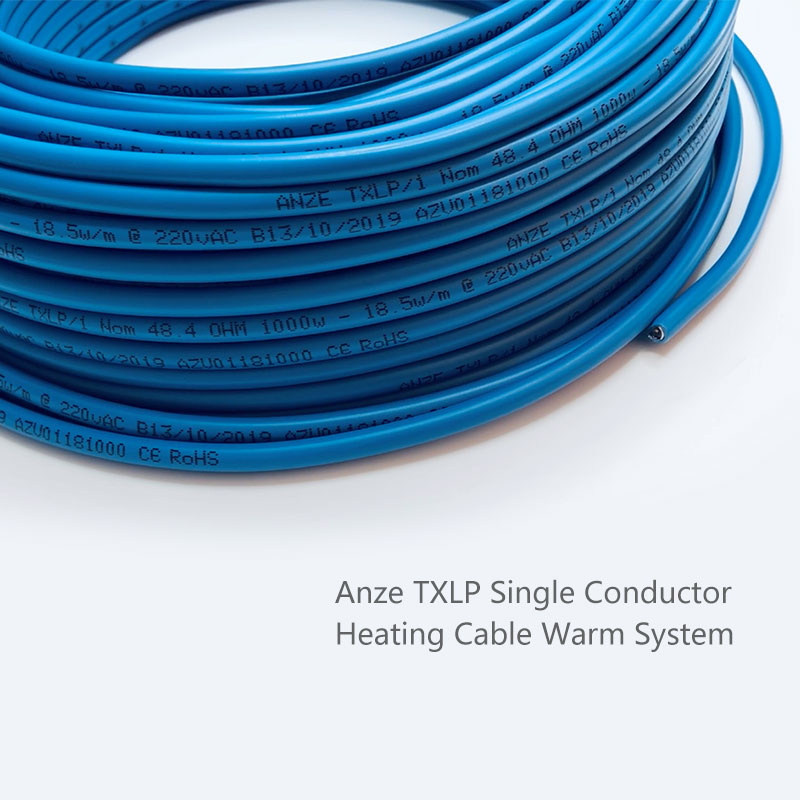

TXLP Single Conductor Heating Cable Warm System
This heating cable is suitable for almost any tile, marble or laminate floors flooring finish and in particular where the flooring (wood, carpet, vinyl) may be replaced from time to time.
It is widely used in indoor comfort floor heating and heating via floor, ice, snow melting for grounds, frost protection for roofs, pipe tracing, kinds of farms, etc
1. ideal for new constructions
2. Wide range of applications
3. Wide range of applications
Single conductor heating cable Technical Data:
Construction
Technical data
Rated voltage:220Vac or 230Vac
Power from 300 to 3300W
Single conductor resistance wire
Cable linear power:17w/m,18.5w/m
Average line diameter:7.5*5.8mm
Cont .operating temperature of outer jacker:65℃
PVC jacket which can resist corrosion and be antiflaming
Min bend radius:6*Cable Diameter
XLPE insulation which can resist high temperature
Toleranze on conductor resistance:-5%/+10%
Single/twin conductor resistance wire
Cold lead :2.25m
IVC Technology
ANZE IVC （Invisible connection of hot and cold cable）technology is the best waterproof technology in the world.
Single heating Cable Size Guide:
Code
Power(W)
Length (m)
Liner Load
Resistance
(W/m)
(Ω)
AV01183150
3150
170.3
18.5
15.4
AV01182800
2800
151.4
18.5
17.3
AV01182600
2600
140.5
18.5
18.6
AV01182400
2400
129.7
18.5
20.2
AV01182200
2200
118.9
18.5
22
AV01182000
2000
108.1
18.5
24.2
AV01181760
1760
95.1
18.5
27.5
AV01181600
1600
86.5
18.5
30.3
AV01181400
1400
75.7
18.5
34.6
AV01181200
1200
64.9
18.5
40.3
AV01181000
1000
54.1
18.5
48.4
AV01180850
850
45.9
18.5
56.9
AV01180700
700
37.8
18.5
69.1
AV01180600
600
32.4
18.5
80.7
AV01180500
500
27
18.5
96.8
AV01180400
400
21.6
18.5
121
AV01180300
300
16.2
18.5
161.3
Code
Power
Length (m)
Liner Load
Resistance
(W)
(W/m)
(Ω)
AV01173100
3100
182.4
17
15.6
AV01172600
2600
152.9
17
18.6
AV01172200
2200
129.4
17
22
AV01171750
1750
102.9
17
27.7
AV01171400
1400
82.4
17
34.6
AV01171250
1250
73.5
17
38.7
AV01171000
1000
58.8
17
48.4
AV01170850
850
50
17
56.9
AV01170700
700
41.2
17
69.1
AV01170600
600
35.3
17
80.7
AV01170500
500
29.4
17
96.8
AV01170400
400
23.5
17
121
AV01170300
300
17.6
17
161.3
