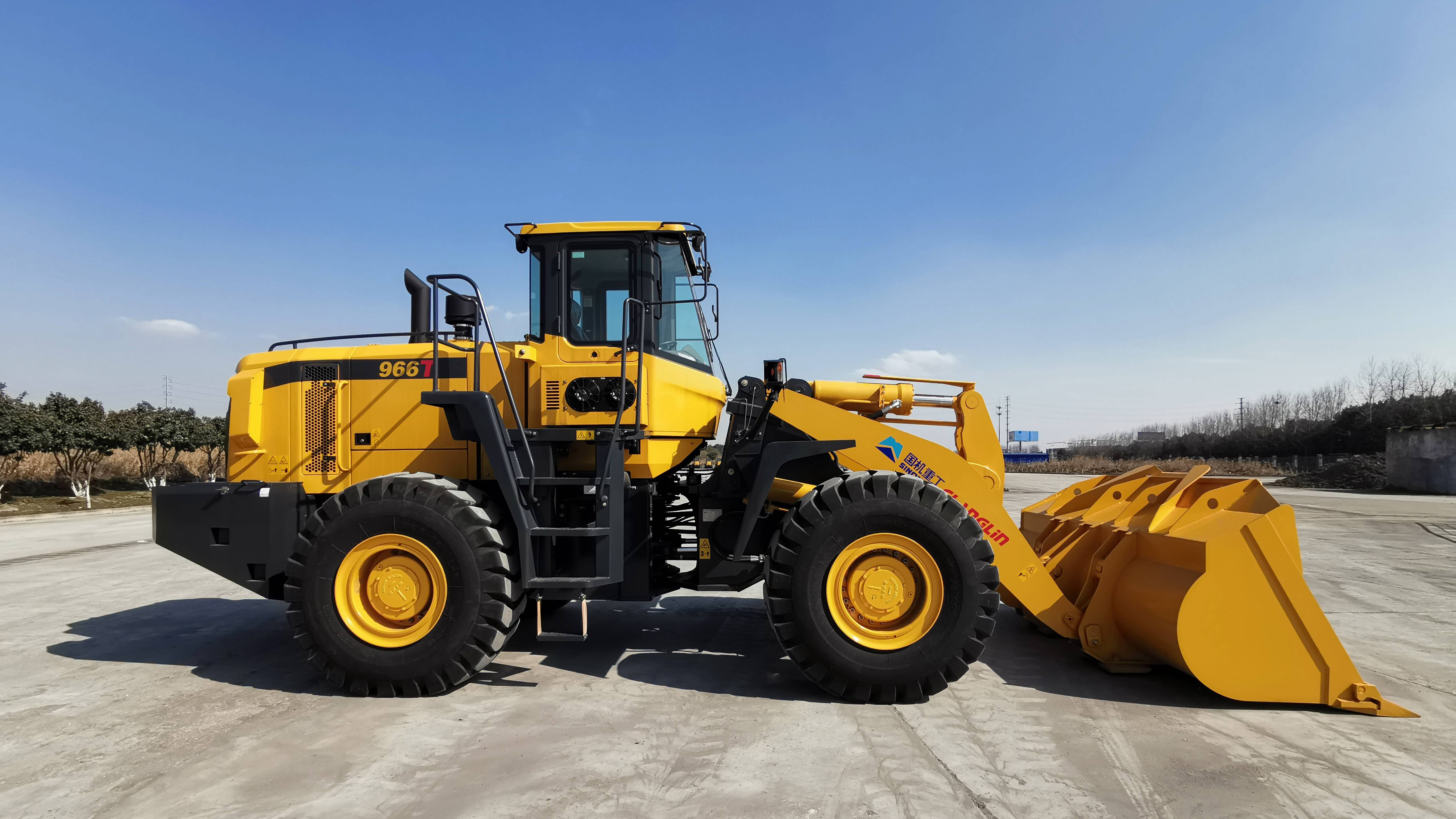

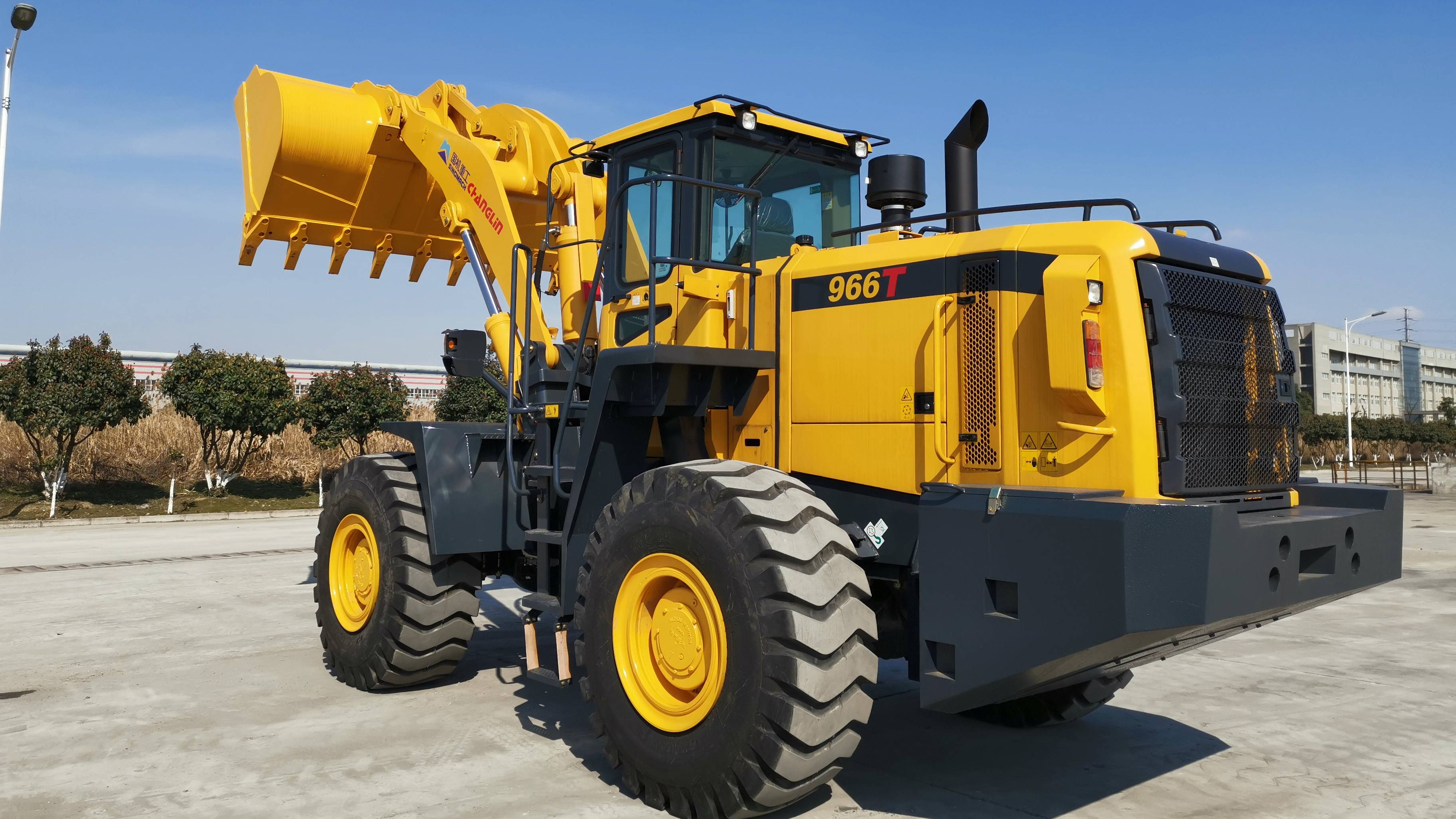

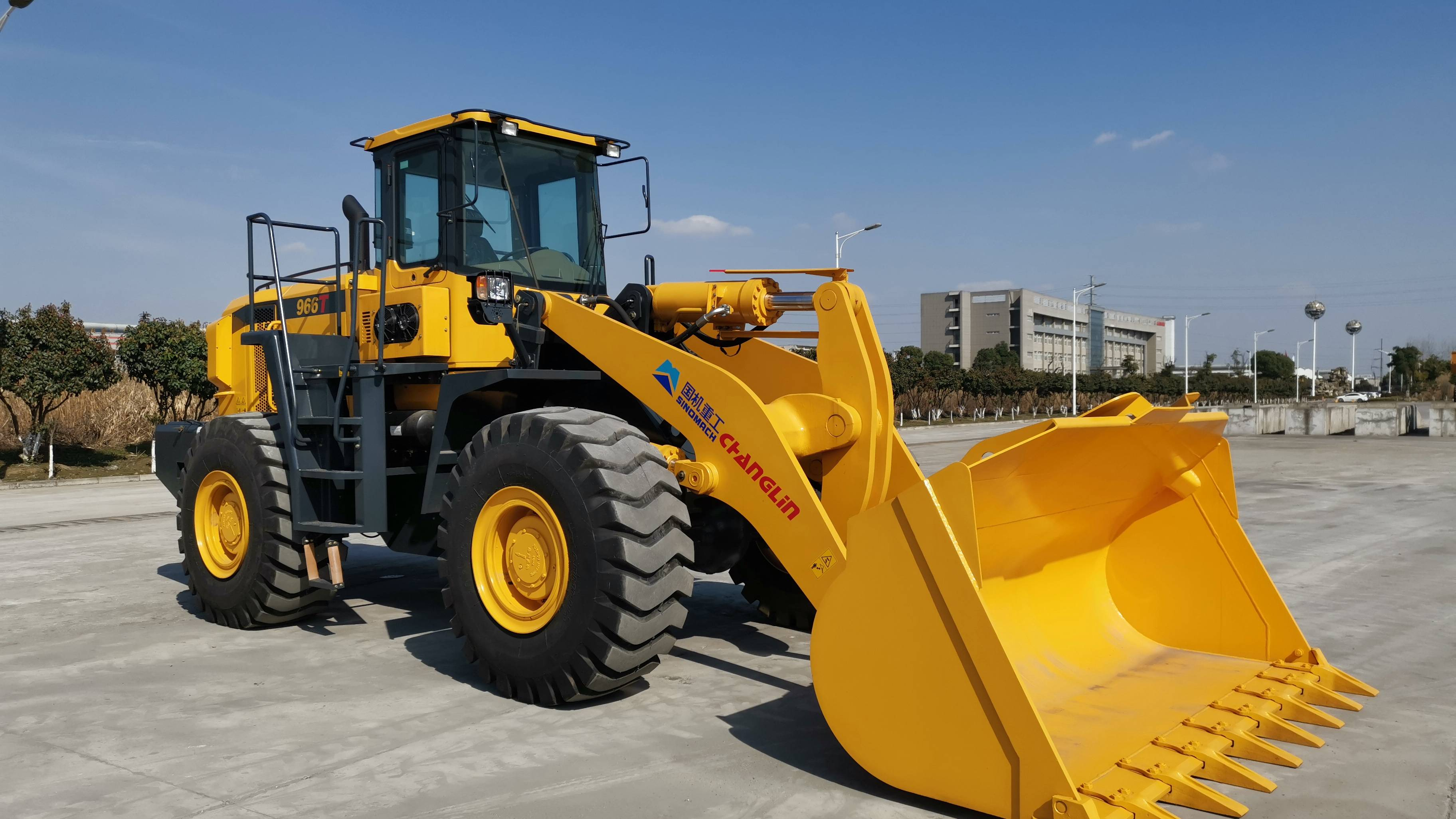

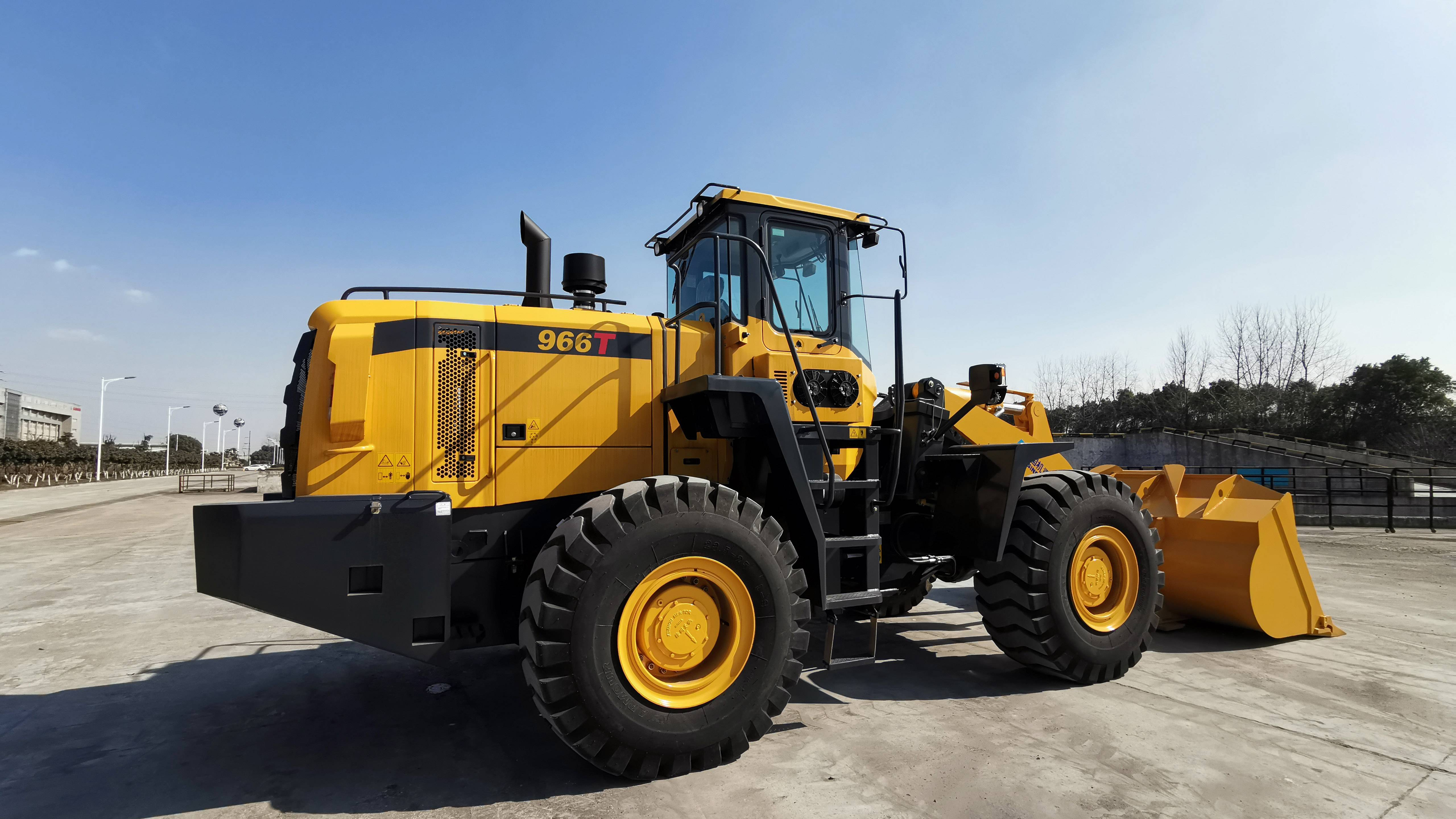

SINOMACH Wheel Loader 966T
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
SINOMACH Wheel Loader 966T
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Automatic grade: OtherNon Automation
- Customized: Non-CustomizedOtherCustomized
- Power source: OtherGasoline
- Walking mode: WheeledCrawlerOther
- Engine type: OtherDiesel Engine
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Changhzou, Jiangsu, China
About this product
- Automatic grade: OtherNon Automation
- Customized: Non-CustomizedOtherCustomized
- Power source: OtherGasoline
- Walking mode: WheeledCrawlerOther
- Engine type: OtherDiesel Engine
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Changhzou, Jiangsu, China
Product details
| Automatic grade | OtherNon Automation |
|---|---|
| Customized | Non-CustomizedOtherCustomized |
| Power source | OtherGasoline |
| Walking mode | WheeledCrawlerOther |
| Engine type | OtherDiesel Engine |
From the supplier
Overall Dimension Total size
1
Length(with bucket on ground) Total length (with bucket on ground)8714(mm)
2
Width(to outside of wheels) Total width (to outside of tire)2965(mm)
3
Bucket width Bucket width3048(mm)
4
Height(To the top of the cab)3550(mm)
5
Wheel base3300(mm)
6
Min. Minimum ground clearance498(mm)?
Technical Specification Performance Parameters
1
Rated load6000(Kg)
2
Operating weight19500KG
3
Rated bucket capacity3.7(m3), optional 2.6-5.0 (m3)
4
Max. dump clearance Maximum unloading height3393(mm)
5
Dump reach unloading distance1365(mm)
6
Min. turning radius(wheel) minimum outer turning radius6350(mm)
Diesel engine engine
1
ModelShangChai SC11CB240.1G2B1
2
Type formDirect injection. direct injection
3
Rated output Rated power175 (kW)
5
Total exhaust of cylinder10.5(L)
9
Rated speed2200(r/min)
10
Max. Torque Maximum torque912(N.M)@1400 r/min
Transmission System
1
ModelZF ZF 4BP210
2
Type form3-elements single stage
three-phase single-stage
3
Gear shift position4F, 3R front four rear three gears
4
Speed (F/R)
Forward：6.78/13.24/24.38/37.45km/h
Reverse：7.15/13.93/25.48km/h
5
Max. Drawing force Maximum traction180kN
6
Size of tire model23.5-25-20PR
About the supplier
- ✓Exhibited at 2 recent Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 1999
- ✓1 certificate on file
- Exhibited at 2 recent Canton Fairs
- Foreign Trade Company
- Founded 1999
- 1 certificate on file
