1. Engine

• High-Pressure Common-Rail Engine: Standard configuration with renowned brand, high torque, low fuel consumption, stable performance, high reliability. Convenient after-sales service and spare parts availability. Optional international brands such as Cummins, Volvo, etc. Emission standards meet EU Stage V, US EPA Tier 4, China IV, China III and other requirements.

2. Hydraulic system

• Full hydraulic load-sensing steering system, rear steering axle with large steering angle, small turning radius, light and flexible steering.
• Dual Pump Converging Hydraulic System, Significantly Reduces Fuel Consumption and Energy Cost

3. Drive Axle

• Standard Configuration With Domestic Well-Known Heavy-Duty Drive Axle, Optional German Imported Kessler Drive Axle

4. Transmission

• Standard Renowned Domestic Transmission, Smoother Shifting, Safer Operation, Optional German ZF Transmission

5. Door Frame

• High-strength structural steel frame, C/J/L cross-section combination, FEM-analyzed, large safety factor

6. Frame

• Cooperate with Haixi Research Institute of Chinese Academy of Sciences on Overall Structural Optimization Solution, performing stiffness verification, strength calculation, fatigue life estimation for forklifts, comprehensively using finite element mechanical analysis, stress cloud simulation calculations, optimizing structural design, ensuring product reliability and durability.

7. Cab

• Luxury Wide-View Cabin with Sunroof, Low Noise, Good Sealing, Easy All-Round Driver Observation
• Built-in heating and cooling air conditioning, fire extinguisher, aviation OPS seats, ergonomic, comfortable and safe

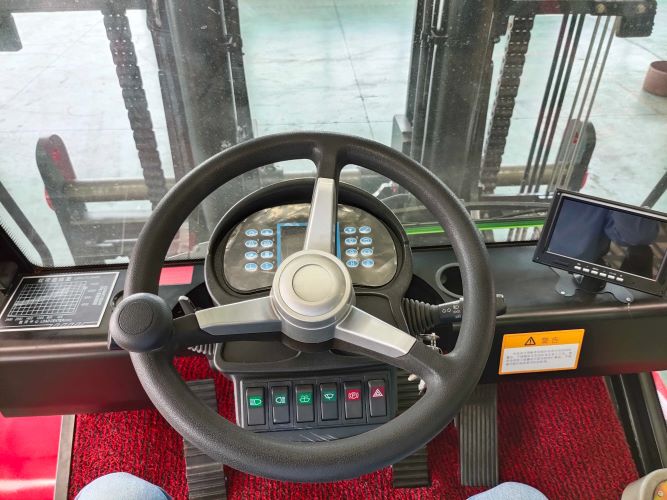

• Adjustable Steering Box, Aviation-style Handle Pilot Operation, Light and Flexible Control, More Comfortable Seating
• Equipped with multi-function LCD monitor, fully view engine operating status (RPM, oil pressure, oil temperature, water temperature, water level, etc.).

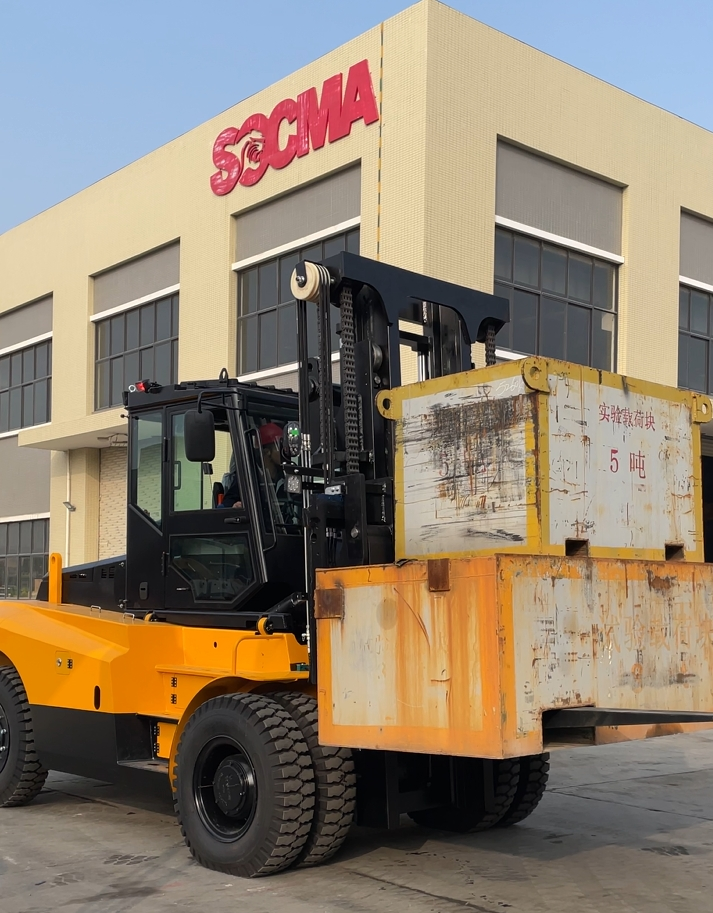

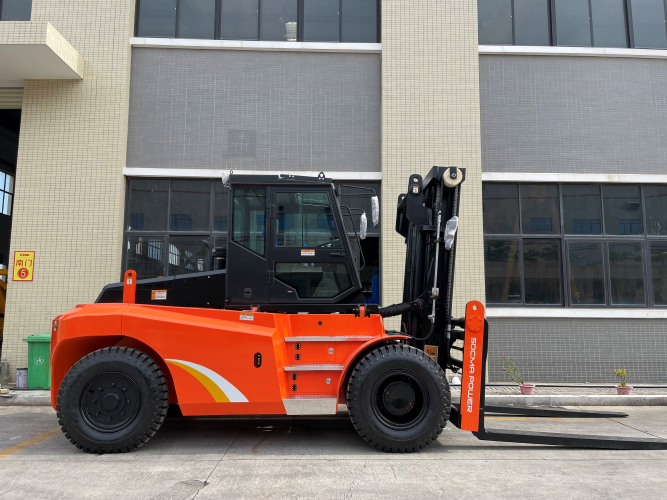

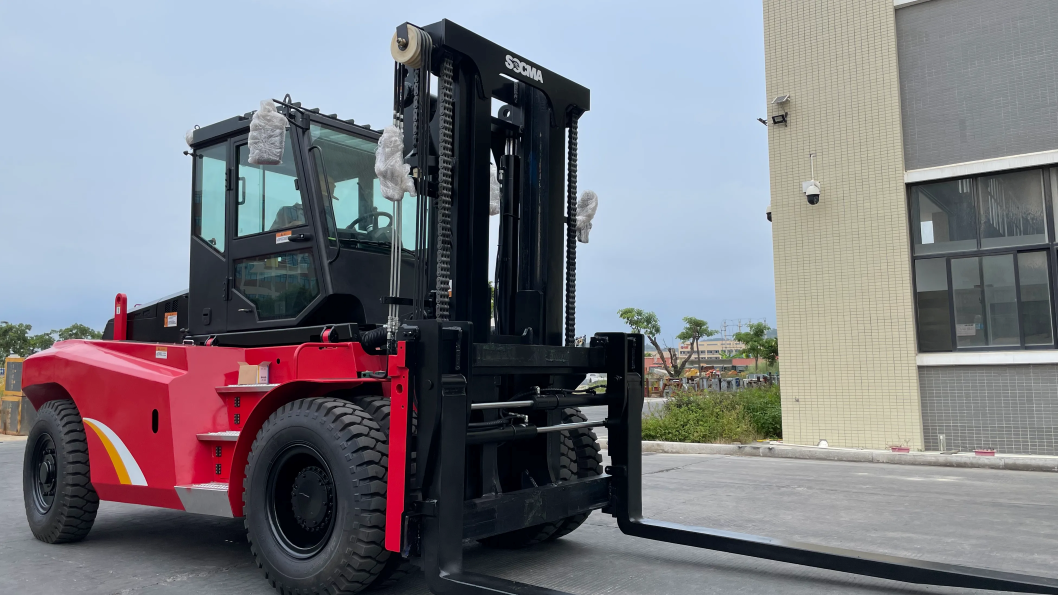

• Subtitle:Internal Combustion Counterbalance Forklift
• Loading Capacity:12000
• Total Vehicle Weight:14500
• Power Type:Diesel
• Power:100

Item Vehicle Model Unit HNF120-600-A Features Rated Load kg 12000 Load Center Distance mm 600 Wheelbase mm 2850 Weight Curb Weight kg 14500
Basic Dimensions Mast/Fork Forward/Backward Tilt Angle
Mast/carriage tilt angle(front/rear) Degree (° ) 6\12 Mast Collapse Height
Height of mast，lowered mm 2850 Standard lift height
Lift height mm 3000 Roof Rack Height (Cab Height)
Height to head guard(height to cab) mm 2850 Total Length (Excl. Forklift Prongs)
Overall length(without forks) mm 4410 Overall Width mm 2400 Min. Turning Radius mm 5100 Performance Parameters Operating Speed (Full Load/No Load)
Travel speed(loaded/unloaded) mm 21/25 (Front II/Rear II) *Max Lifting Speed (Full Load/No Load)
Max.lifting speed(loaded/unloaded) mm/s 310/340 Engine
Engine Engine (National Standard IV) - Yuchai Engine Rated Output/Speed kW/rpm 100/2200 Engine (National Standard III) - Dongfeng Cummins Rated Output/Speed kW/rpm 97/2200 Engine (Euro V) - Yuchai Engine Rated Output/Speed kW/rpm 110//2200

Note: Due to technical improvements, this data may differ from the actual product. If there are discrepancies, the product shall prevail

Note:the above date are subject to change without prior notice.
