About this product
- Materials: steel
- Size: 3000*1800*1700
- Color: blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: steel
- Size: 3000*1800*1700
- Color: blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | steel |
|---|---|
| Size | 3000*1800*1700 |
| Color | blue |
Product details
| Materials | steel |
|---|---|
| Size | 3000*1800*1700 |
| Color | blue |
From the supplier
Introduction

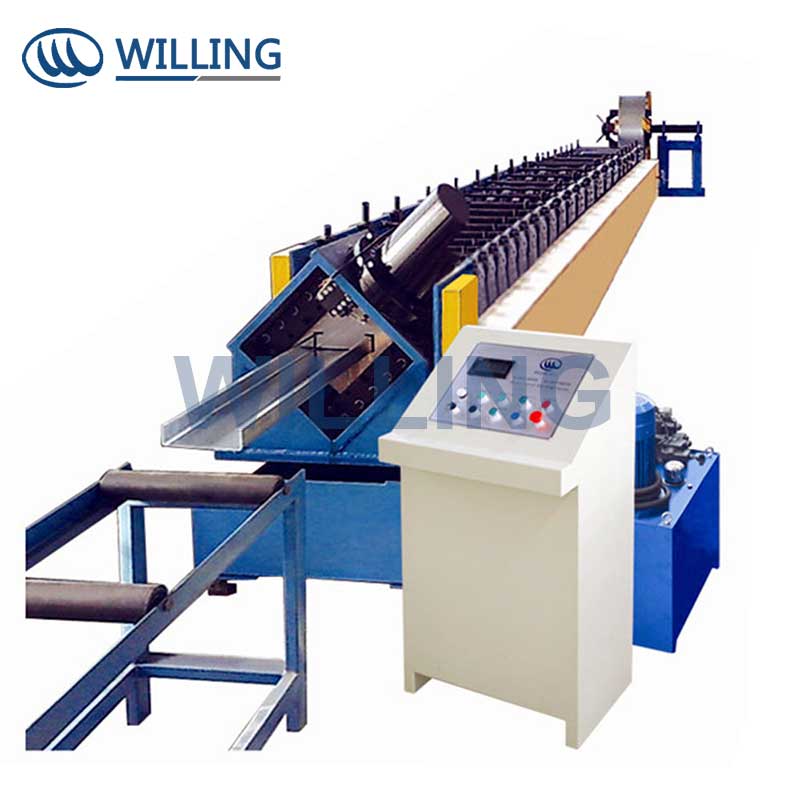

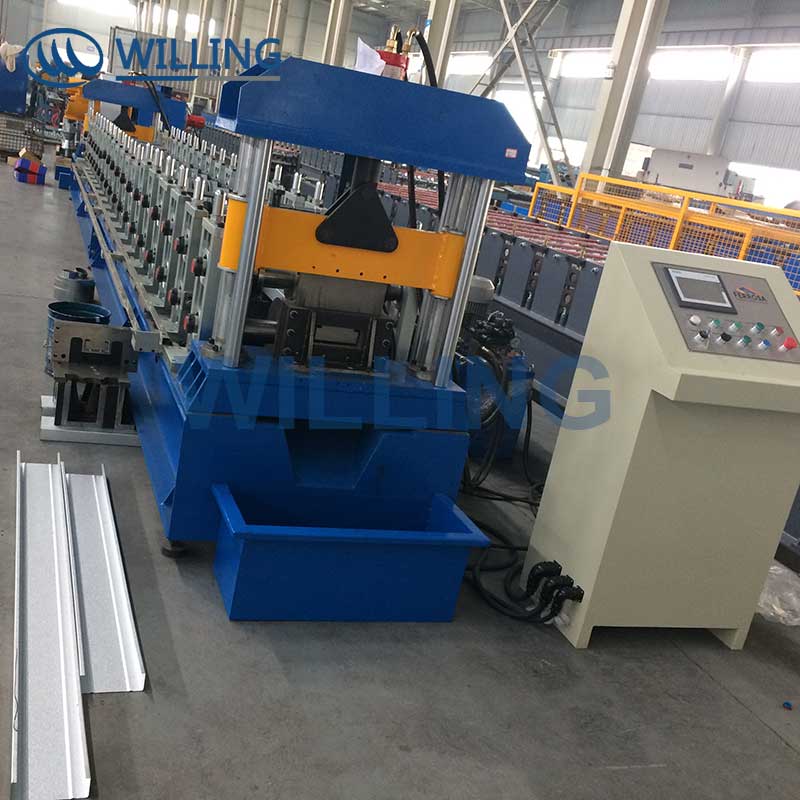

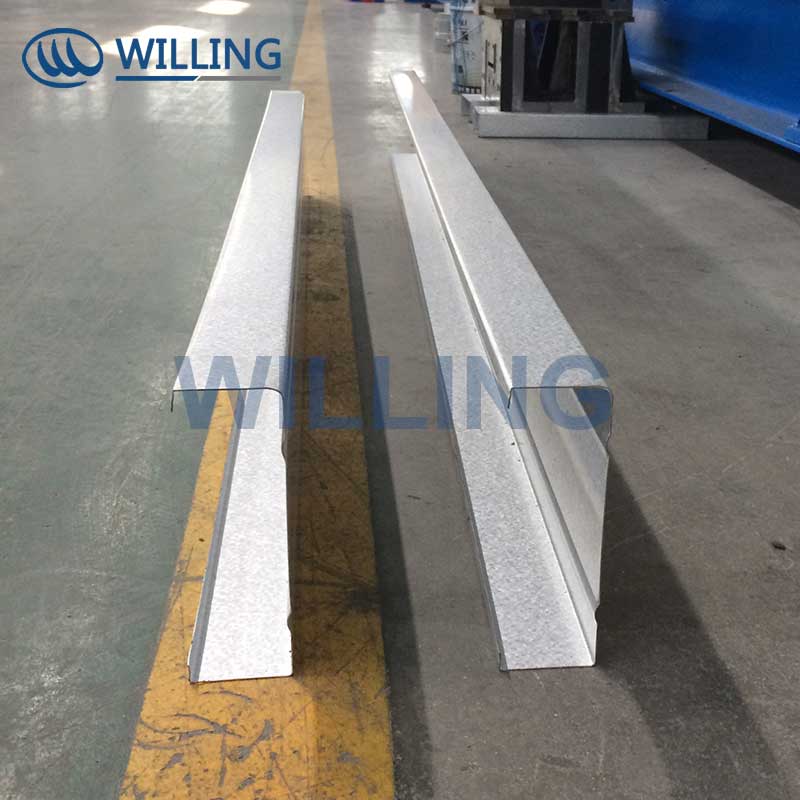

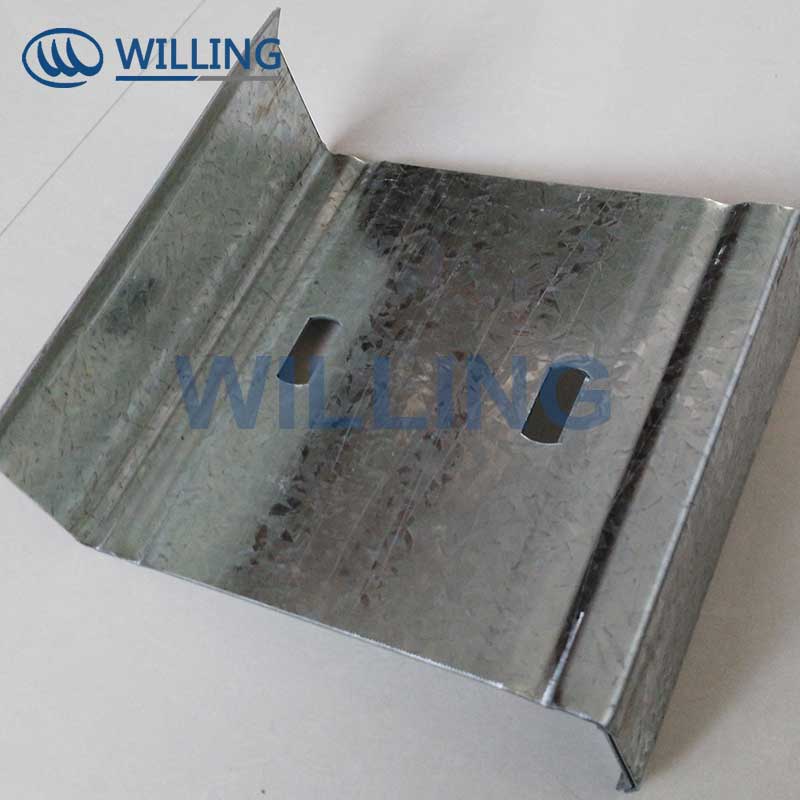

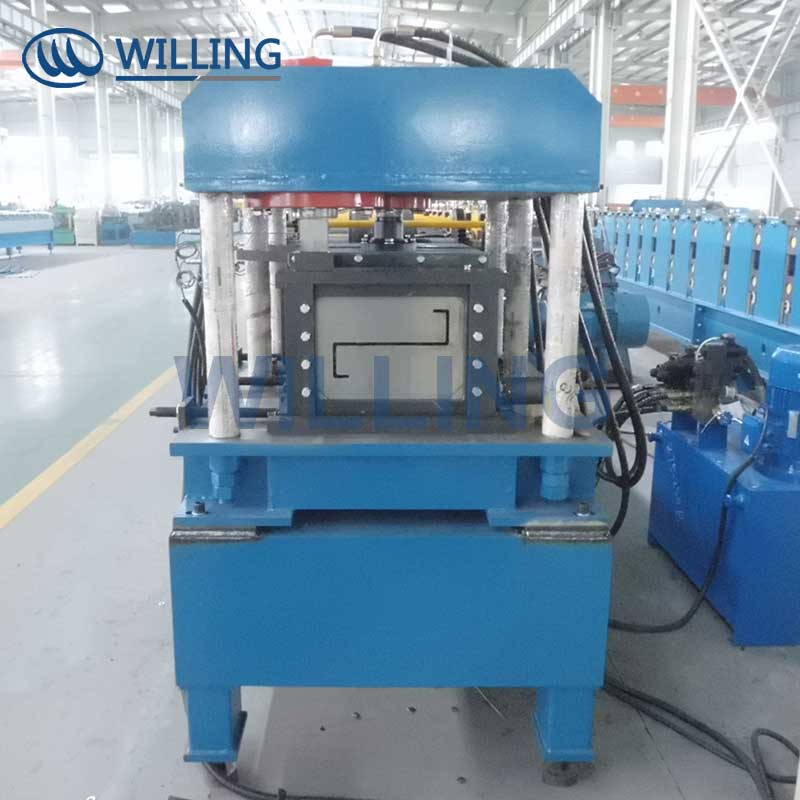

C or Z shape purlin machine is made for steel structure frame. Through changing, this product line can make the change of the shape C or Z purlin, besides change different sizes of C or Z shape purlin. This change for shape and sizes of C/Z purlin can be realized by automatic mode, or manual adjusting mode.

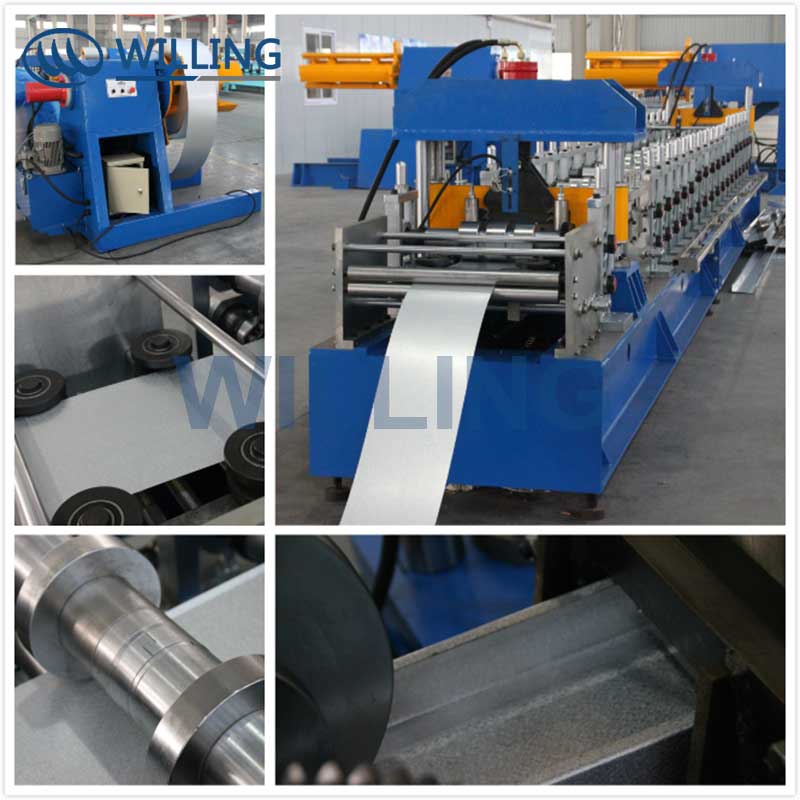

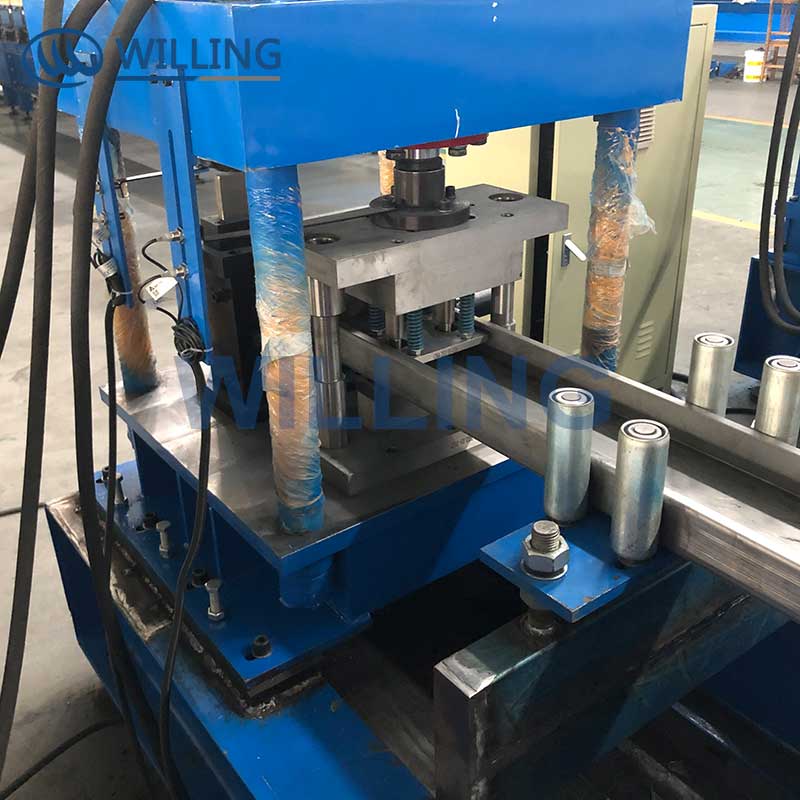

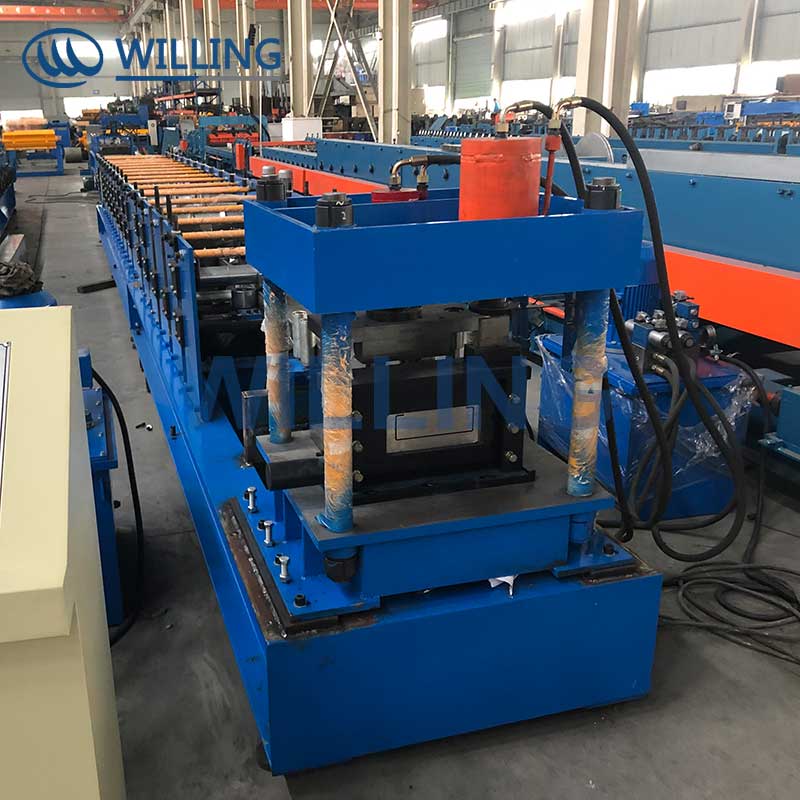

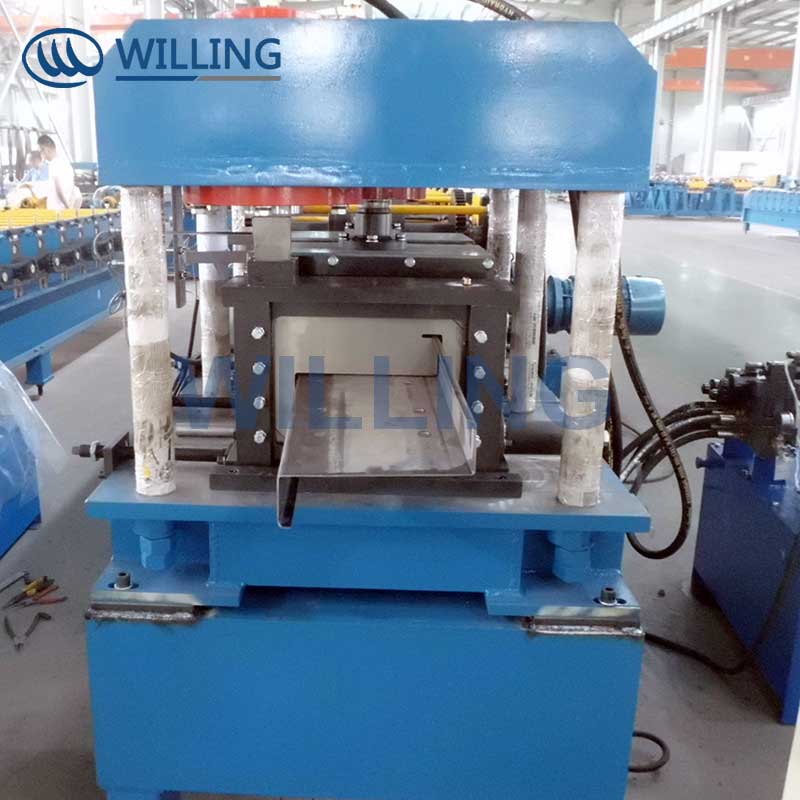

C/Z shape purlin product line consists of uncoiling system, straightening system, hole punching system, shearing system, roll forming system, products support table, hydraulic system, automatic controlling system, and so on. It’s a high efficiency equipment of making purlin, which is suitable for current enterprises.
Working Flow
Uncoiling→Sheet Guiding→Straightening &Levelling→Hole Punching→Measuring Length &Shearing→Roll Forming→Sheet to support table.
Item
Parameters
Profile
C and Z purlin
Material
Type
Steel strip
（mm）Thickness
1.6-3.2
1.6-2.6
（Mpa）Yield stress
230-300
300-350
Max. Forming speed（m/min）
30
Roller material
GCR15; D2
Roller driven type
Hydraulic motor driven
Controller
PLC
Operation
Touch screen and button
Hydraulic system pressure（Mpa）
25
Hydraulic station motor power（KW）
7.5
Total power（KW）
30
Total weight（Kg）
About 12000
From the supplier
Introduction
C or Z shape purlin machine is made for steel structure frame. Through changing, this product line can make the change of the shape C or Z purlin, besides change different sizes of C or Z shape purlin. This change for shape and sizes of C/Z purlin can be realized by automatic mode, or manual adjusting mode.
C/Z shape purlin product line consists of uncoiling system, straightening system, hole punching system, shearing system, roll forming system, products support table, hydraulic system, automatic controlling system, and so on. It’s a high efficiency equipment of making purlin, which is suitable for current enterprises.
Working Flow
Uncoiling→Sheet Guiding→Straightening &Levelling→Hole Punching→Measuring Length &Shearing→Roll Forming→Sheet to support table.
Item
Parameters
Profile
C and Z purlin
Material
Type
Steel strip
（mm）Thickness
1.6-3.2
1.6-2.6
（Mpa）Yield stress
230-300
300-350
Max. Forming speed（m/min）
30
Roller material
GCR15; D2
Roller driven type
Hydraulic motor driven
Controller
PLC
Operation
Touch screen and button
Hydraulic system pressure（Mpa）
25
Hydraulic station motor power（KW）
7.5
Total power（KW）
30
Total weight（Kg）
About 12000
