Product Description

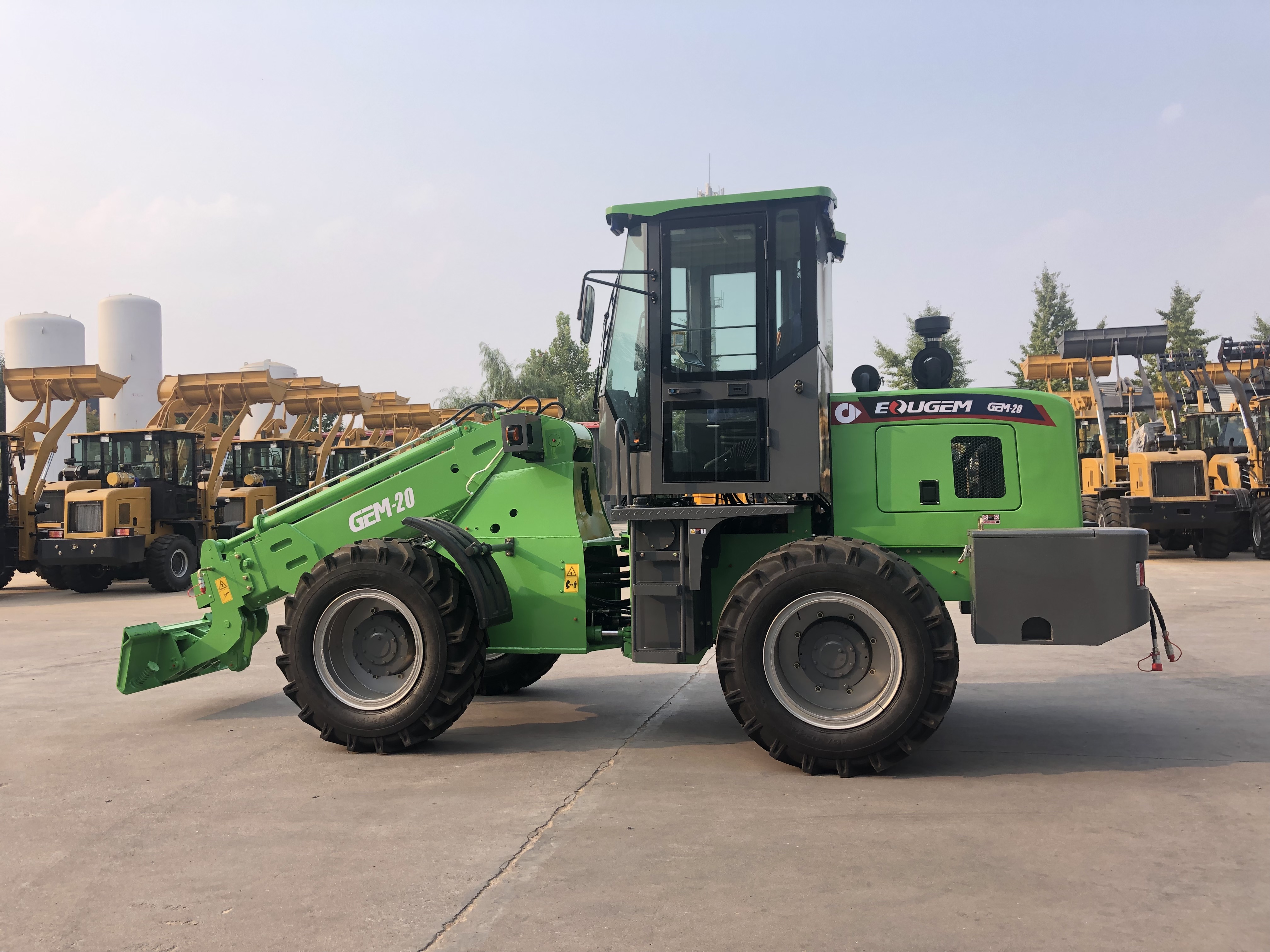

CE Main Standard Equipments Of GEM T2000 Telescopic Wheel Loader

1) Standard bucket
2) Yunnei brand 76kw Engine
3) Backward camera, USB, Radio
4) Closed luxury cabin
5) Joystick
6) Hydraulic pressure checking system

7) Adjustable seat

8) Digital display instrument
9) 16/90-24 tyres
10) Floating function
11) Free service spare parts

12) Safety lock

Options For GEM T2000 Telescopic Wheel Loader

1) Quick hitch
2) 16/90-24 Ag tyre
3) E4 lamp
4) LED working lamp
5) Pallet fork

6) Deutz  engine

    Cummins  engine

7) All kinds of attachments

Specifications

Bucket Capacity

1.0 m3

Rated Load Capacity

2000 kg

Operating Weight

6370 kg

Max. Drawbar Pull

55 kN

Max. Breakout Force

58 kN

Max. Gradeability

30°

Min. Turning Radius (Outside of Bucket)

5360 mm

Min. Turning Radius (Outer Tire)

4550 mm

Cycle Time (Bucket lifting, tipping and lowering)

4.7s

Lifting Height

4670 mm

Dumping height

3873 mm

Wheelbase

2573 mm

Standard Dimensions (L×W×H) (mm)

6687*2015*2900

Engine

Model

YunneiI/Deutz/cummins

Type

In-line, vertical, water cooling, 4-stroke

Rated Power

 76 kW

Max. Torque

350 Nm

Torque Converter

YJ280B

Drive System

Type

Single stage, 3 elements, centripetal type

Transmission Type

Fixed axle, constant engaged power shift

Speed Gears

2 forward, 2 reverse gears

Max. Speed

30km/hr

Front/Rear Drive Axle

4WD, fixed front axle, swing rear axle(±12°)

Steering System

Type

Articulated frame, full hydraulic steering

Steering Angle (left/right)

38°±1

Hydraulic System

Hydraulic System Pressure

16MPa

Operation Mode

Mechanical control

Brake System

Service Brake

Single circuit, air-over-oil caliper disc brake

Parking & Emergency Brake

Pneumatic internal expanding shoe brake

Tires

Size

16/70-24

Volume

Fuel Tank

80 L

Hydraulic System

 80 L

WHY CUSTOMERS CHOOSE US?

1, Japanese steel plate, laser cutting, high strength, long service life.
2, high quality hydraulic working pump, hydraulic cylinder.
3, brand-name gearbox, hydraulic torque converter.
4, professional design team, the design is more reasonable, the appearance is beautiful, and the kinetic energy conversion is reasonable.
5, brand-name engine,yanmar brand, famous Jananese engine.
6, custom high pressure hose to ensure no oil leakage during use.
7, very low failure rate, saving your maintenance costs and time.Less malfunction means making money.

Our factory

The company has over 200 engineering technicians, a strong technical strength. According to the development strategy, in early 2011, Phase II project started to be built in Caterpillar Industrial Park. The project total investment is 320 million yuan, covers an area of 35000 square meters, is planning to build a high standard modern production base, including workshop, R&D center and administrative office.The project is expected to be completed at the end of 2012. Annual growth in sales is expected to be more than 230 million yuan after the project is put into production.

The company is mainly engaged in the production and management of medium and small loaders and other engineering machinery. Our leading products are Oujin 915, 916, 918, 920, 926, 928, 929, 930, 630 series of wheel loaders, OJ60 crawler hydraulic excavator, Oujin Grass-grasper, Log-grasper, Pushing Snowboard and other engineering machinery deformation products. With reliable quality and perfect after-sale service, the demand for our products exceeds the supply in domestic and overseas. It has become a strong contingent in machinery industry in recent years. Furthermore, our company has also developed rapidly in other fields, such as chemical products, transport and logistics, metal processing, crushing machine, etc. Our company are developing steadily and orderly in the direction of diversification and collectivization.

The enterprise of Oujin Machinery was accredited ISO9001:2000 by international quality management system. We absorb the advanced technology and management experience from the same industry at home and abroad. At the same time, with our own tireless efforts and strict management, we adhere to the concept "committed to human science and technology, creating the brand legend", are always in the front of the industry.

We warmly welcome friends from all walks of life to qingzhou to negotiate business, exchange experiences. May our products give a helping hand in your way to success!

Our customers

Our certification

Our service

RFQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment=1000USD, 30% T/T in advance ,balance before shippment.
