About this product
- Size: 55*45
- Color: red
- Arc-extinguishing medium: Other
- Installation: Insert
- Certification: CCC
- Poles number: 3
- Exports to: Mainland China, Africa, Southeast Asia, South Asia, Latin America, Russia, EU, Other European Countries
About this product
- Size: 55*45
- Color: red
- Arc-extinguishing medium: Other
- Installation: Insert
- Certification: CCC
- Poles number: 3
- Exports to: Mainland China, Africa, Southeast Asia, South Asia, Latin America, Russia, EU, Other European Countries
Product details
| Size | 55*45 |
|---|---|
| Color | red |
| Arc-extinguishing medium | Other |
| Installation | Insert |
| Certification | CCC |
| Poles number | 3 |
| Structure | Other |
Product details
| Size | 55*45 |
|---|---|
| Color | red |
| Arc-extinguishing medium | Other |
| Installation | Insert |
| Certification | CCC |
| Poles number | 3 |
| Structure | Other |
From the supplier

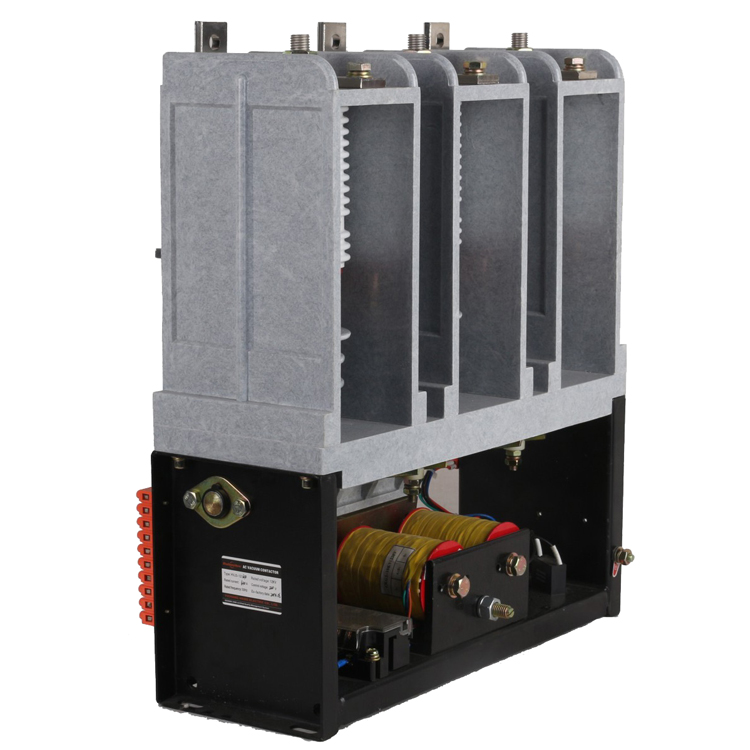

Vacuum ContaCTor HVJ3-7.2/630 from JUCRO Electric
1. General
The Vacuum Contactor is mainly used in the power system with AC 50Hz and rated voltage 7.2kV, for making or breaking circuit and to make electromagnetic starter with suitable protective device and F-C Switchgear.
2. Working condition:
1) Altitude should not be over 1,000m;
2) Ambient temperature: -5~40°C;
3) Average temperature in 24 hour not exceed 35°C;
4) When the highest temperature is 40°C, the relative humidity should not be higher than 50%;
5) Pollution degree: class 3
.Main models and technical parameters
Model
Rated voltage(v)
Rated current
（Main circuit）(A)
Parameter of main contacts
Power frequency
Withstand voltage
V(effective value)
Main
circuit
Control
circuit
Clearance
(mm)
Over travel
(mm)
pressure
(N)
Main
circuit
Auxiliary
circuit
Control
circuit
HVJ3-7.2/630
7200
380/220/110
630
3.5±0.3
2±0.2
>85N
32000
2500
2000
Model
Making capacity
Breaking capacity
Limit opening current(A)
Overload
Mechanism life
Weight(kg)
HVJ3-7.2/630
10In,100times
8In,25times
10In
8In,10s
1million times
25.5
Note: “In” is the rated current of main circuit
From the supplier
Vacuum ContaCTor HVJ3-7.2/630 from JUCRO Electric
1. General
The Vacuum Contactor is mainly used in the power system with AC 50Hz and rated voltage 7.2kV, for making or breaking circuit and to make electromagnetic starter with suitable protective device and F-C Switchgear.
2. Working condition:
1) Altitude should not be over 1,000m;
2) Ambient temperature: -5~40°C;
3) Average temperature in 24 hour not exceed 35°C;
4) When the highest temperature is 40°C, the relative humidity should not be higher than 50%;
5) Pollution degree: class 3
.Main models and technical parameters
Model
Rated voltage(v)
Rated current
（Main circuit）(A)
Parameter of main contacts
Power frequency
Withstand voltage
V(effective value)
Main
circuit
Control
circuit
Clearance
(mm)
Over travel
(mm)
pressure
(N)
Main
circuit
Auxiliary
circuit
Control
circuit
HVJ3-7.2/630
7200
380/220/110
630
3.5±0.3
2±0.2
>85N
32000
2500
2000
Model
Making capacity
Breaking capacity
Limit opening current(A)
Overload
Mechanism life
Weight(kg)
HVJ3-7.2/630
10In,100times
8In,25times
10In
8In,10s
1million times
25.5
Note: “In” is the rated current of main circuit
