Overview
Quick DetailsWarranty:1 YEARCondition:New, NewApplicable Industries:Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works Local Service Location:Canada, United States, MexicoShowroom Location:NoneMaterial:SteelPlace of Origin:Shandong, ChinaBrand Name:TSEDimension(L*W*H):CustomizedAfter-sales Service Provided:Online supportUsage:Grain storageSpecification type:1000 kindsSupply AbilitySupply Ability:100 Set/Sets per YearPackaging & DeliveryPackaging DetailsWooden box packing, or as you required.PortQingdao PortLead Time :Quantity(Sets)1 - 100000>100000Est. Time(days)30To be negotiated





Grain storage flour silos (also called grain storage bins) are the efficient and economical facilities to handle your grains, which offer protection from outside insects and other affects as well as provide handling management conveniently.

All of our steel flour silos can be designed and installed with heat retaining layer to meet your special insulated grain storage demands.

Our innovative, high-quality flat bottom flour silos, hopper bottom flour silos, powder flour silos, feed flour silos, bucket elevators, dust collectors and grain storage control system are integrated as a system to satisfy your grain storage requirements.

Description of Power Silos

Powder silos (Powder bins) are widely used to hold and discharge flour and other powder materials such as cement and PFA (Pulverized Fuel Ash). Powder is not easy to store and deliver. Steel powder storage silo is your good choice to hold and discharge weighty powder materials. Flour is such kind of powder as the basic ingredient for many food products and stored in silos up to 20 meters high. The filling and emptying of powder silo is often performed by pneumatic systems that transport the stored powder from the large external powder bins and deposit them in smaller holding vessels for further processing. The filling and emptying processes are controlled by reliable level measurement. Pressure monitoring is also required in the pneumatic conveying pipelines.  Elevators or conveyors can also be used to handling  powder transporting.Powder steel silo is your good choice to hold and discharge weighty powder materials.  Powder storage silos have the characteristics of lower cost, shorter construction time and unloading materials easily.  The capacity of Shelley steel powder storage silos ranges from 20m³ to 800m³.



Features of Powder Silos

• Perfect sealing assures its efficient working performance.
• convenient installation.
• Waterproof and moisture-proof.
• Screw connection on inner side, anti-corrosion.
• Can be customized.
• Safe and reliable.
• Unhindered discharge, no blocking.
•




Components of Powder Silos

Powder silo (powder bin) includes the silo roof, silo body and silo hopper with legs. Powder silo roof, body, hopper are made of carbon steel, with food grade painting, make sure the safety of the flour; On silo roof, there are flour inlets, safety valve, Vibration filter, Explosion-proof vent, manhole. On silo body, there are ladder, ladder safety guard, level indicator.   Powder silo leg is made of round pipe or H beam steel (with normal painting), based on the silo size. According to the customer’s requirement, Powder silo also can be made with stainless steel.

Powder silo can be used indoor or outdoor, round type or square type, no normal specifications. Shelley Engineering can design the flour silo to satisfy the your requirements.

 Applications of Powder SilosPowder silos are widely used in flour mill, flour plant, wheat maize farm, food processing plants or feed production lines, etc. They are also can store cement, powder, lime, gypsum, fly ash, different binder materials, gravel, limestone, sand and different chippers.

Production & Applications

In recent years, we had invested more than 3,000,000 dollars into our 9,000 square meters state-of-the-art manufacturing flour silo factory. Our modern factory is equipped with the most advanced machines like fiber laser cutting machines, metal steel sheet CNC bending machine and professional welding line, etc , which give us the power to keep high product quality, shorter delivery time and competitive cost to meet the demands of our worldwide customers. Most products had been kept up with the international forefront counterparts. Some of them have enjoyed leading position, especially grain storage controlling software and grain security system.

Hopper bottom silos are widely applied for the storage of grains (sunflower seeds, soy, maize, sorghum, rice, industrial products and other products, etc) and feed pellets for animal, poultry and fish that require special storage conditions. They can also provide temporary storage of wet grain as part of a grain drying plant and other buffer bin applications in silo plants. They are widely used in poultry farm, rice mill, flour mill, soybean-oil mill, animal feed mill plant and brewery plant.

7.3 series

Model

Volume (M³)

Ring Beam Height (M)

Diameter

(M)

Height of Eaves (M)

Total Height

Weight (T)

7.3×7

408

4.57

7.3

12.4

14.26

12.4

7.3×10

550

15.76

17.62

15

7.3×13

692

19.12

20.98

18.3



For more product information, please clickCONTACT US >

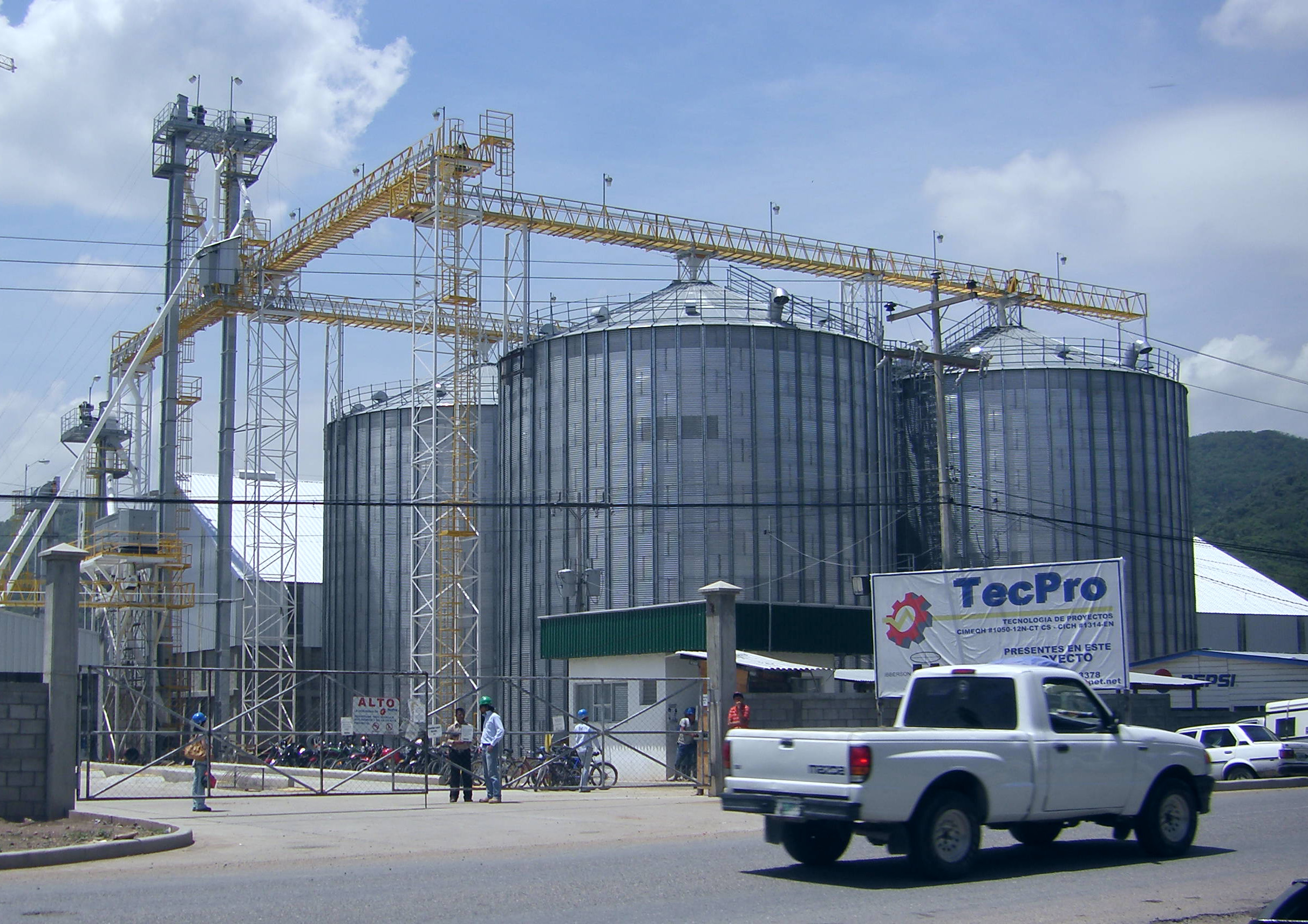

Some Successful Hopper Bottom Silo Projects

Our hopper bottom silo projects were successfully installed and run in Argentina, Australia, New Zealand, America, Uganda, Ethiopia, Honduras, Iran, India, Korea, Malaysia, Myanmar, Poland, Pakistan, South Africa, Sudan, Serbia, Thailand, Ukraine and Vietnam, etc.

Related Products

We also provide relevant supporting products

Accessory Equipments:

- Bucket Elevator with capacity from 1 tone/hour to 400 tone/hour - Chain Conveyor with capacity from 1 tone/hour to 400 tone/hour - Screw Conveyor with capacity from 1 tone/hour to 200 tone/hour - Elevator Towers - Electrical and Manuel controlled Slide gates - Distributors with 1 in 2/3/4/5/6 out - Catwalks - Spout Pipes

Machines:

- Drying Machines ( Tower Type and Horizontal Type ) with capacity from 5 tone/hour to 50 tone/hour

- Mill Machines with capacity from 5 tone/hour to 50 tone/hour

- Pellet Machines with capacity from 5 tone/hour to 50 tone/hour

-Level sensors, aeration system with centrifugal fan, temperature control system and sweep auger, dedusting system as an option.

*Send inquiry to learn more

TInstallation can be carried out in different ways

*If the client wants to install 10ton-1500ton steel hopper bottom flour silos by themselves, we could offer detailed instruction, and we'll give our quickest response to deal with any question in the process.

 *We could also send our engineer to supervise the installation process. The client could find local workers for the installation work and our engineer will help them during the process.

*If the client needs, we could send our installation team for the whole installation issue.

FAQ

FAQ

Q1: What certifications do you have?

A1: ISO certification, BV certification and CE certification.

Q2: What is the export customs code of your product?

A2: 7309000000

Q3. What is your payment method?

A3: 30% advance payment for foreign projects, full delivery.

Q4.Can you do custom design and production?

A4: The selection of prefabricated steel 10ton-1500ton steel hopper bottom flour silos is fixed, and the diameter cannot be changed. If other 10ton-1500ton steel hopper bottom flour silos such as flour 10ton-1500ton steel hopper bottom flour silos, cement 10ton-1500ton steel hopper bottom flour silos, and square 10ton-1500ton steel hopper bottom flour silos are required, they can be customized for production.

Q5. About installation, how to install? How much is the installation fee?

A5: Abroad: Generally 1-2 people guide the installation, each person 100 dollars per day.

Q6: What materials are used for your steel warehouse?

A6: At the top of the warehouse, the barrel is a galvanized steel sheet, the cone bottom with a diameter of 4.5m is galvanized sheet, and the cone bottom with a diameter of 4.5 to 11m is a carbon steel sheet.

Q7:What are the types of steel 10ton-1500ton steel hopper bottom flour silos in your company?

A7: We mainly have cone bottom steel 10ton-1500ton steel hopper bottom flour silos, flat bottom steel 10ton-1500ton steel hopper bottom flour silos, cement 10ton-1500ton steel hopper bottom flour silos and flour 10ton-1500ton steel hopper bottom flour silos.

Q8: Can you provide supporting equipment? What can be provided?

A8: Yes. Cleaning equipment includes cleaning screen, vibrating screen, dust removal equipment, and conveying equipment including hoist, scraper, belt conveyor, and screw conveyor.
